Exploded View ('03 Model)

NOTE: '04-06 models has no bulb replacement. Replace the gauge assembly.

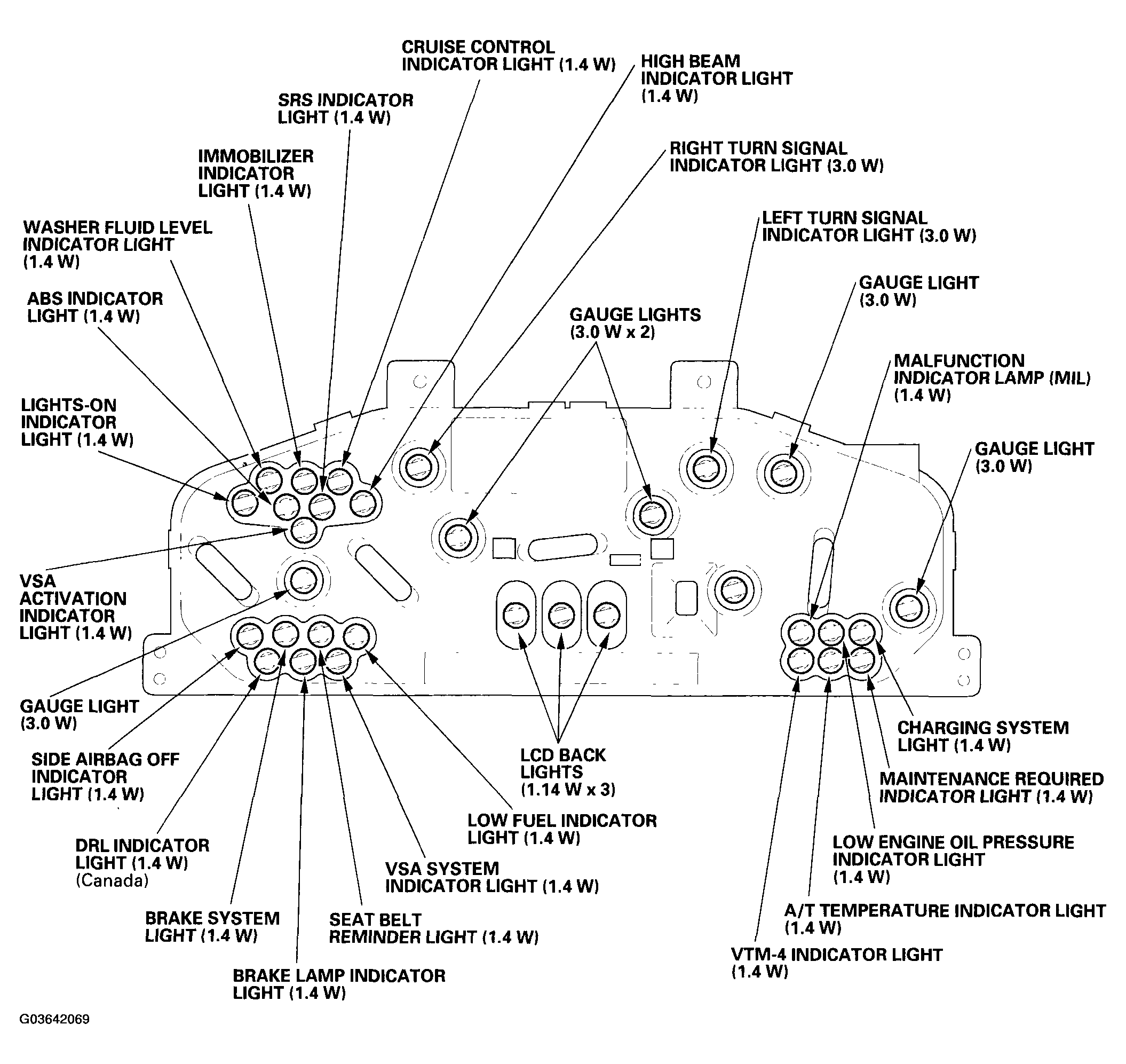

Fig 1: Exploded View Of Gauge Bulb Assembly ('03 model)

G03642069

Courtesy of AMERICAN HONDA MOTOR CO., INC.
