'03 Model

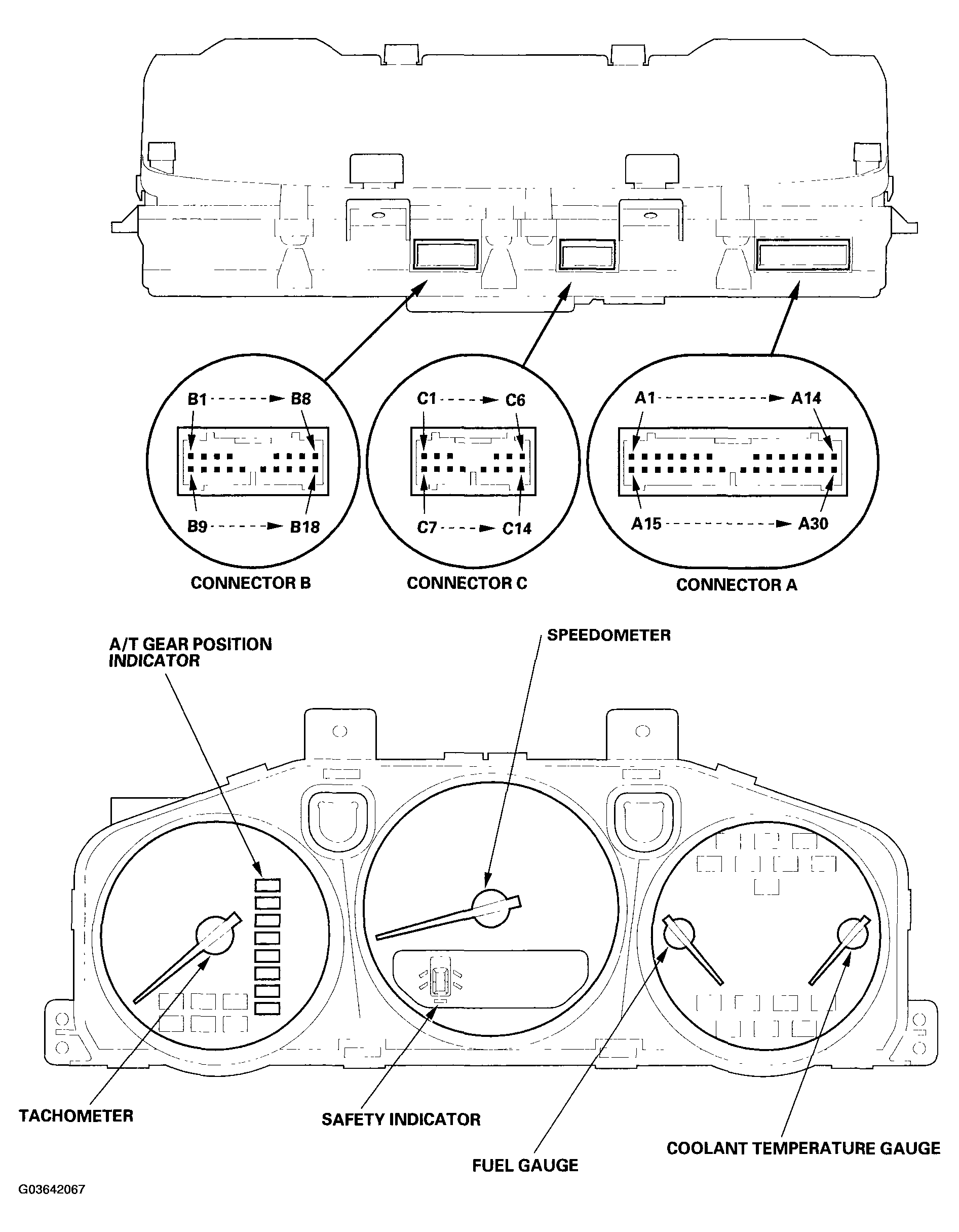

Fig 1: Identifying Gauge Components Location ('03 Model)

G03642067

Courtesy of AMERICAN HONDA MOTOR CO., INC.
