'04-'06 Models

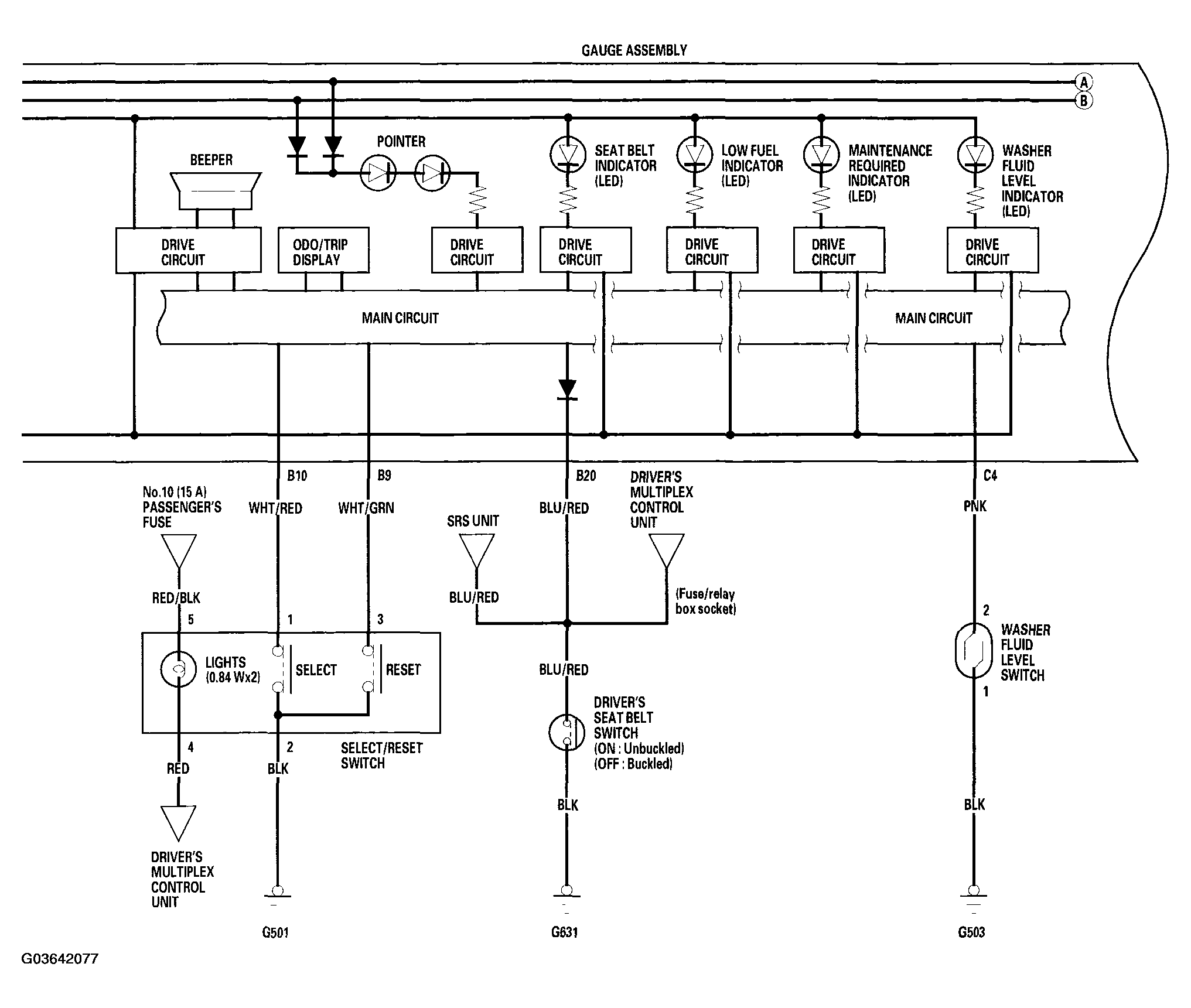

Fig 1: Gauges Circuit Diagram ('04-06 Models - 1 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

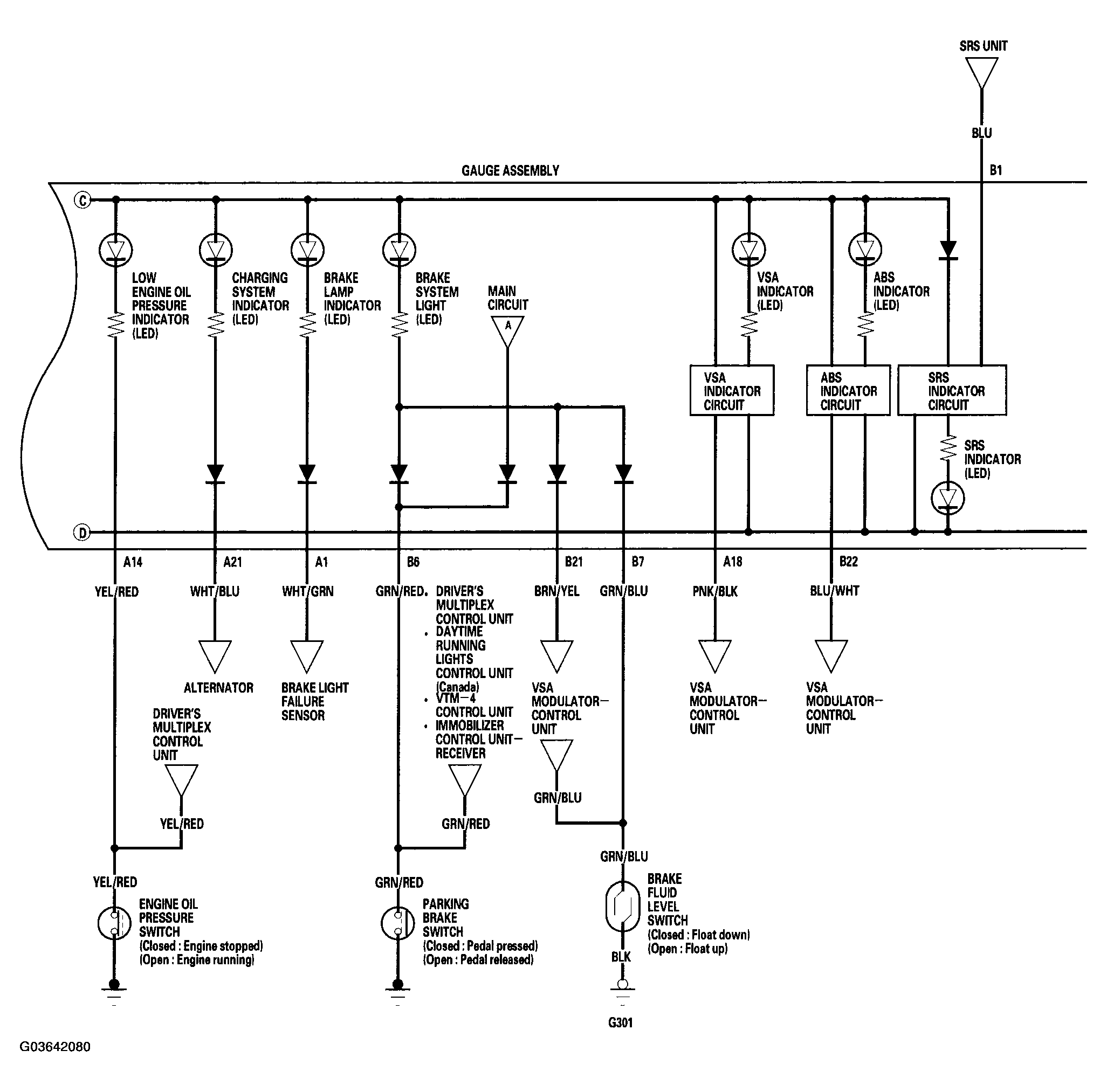

Fig 2: Gauges Circuit Diagram ('04-06 Models - 2 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

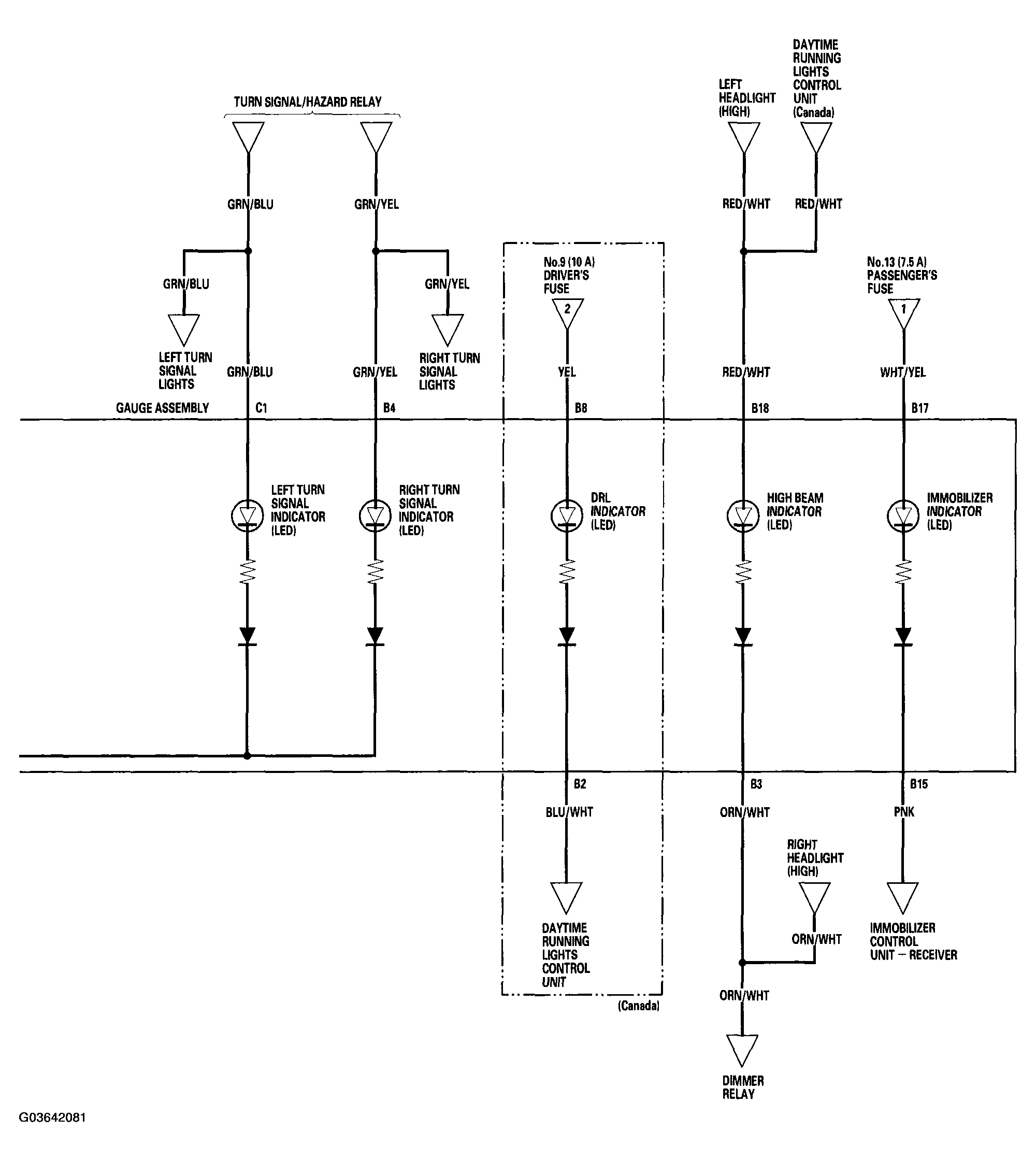

Fig 3: Gauges Circuit Diagram ('04-06 Models - 3 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

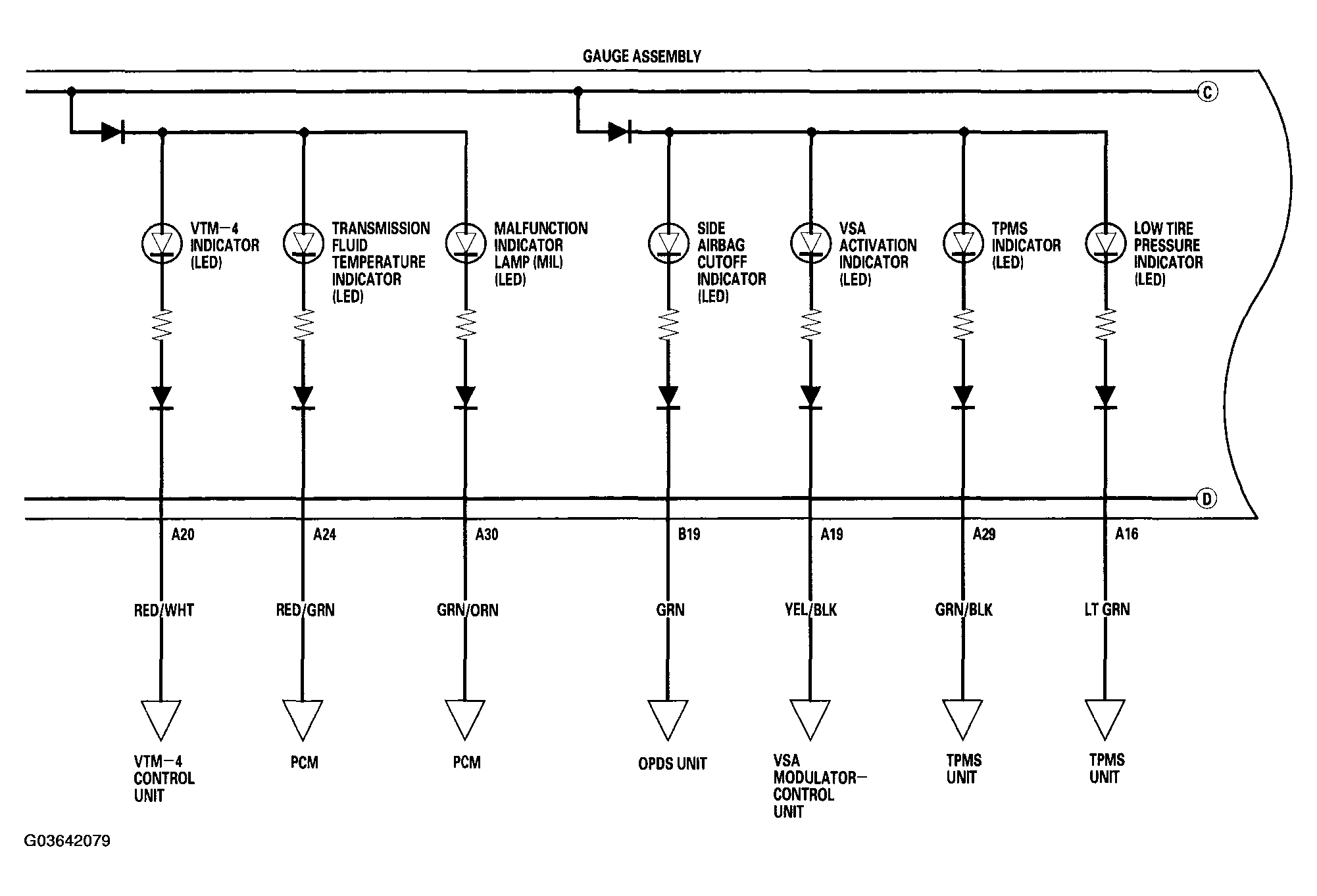

Fig 4: Gauges Circuit Diagram ('04-06 Models - 4 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

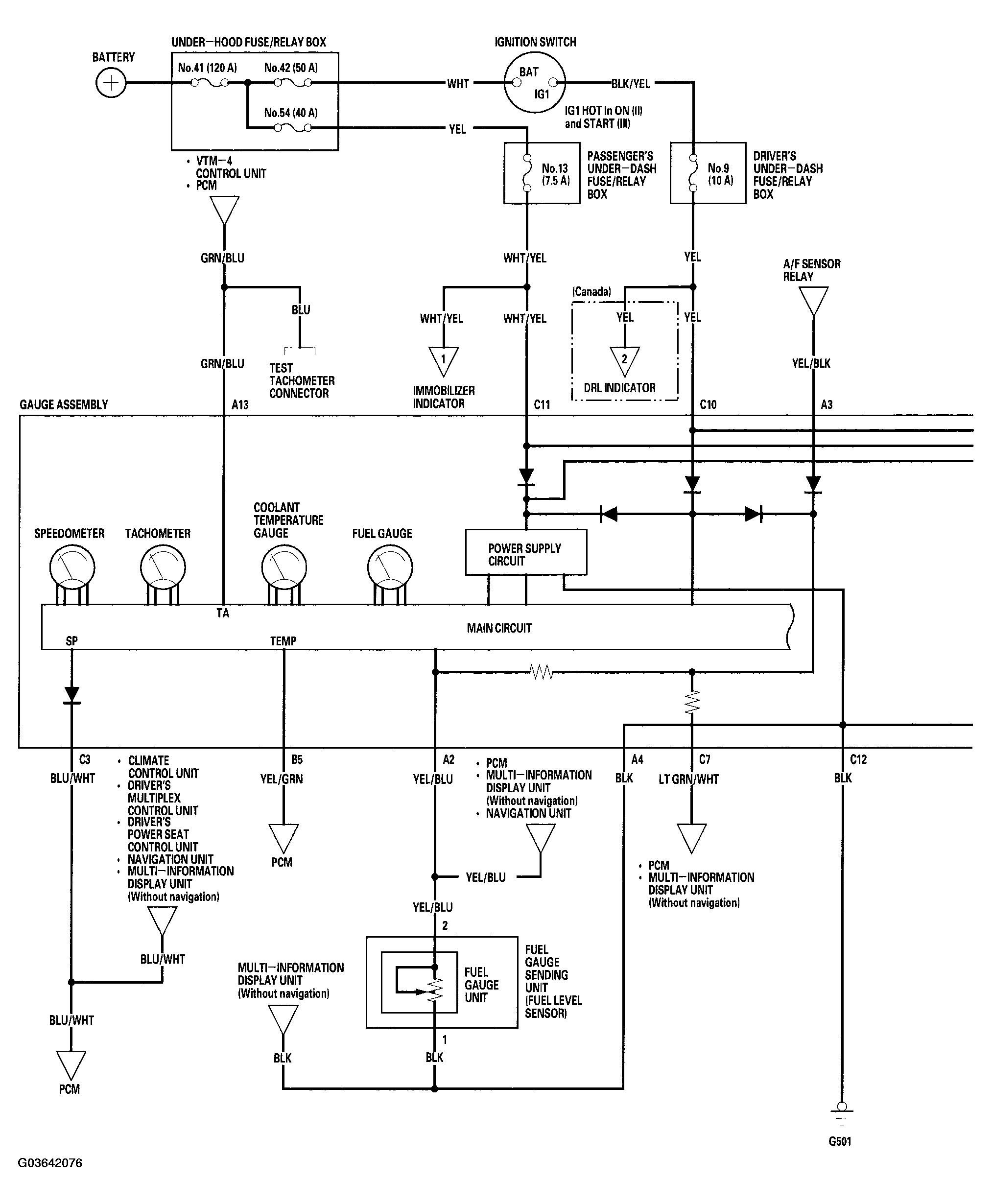

Fig 5: Gauges Circuit Diagram ('04-06 Models - 5 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

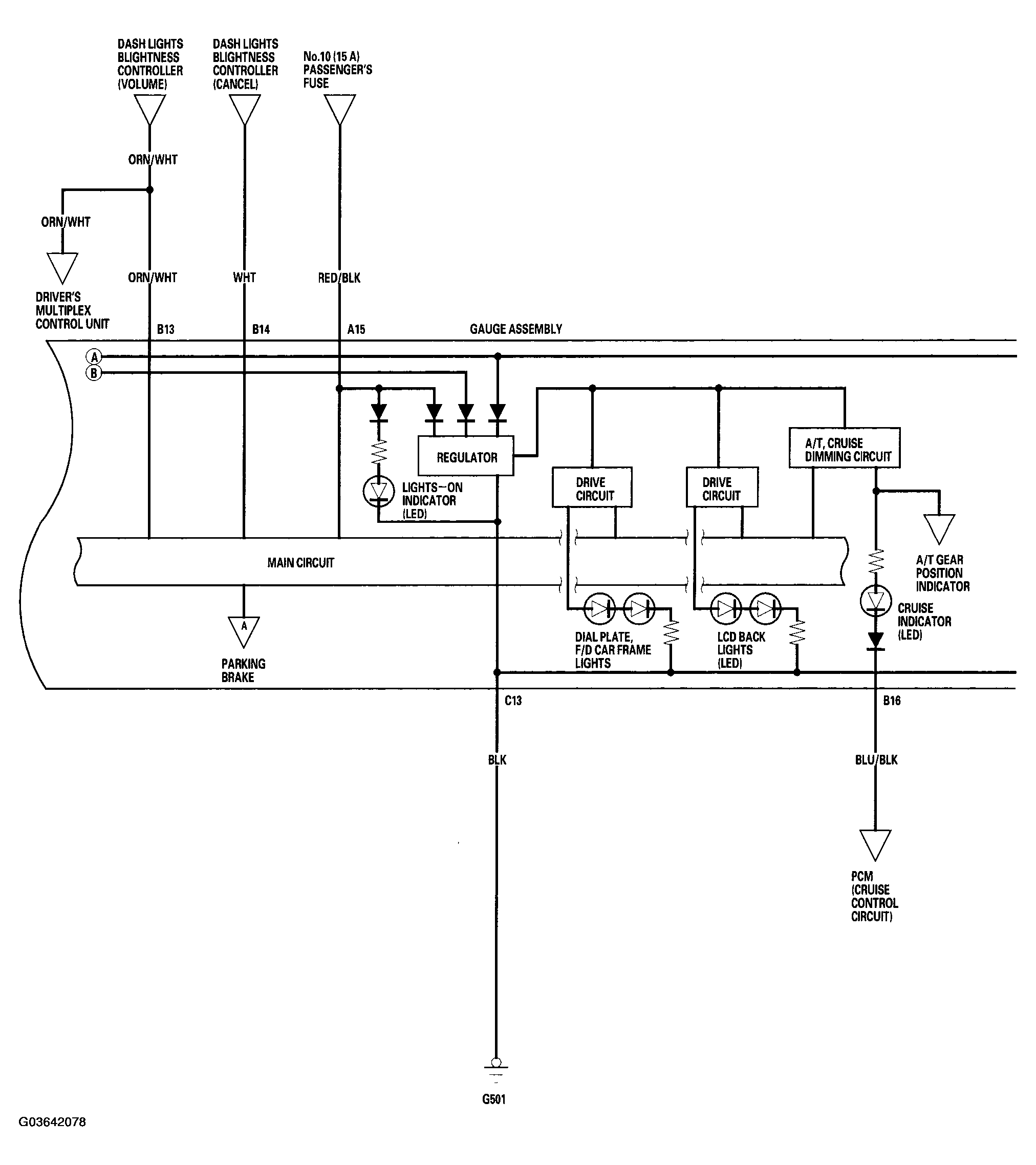

Fig 6: Gauges Circuit Diagram ('04-06 Models - 6 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
