'03 Model

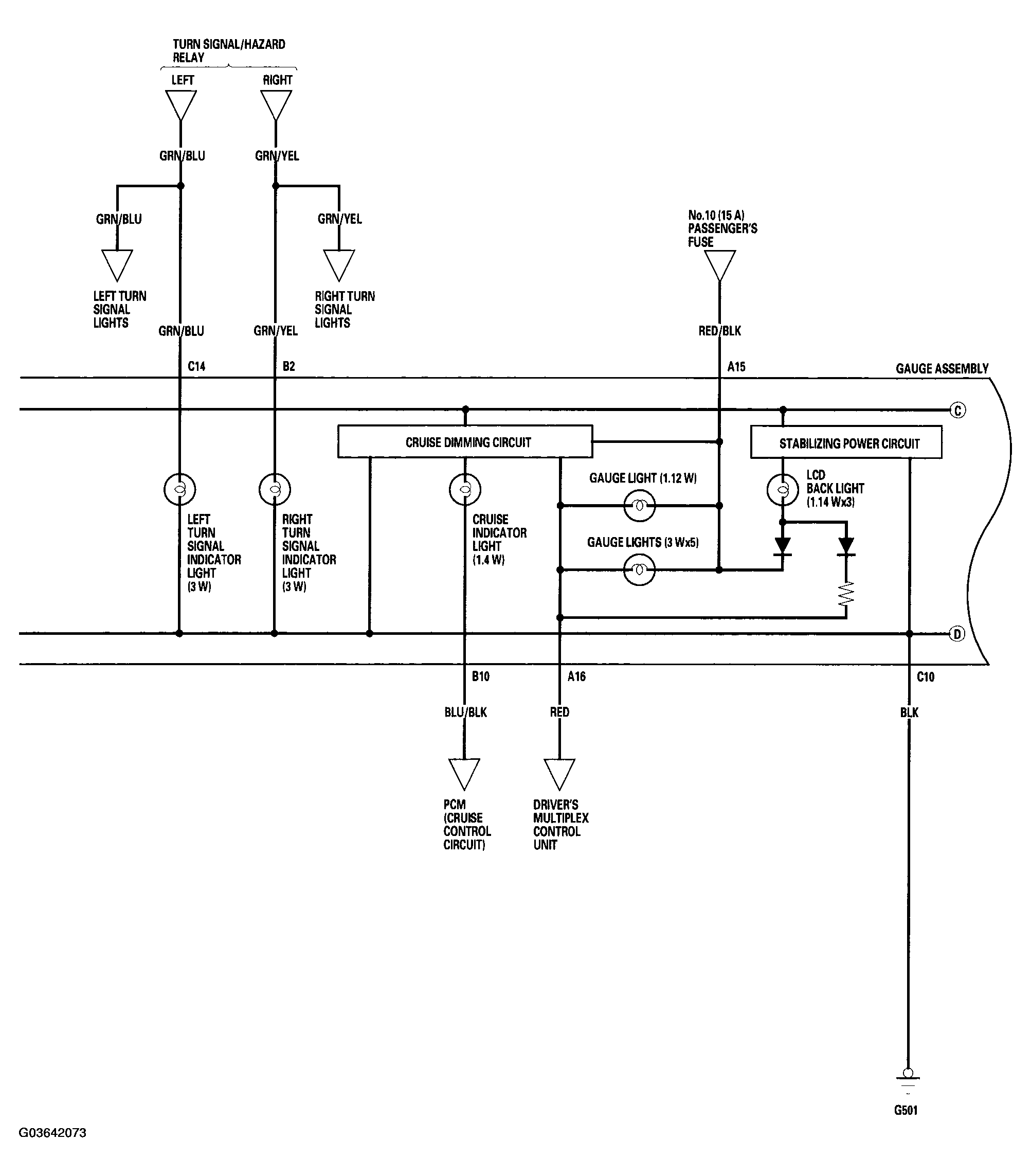

Fig 1: Gauges Circuit Diagram ('03 Model - 1 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

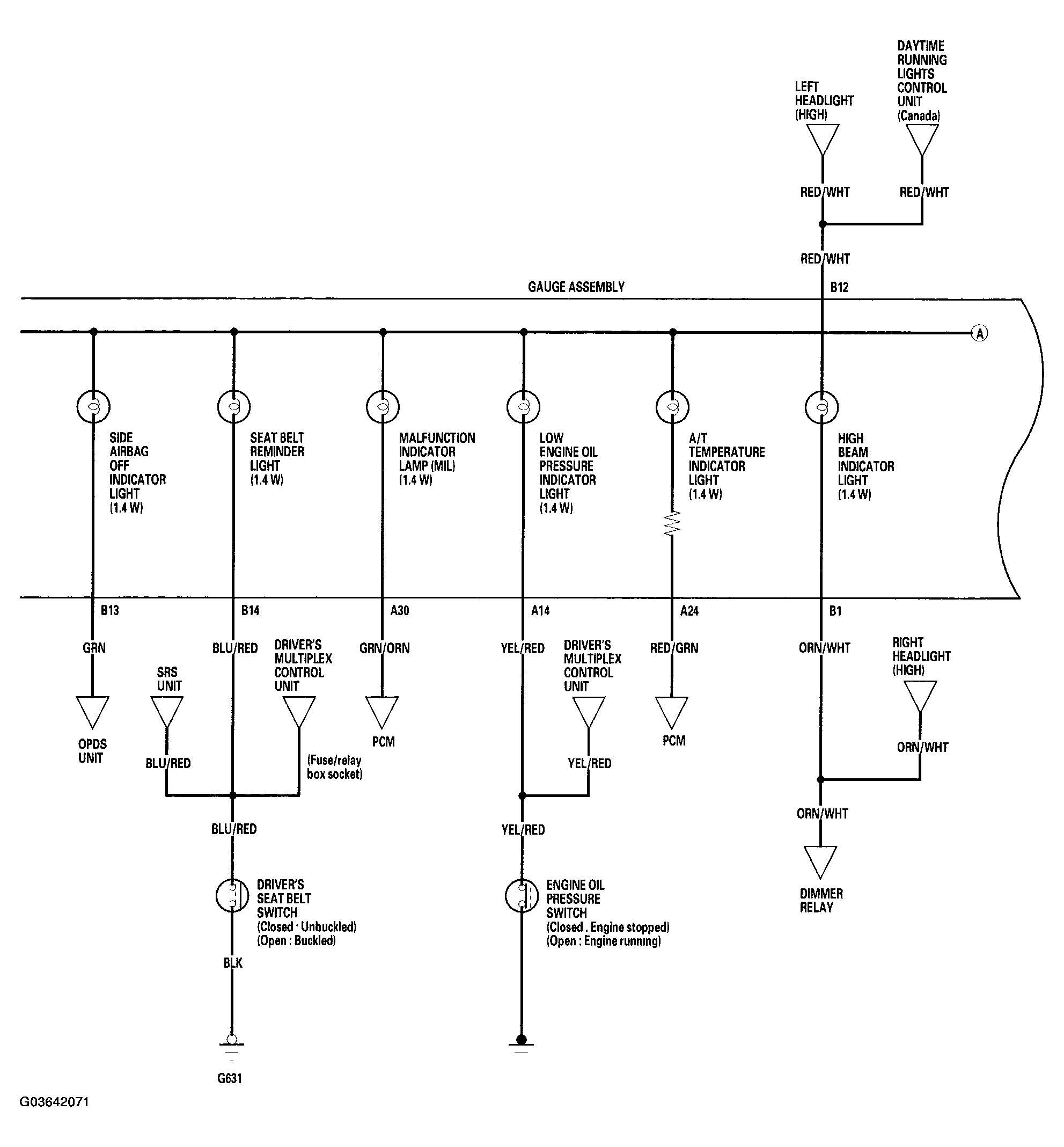

Fig 2: Gauges Circuit Diagram ('03 Model - 2 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

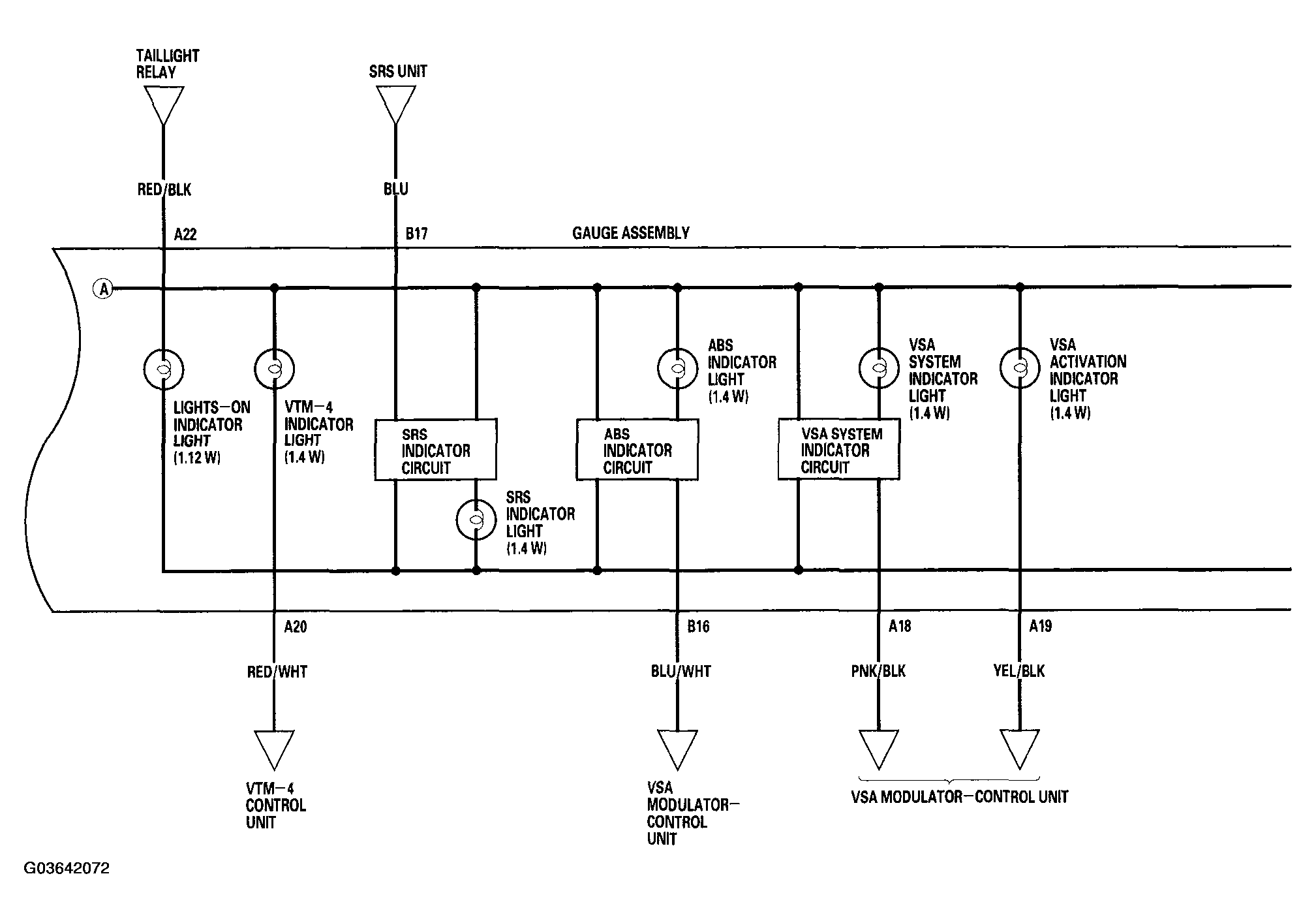

Fig 3: Gauges Circuit Diagram ('03 Model - 3 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

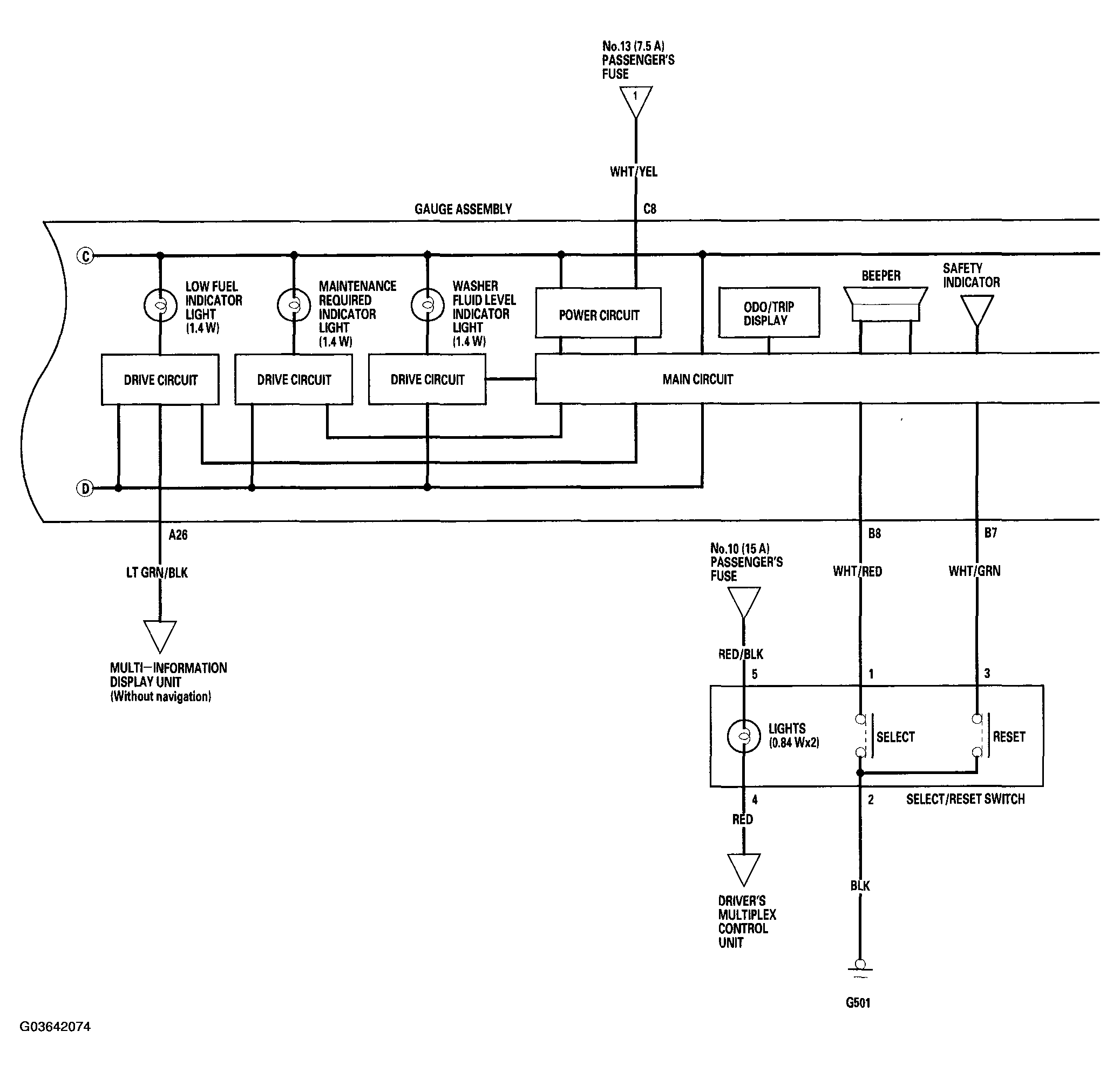

Fig 4: Gauges Circuit Diagram ('03 Model - 4 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

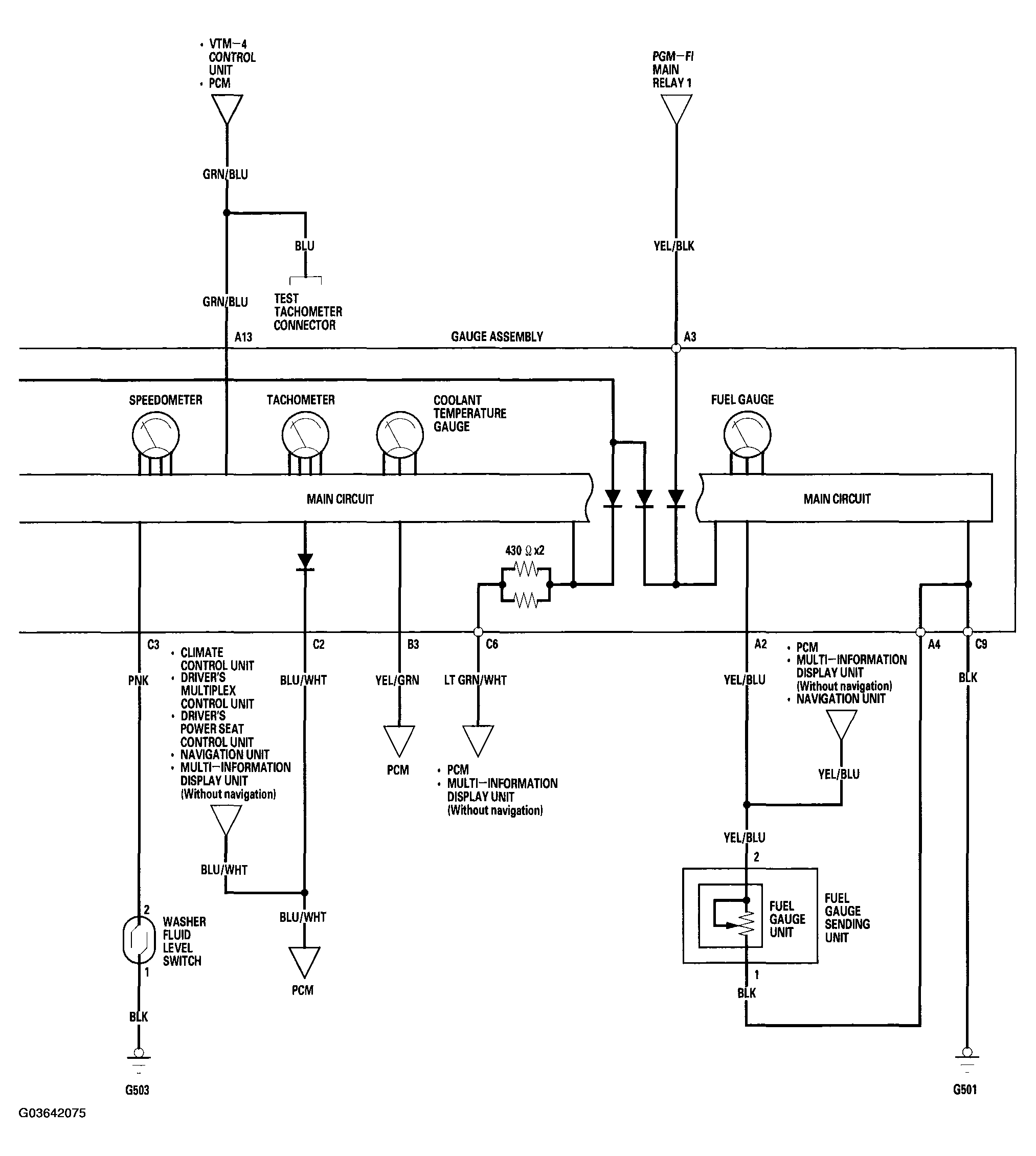

Fig 5: Gauges Circuit Diagram ('03 Model - 5 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

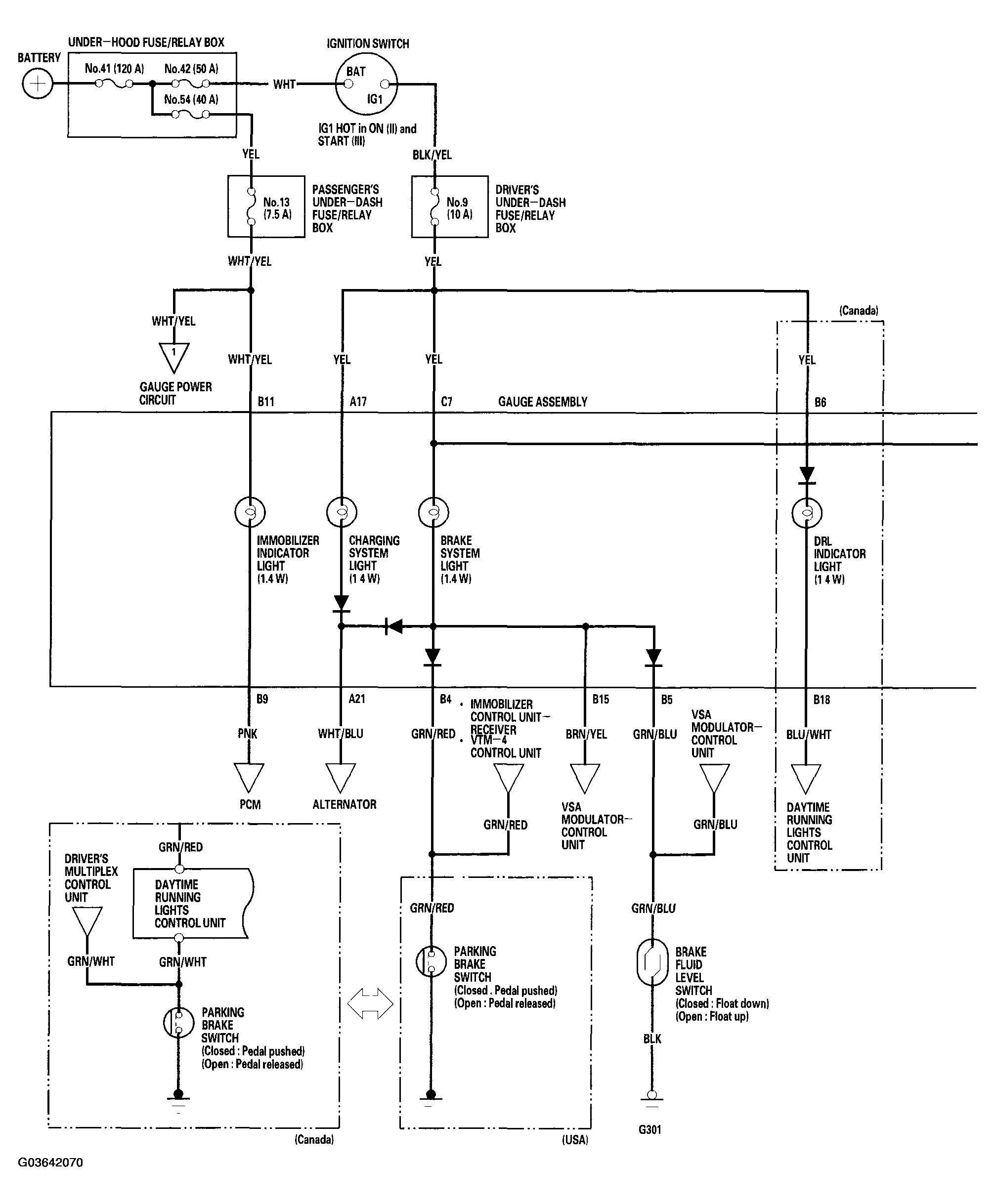

Fig 6: Gauges Circuit Diagram ('03 Model - 6 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
