Front & Rear Disc Brake Calipers

WARNING: DO NOT use air pressure or a dry brush to clean brake assemblies. Avoid breathing brake dust. Use OSHA-approved vacuum cleaner for cleaning and collecting dust. Avoid contaminating brake pads and discs with brake fluid or grease.

WARNING: DO NOT put hand in front of piston when using air pressure to remove piston.

CAUTION: Ensure brake fluid does not spill on painted surfaces, as damage to finish will result.

See Fig 1 and Fig 2 for exploded views of brake caliper components and procedures.

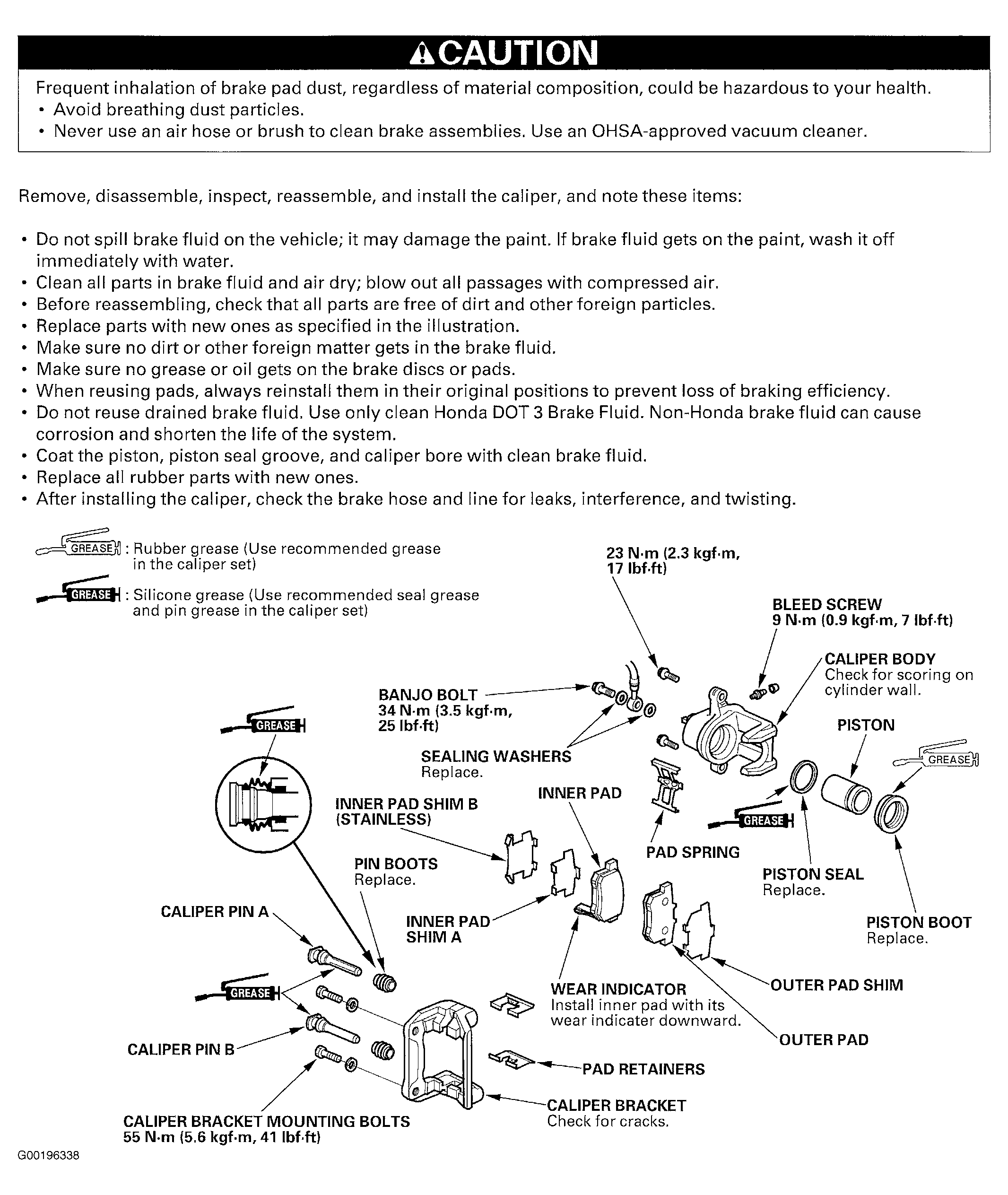

Fig 1: Exploded View Of Front Brake Caliper Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.

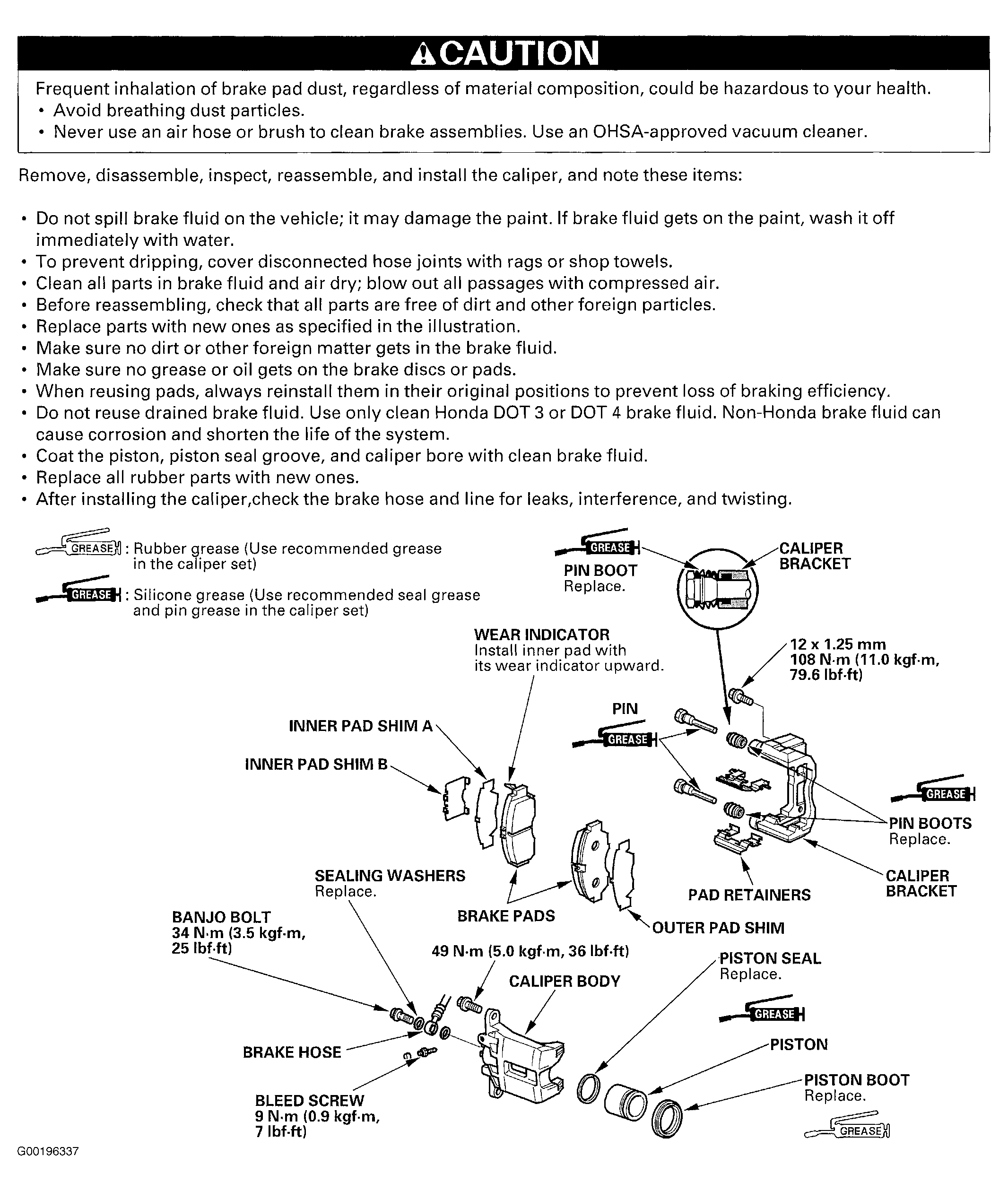

Fig 2: Exploded View Of Rear Brake Caliper Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.
