Minor Adjustment (3.2CL A/T & 3.2TL)

Raise and support rear of vehicle. Release parking brake. Tighten adjusting nut "A" until parking brakes drag slightly when rear wheels are turned. See Fig 1 .
Back off adjusting nut "A" in half-turn increments, and check that parking brakes do not drag when rear wheels are turned. Check for proper adjustment (number of clicks) at specified pedal force. See PARKING BRAKE ADJUSTMENT CHECK table under CHECK (EXCEPT 3.2CL M/T).

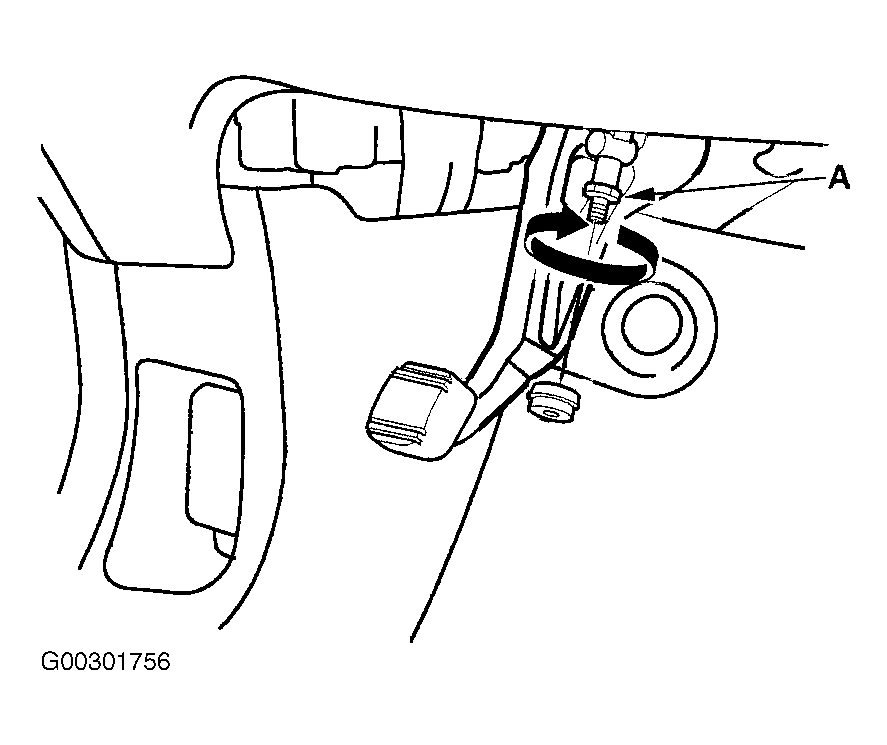

Fig 1: Tightening Adjustment Nut "A" (3.2CL A/T & 3.2TL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
