Major Adjustment (3.2CL M/T)

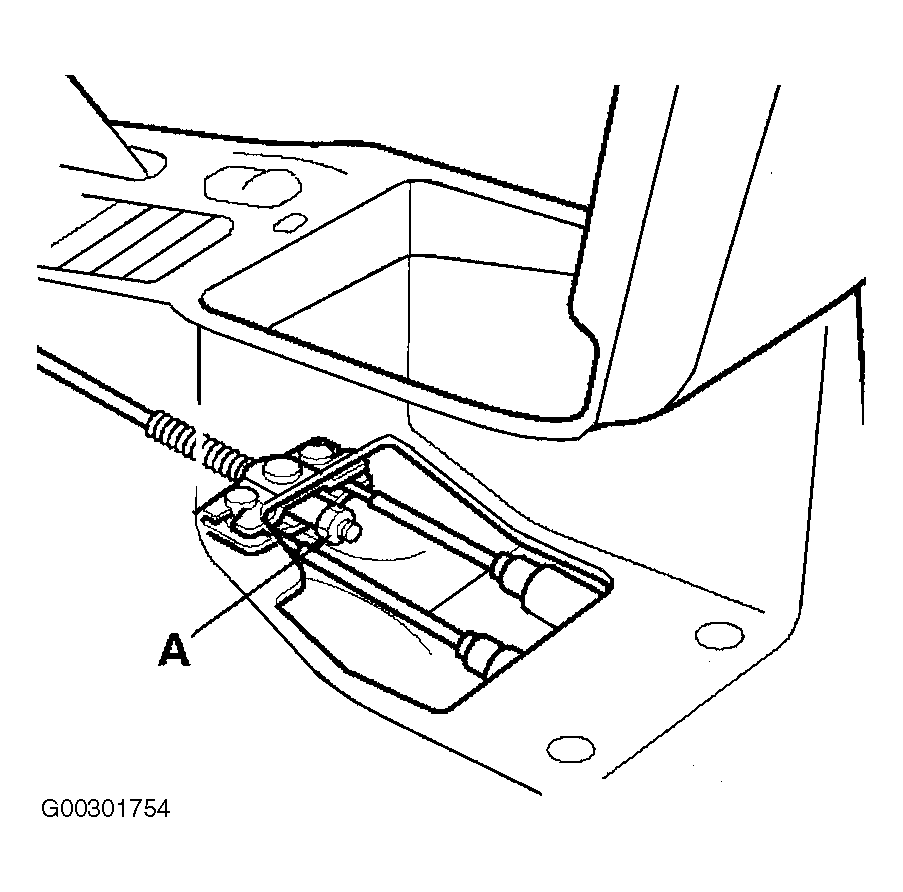

- Raise and support rear of vehicle. Remove rear console mat and cover. Release parking brake lever, and loosen adjusting nut "A". See Figure
. Remove rear wheels.

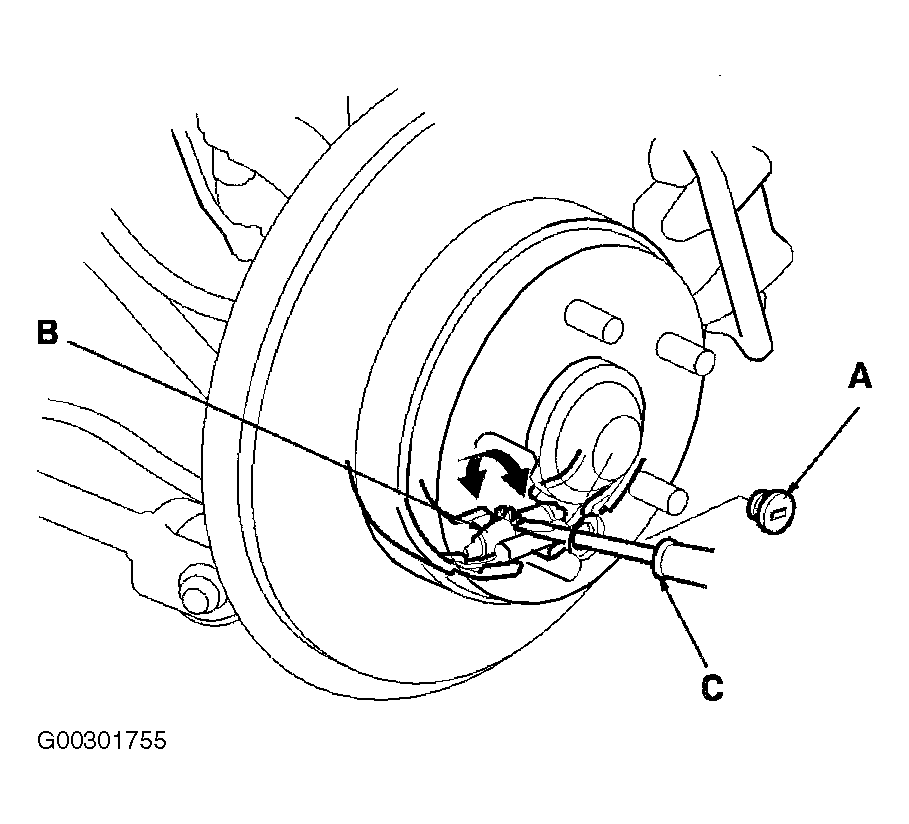

- Remove access plug "A". See Fig 1
. Turn brake shoe adjuster "B" with a flat-blade screwdriver "C" until shoes lock, then back of 8 stops. Repeat this adjustment on other side of vehicle.
- Check number of clicks required to fully lock parking brake. See PARKING BRAKE ADJUSTMENT CHECK
table under CHECK (EXCEPT 3.2CL M/T). If parking brake does not lock within specified number of clicks, perform MINOR ADJUSTMENT (3.2CL M/T)
. Reinstall rear console cover and mat.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
