Removal & Installation (Driver-side)

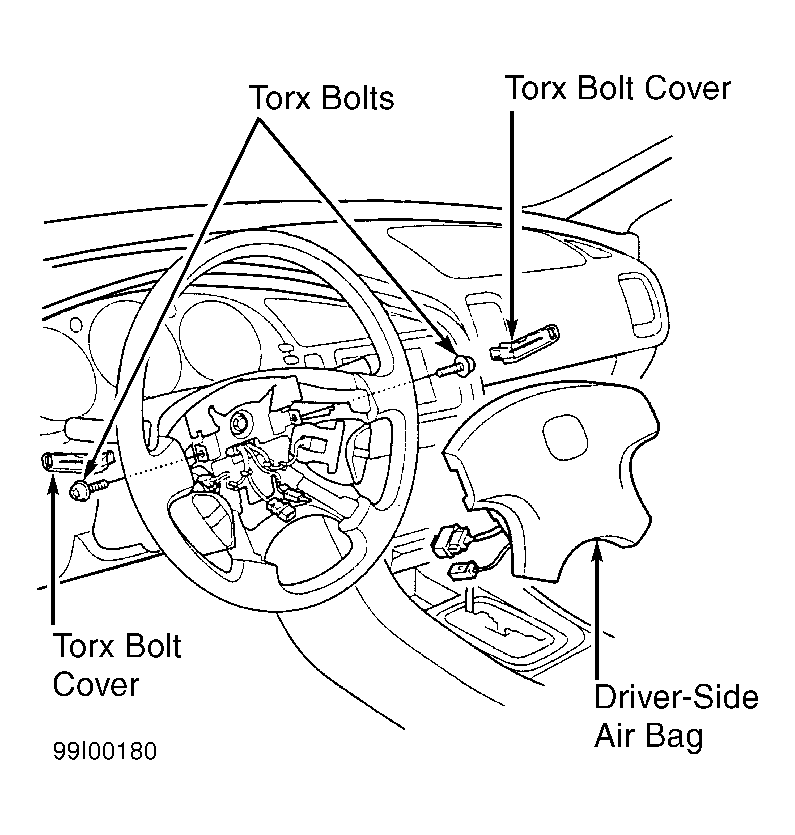

- Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable driver-side air bag. See DISABLING SYSTEM under DISABLING & ACTIVATING AIR BAG SYSTEM. Remove Torx bolt covers from sides of steering wheel. See Figure. Using Torx T30 bit, remove Torx bolts securing air bag assembly to steering wheel. Remove air bag assembly. Disconnect horn connector.
- To install, connect horn connector. Position air bag assembly in steering wheel. Secure with NEW Torx bolts. Tighten Torx bolts specification. See TORQUE SPECIFICATIONS . Install Torx bolt covers. Activate air bag system. See ACTIVATING SYSTEM under DISABLING & ACTIVATING AIR BAG SYSTEM.
