Gauge Assembly Replacement

  1. Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).
  2. Remove the screws from the gauge assembly (A), and spread a protective cloth (B) on the upper column cover.

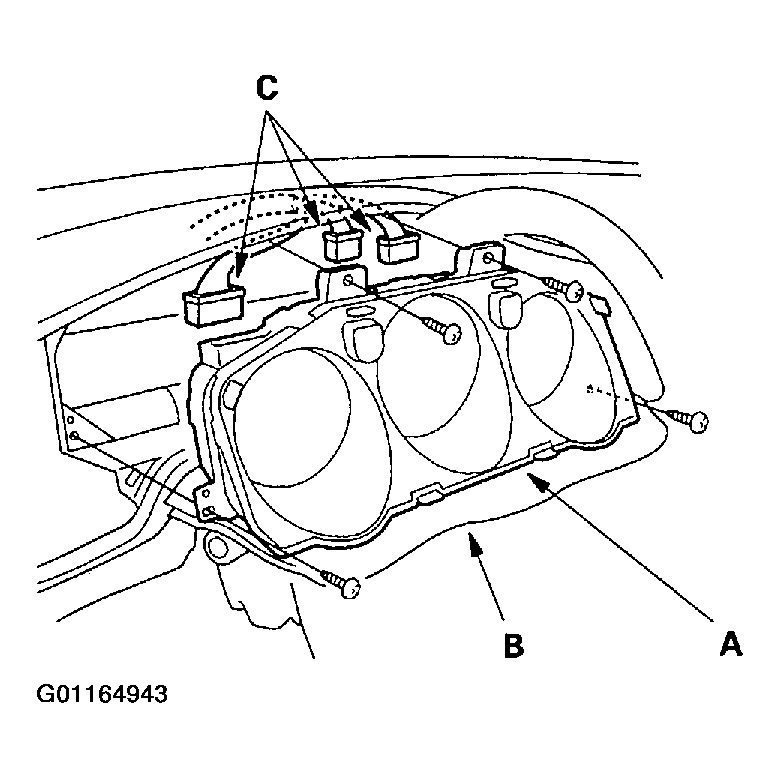

    Fig 1: Removing The Gauge Assembly
    G01164943Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the connectors (C), and remove the gauge assembly.
  4. Install in the reverse order or removal.
