'03 model M/T:

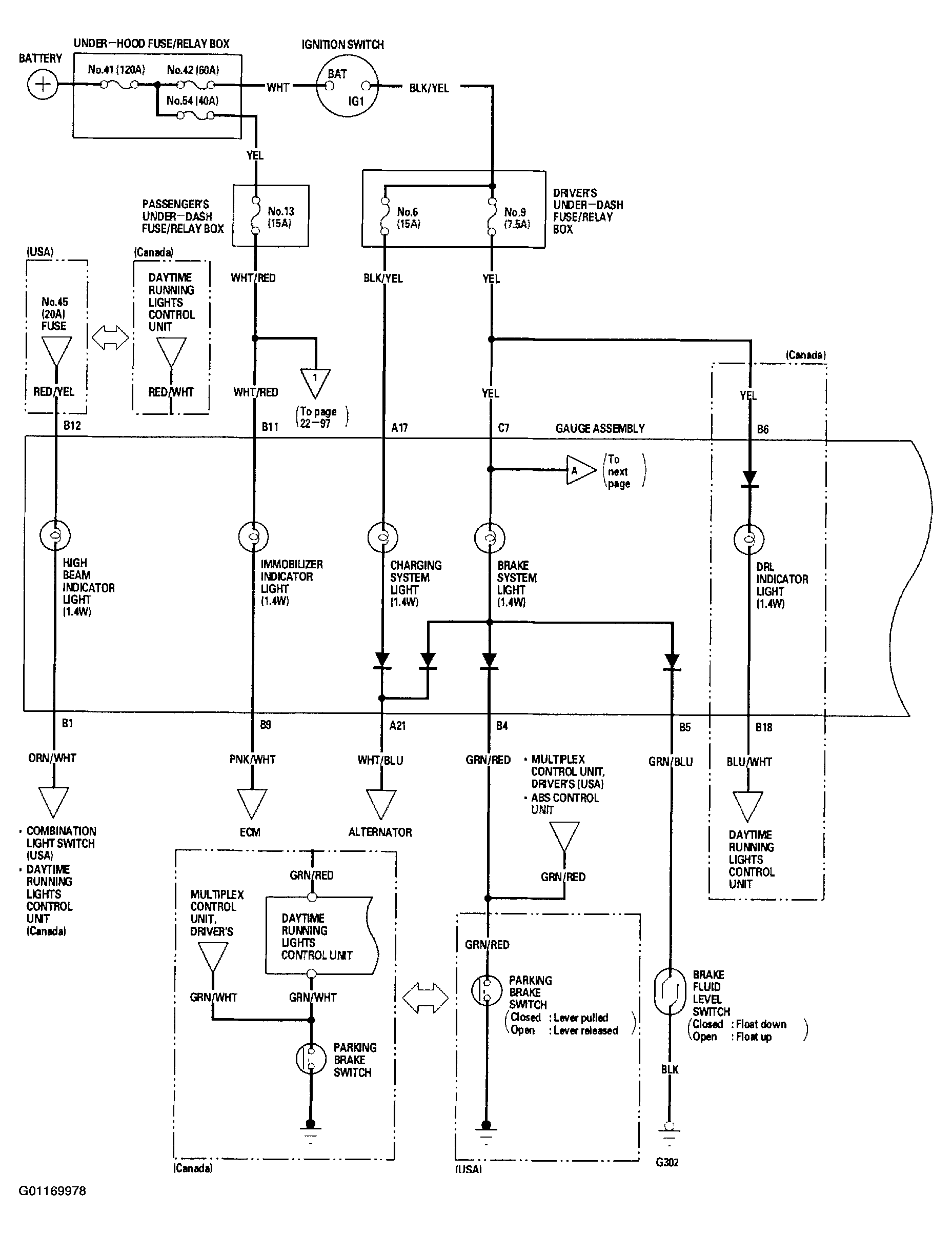

Fig 1: Gauges System Wiring Diagram ('03 M/T model - 1 Of 6)
G01169978Courtesy of AMERICAN HONDA MOTOR CO., INC.

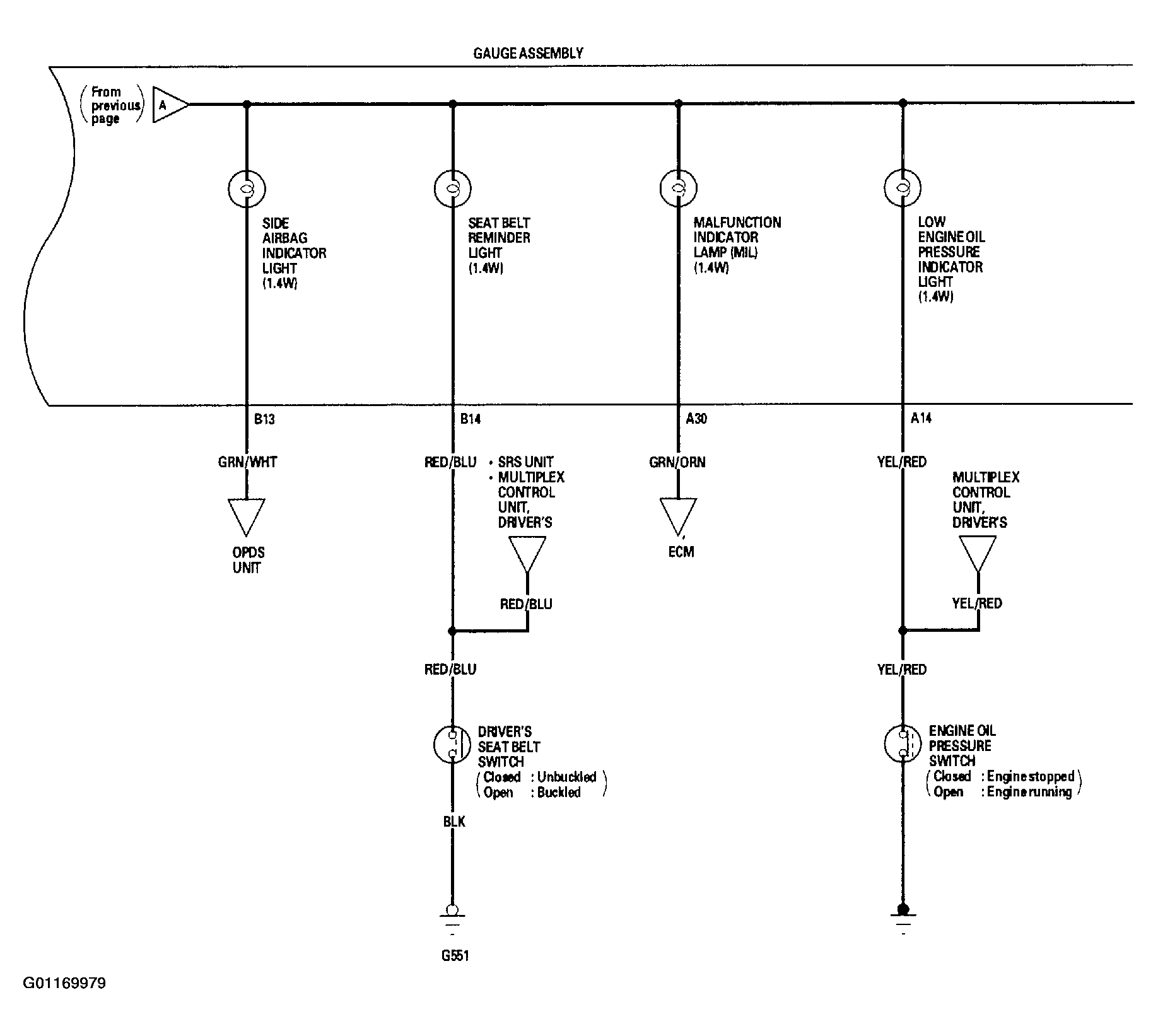

Fig 2: Gauges System Wiring Diagram ('03 M/T model - 2 Of 6)
G01169979Courtesy of AMERICAN HONDA MOTOR CO., INC.

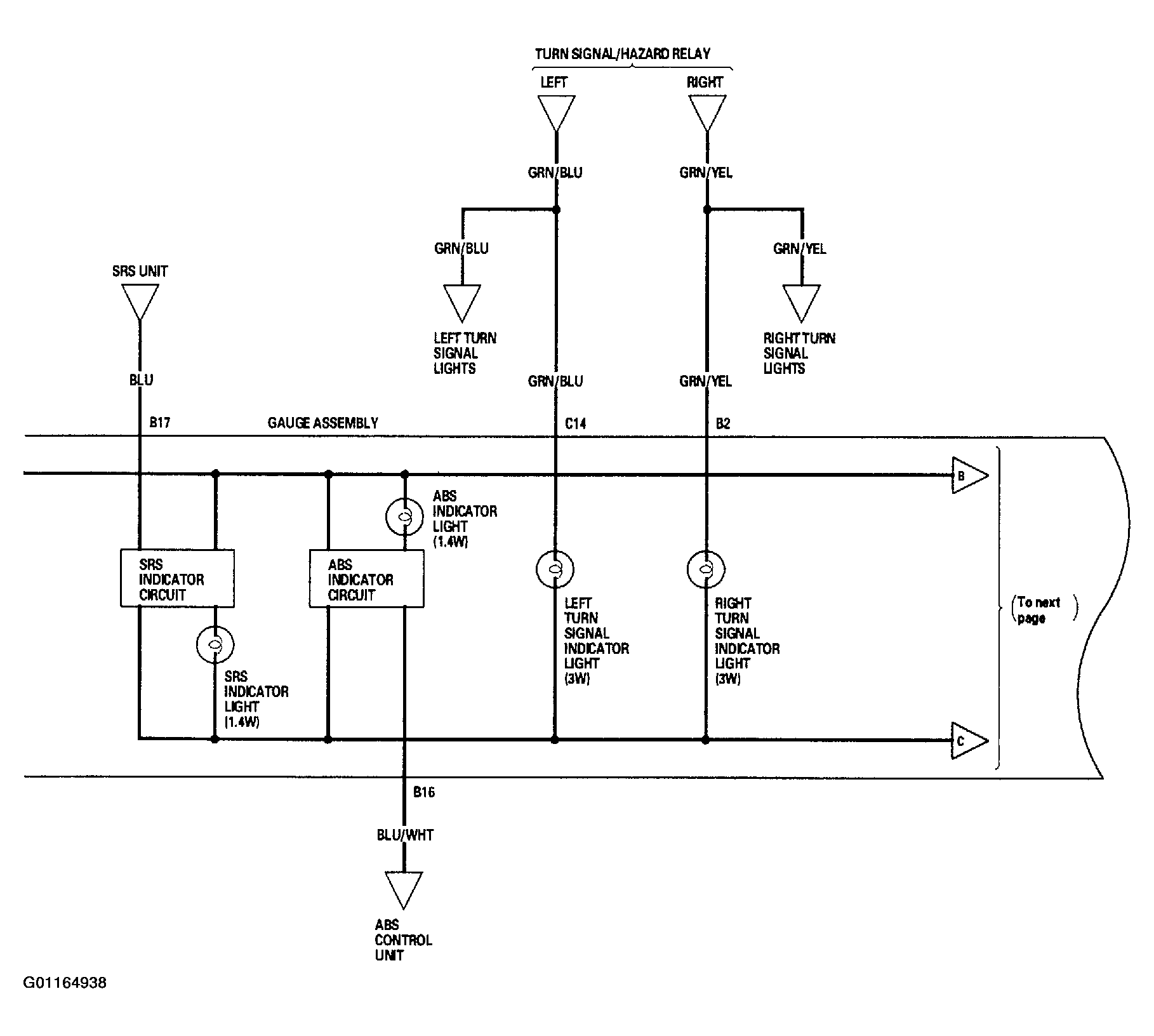

Fig 3: Gauges System Wiring Diagram ('03 M/T model - 3 Of 6)
G01164938Courtesy of AMERICAN HONDA MOTOR CO., INC.

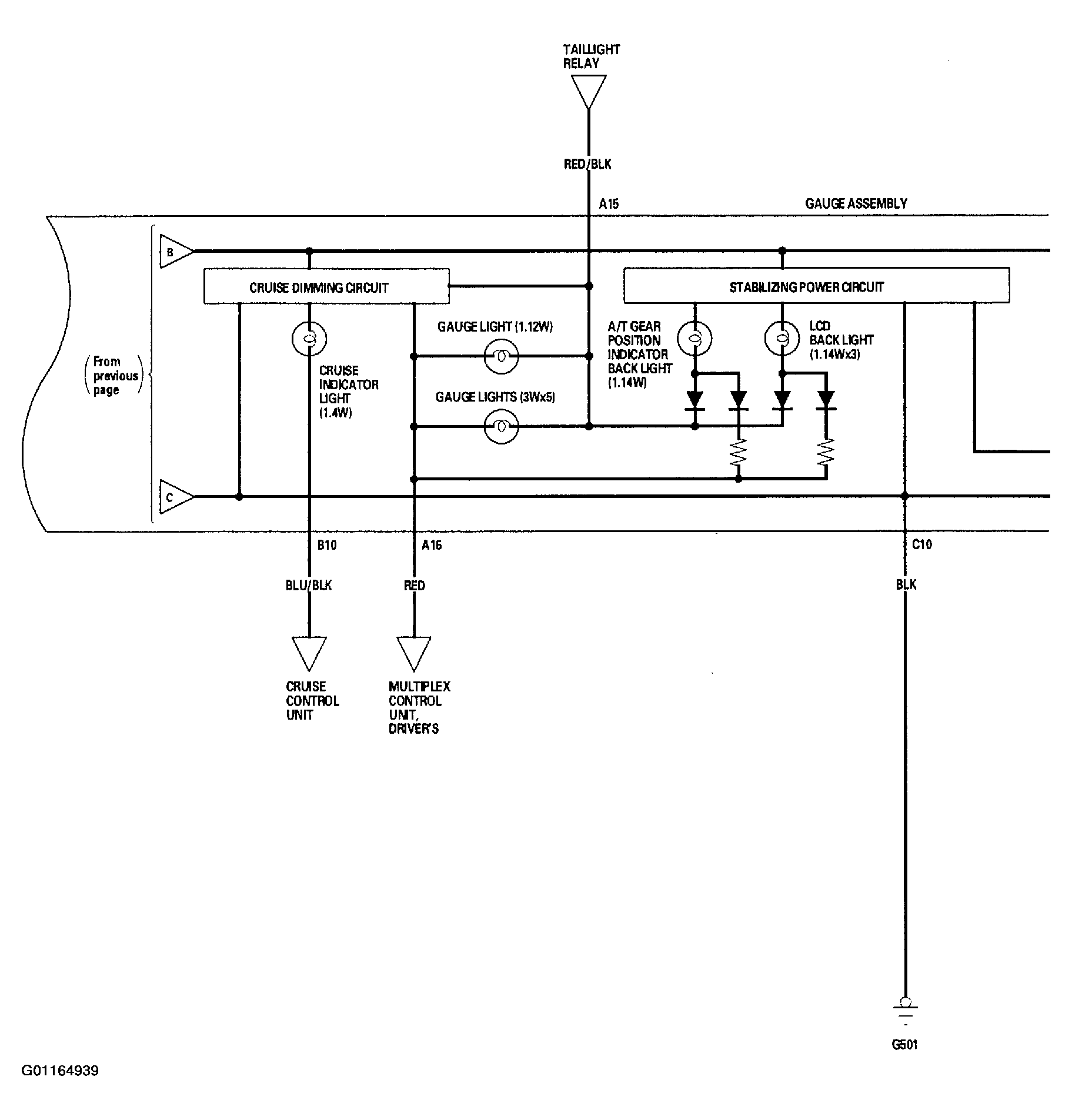

Fig 4: Gauges System Wiring Diagram ('03 M/T model - 4 Of 6)
G01164939Courtesy of AMERICAN HONDA MOTOR CO., INC.

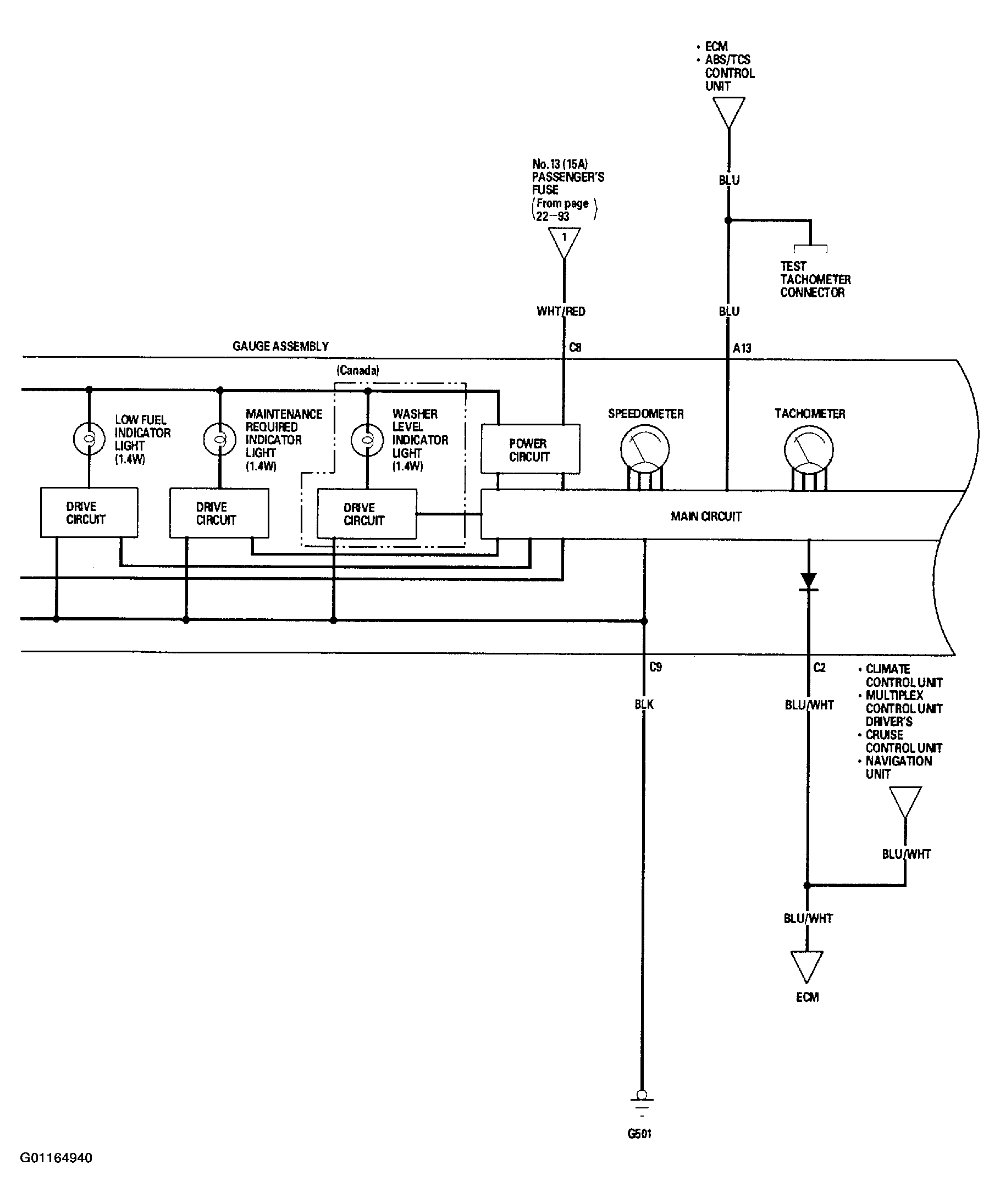

Fig 5: Gauges System Wiring Diagram ('03 M/T model - 5 Of 6)
G01164940Courtesy of AMERICAN HONDA MOTOR CO., INC.

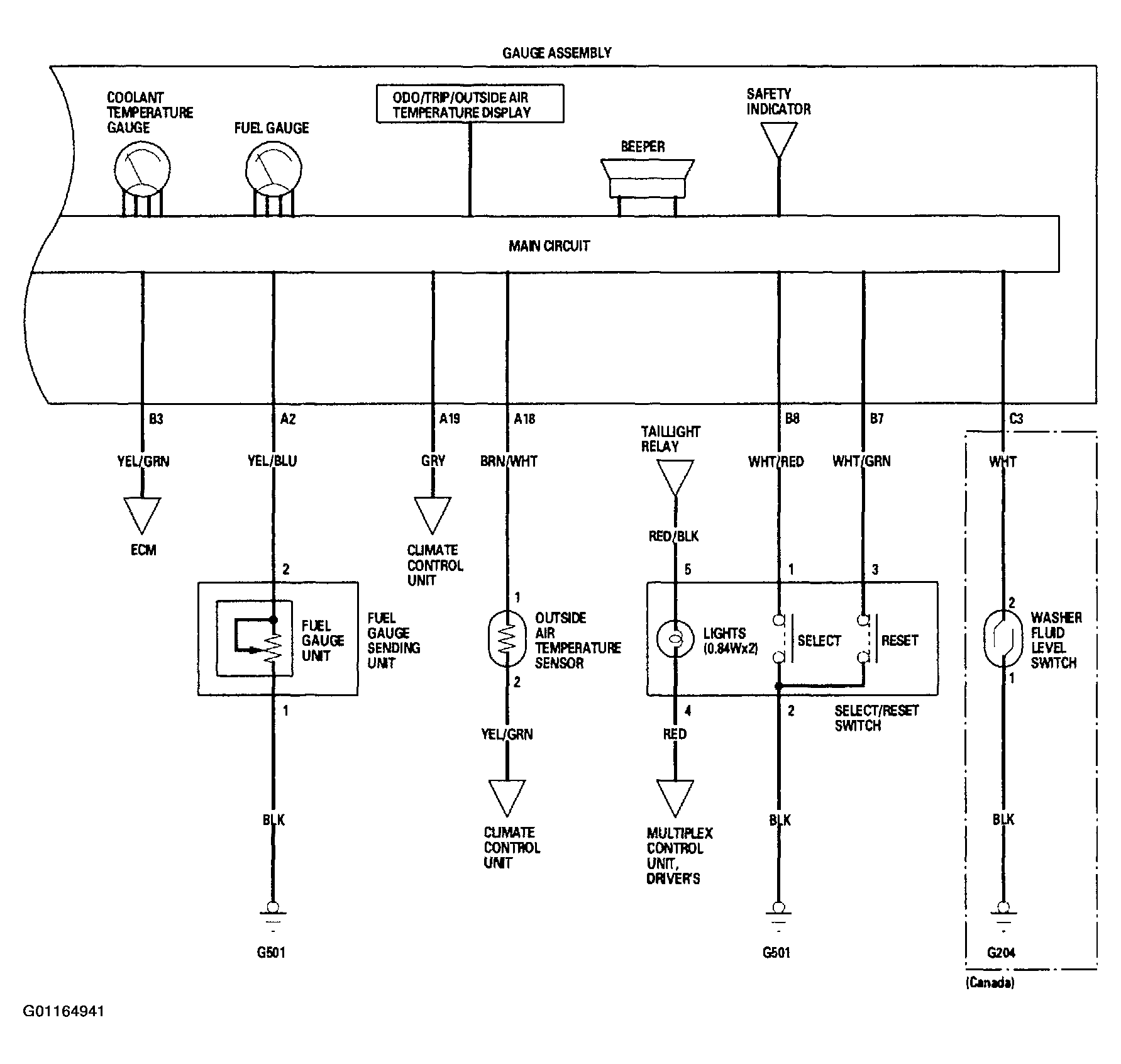

Fig 6: Gauges System Wiring Diagram ('03 M/T model - 6 Of 6)
G01164941Courtesy of AMERICAN HONDA MOTOR CO., INC.
