'01-02 models:

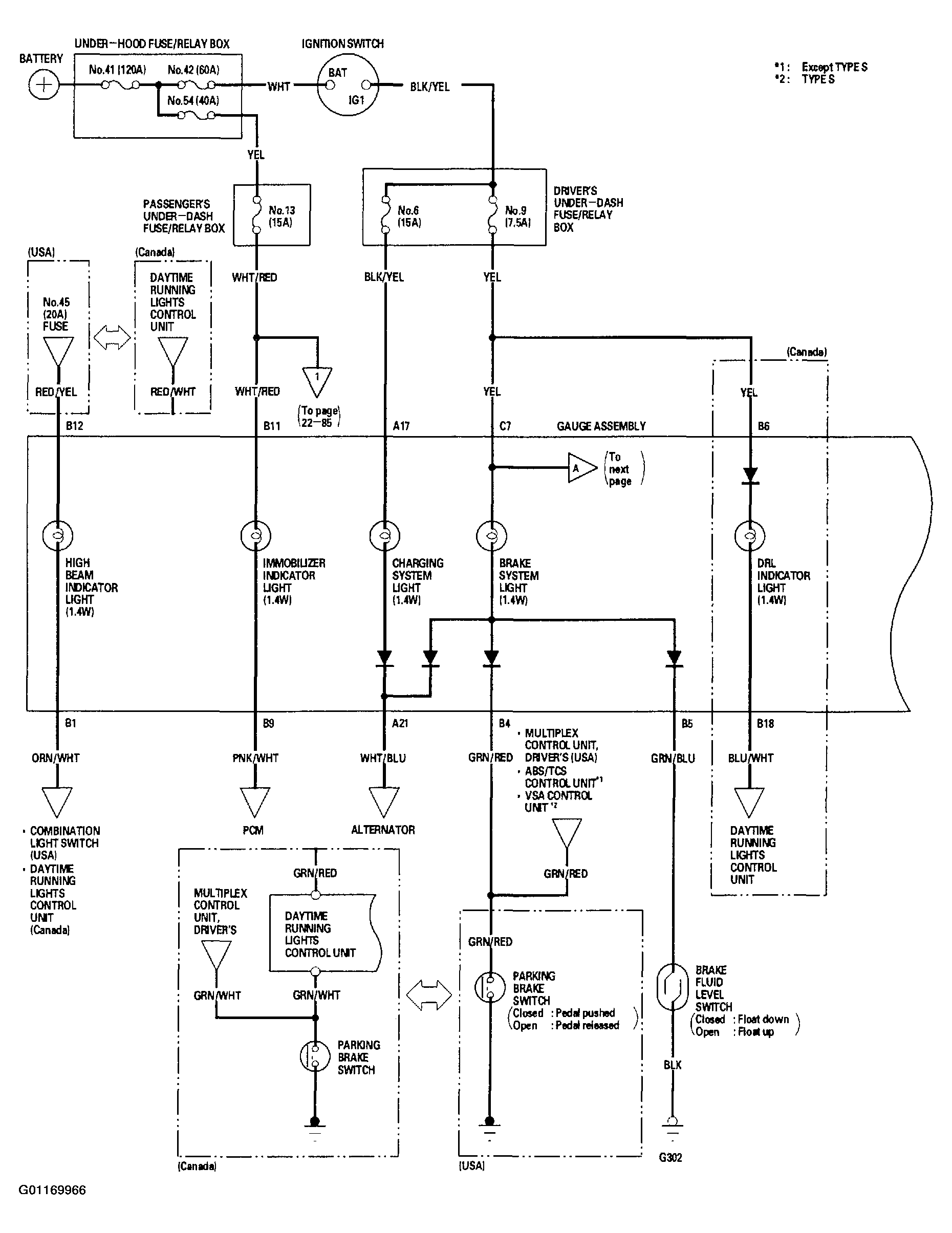

Fig 1: Gauges System Wiring Diagram ('01-02 models - 1 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

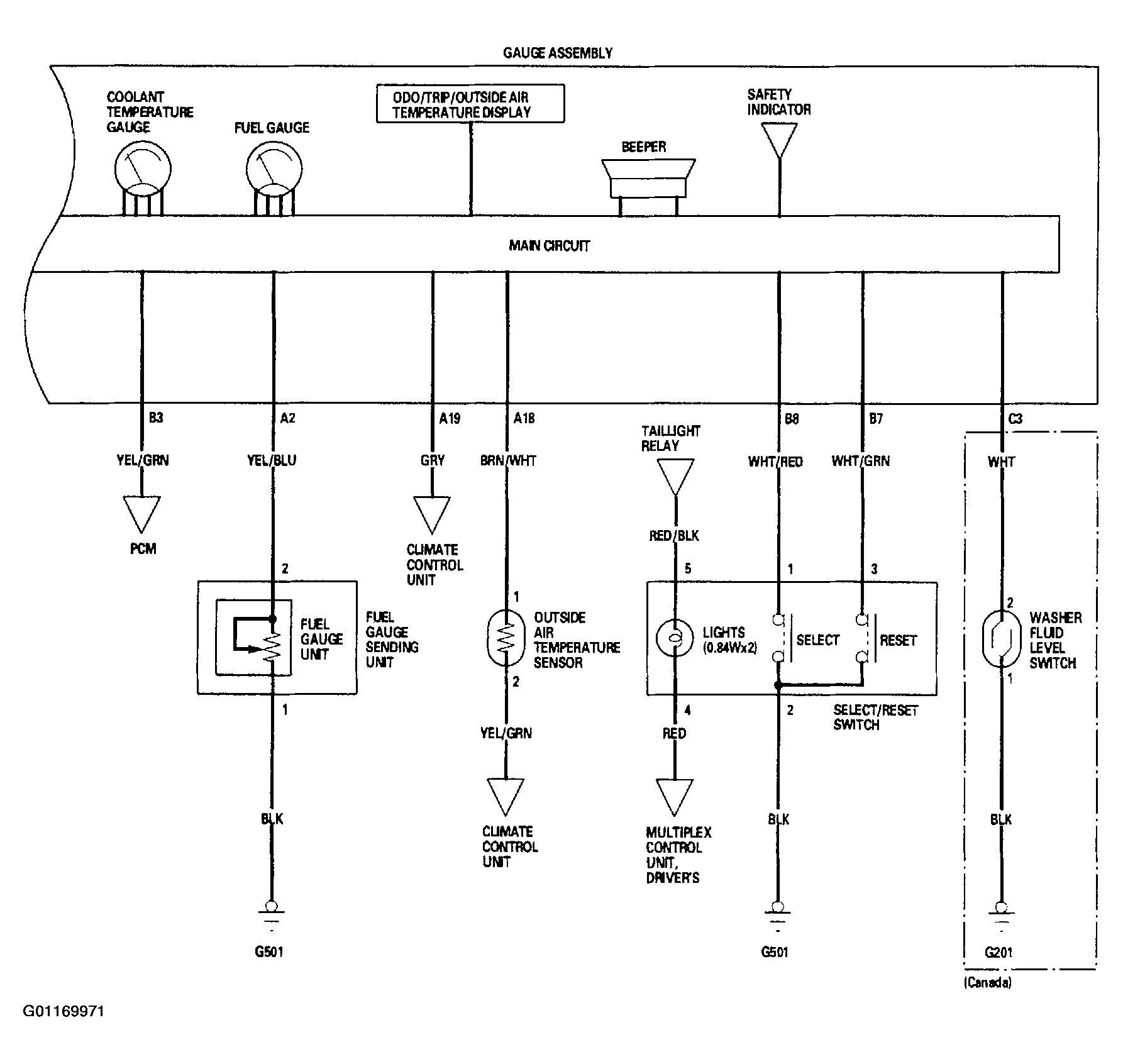

Fig 2: Gauges System Wiring Diagram ('01-02 models - 2 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

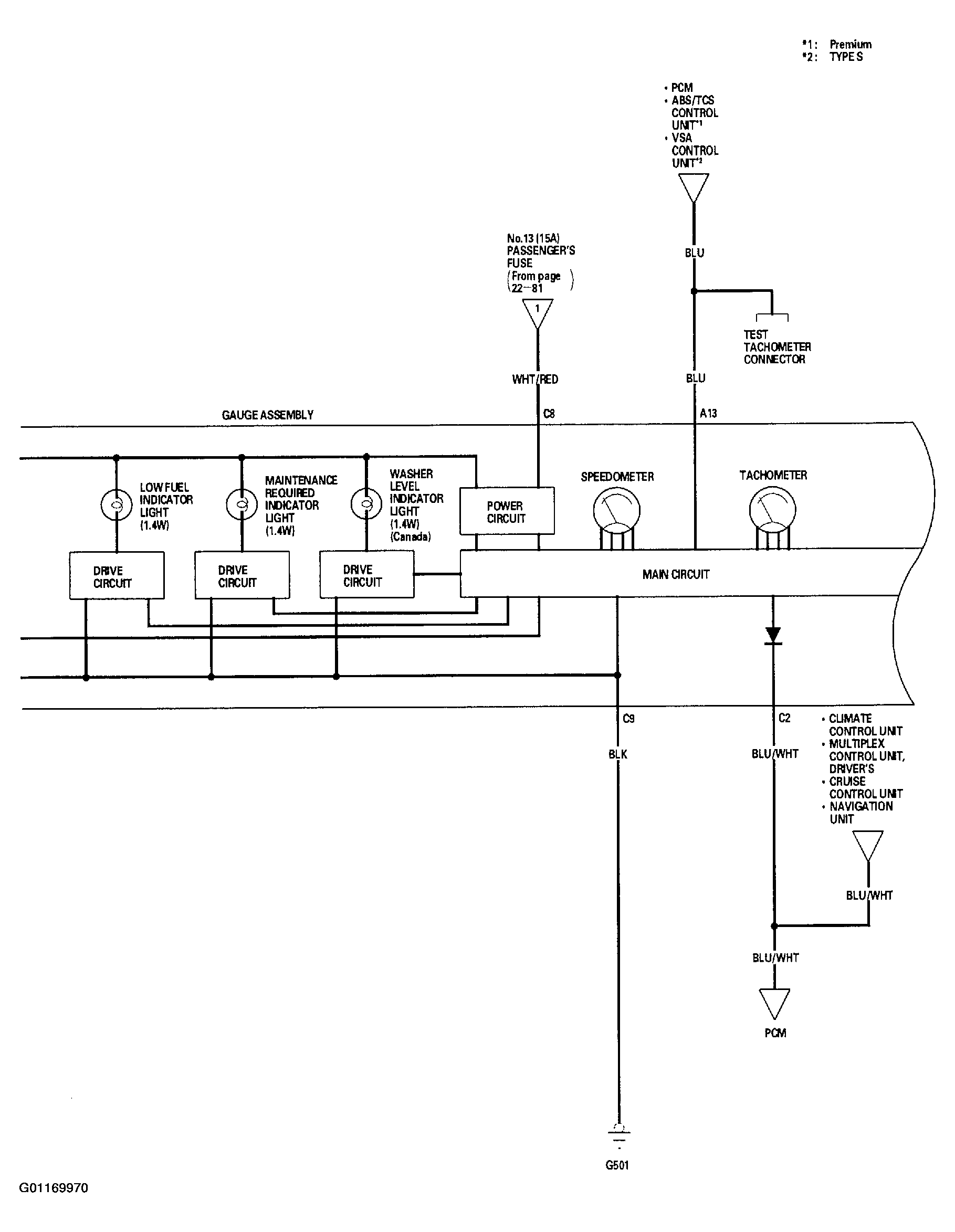

Fig 3: Gauges System Wiring Diagram ('01-02 models - 3 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

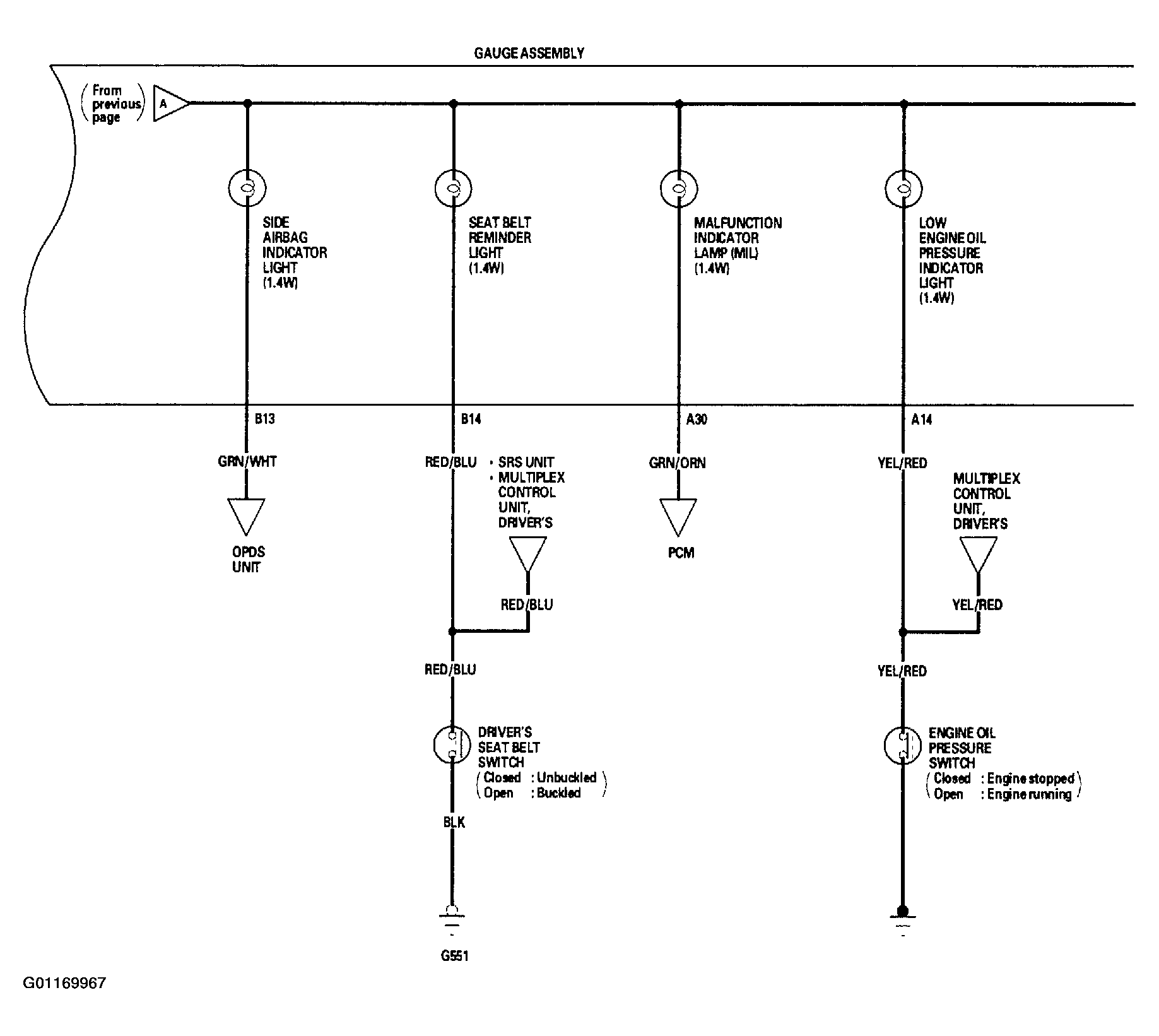

Fig 4: Gauges System Wiring Diagram ('01-02 models - 4 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

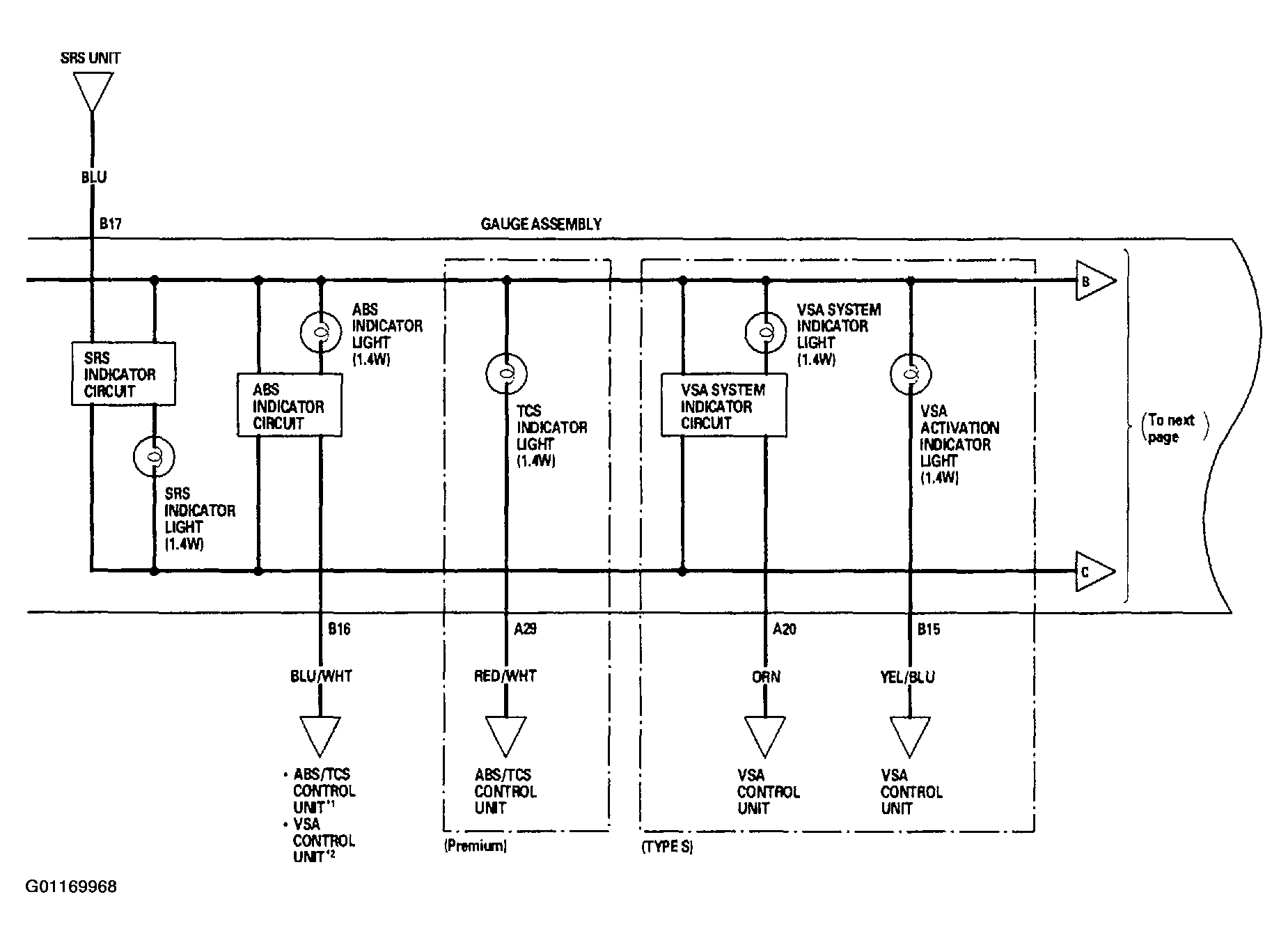

Fig 5: Gauges System Wiring Diagram ('01-02 models - 5 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

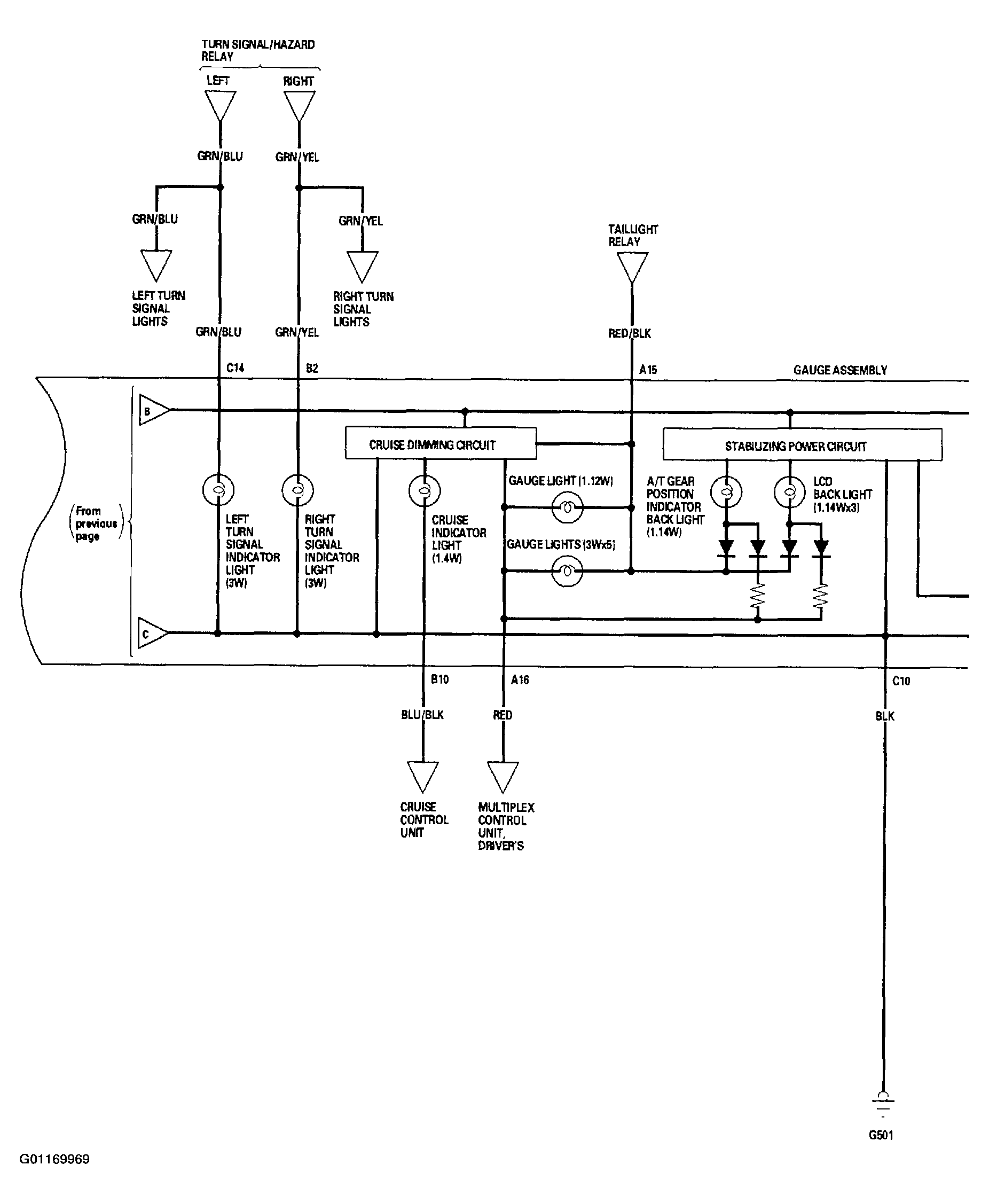

Fig 6: Gauges System Wiring Diagram ('01-02 models - 6 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
