Circuit Diagram - Auto-off Headlights

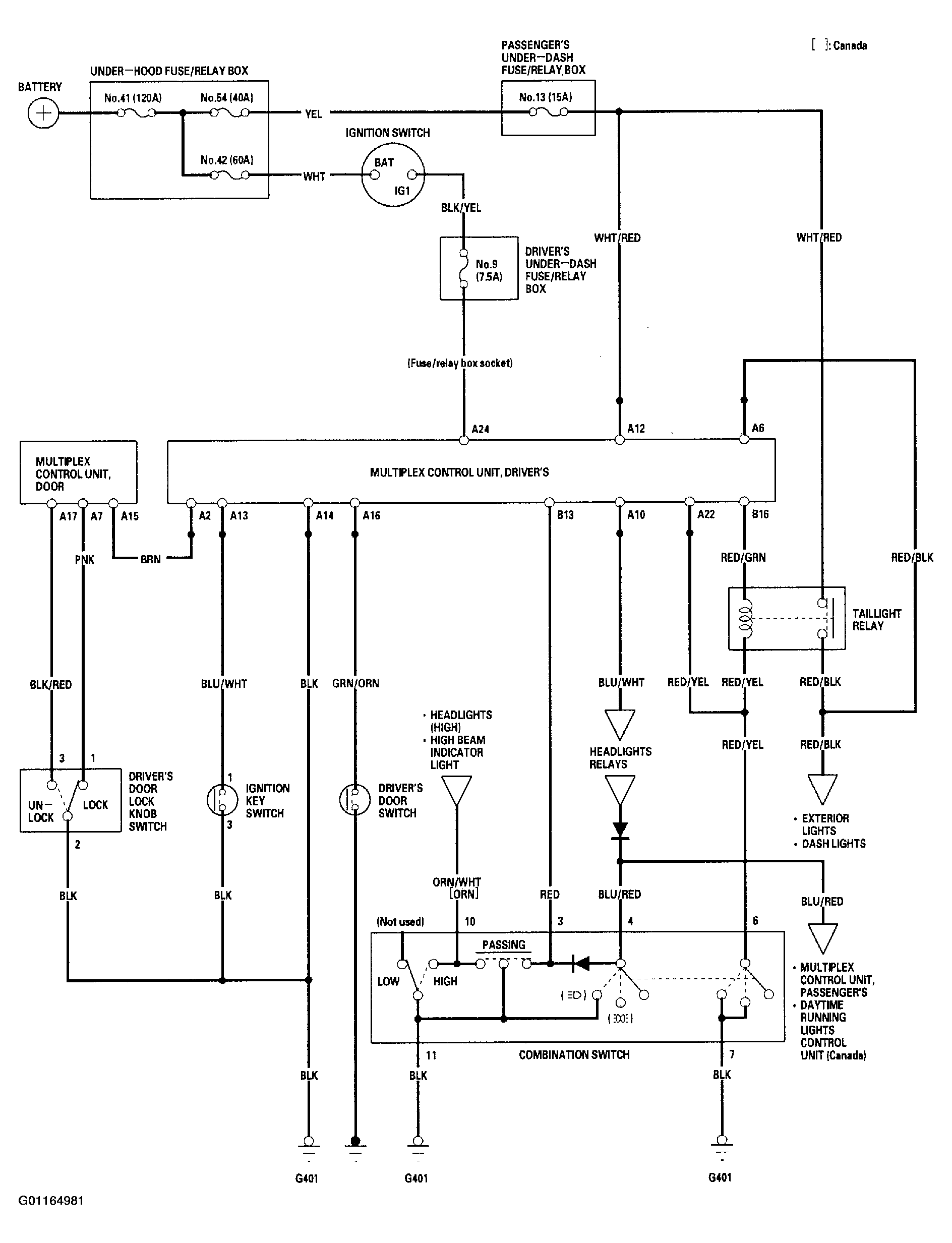

Fig 1: Auto-Off Headlights System Wiring Diagram

G01164981

Courtesy of AMERICAN HONDA MOTOR CO., INC.
