Knuckle/Hub/Wheel Bearing Replacement

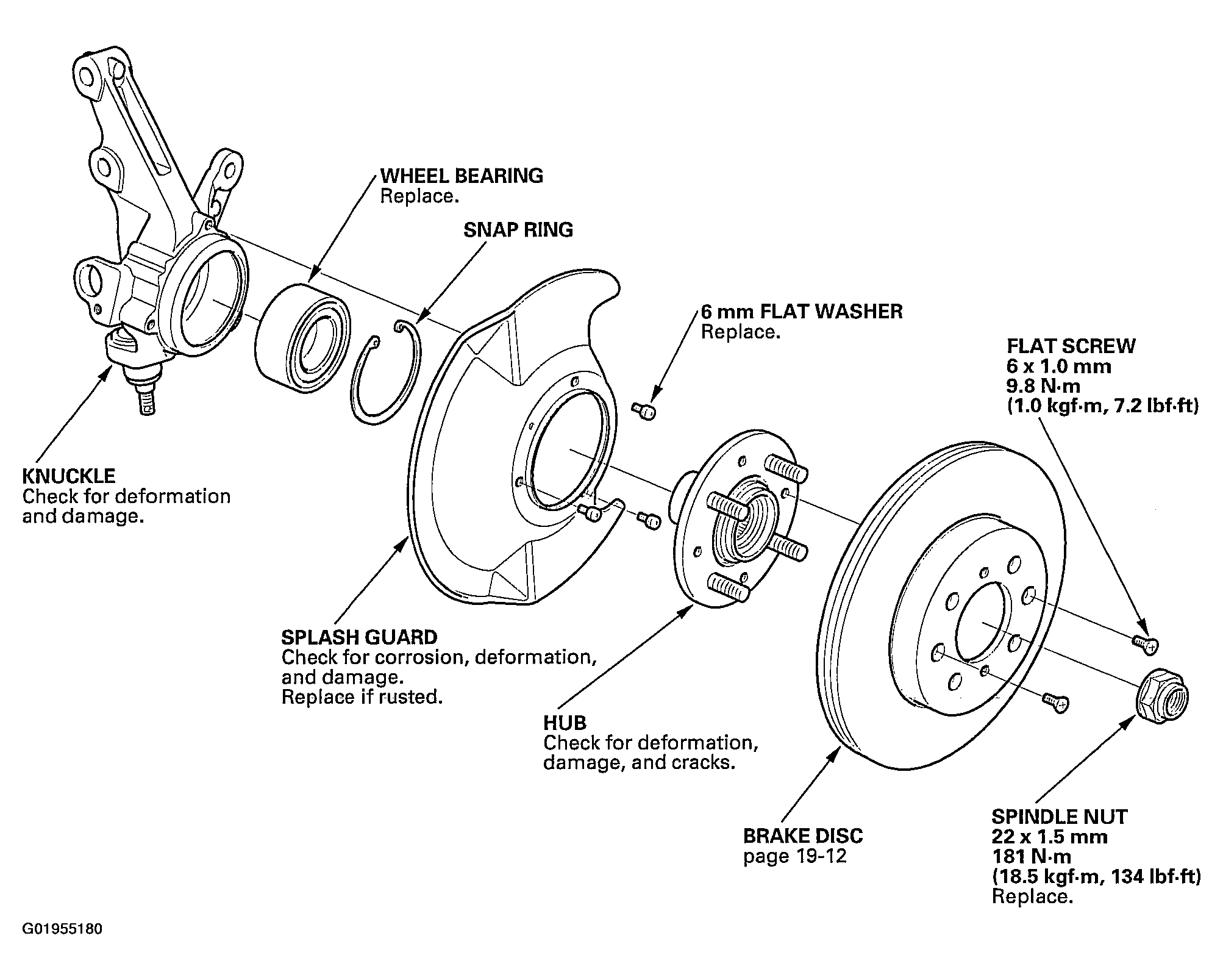

Fig 1: Exploded View Of Knuckle/Hub/Wheel Bearing

Special Tools Required

• Hub dis/assembly tool 07GAF-SE00100
• Ball joint remover, 28 mm 07MAC-SL00200
• Attachment 62 x 68 mm 07746-0010500
• Driver 07749-0010000
• Support base 07965-SD90100

1. Raise the front of the vehicle, and make sure it is securely supported.

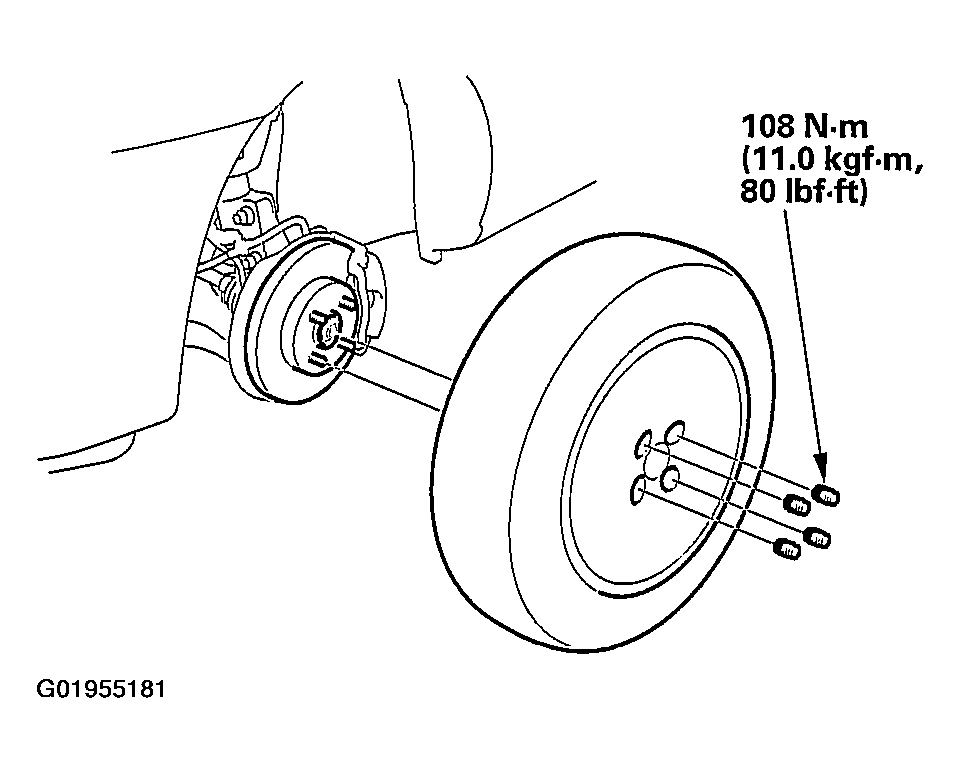

2. Remove the wheel cap, wheel nuts, and front wheel.
   Fig 2: Removing Wheel Cap, Nuts & Front Wheel

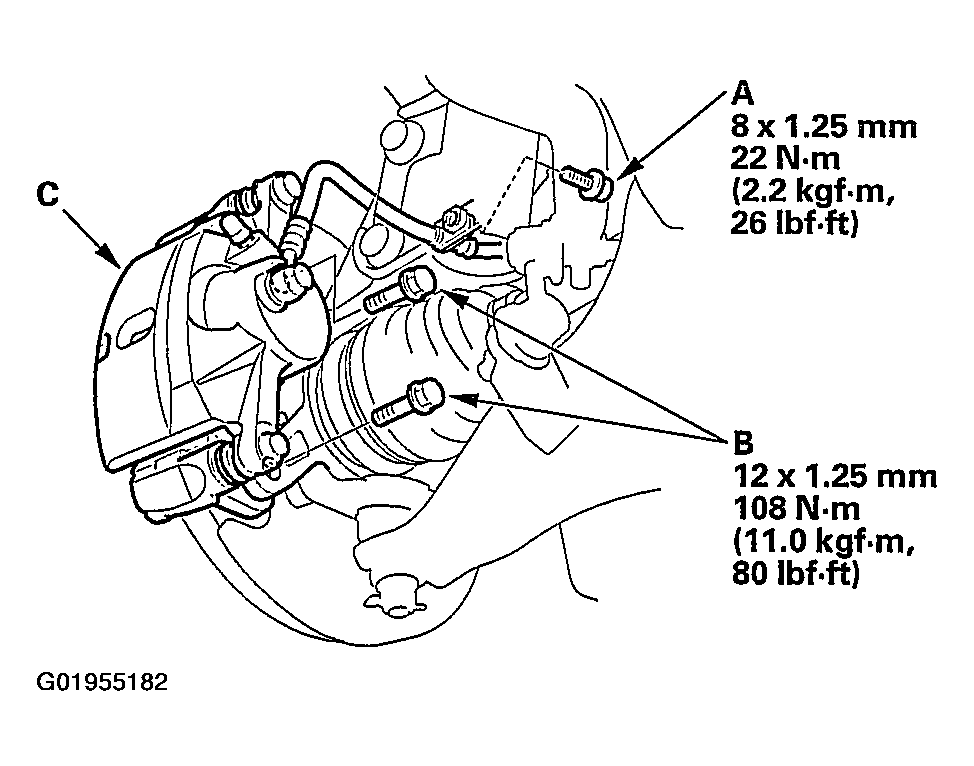

3. Remove the brake hose bracket mounting bolt (A).
   Fig 3: Removing Brake Hose Bracket Mounting Bolt


4. Remove the caliper bracket mounting bolts (B), and remove the caliper assembly (C) from the knuckle. To prevent damage to the caliper assembly or brake hose, use a short piece of wire to hang the caliper assembly from the undercarriage. Do not twist the brake hose with force.

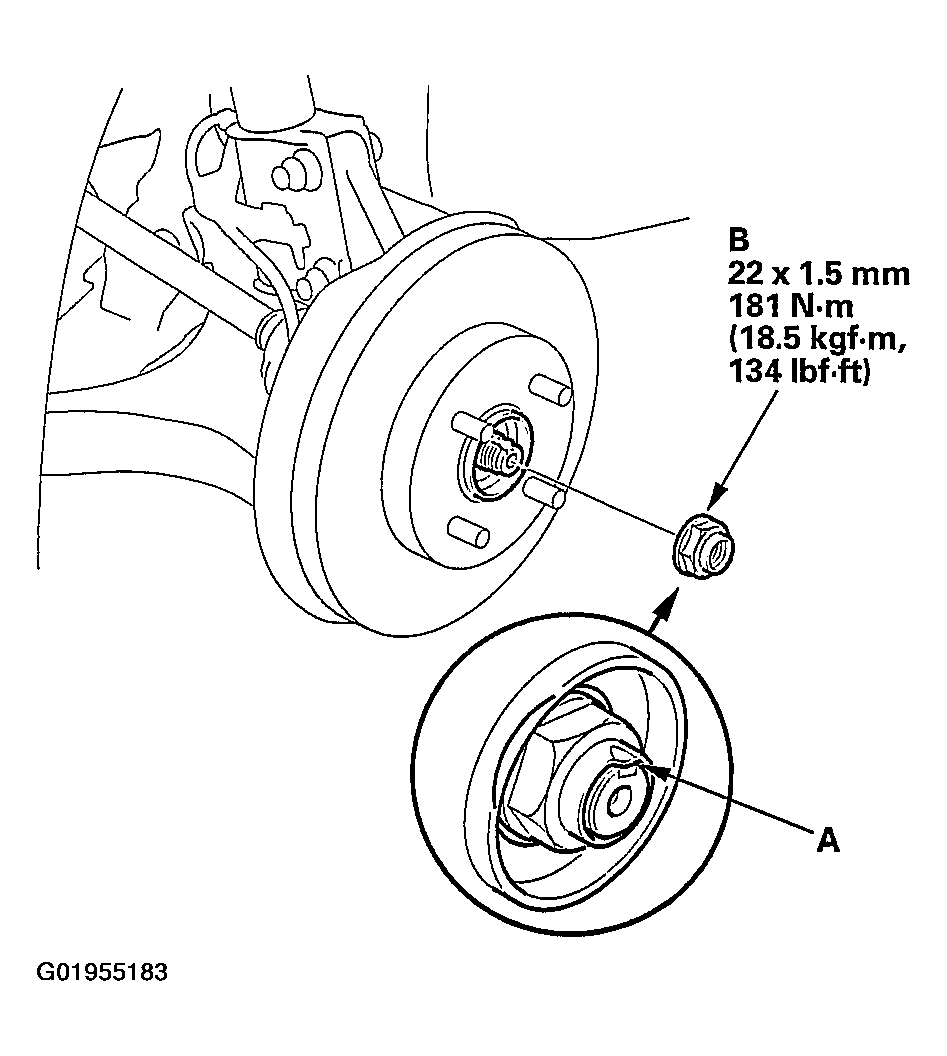

5. Raise the stake (A), and remove the spindle nut (B).
   Fig 4: Raising Stake & Removing Spindle Nut

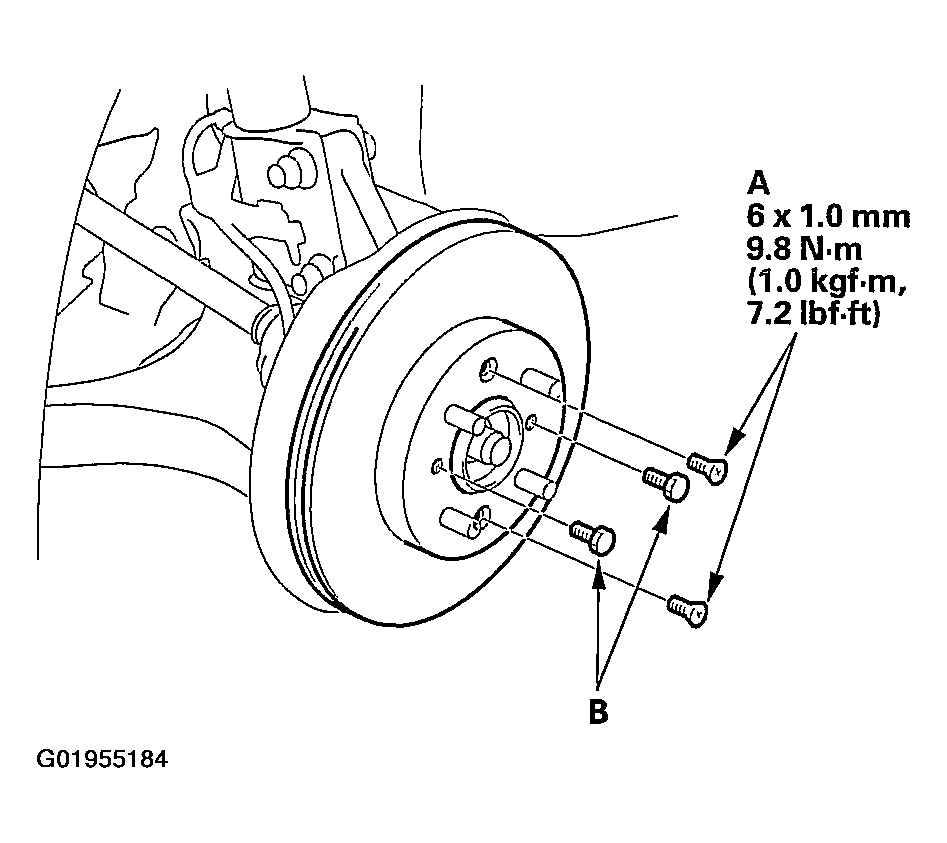

6. Remove the brake disc retaining flat screws (A).
   Fig 5: Removing Brake Disc Retaining Flat Screws


7. Screw two 8 x 1.25 mm bolts (B) into the disc to push it away from the hub. Turn each bolt 2 turns at a time to prevent cocking the disc excessively.

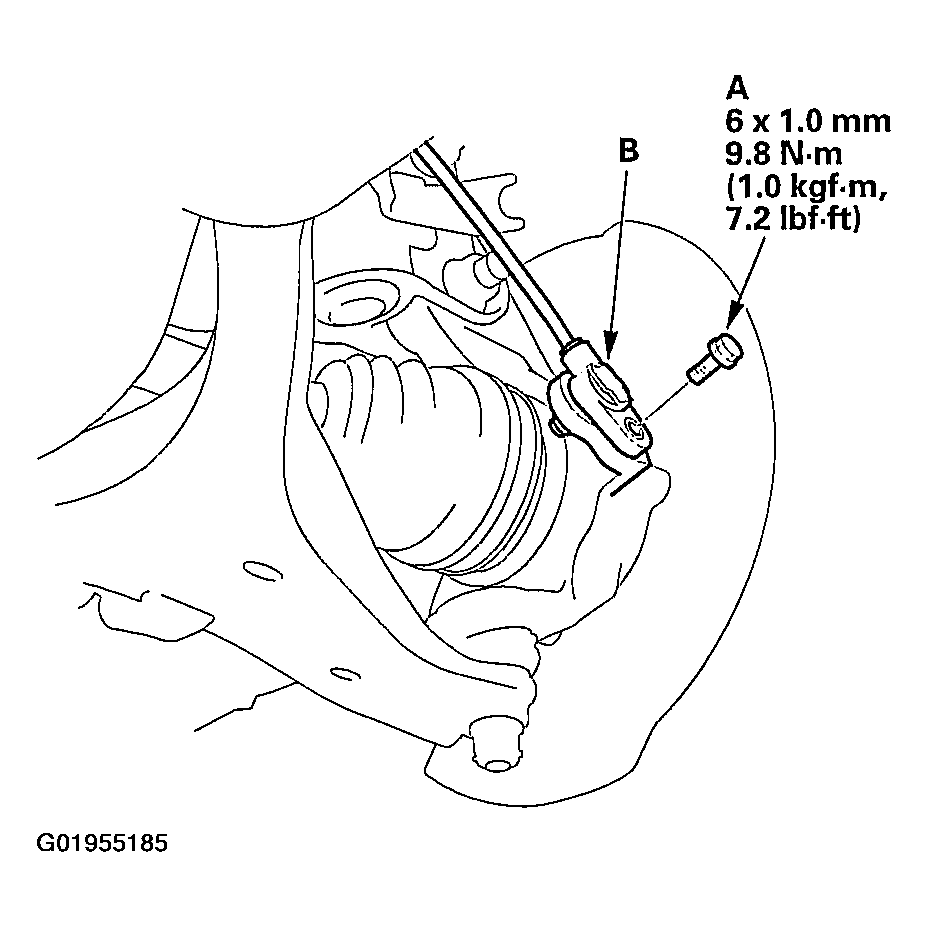

8. Remove the flange bolt (A) and wheel sensor (B) from the knuckle. Do not disconnect the wheel sensor connector.
   Fig 6: Removing Flange Bolt & Wheel Sensor

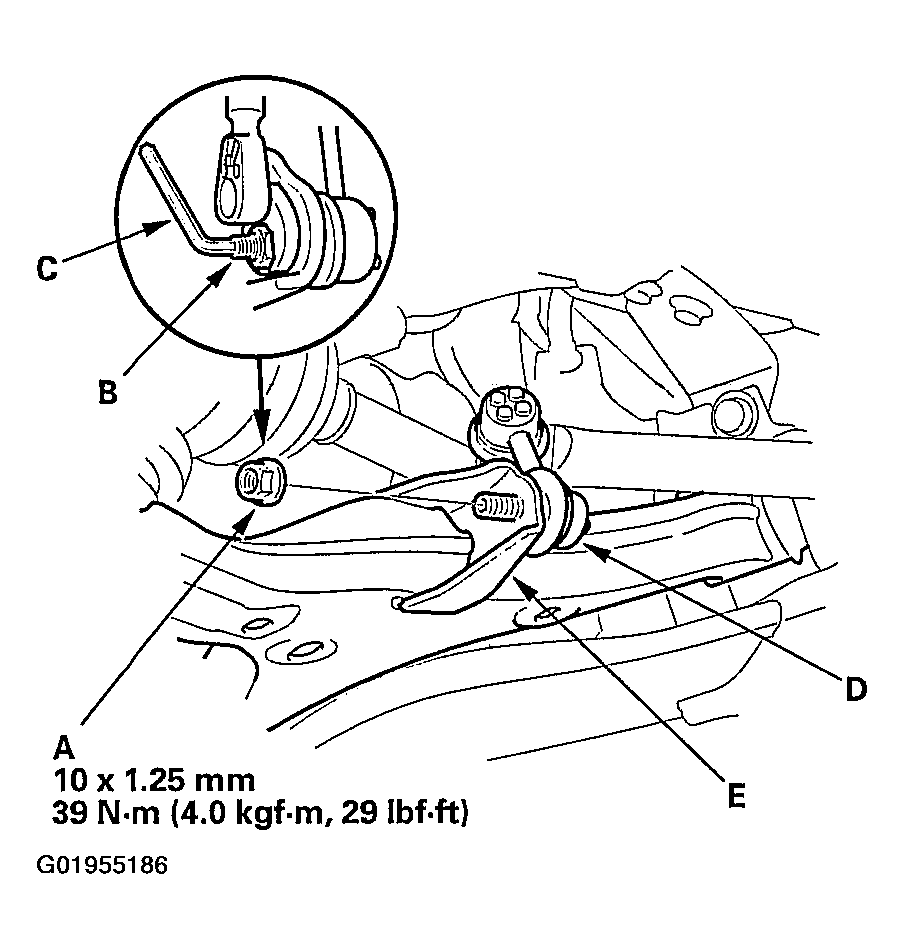

9. Remove the flange nut (A) while holding the joint pin (B) with a hex wrench (C), and disconnect the stabilizer link (D) from the lower arm (E).
   Fig 7: Removing Flange Nut Holding Joint Pin With Hex Wrench

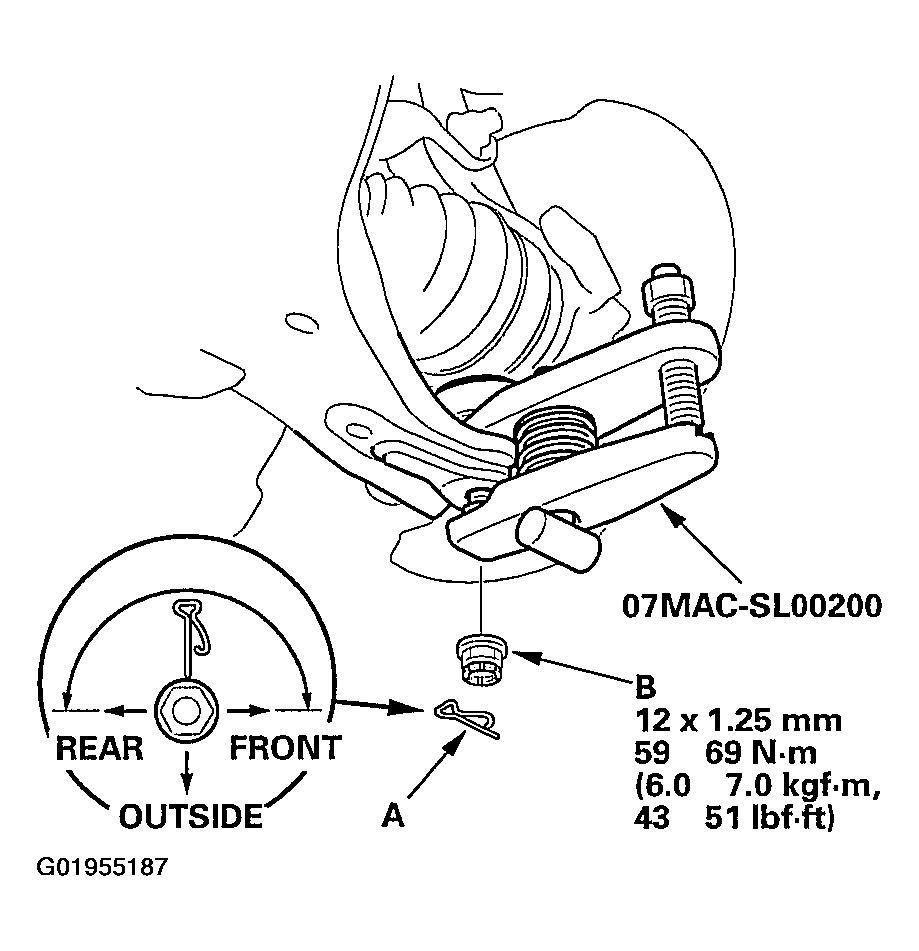

10. Remove the clip (A) from the lower arm ball joint, and remove the castle nut (B).
    NOTE: During installation, insert the clip into the ball joint pin in the range of 180 degrees or below from the inside of the vehicle. Insert the clip from the inside to the outside of the vehicle.
    Fig 8: Removing Clip From Lower Arm Ball Joint


11. Disconnect the lower arm from the knuckle using the special tool (see BALL JOINT REMOVAL ).

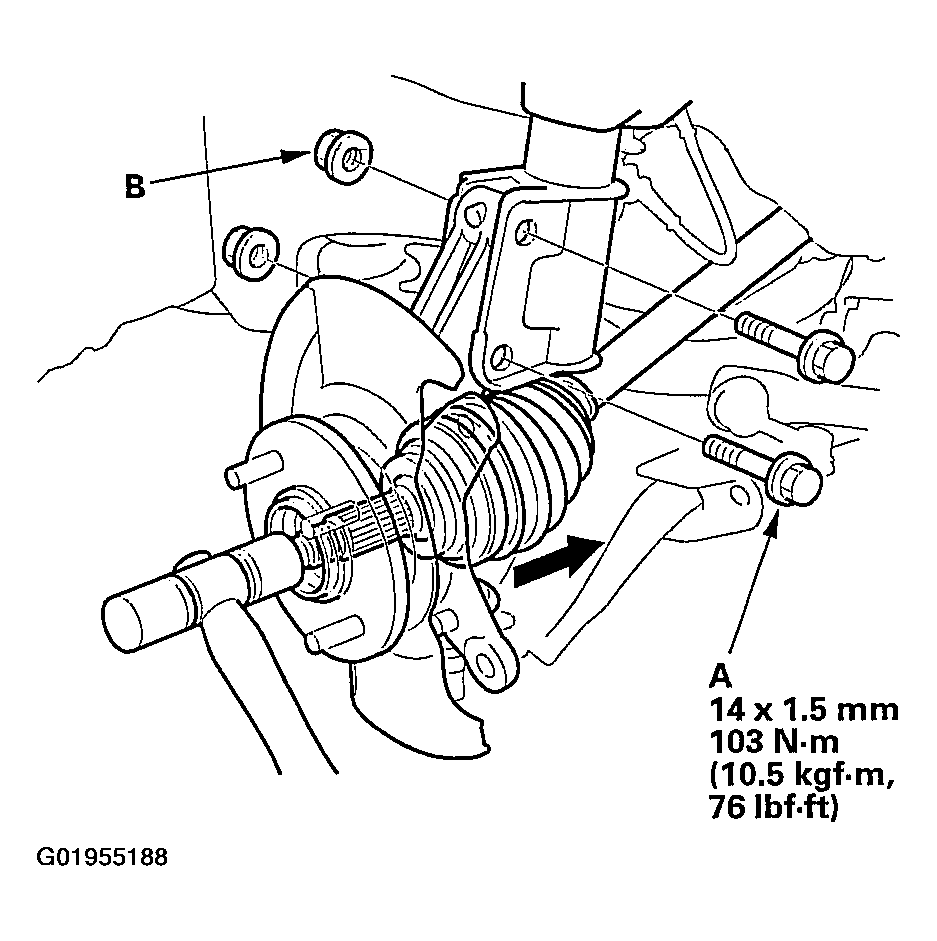

12. Loosen the damper pinch bolts (A) while holding the nuts (B), and remove the bolts and nuts.
    Fig 9: Loosening Damper Pinch Bolts Holding Nuts


13. Remove the driveshaft outboard joint (A) from the knuckle (B) by tapping the driveshaft end (C) with a plastic hammer while drawing the knuckle outward, then remove the knuckle.
    NOTE: Do not pull the driveshaft end outward. The driveshaft joint may come off.

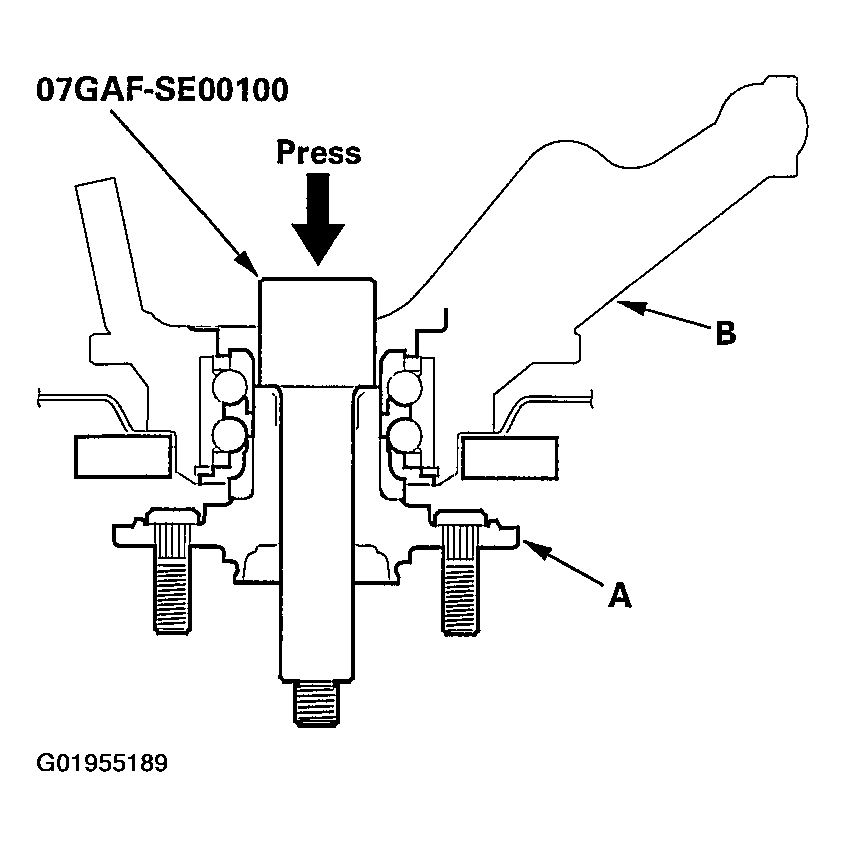

14. Separate the hub (A) from the knuckle (B) using the special tool and a hydraulic press. Take care not to deform the splash guard. Hold onto the hub to keep it from falling when pressed clear.
    Fig 10: Separating Hub From Knuckle Using Special Tool & Hydraulic Press


15. Press the wheel bearing inner race (A) out of the hub (E) using the special tool, a commercially available bearing separator (C), and a press.
    Fig 11: Pressing Wheel Bearing Inner Race Out Of Hub Using Special Tool

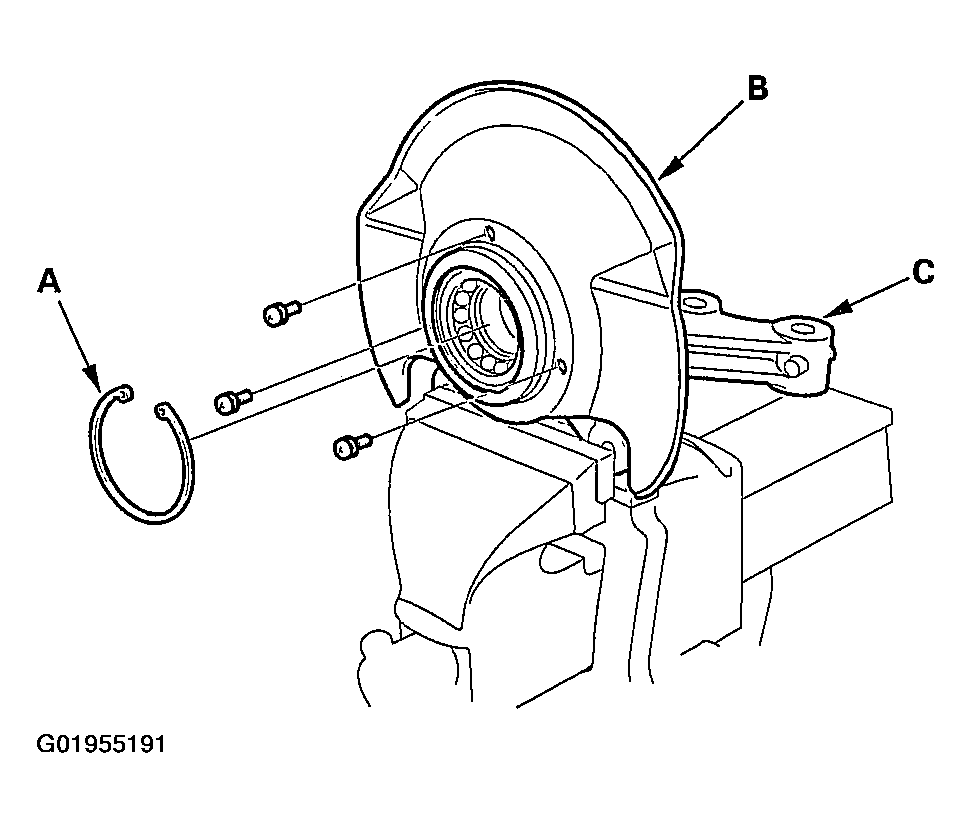

16. Remove the snap ring (A) and the splash guard (B) from the knuckle (C).
    Fig 12: Removing Snap Ring & Splash Guard From Knuckle


17. Press the wheel bearing (A) out of the knuckle (B) using the special tool and a press.
    Fig 13: Pressing Wheel Bearing Out Of Knuckle Using Special Tool & Press


18. Wash the knuckle and hub thoroughly in high flash point solvent before reassembly.

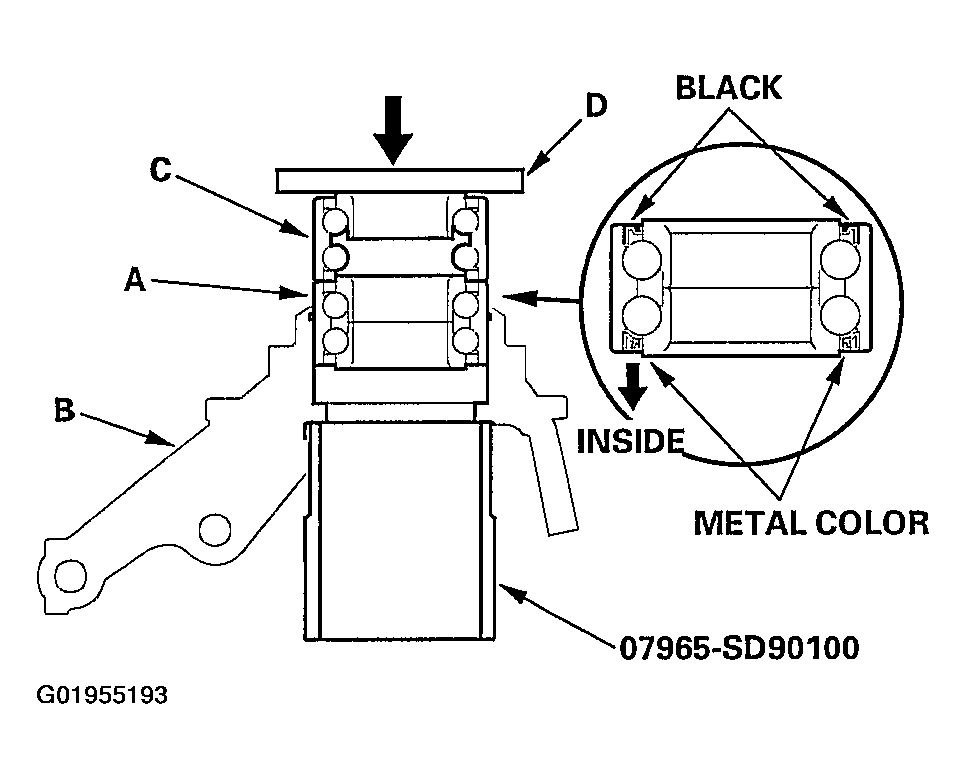

19. Press a new wheel bearing (A) into the knuckle (B) using the old bearing (C), a steel plate (D), the special tool, and a press. Place the wheel bearing on the knuckle with the pack seal side facing (metal color) toward the inside. Be careful not to damage the sleeve of the pack seal.
    Fig 14: Pressing Wheel Bearing Into Knuckle

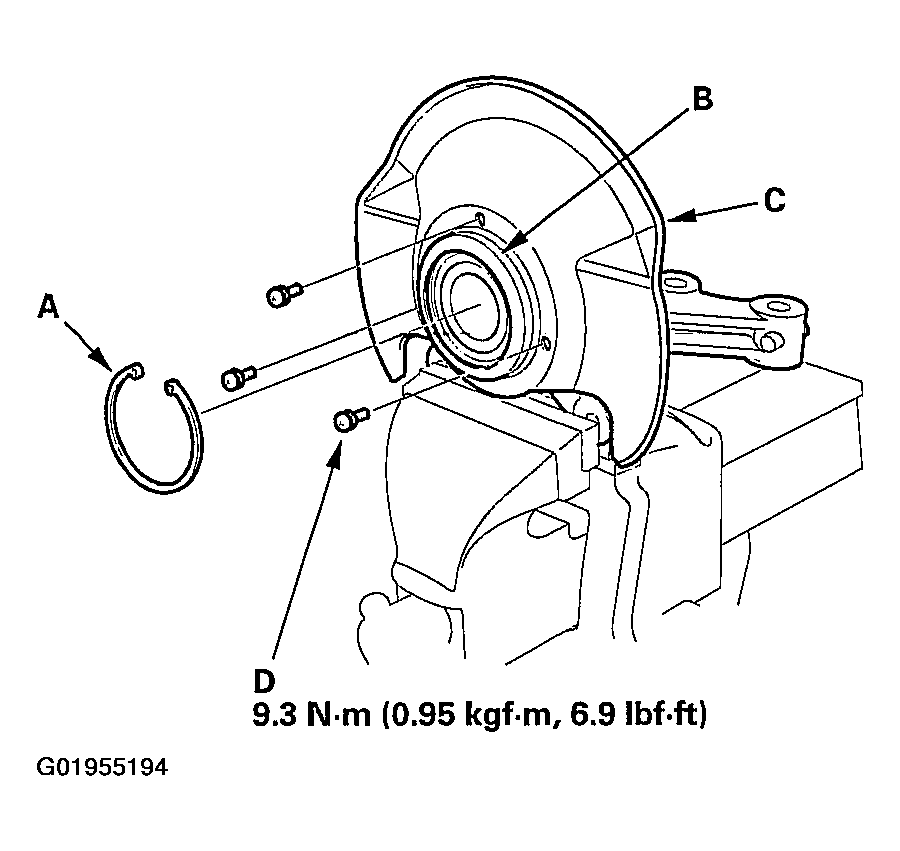

20. Install the snap ring (A) securely in the knuckle (B).
    Fig 15: Installing Snap Ring Securely In Knuckle


21. Install the splash guard (C), and tighten the screws (D) to the specified torque.
22. Press a new hub bearing unit (A) into the hub (B) using the special tools and a press.
    Fig 16: Pressing Hub Bearing Unit Into Hub Using Special Tools & Press


23. Install the knuckle/hub/hub bearing unit in the reverse order of removal, and note these items:
    • Be careful not to damage the ball joint boot when installing the knuckle.
    • Tighten all mounting hardware to the specified torque values.
    • Torque the castle nut to the lower torque specification, then tighten it only far enough to align the slot with the clip hole. Do not align the castle nut by loosening it.
    • Install a new clip on the castle nut after torquing.
    • Use a new spindle nut on reassembly.
    • Before installing the spindle nut, apply a small amount of engine oil to the seating surface of the nut. After tightening, use a drift to stake the spindle nut shoulder against the driveshaft.
    • Before installing the brake disc, clean the mating surface of the front hub and the inside of the brake disc.
    • Before installing the wheel, clean the mating surface of the brake disc and the inside of the wheel.
    • Check the front wheel alignment, and adjust it if necessary (see WHEEL ALIGNMENT ).
