Parking Brake Switch Test

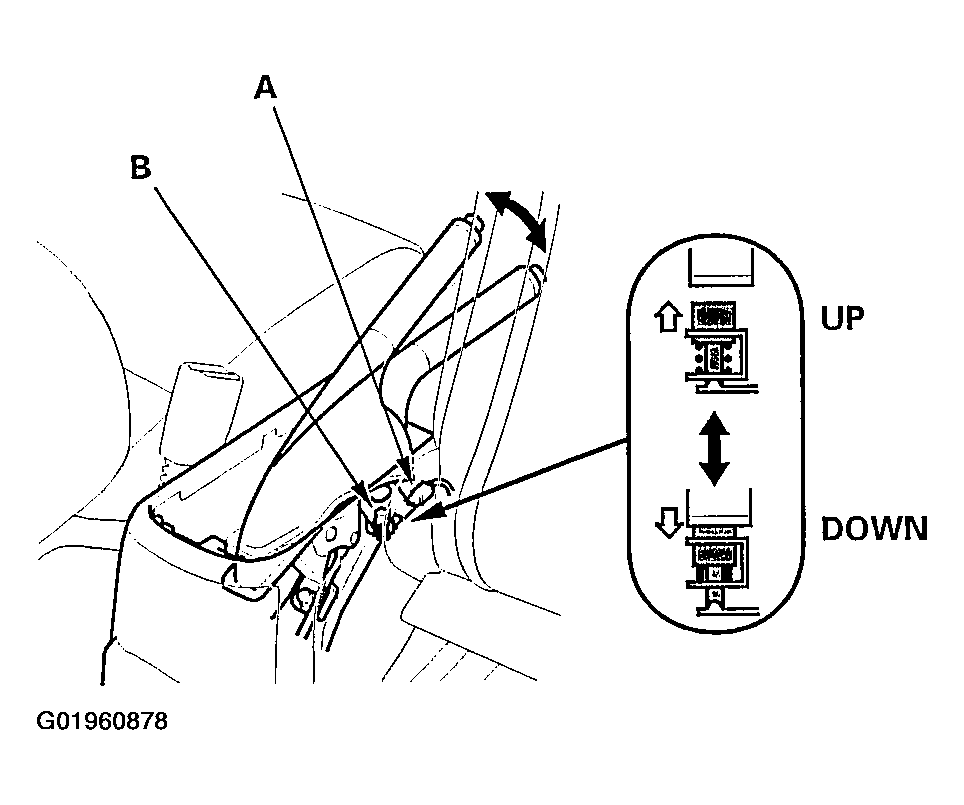

- Remove the console, and disconnect the connector (A) from the switch (B).
- Check for continuity between the positive terminal and body ground:
- With the brake lever up, there should be continuity.
- With the brake lever down, there should be no continuity.
