Brake System Indicator Circuit Diagram
Brake System Indicator Circuit Diagram

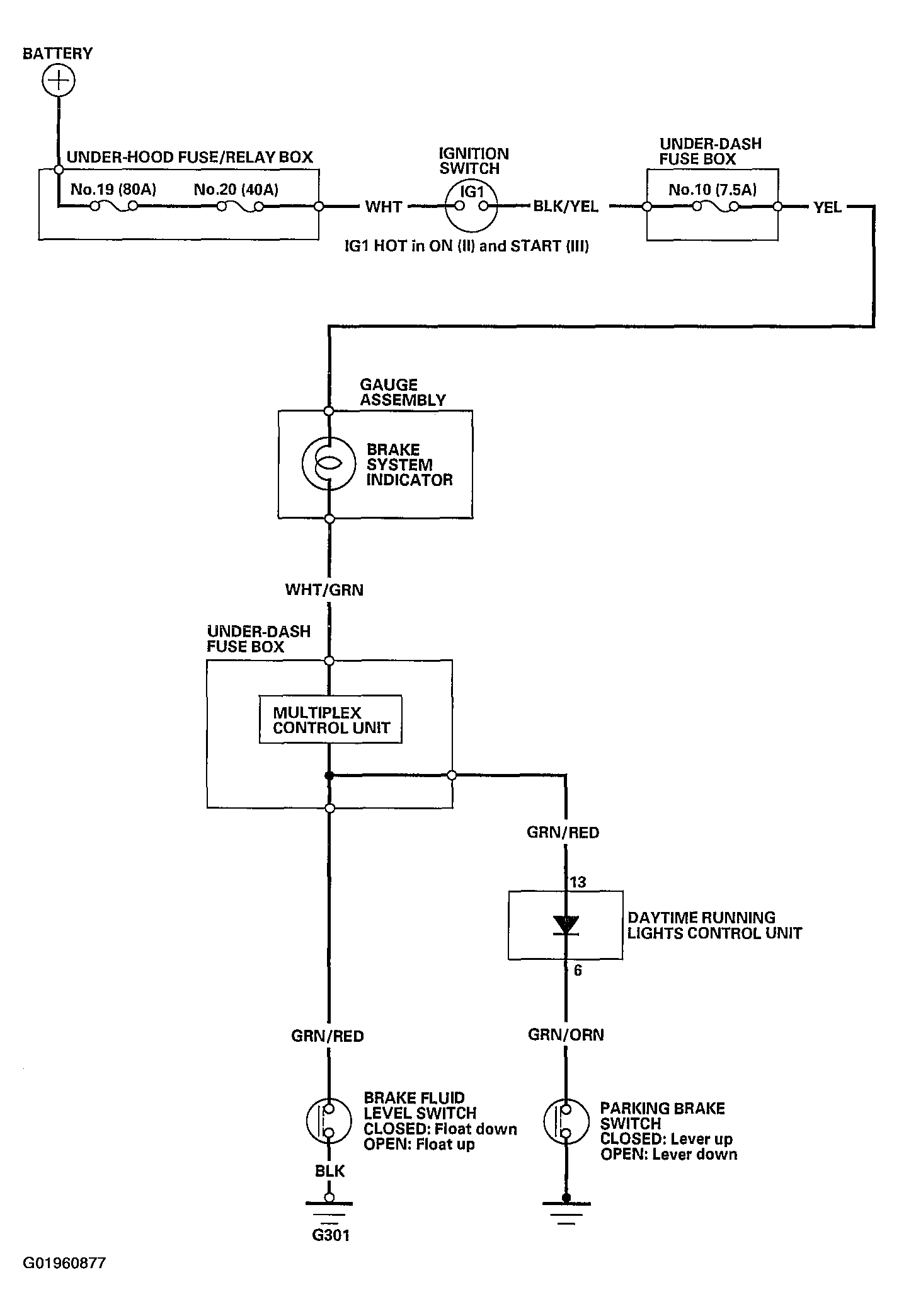

Fig 1: Brake System Indicator Circuit Diagram
