Center Console Removal/Installation

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
Take care not to scratch the front seat, dashboard, and related parts.

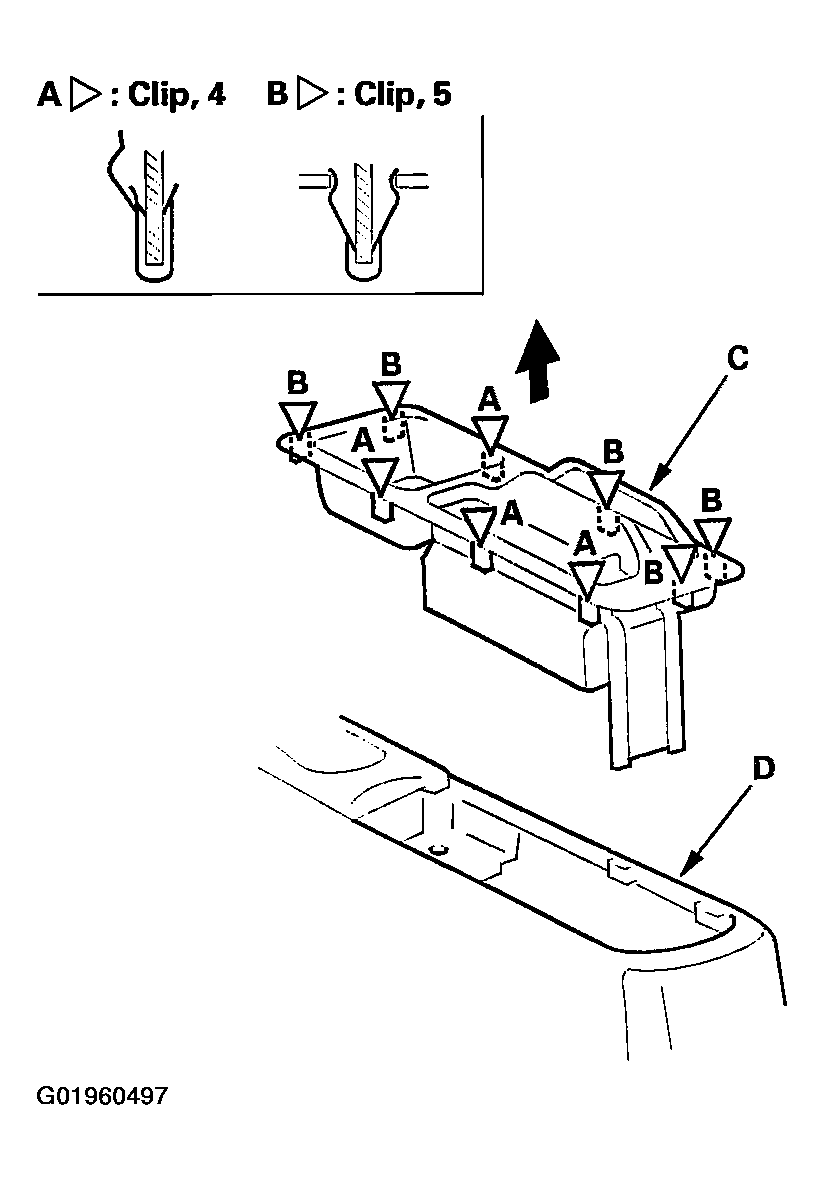

Detach the clips (A, B) by pulling the center console box (C) up, and removing it from the center console (D).

Fig 1: Removing Center Console Box

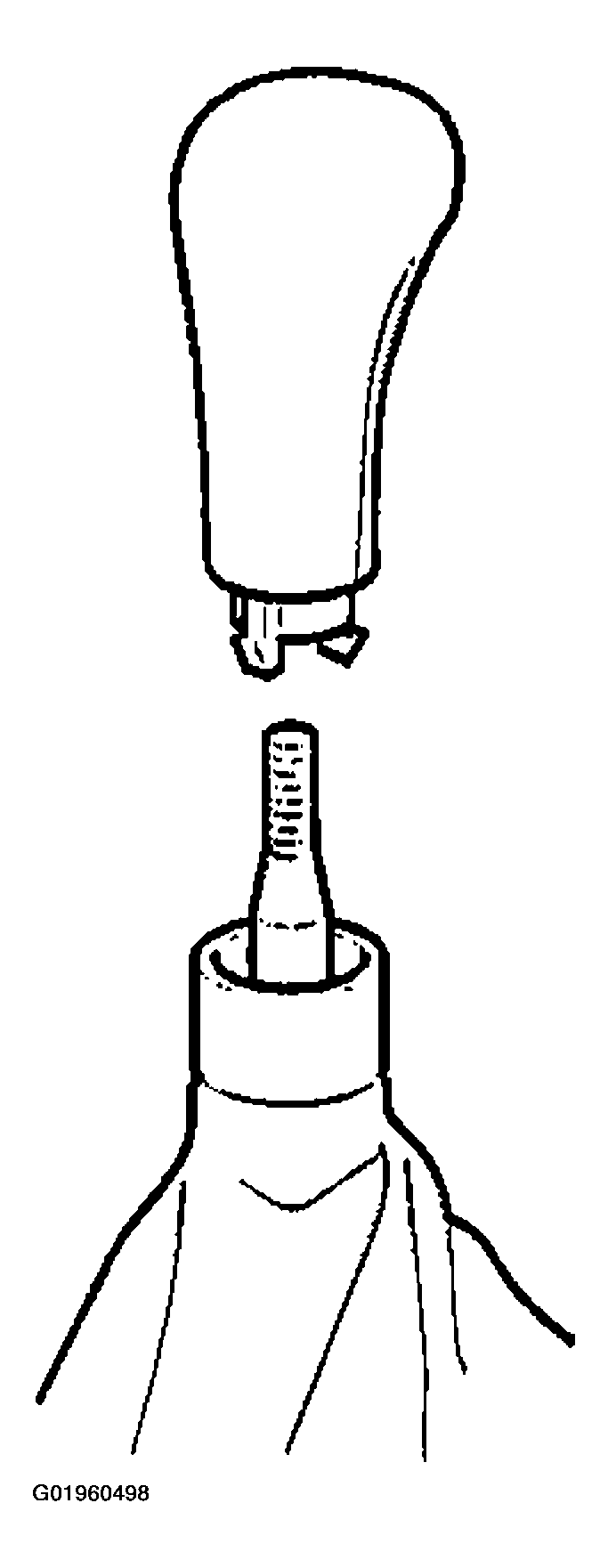

M/T: Remove the shift knob.

Fig 2: Removing Shift Knob (M/T)

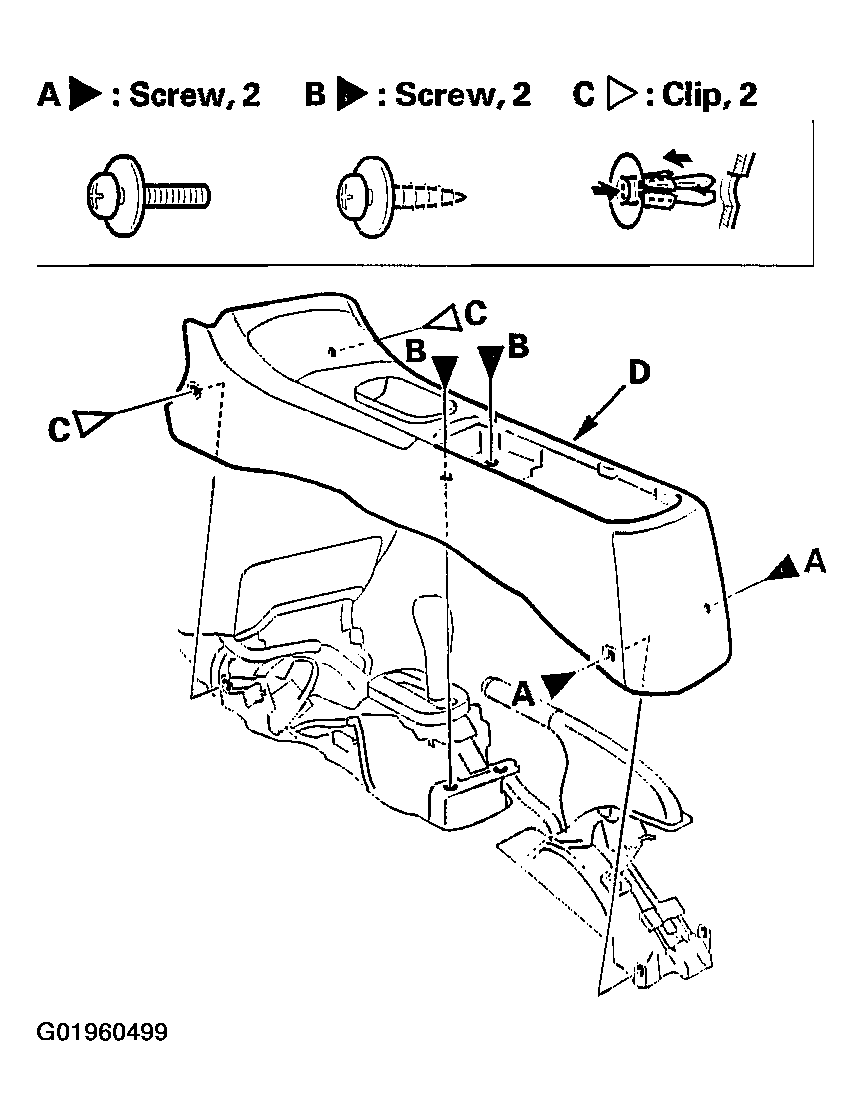

Remove the screws (A, B) and clips (C), and remove the center console (D).

Fig 3: Removing Center Console
Install the console in the reverse order of removal, and replace any damaged clips.
