Circuit Diagram

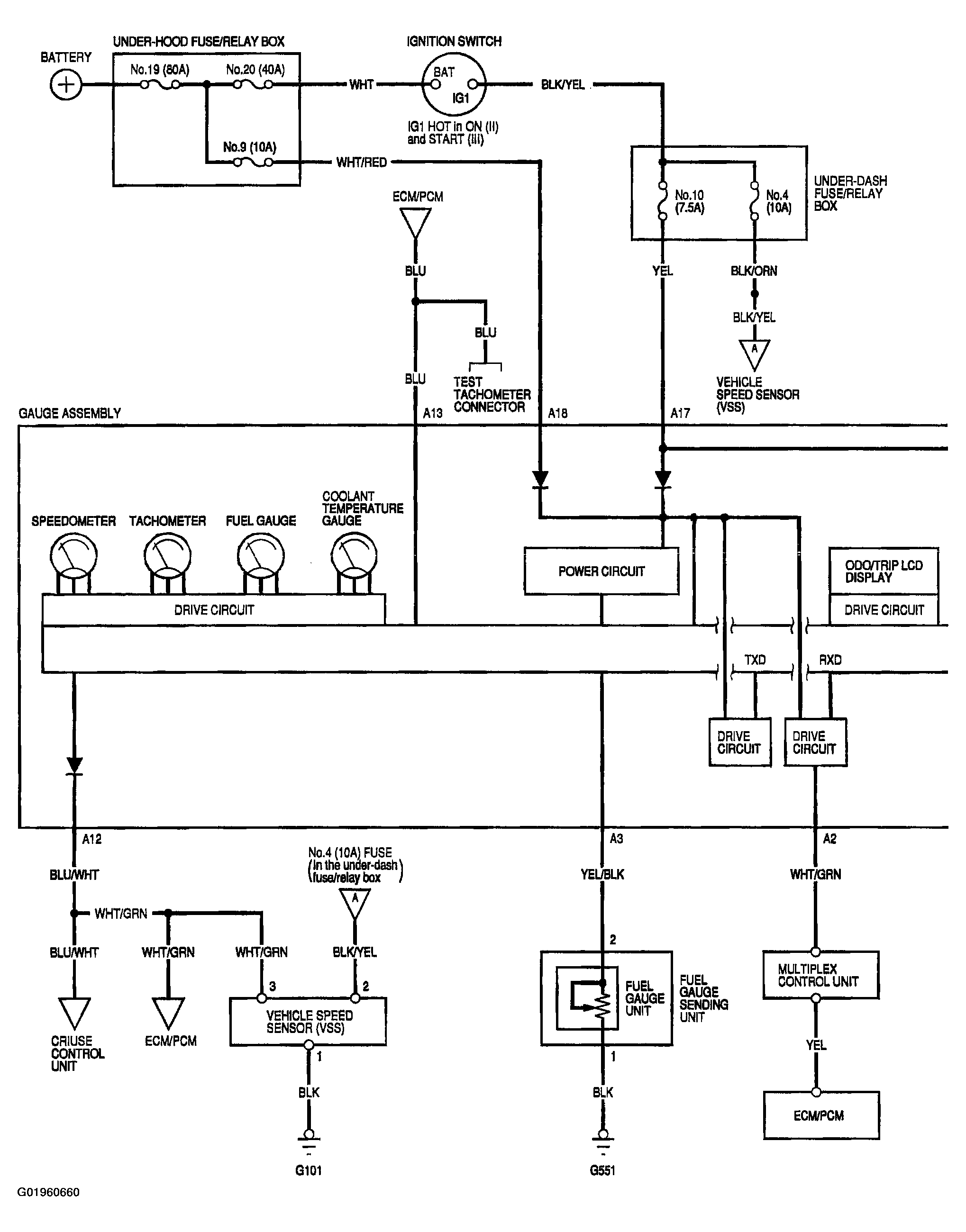

Fig 1: Gauges Circuit Diagram (1 Of 5)

G01960660

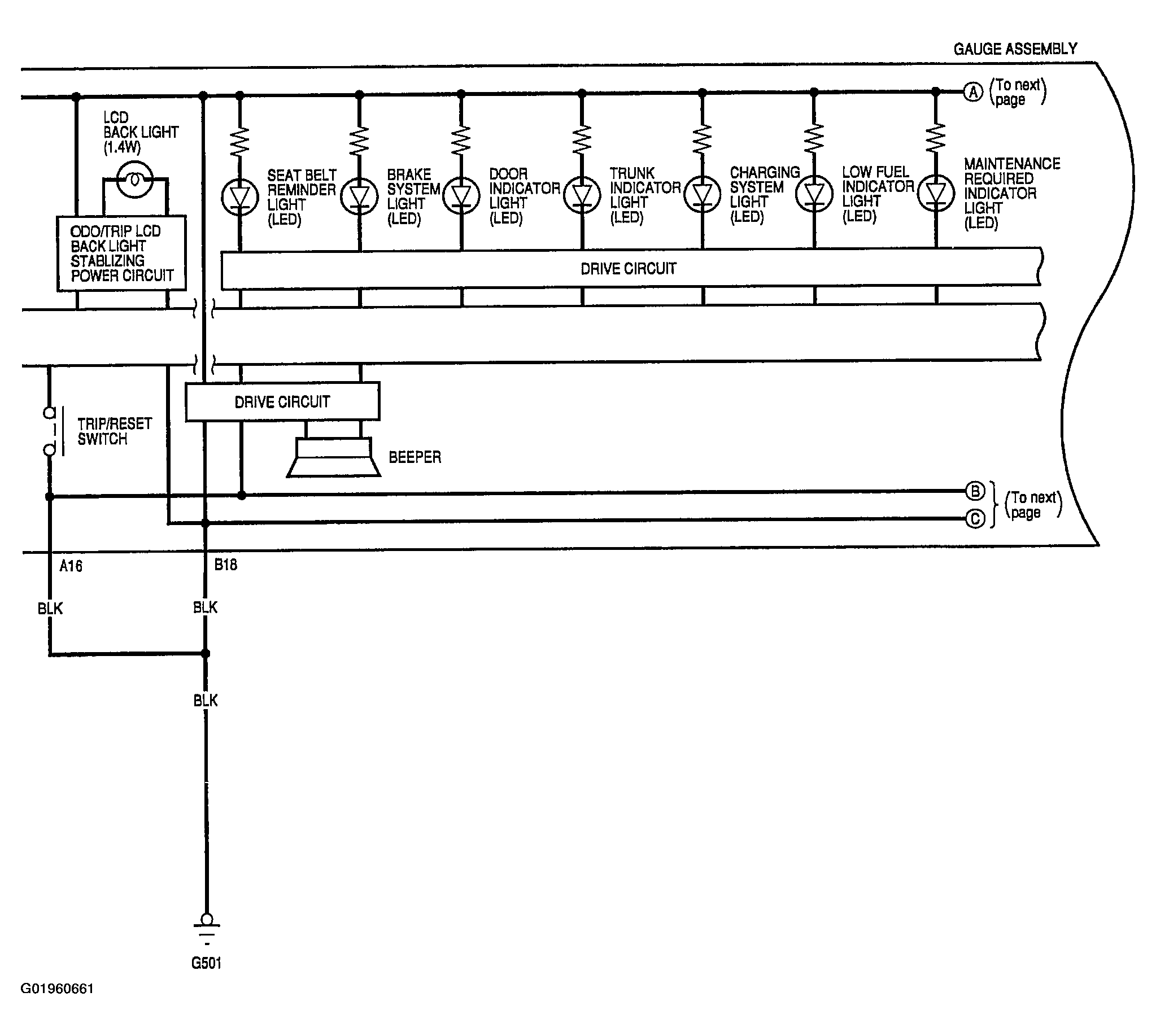

Fig 2: Gauges Circuit Diagram (2 Of 5)

G01960661

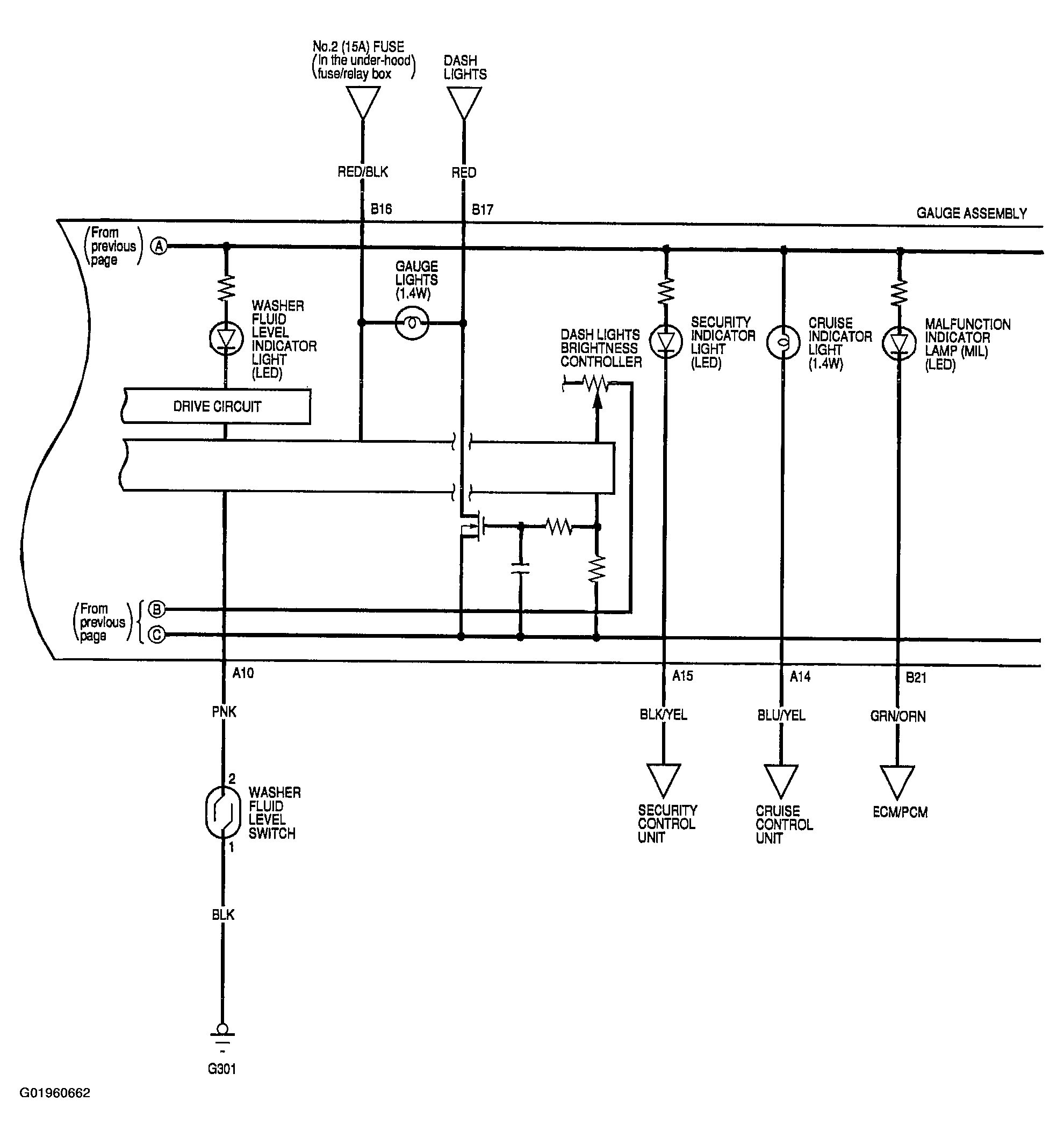

Fig 3: Gauges Circuit Diagram (3 Of 5)

G01960662

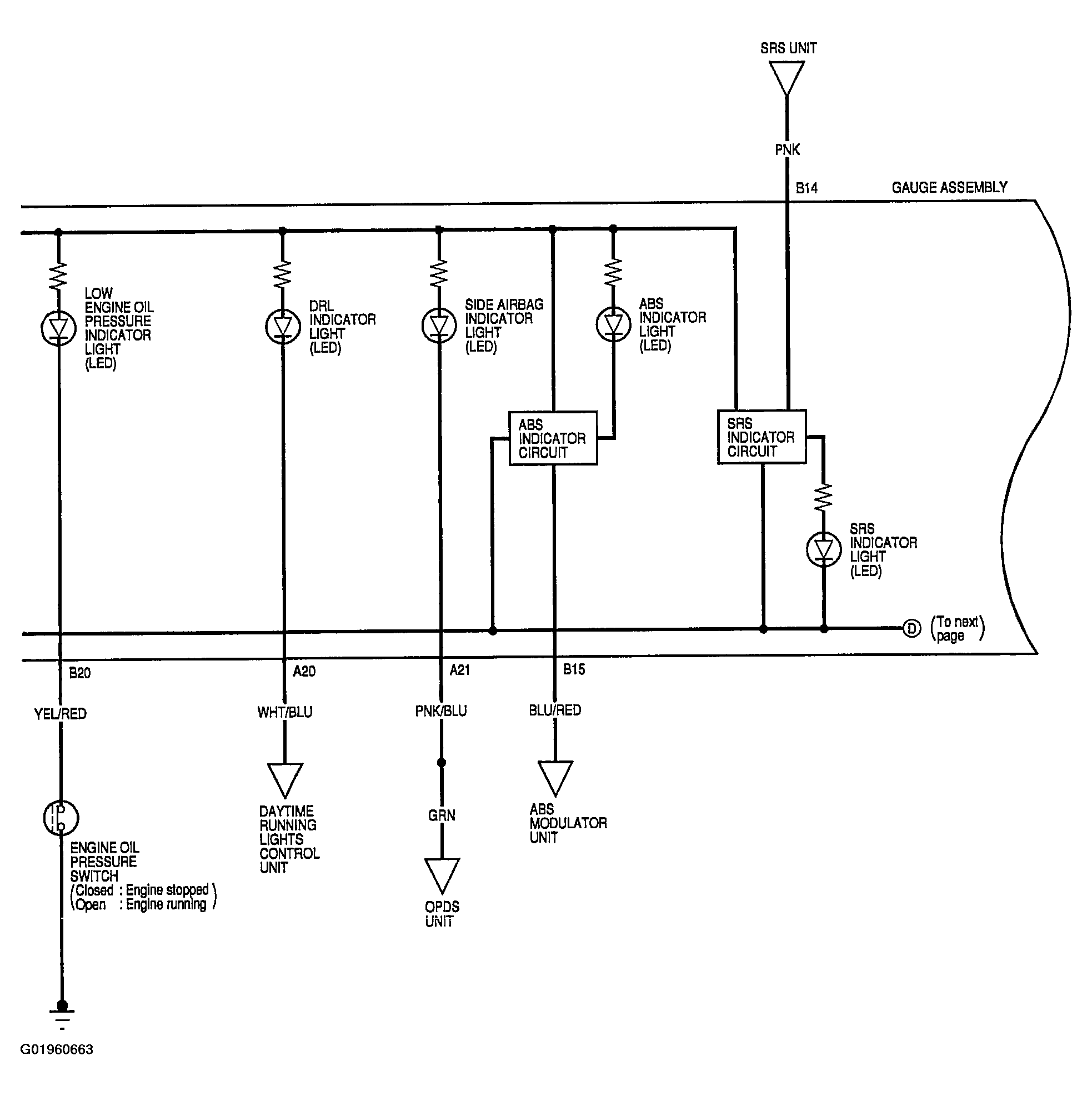

Fig 4: Gauges Circuit Diagram (4 Of 5)

G01960663

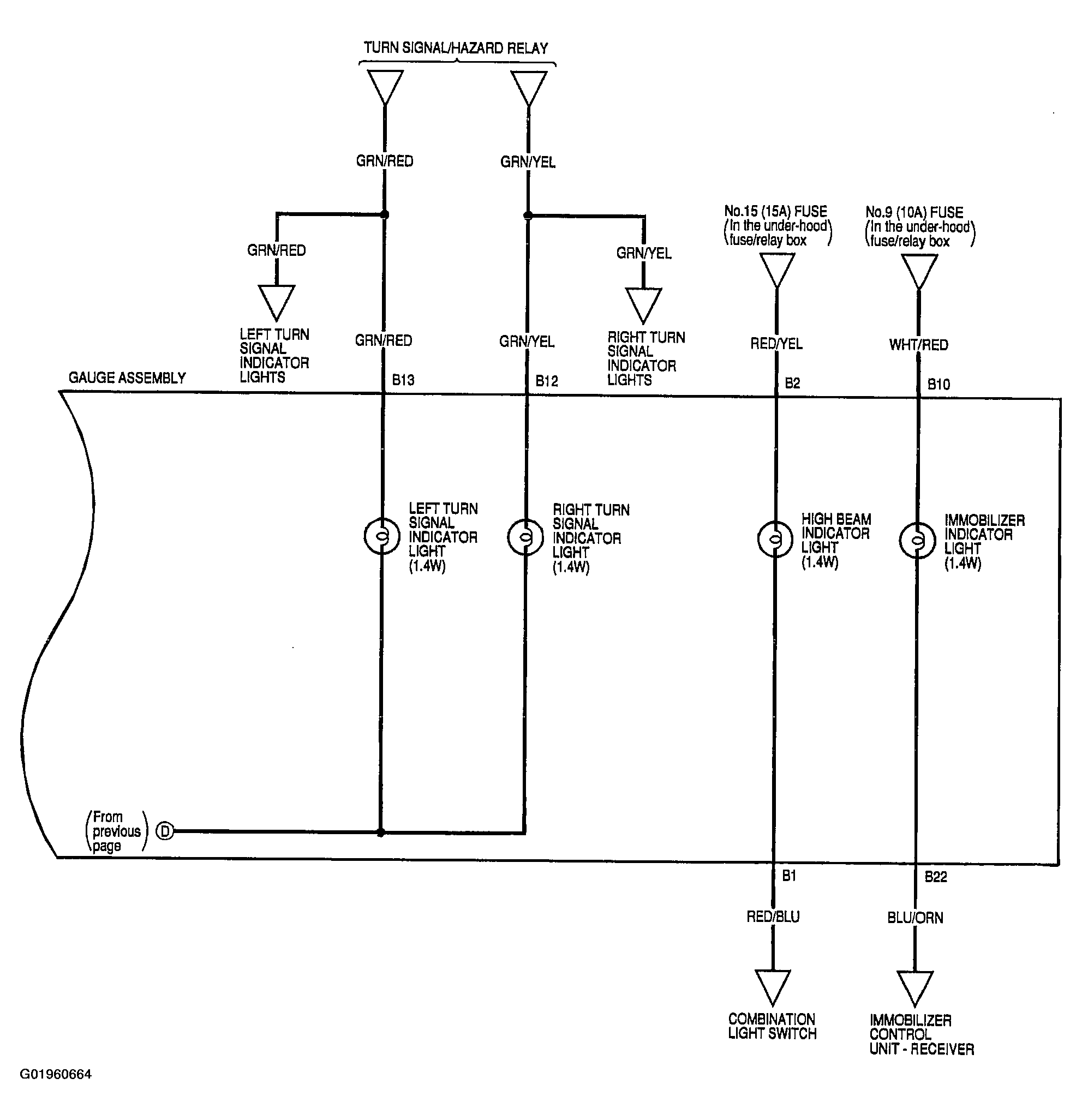

Fig 5: Gauges Circuit Diagram (5 Of 5)

G01960664
