Removal & Installation (Master Cylinder & Booster - 3.5RL)
CAUTION:
Do not disconnect clevis by removing it from operating rod of brake booster. If clevis is loosened, adjust pushrod length before installing brake booster.

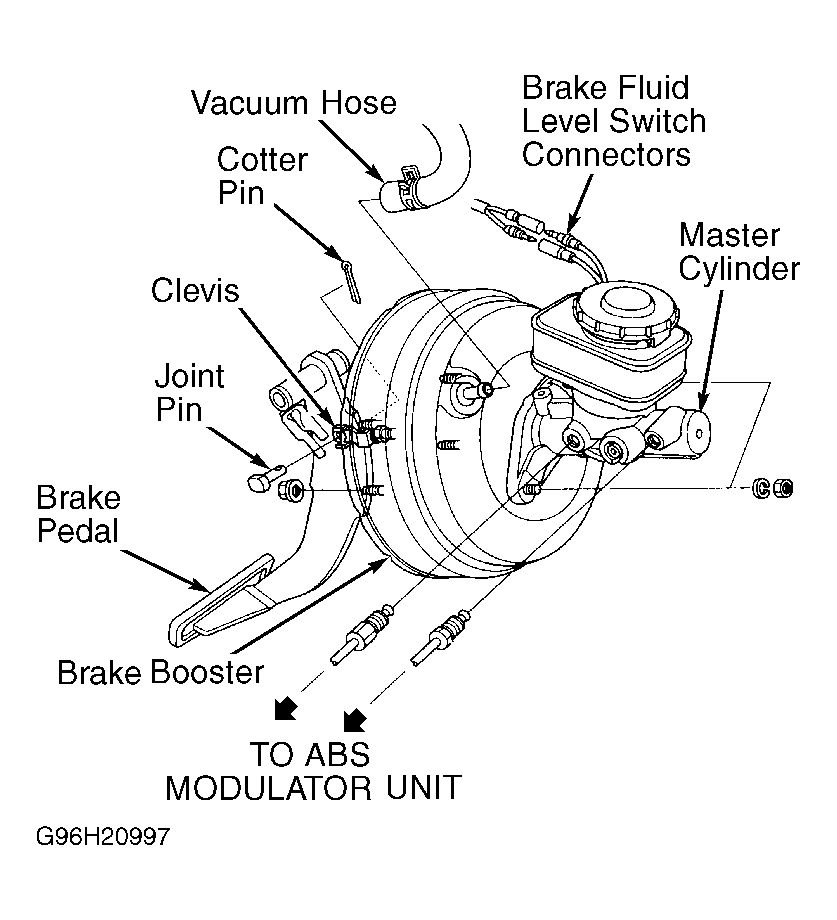

Disconnect brake fluid level switch connectors. See Fig 1 . Remove reservoir cap. Remove brake fluid from master cylinder reservoir with a syringe. Disconnect brake lines from master cylinder. Remove master cylinder mounting nuts. Remove master cylinder from brake booster. Disconnect vacuum hose from brake booster. Remove cotter pin and clevis pin from clevis. Remove 4 booster mounting nuts. Pull booster forward until clevis is clear of bulkhead. Remove booster from engine compartment. Install in reverse order of removal.
