Removal & Installation (3.2CL & 3.2TL)

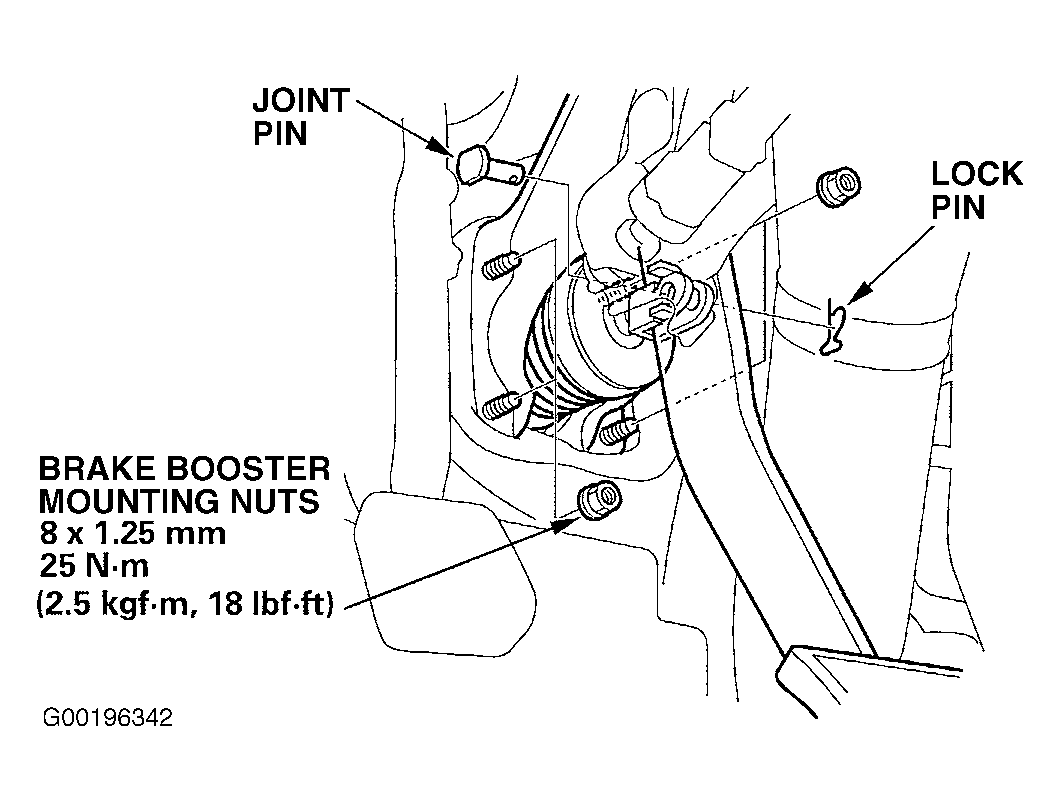

Remove master cylinder. See MASTER CYLINDER  . Disconnect vacuum hose from brake booster. Remove fuel feed line bracket. Remove starter cable clamps and windshield wiper intermittent relay bracket. See Fig 1 . Remove lock pin and clevis pin. Remove four booster mounting nuts. See Figure . Pull brake booster forward, then turn it to the right until clevis is clear of bulkhead at cutout. See Fig 2 . Install booster in reverse order of removal.

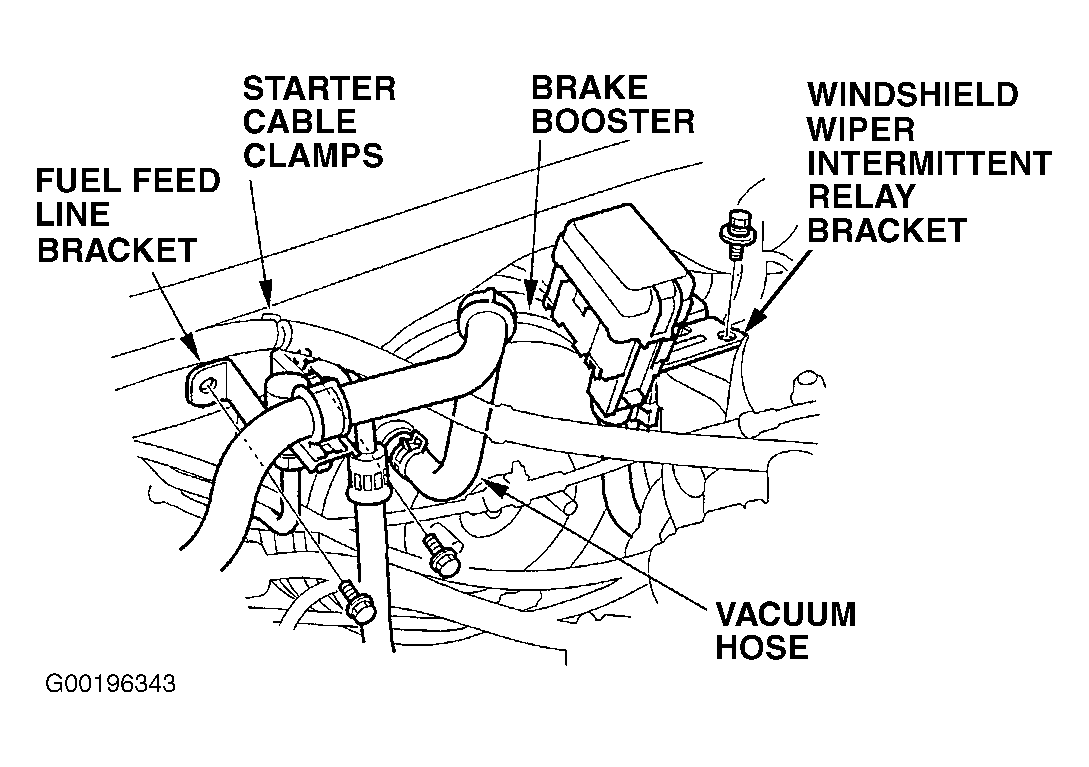

Fig 1: Identifying Feed Line & Starter Cable Clamps (3.2CL & 3.2TL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

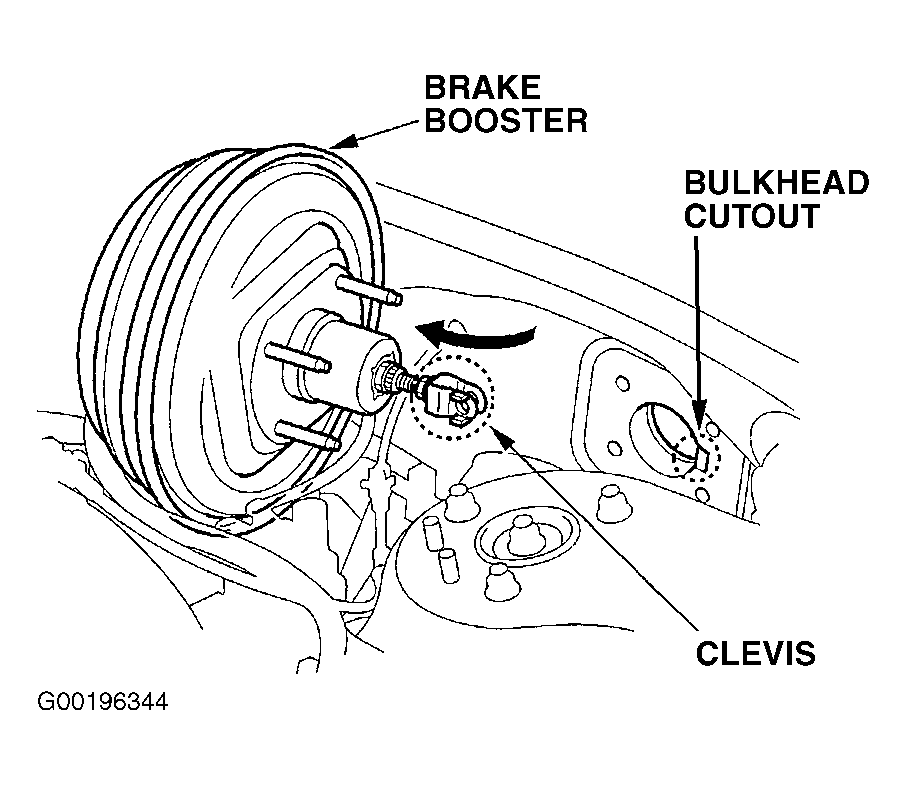

Fig 2: Removing Brake Booster (3.2CL & 3.2TL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
