Glove Box Removal/Installation

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) in the SRS section before performing repairs or service.

1. Remove the passenger's dashboard lower cover.
2. While holding the glove box (A), remove the glove box stop (B) on each side.

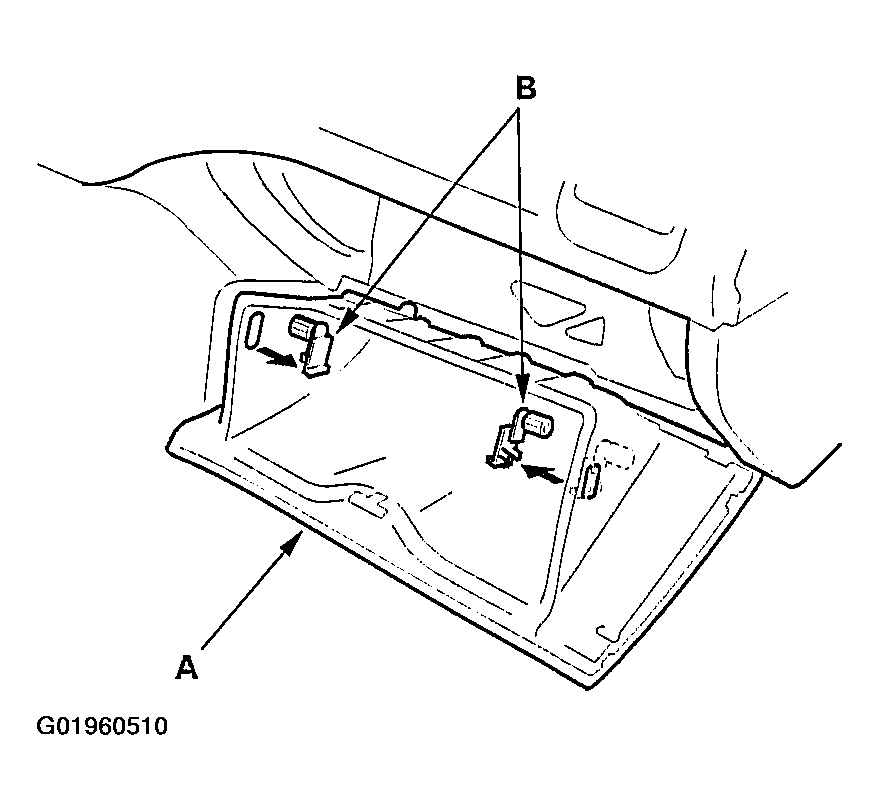

   Fig 1: Removing Glove Box Stop


3. Remove the bolts, then remove the glove box.

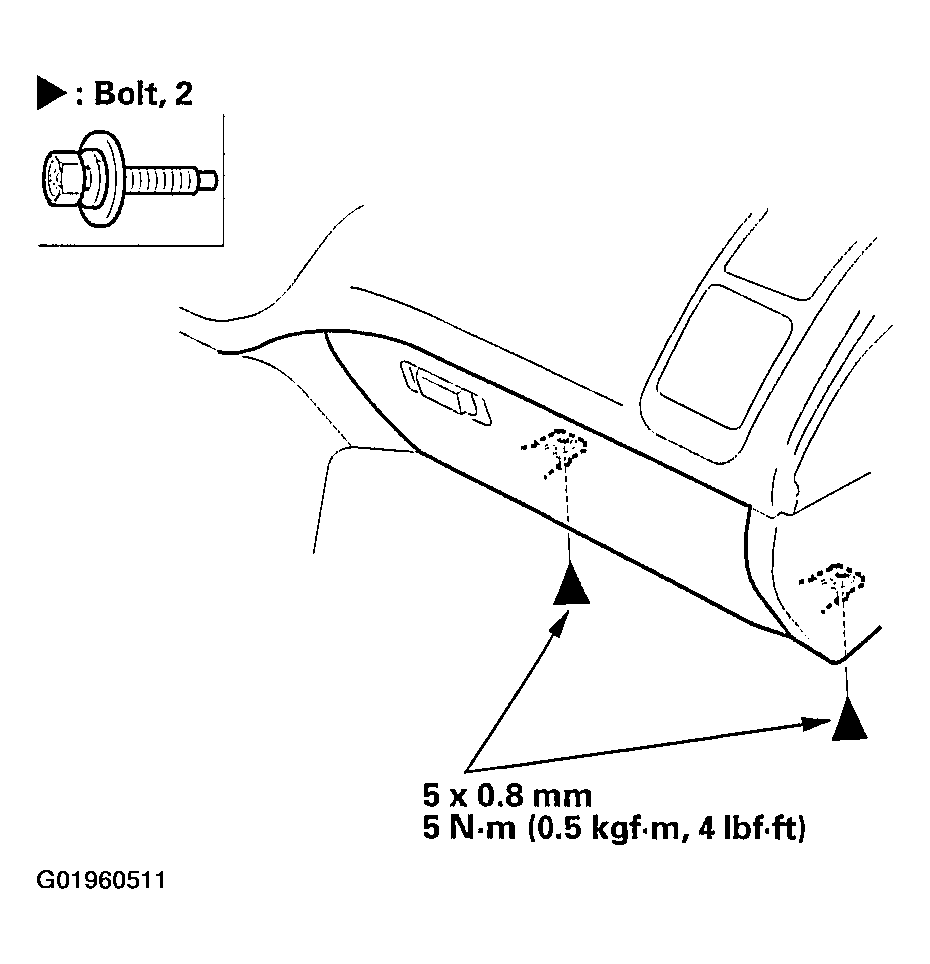

   Fig 2: Removing Glove Box


4. Install the glove box in the reverse order of removal.
