Ignition Switch: Test

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and precautions and procedures PRECAUTIONS AND PROCEDURES in the SRS section before performing repairs or servicing.

1. Remove the dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTAL )
2. Disconnect the 5P connector from the under-dash fuse/relay box.

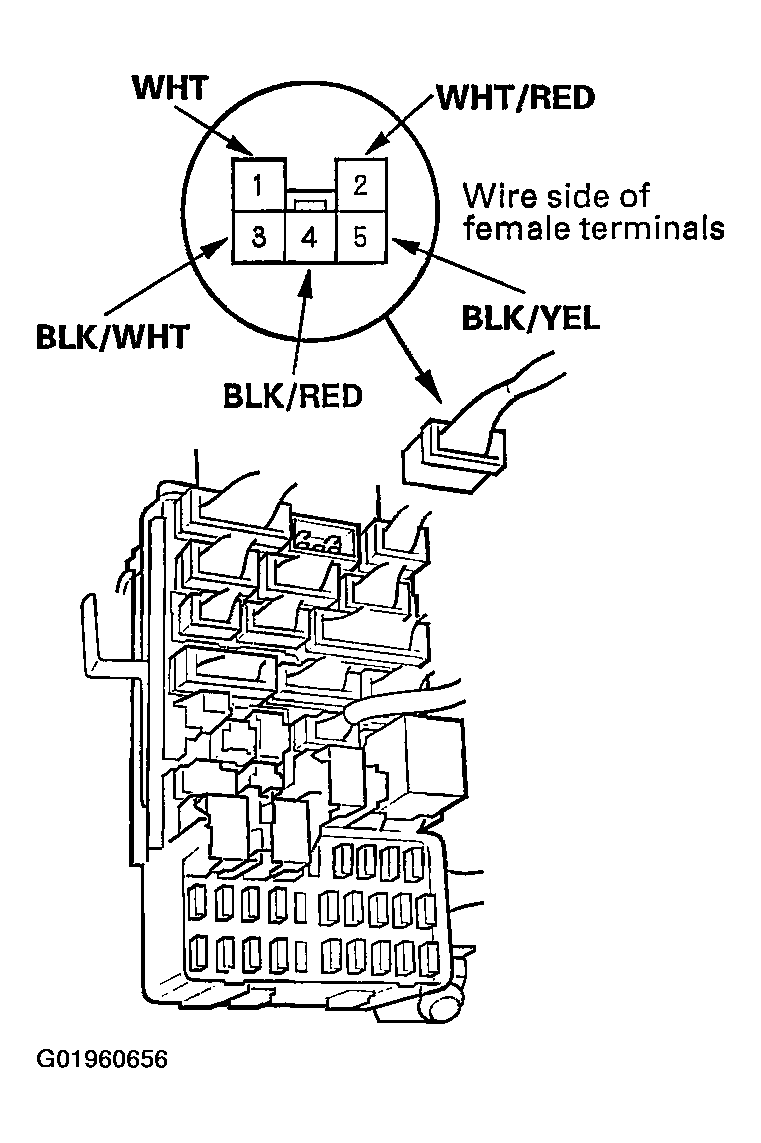

   Fig 1: Disconnecting 5P Connector From Under-Dash Fuse/Relay Box


3. Check for continuity between the terminals in each switch position according to Fig 2 .

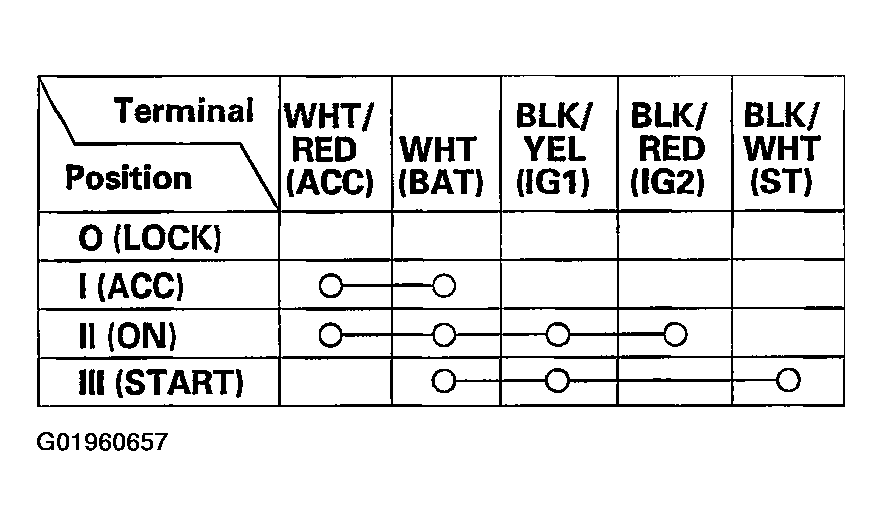

   Fig 2: Checking For Continuity Between Terminals


4. If the continuity checks do not agree with the table, replace the steering lock assembly (see STEERING LOCK REPLACEMENT ).
