NOTE:

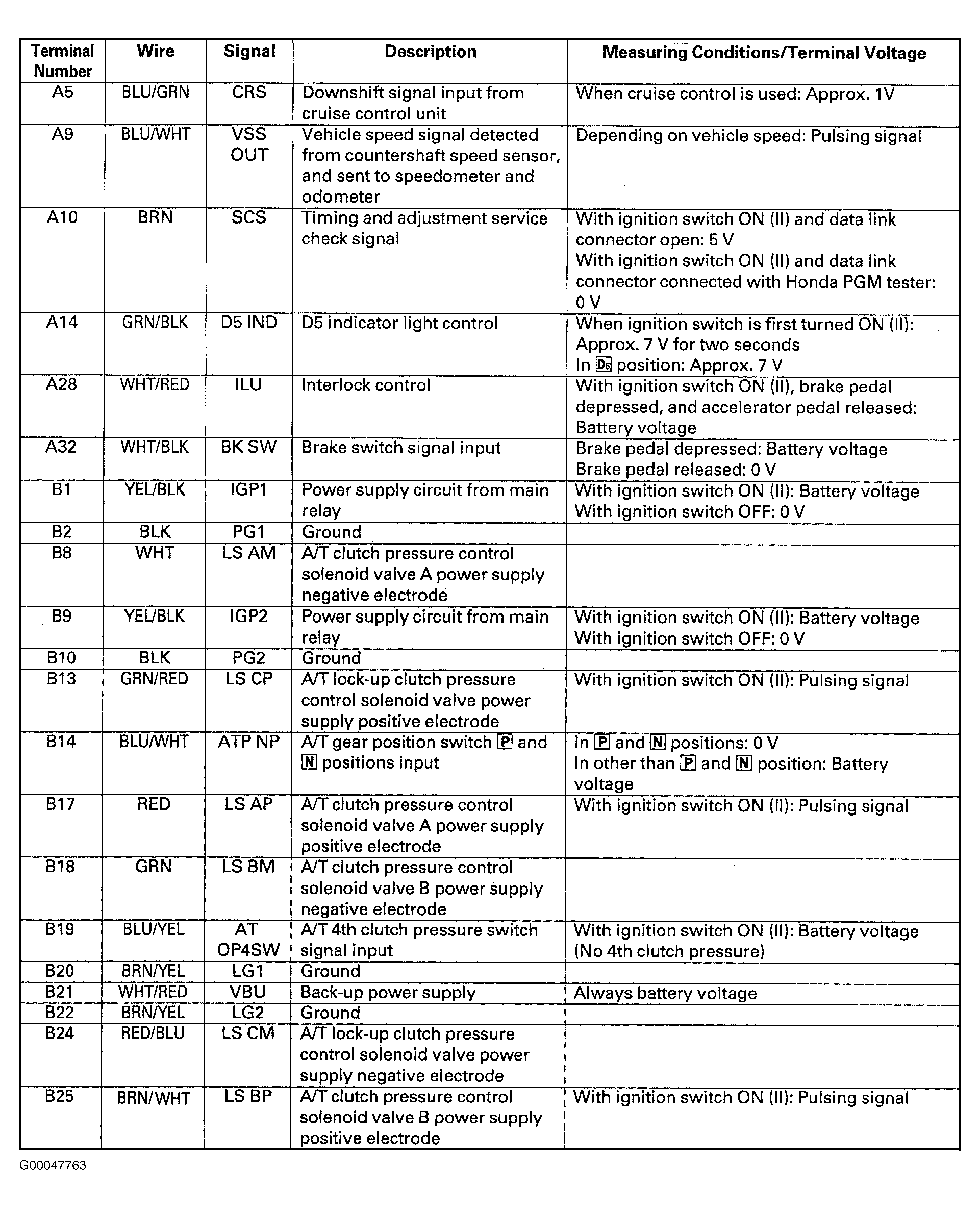

Only terminals related to transaxle control system are listed. See Fig 1-Fig 3
. For complete listing of terminals, see appropriate SELF-DIAGNOSTICS article in ENGINE PERFORMANCE.

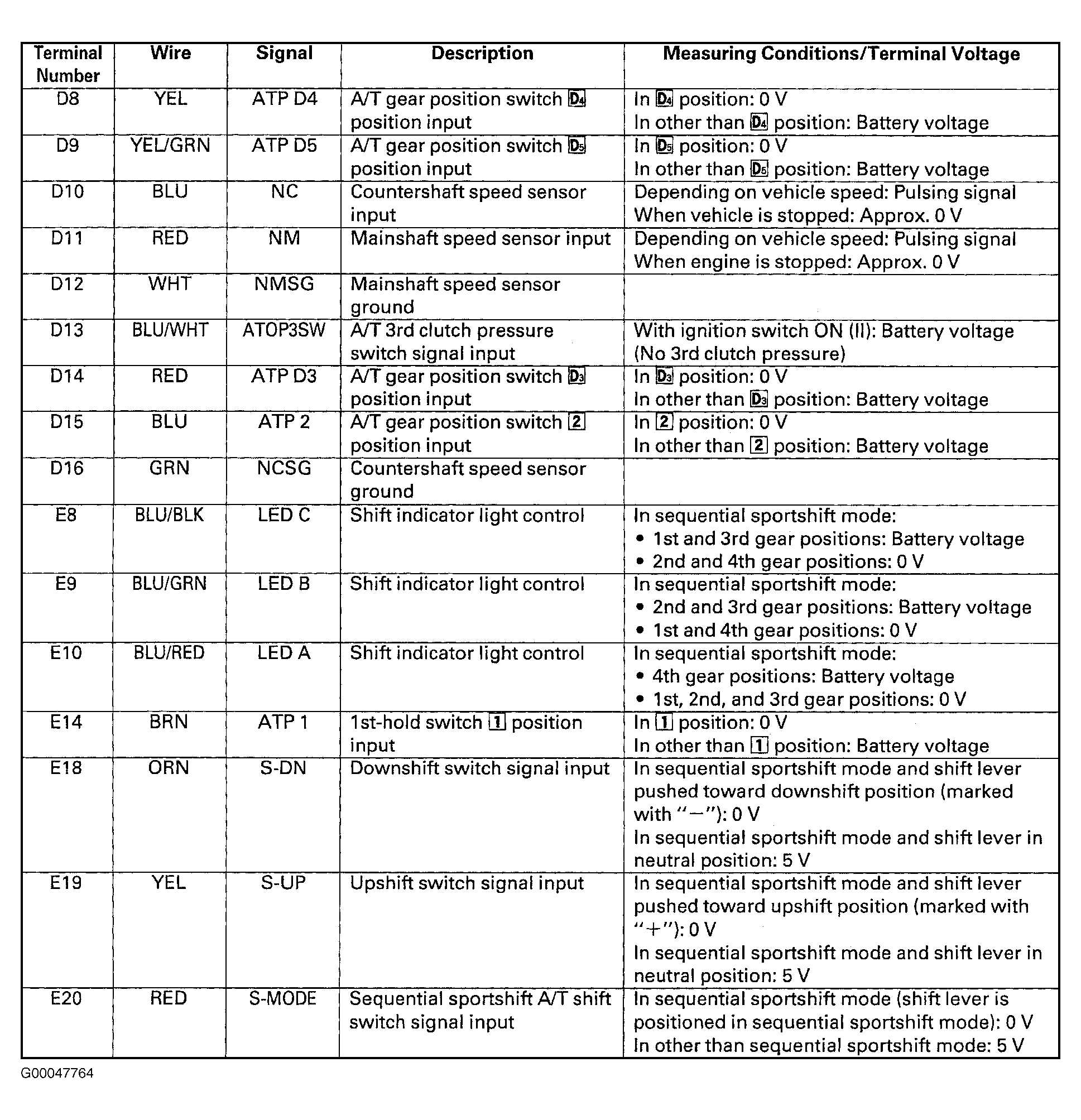

Fig 1: Pin Voltage Tests (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

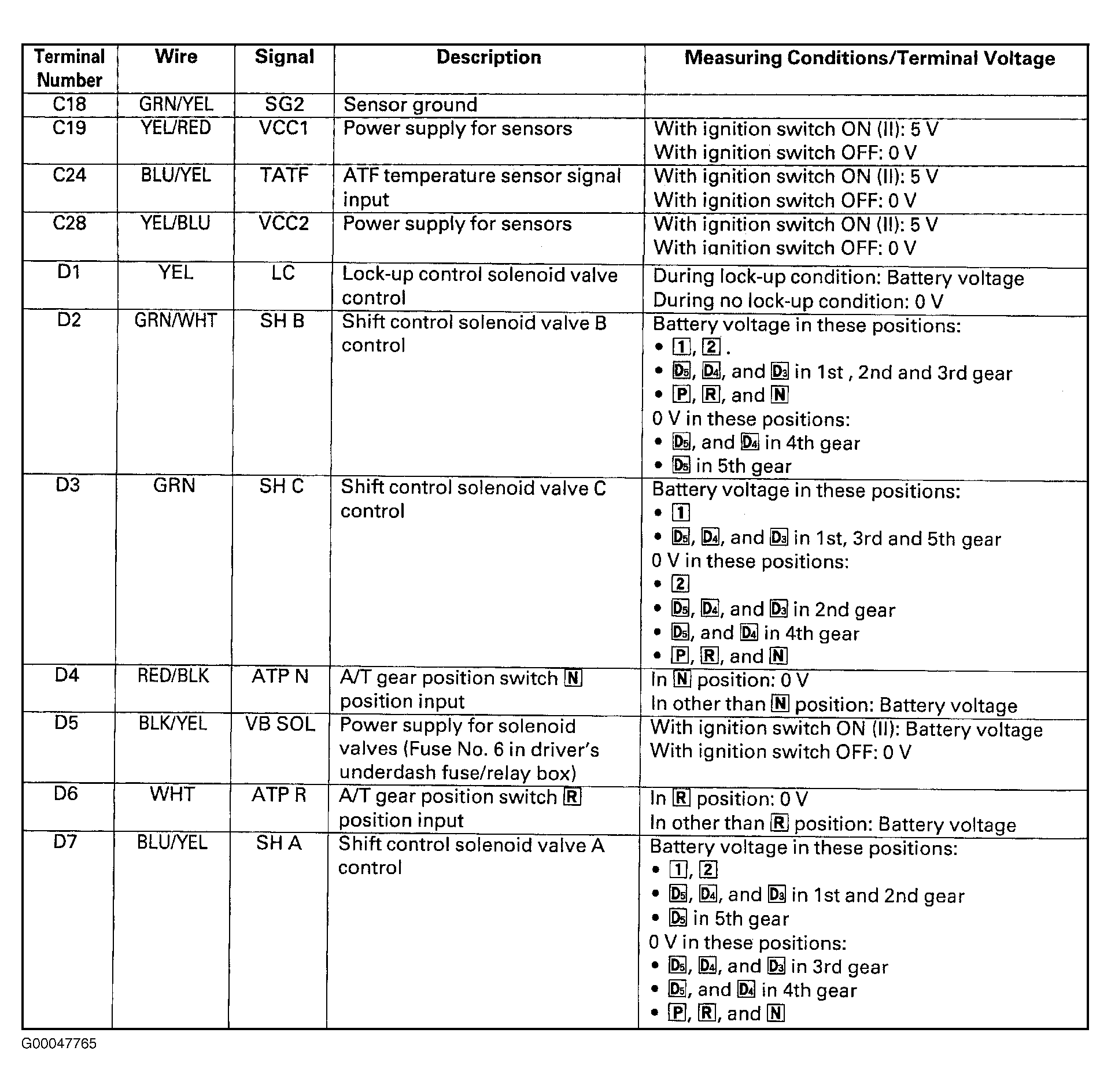

Fig 2: Pin Voltage Tests (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE:
In the following figure, all wire colors are the same except terminal E20 (Red/White wire) on 3.2CL.
