Tension Gauge Method

  1. Attach the belt tension gauge to the belt with the gauge face toward the engine, and measure the tension of the belt. Follow the manufacturer's instructions. If the belt is worn or damaged, replace it.
    NOTE: Remove the belt tension gauge carefully to avoid hitting the gauge reset lever.
  2. Adjust belt to specifications. See POWER STEERING BELT ADJUSTMENT SPECIFICATIONS - BELT TENSION GAUGE METHOD  . If you installed a new belt, run the engine for 5 minutes, then readjust the belt to the used belt specifications.
  3. Loosen the power steering pump mounting nut (A) and bolt (B). See Fig 1 .
  4. Turn the adjusting nut (C) to get the proper belt tension, then retighten the mounting nut and bolt.
  5. Start the engine and turn the steering wheel from lock-to-lock several times, then stop the engine and recheck the tension of the belt.

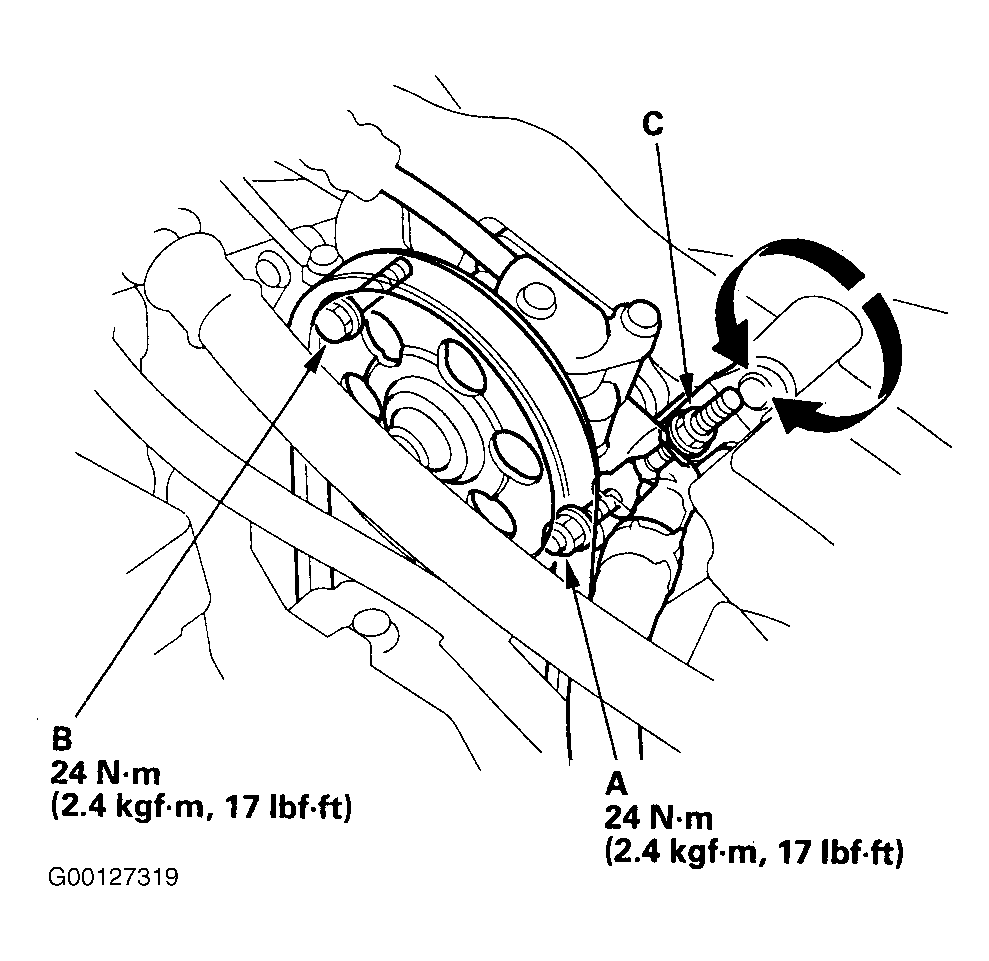

Fig 1: Adjusting Power Steering Belt - Tension Gauge Method
G00127319Courtesy of AMERICAN HONDA MOTOR CO., INC.
