Rear Disc Brake Caliper: Removal

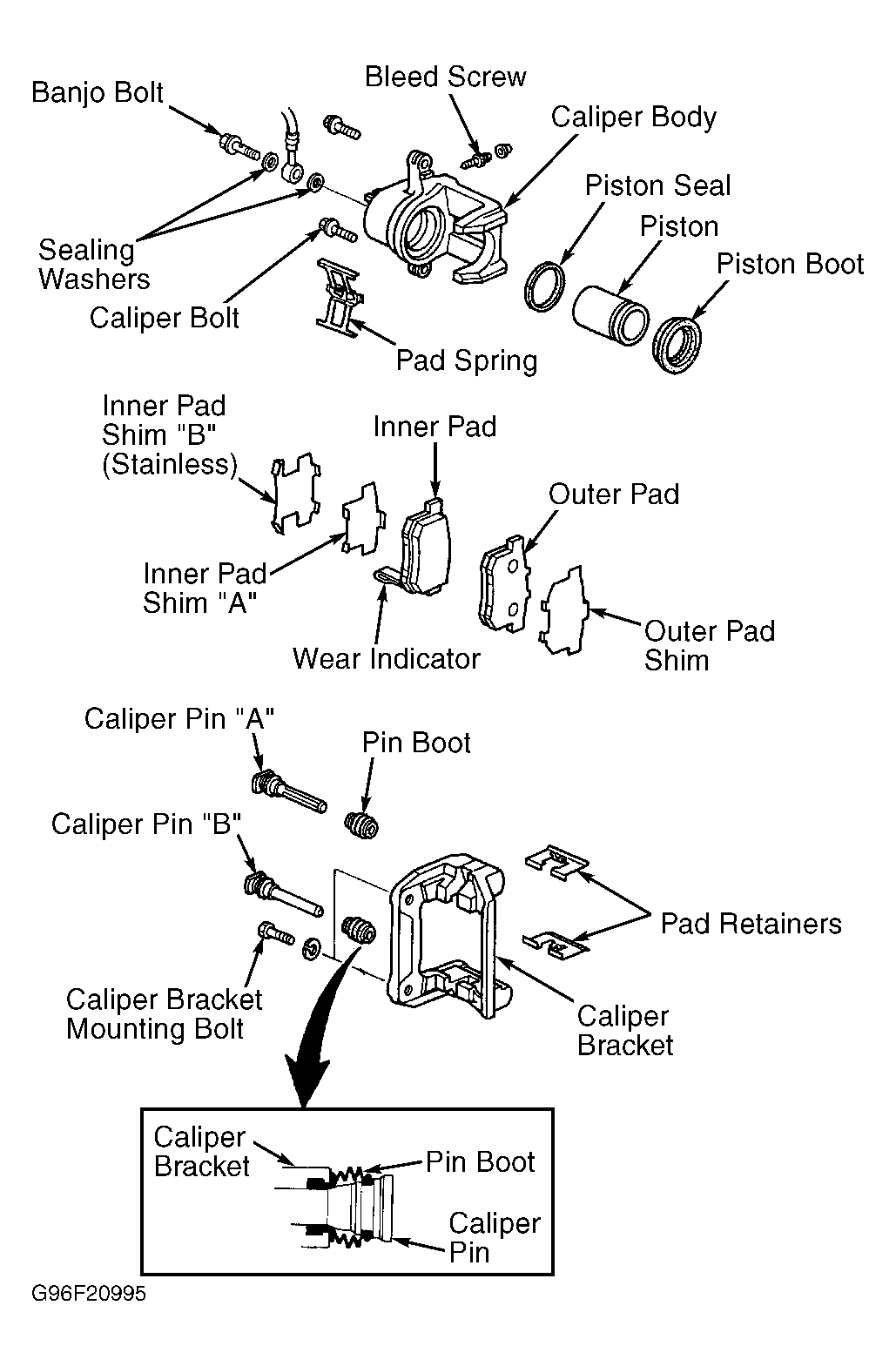

Raise and support vehicle. Remove wheels. Remove banjo bolts. Disconnect brake hose from caliper. Plug hydraulic line and caliper. Remove caliper mounting bolts and caliper. Remove pads, pad shims and pad retainers. See Figure .
