DTC 45, 46, 47 & 48: VSA Solenoid

For DTC testing chart, see Fig 1 and Fig 2 .

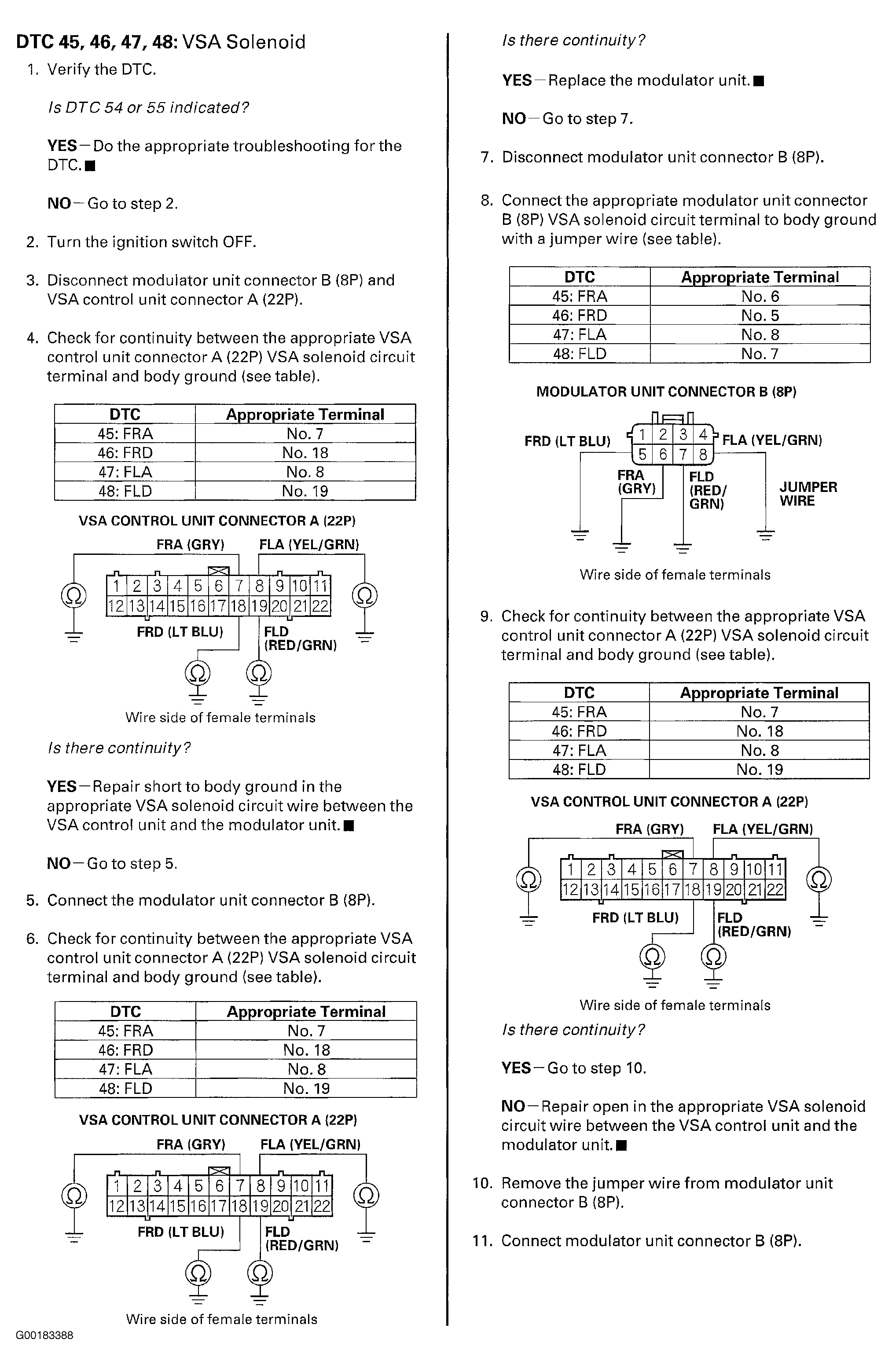

Fig 1: DTC 45, 46, 47 & 48 Solenoid Trouble Shooting Chart (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

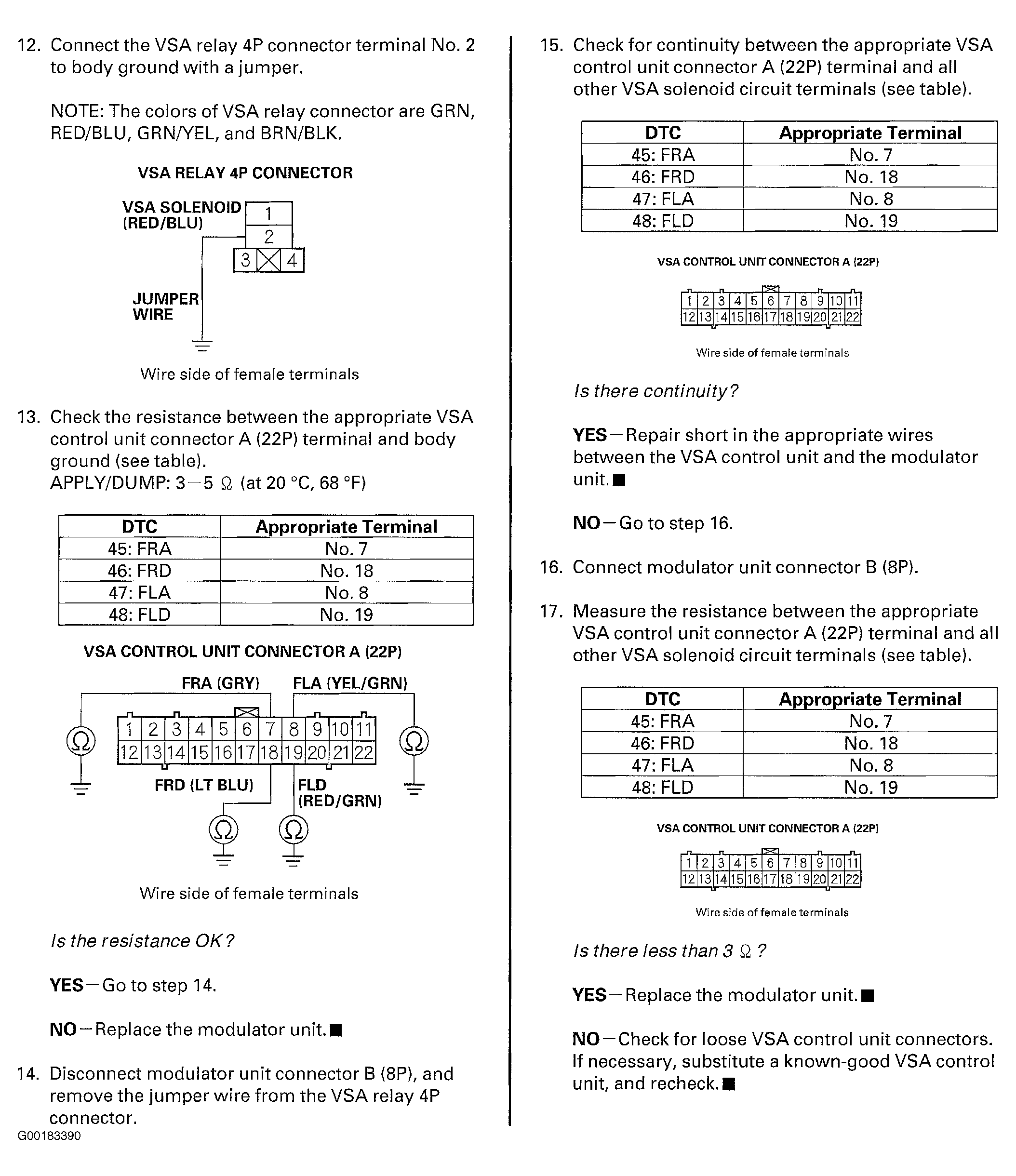

Fig 2: DTC 45, 46, 47 & 48 Solenoid Trouble Shooting Chart (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
