DTC 31, 32, 33, 34, 35, 36, 37, 38: Solenoid Fault

For DTC testing chart, see Fig 1 -Fig 4 .

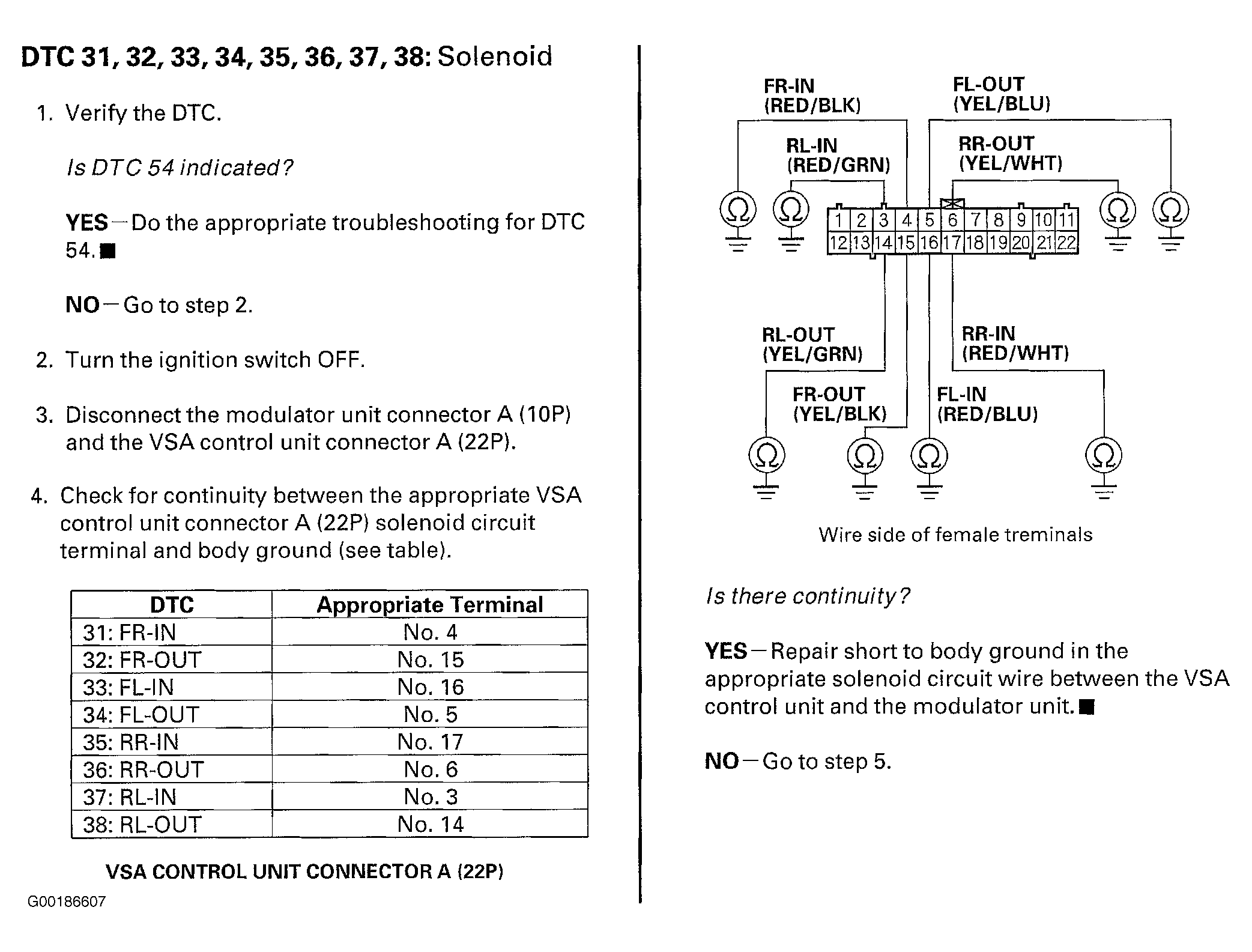

Fig 1: DTC 31-38 Solenoid Fault Trouble Shooting Chart (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

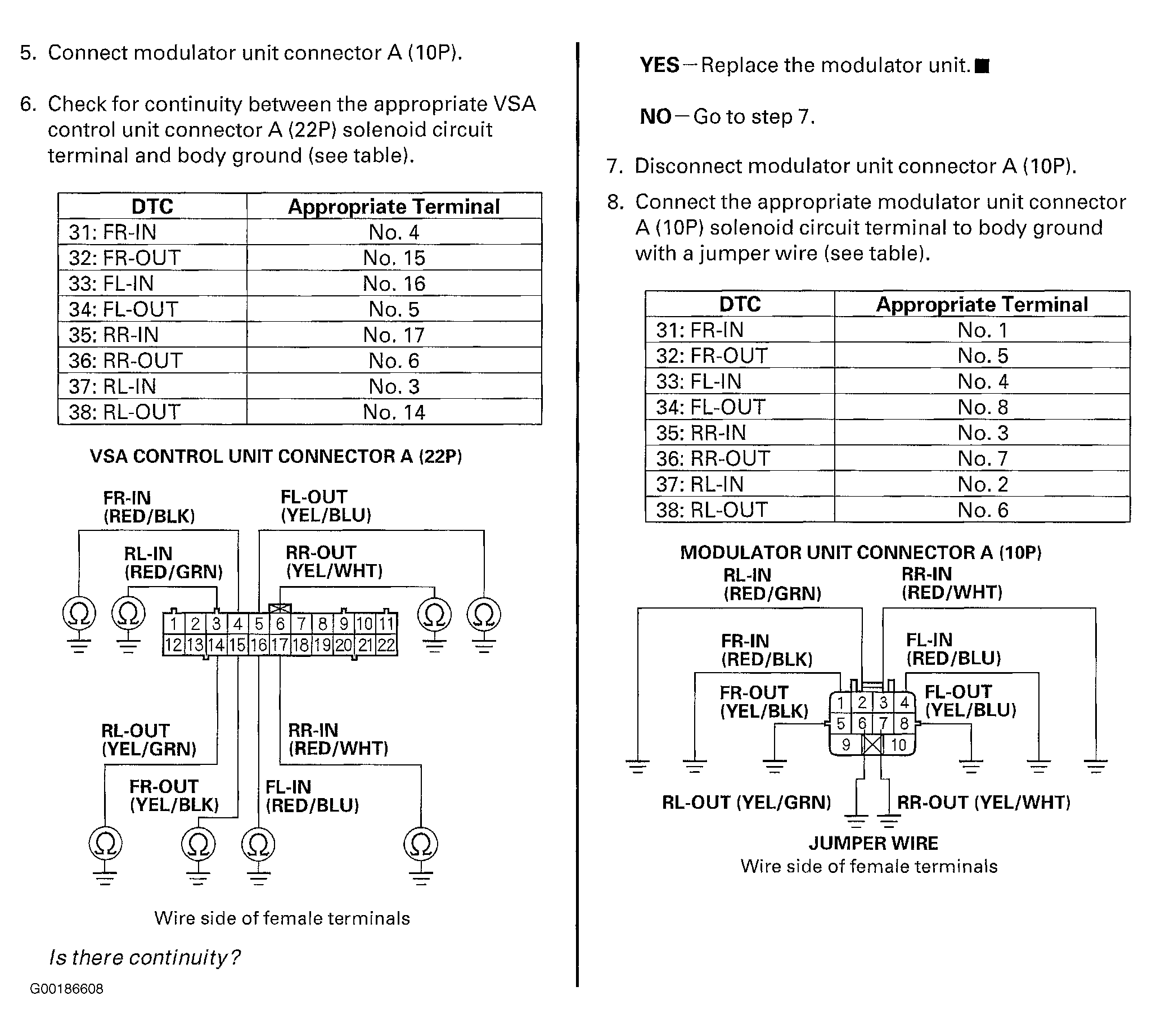

Fig 2: DTC 31-38 Solenoid Fault Trouble Shooting Chart (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

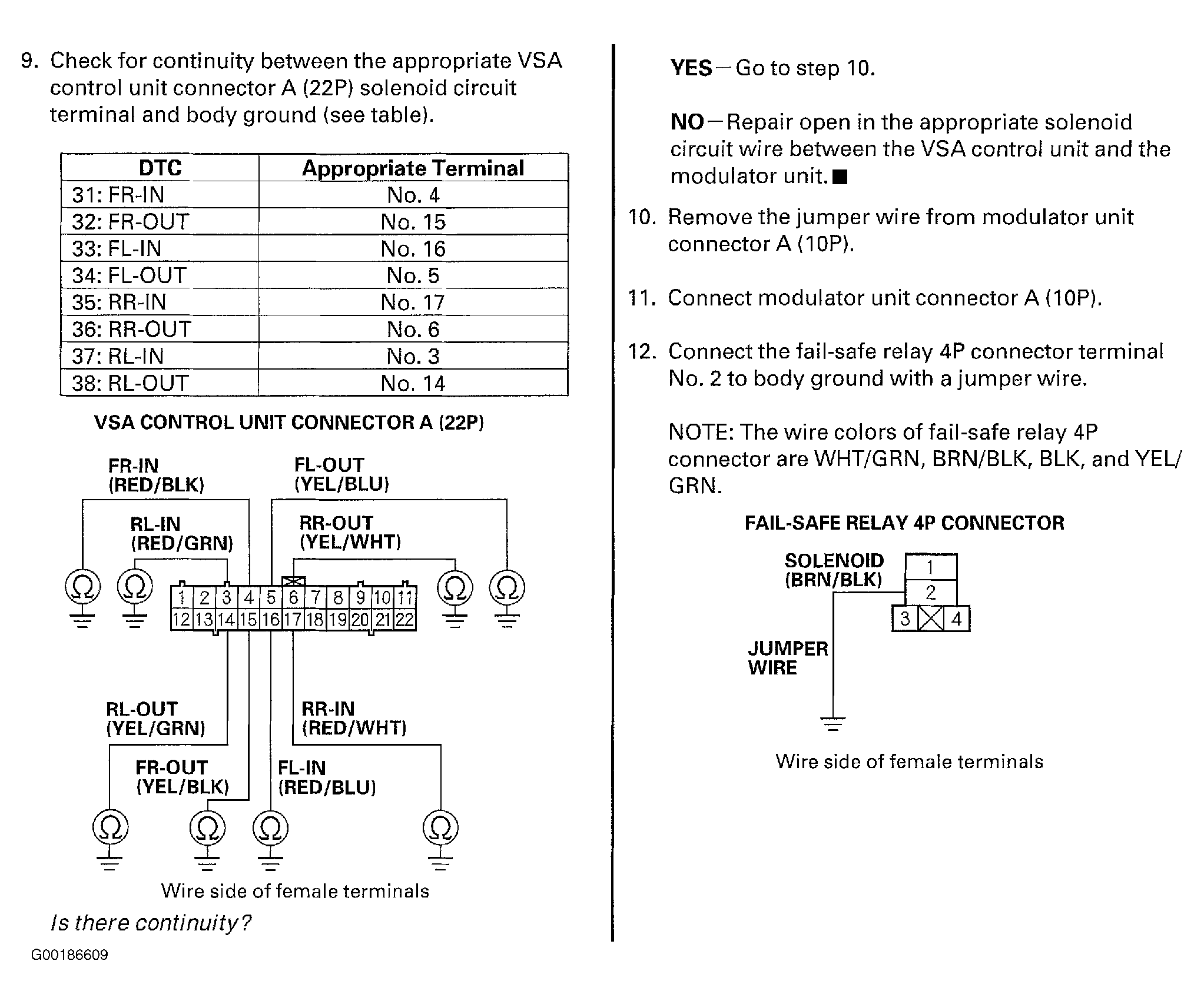

Fig 3: DTC 31-38 Solenoid Fault Trouble Shooting Chart (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

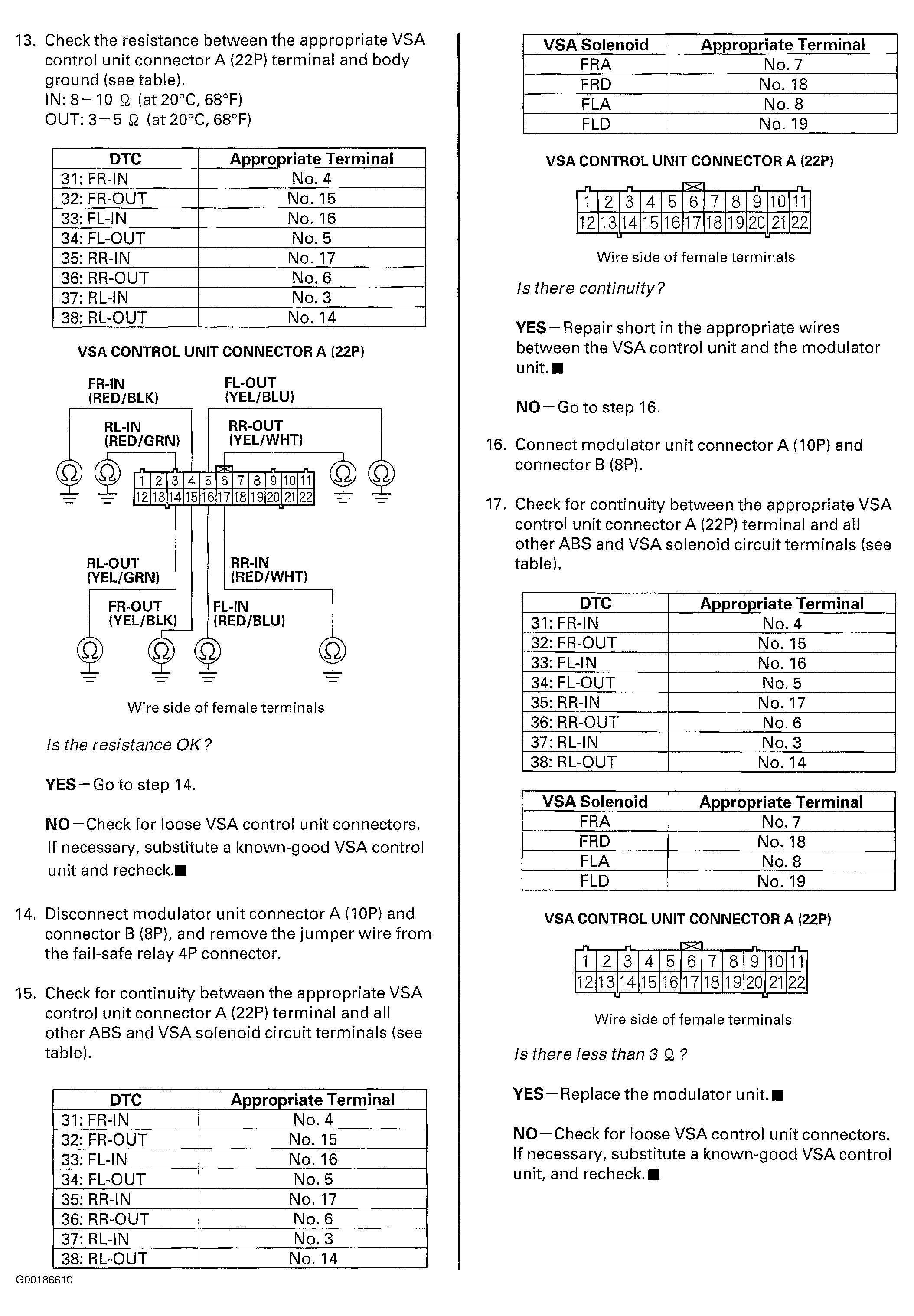

Fig 4: DTC 31-38 Solenoid Fault Trouble Shooting Chart (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
