Circuit Diagram - Canada

'01-02 models

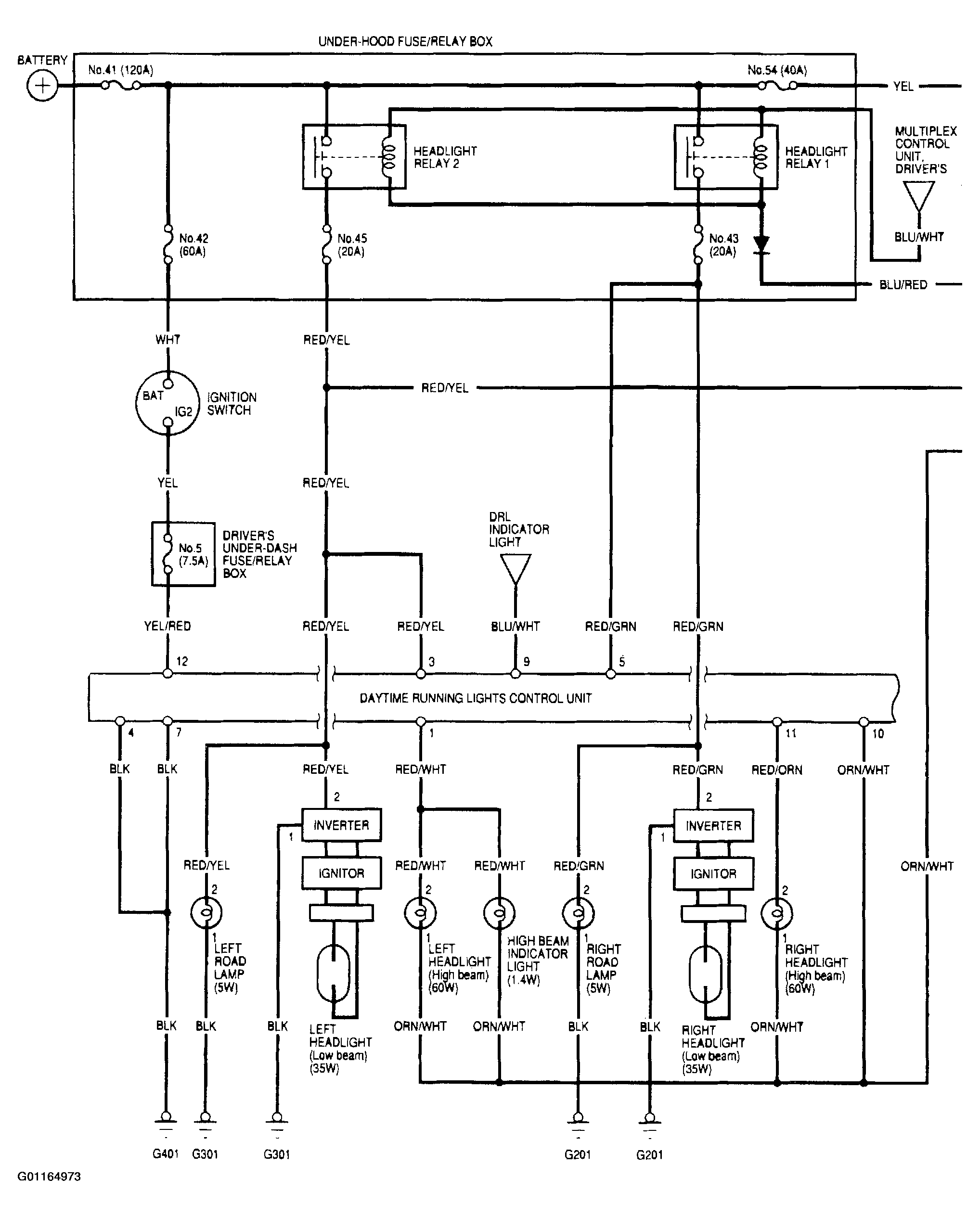

Fig 1: Exterior Lights System Wiring Diagram ('01-02 Canada Models - 1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

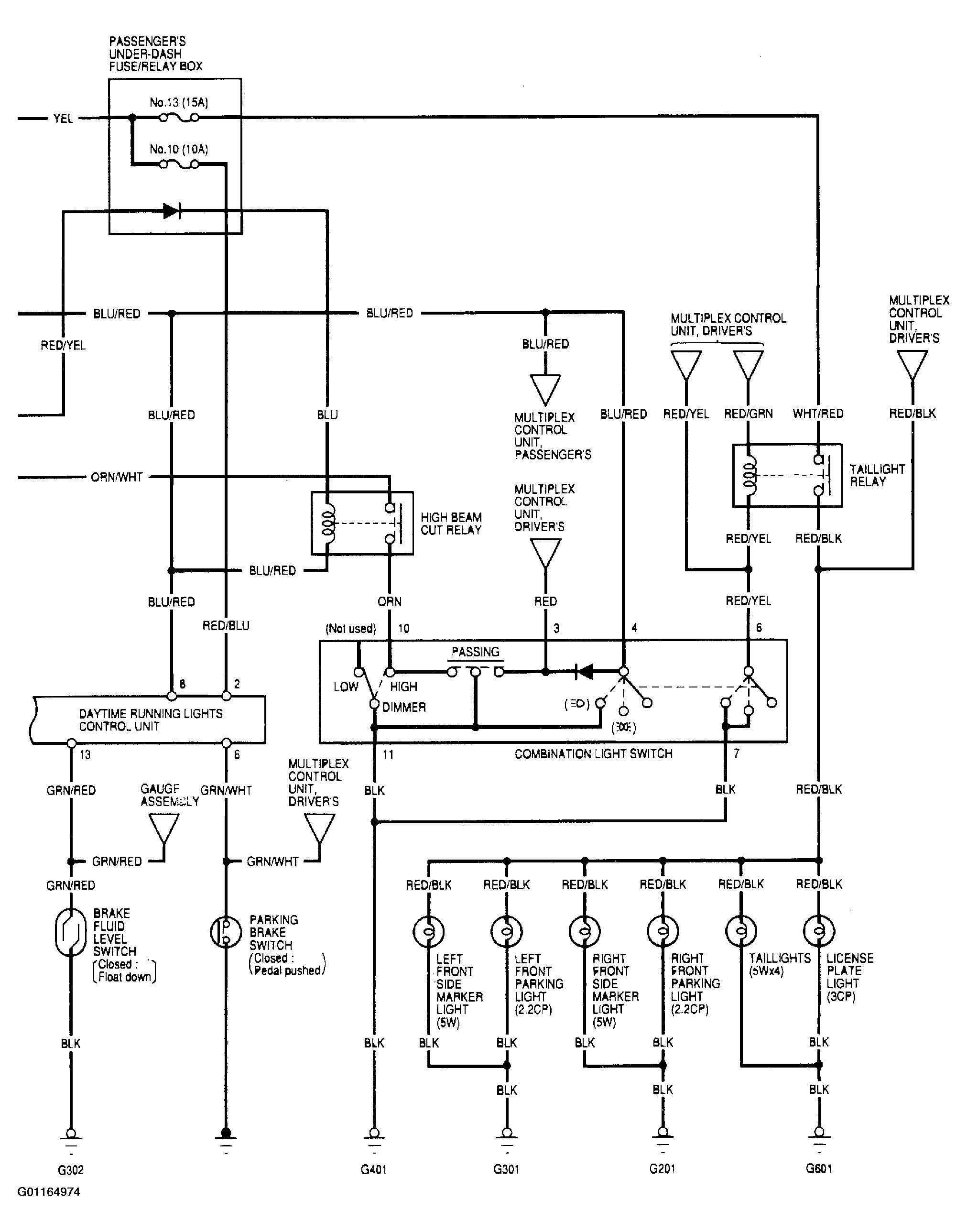

Fig 2: Exterior Lights System Wiring Diagram ('01-02 Canada Models - 2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

'03 model

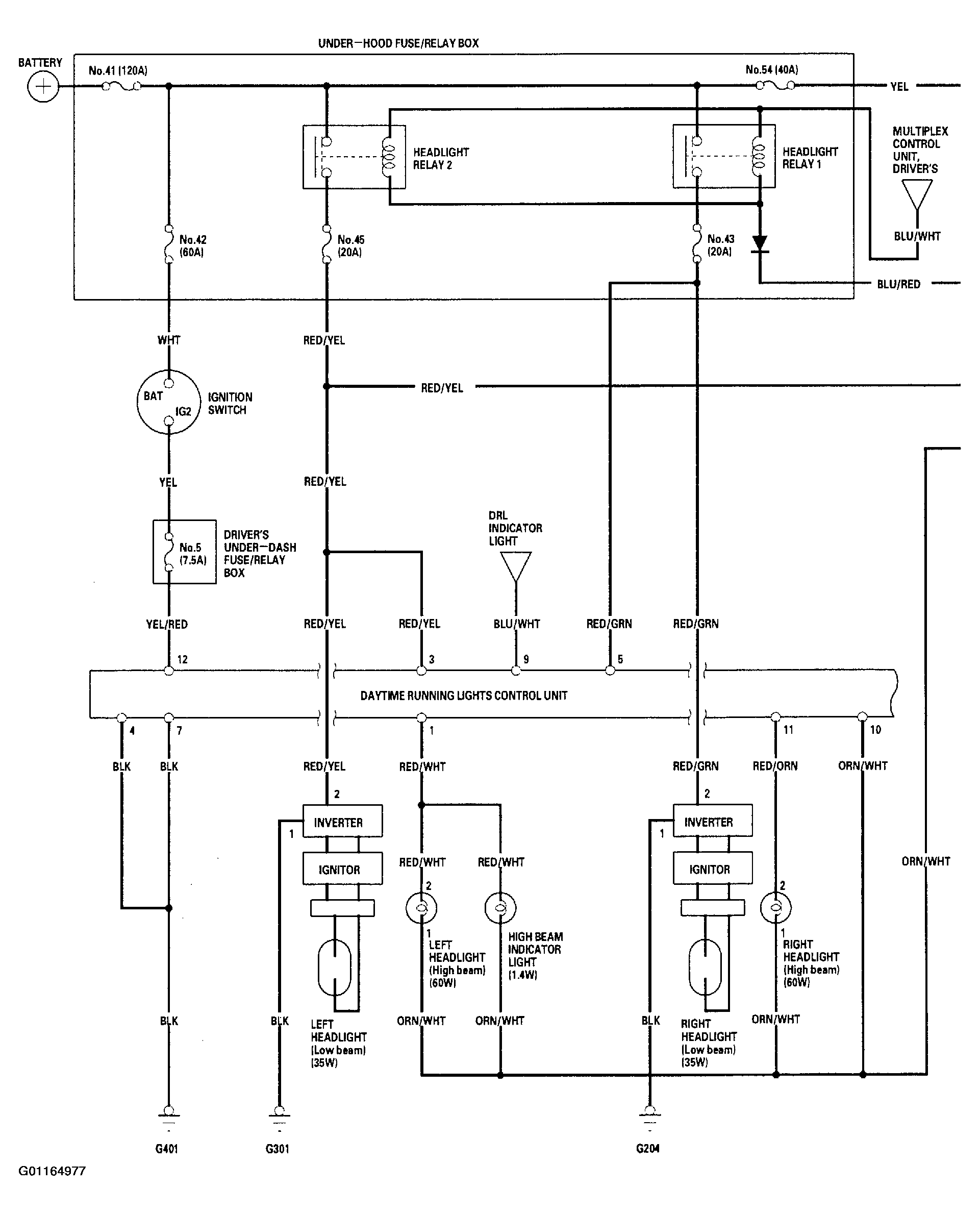

Fig 1: Exterior Lights System Wiring Diagram ('03 Canada Model - 1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

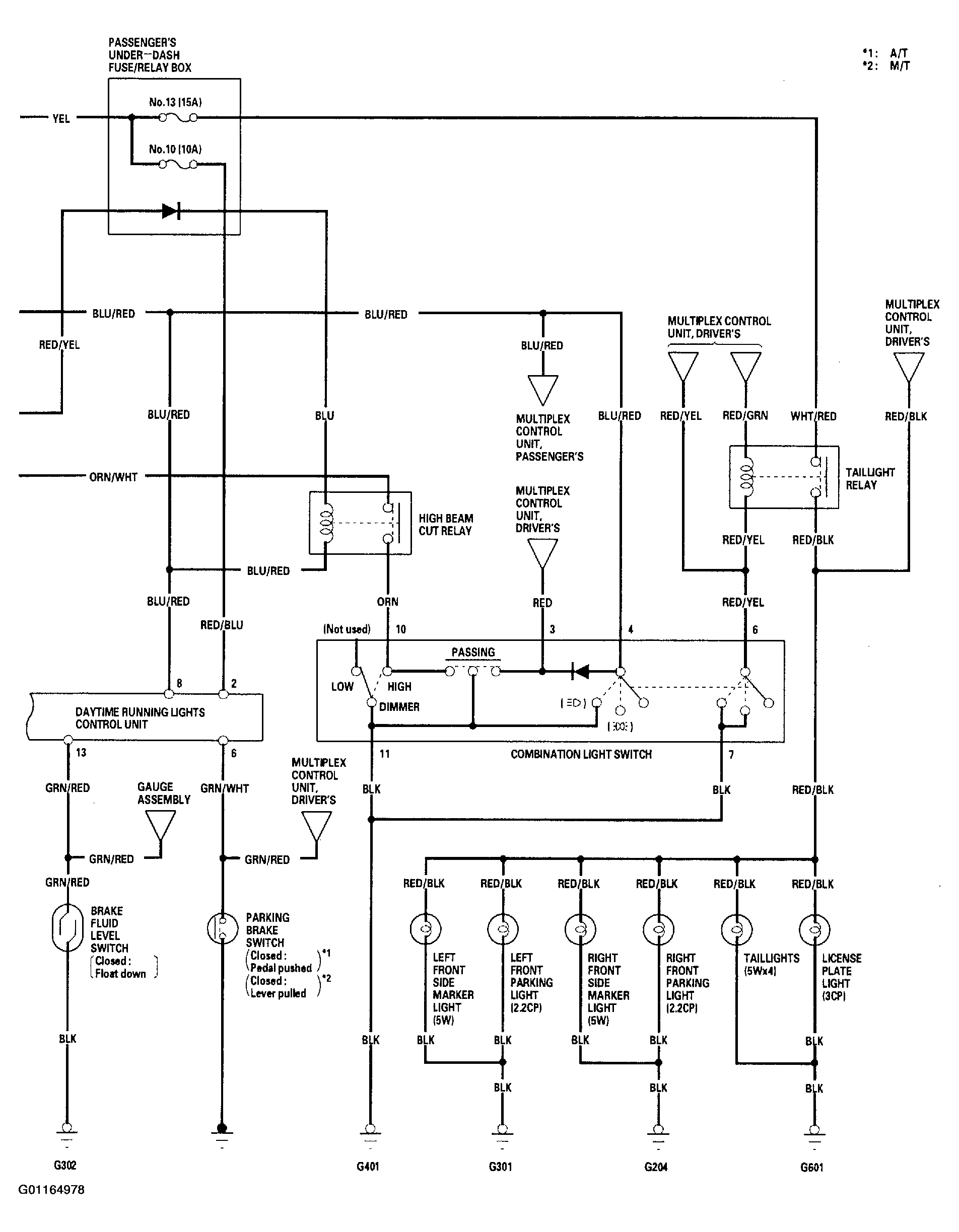

Fig 2: Exterior Lights System Wiring Diagram ('03 Canada Model - 2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
