Glove Box Removal/Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures (see appropriate RESTRAINTS article ) in the SRS section before performing repairs or service.

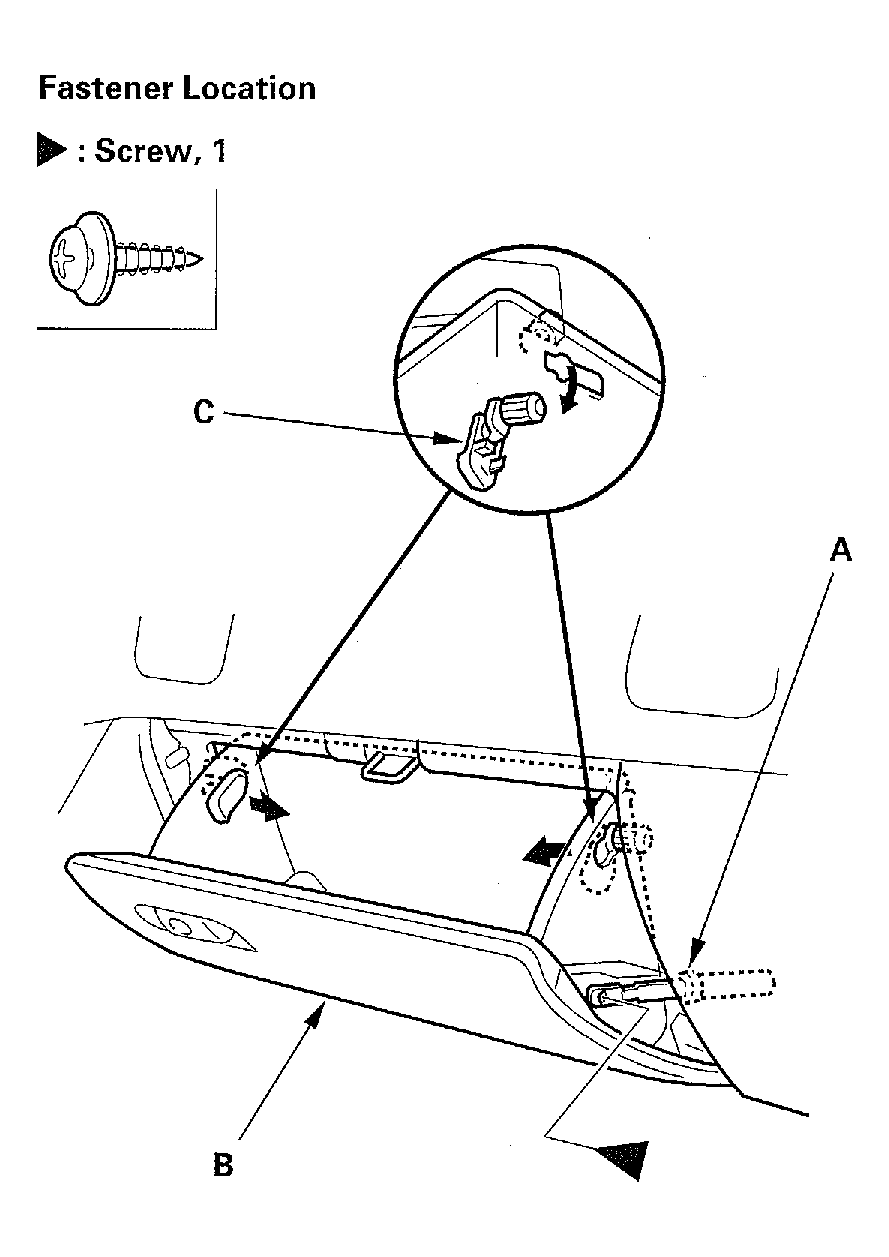

1. Remove the screw, then remove the damper (A) from the glove box.
Fig 1: Removing Damper From Glove Box
Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. While holding the glove box, remove the glove box stop (C) on each side.

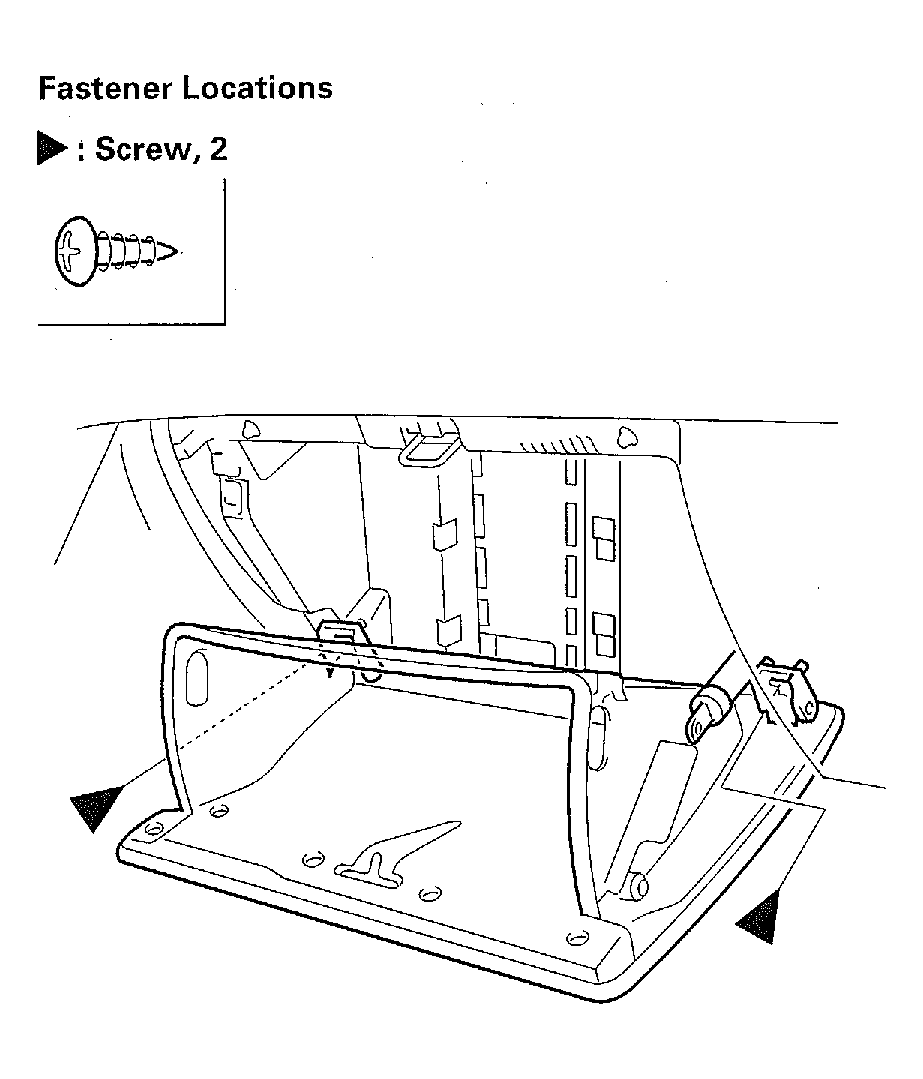

3. Remove the screws, then remove the glove box.
Fig 2: Removing Glove Box
Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Remove the passenger's front console cover .

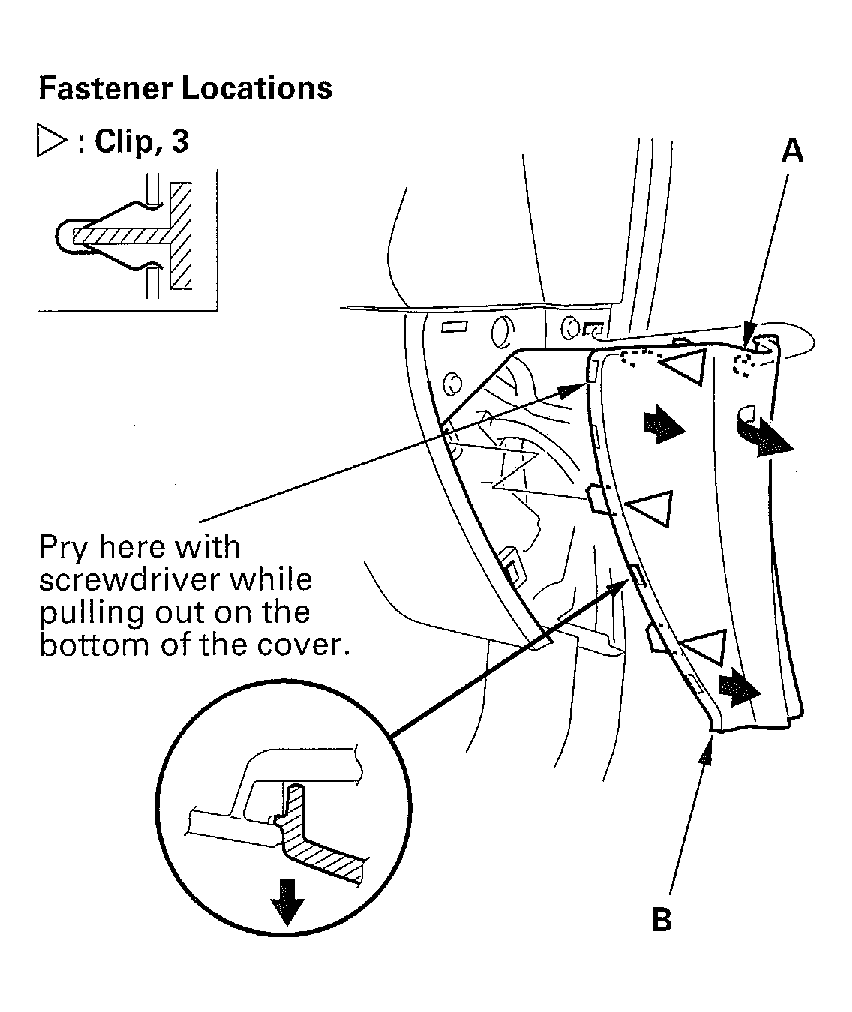

5. Detach the clips, and release the hook (A), then remove the right dashboard side cover (B).
Fig 3: Removing Right Dashboard Side Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

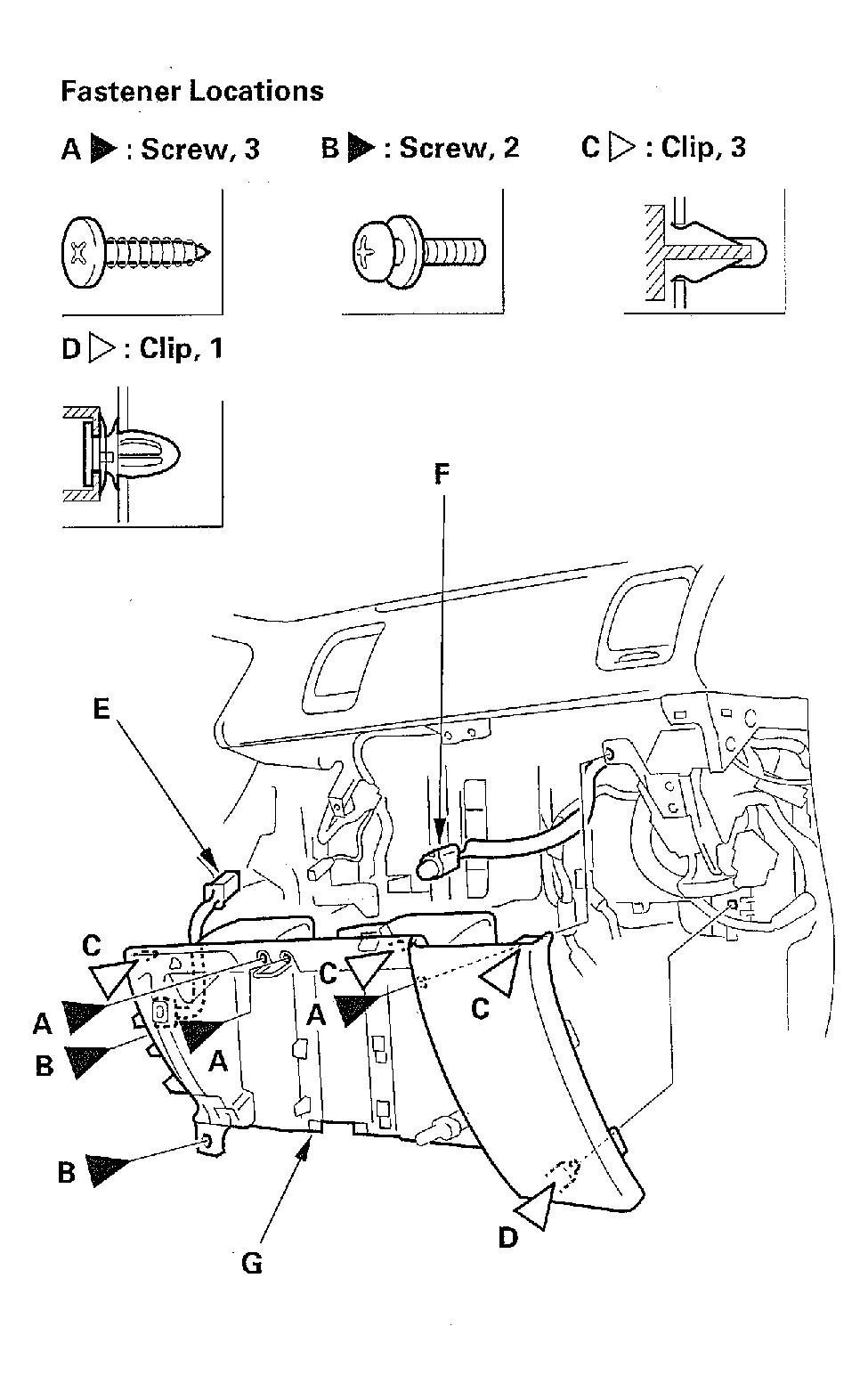

6. Remove the screws (A and B), and detach the clips (C and D). Disconnect the trunk lid opener main switch connector (E) and glove box light bulb socket (F), then remove the glove box cover (G).
Fig 4: Removing Glove Box Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. Install the glove box in the reverse order of removal, and make sure the trunk lid opener main switch connector and glove box light bulb socket are plugged in properly.
