Instrument Cluster: 3.2TL

Tilt steering wheel down. Remove steering column upper cover. Remove 2 instrument panel screws above instrument cluster. Release instrument panel clips along bottom, then top. See Fig 1. Pull instrument panel out.
Disconnect electrical connectors. Remove instrument panel. Cover steering wheel with a protective cloth. Remove 4 instrument cluster screws. Carefully pry instrument cluster out and disconnect 4 connectors.
To remove gauges, remove meter visor and meter panel. Remove screws attaching gauges to housing. See Fig 2. To install, reverse removal procedure.

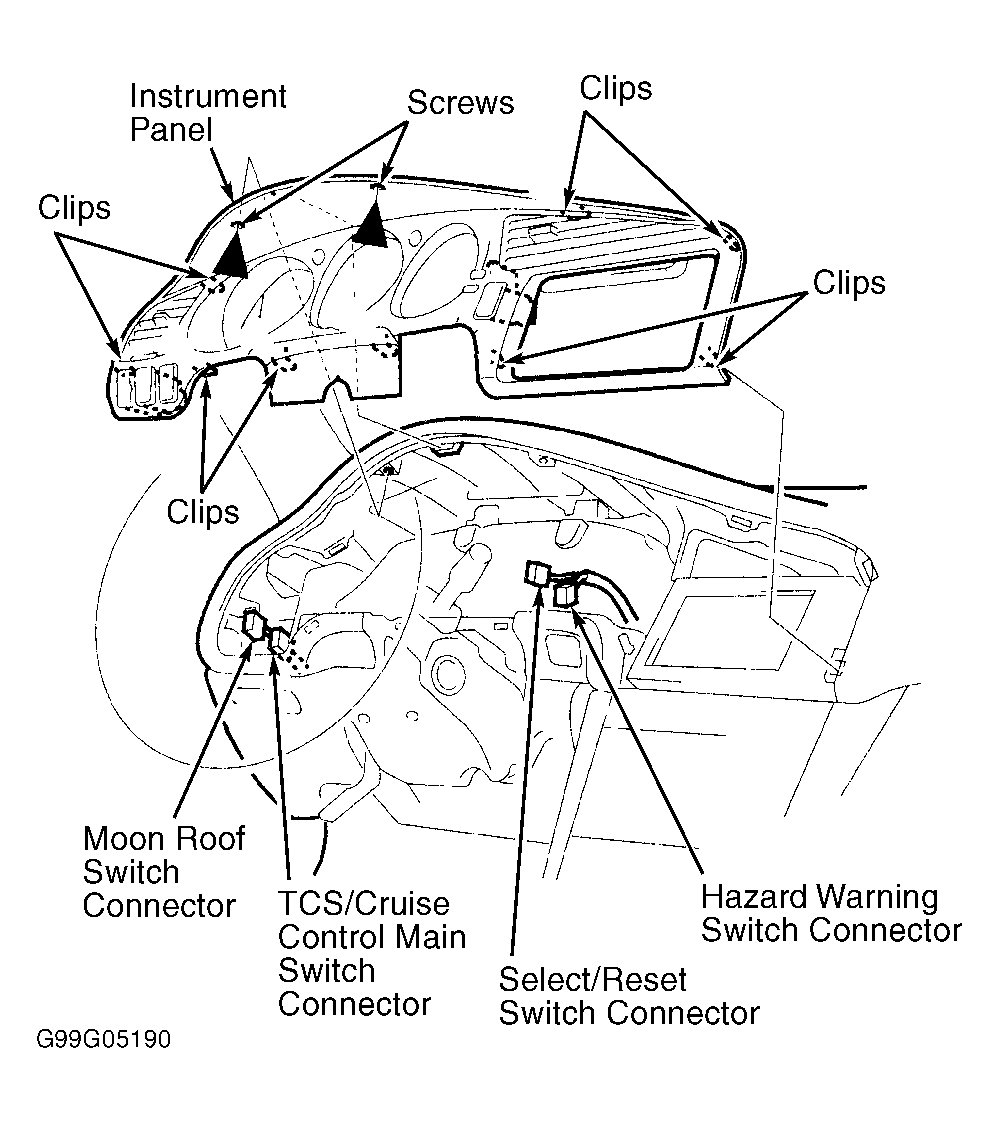

Fig 1: Removing Instrument Panel (3.2TL With Navigation System)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

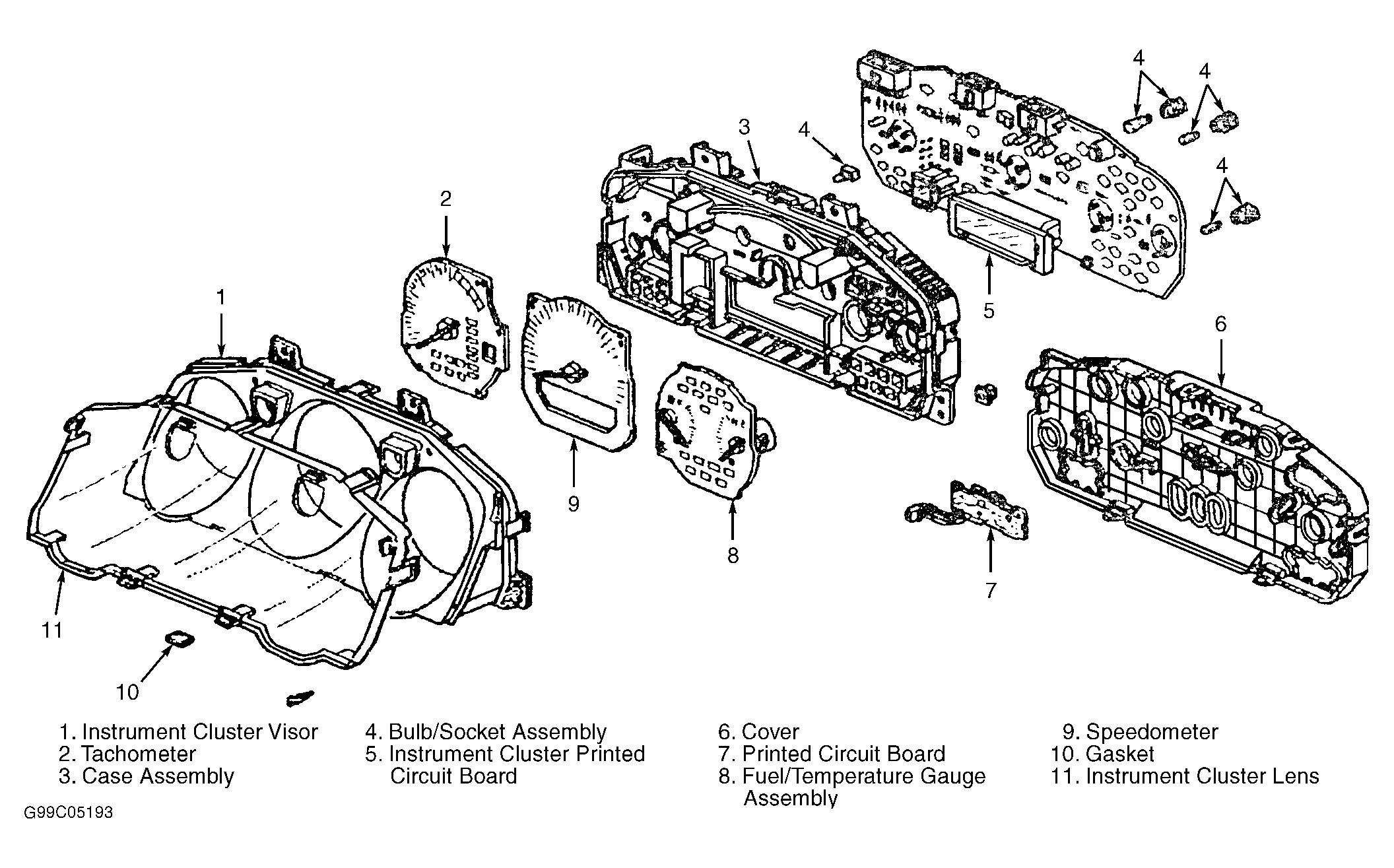

Fig 2: Removing Gauges (3.2TL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
