Instrument Cluster: 3.5RL

  1. Remove center air vent. Remove 4 bolts and remove climate control unit and radio unit as an assembly. It is not necessary to disconnect connectors. Remove instrument panel lower cover and driver's switch trim.
  2. Remove 2 upper instrument panel screws and release 6 clips. Pull top of instrument panel down. Pull right side of instrument panel straight out. Roll left side of instrument panel upward, while releasing skirt adhesive. See Fig 1.
  3. Remove instrument panel. Cover steering wheel with a protective cloth. Remove 4 instrument cluster screws. Remove instrument cluster and disconnect connectors. If necessary, remove gauges. See Fig 2. To install, reverse removal procedure.

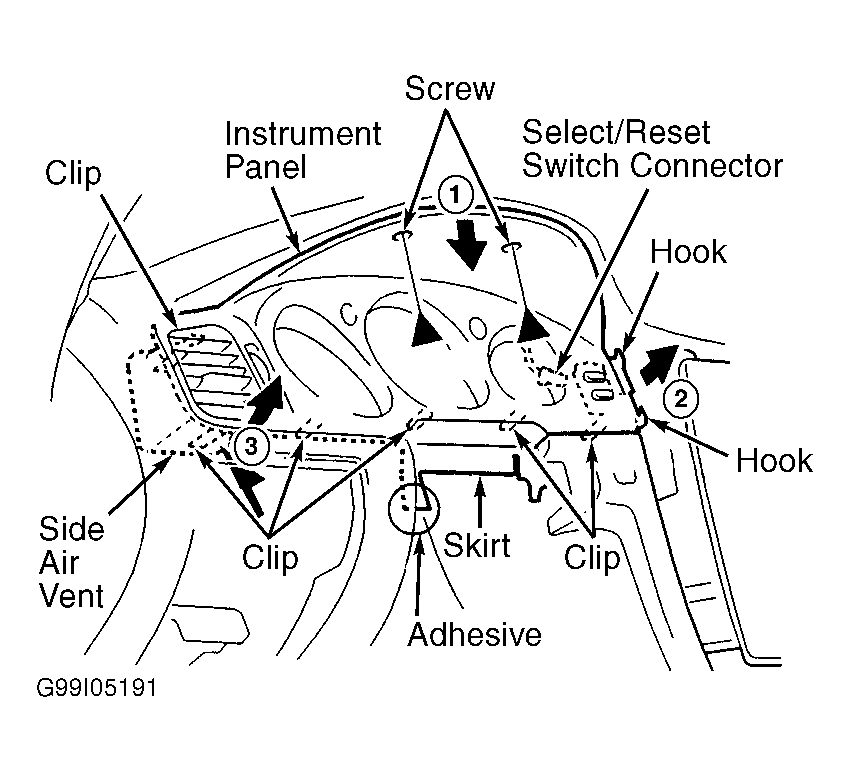

Fig 1: Removing Instrument Panel (3.5RL)
G99I05191Courtesy of AMERICAN HONDA MOTOR CO., INC.

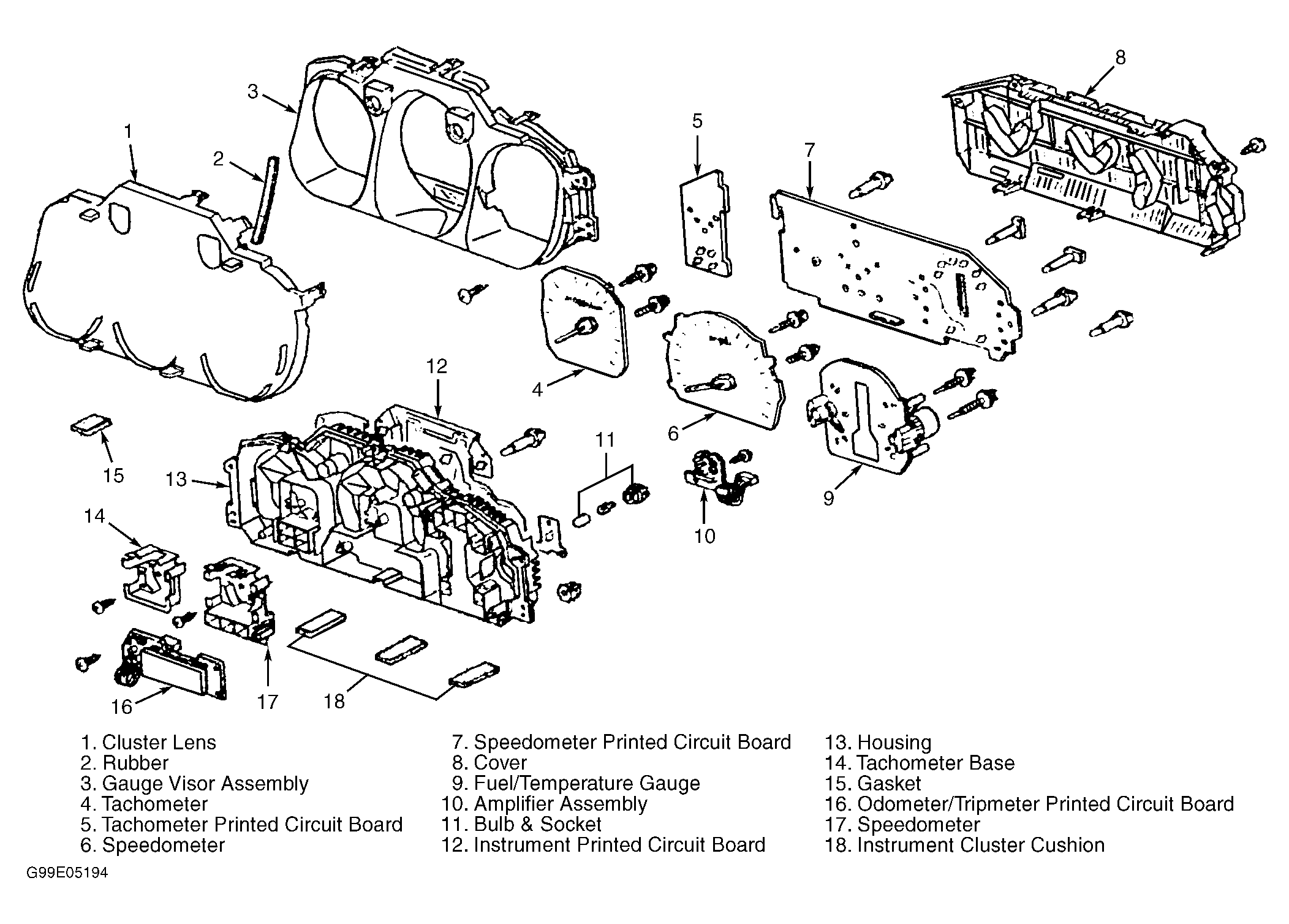

Fig 2: Removing Gauges (3.5RL)
G99E05194Courtesy of AMERICAN HONDA MOTOR CO., INC.
