A/T Gear Position Indicator
WARNING: This page is about a different car, the 1998 Honda Odyssey, 1998 Honda Accord, and 1998 Acura 2.3CL. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If necessary, refer to wiring schematic when checking component wiring. See WIRING DIAGRAMS
.
- Remove instrument panel gauge assembly from instrument panel. Disconnect harness connectors from rear of instrument panel gauge assembly. See Fig 1 - Fig 3 .
- Using a DVOM, check for voltage and continuity at specified harness connectors and terminals. If necessary, check appropriate ground connection. For ground connection locations, see GROUND CONNECTOR LOCATIONS table. See Fig 4 - Fig 6 .
- If necessary, check related blown fuses as per testing charts. See Fig 1 - Fig 3 .
GROUND CONNECTOR LOCATIONS
| Application | Ground No. | (1) Location | ||
|---|---|---|---|---|

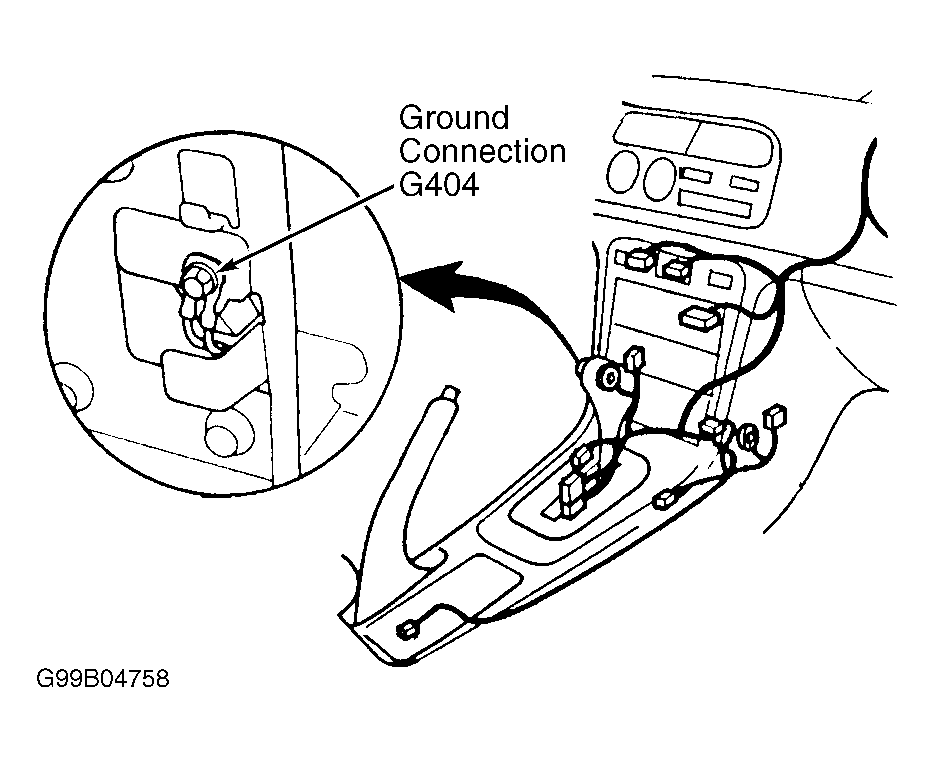

| 2.3CL | G404 | Under Center Of Dash On Left Side Of Center Console | ||

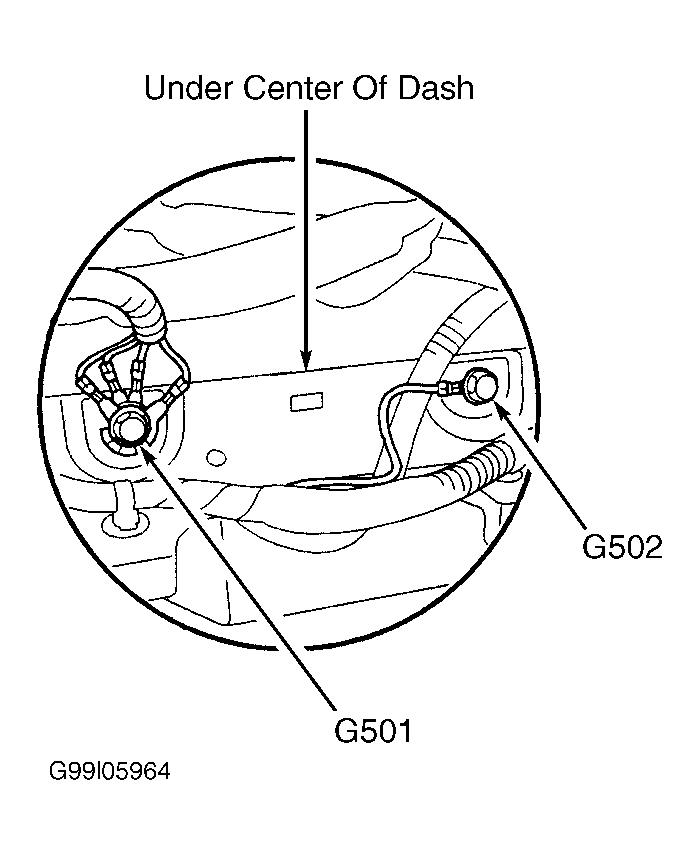

| Accord | G501 | Under Center Of Dash | ||
| Odyssey | ||||

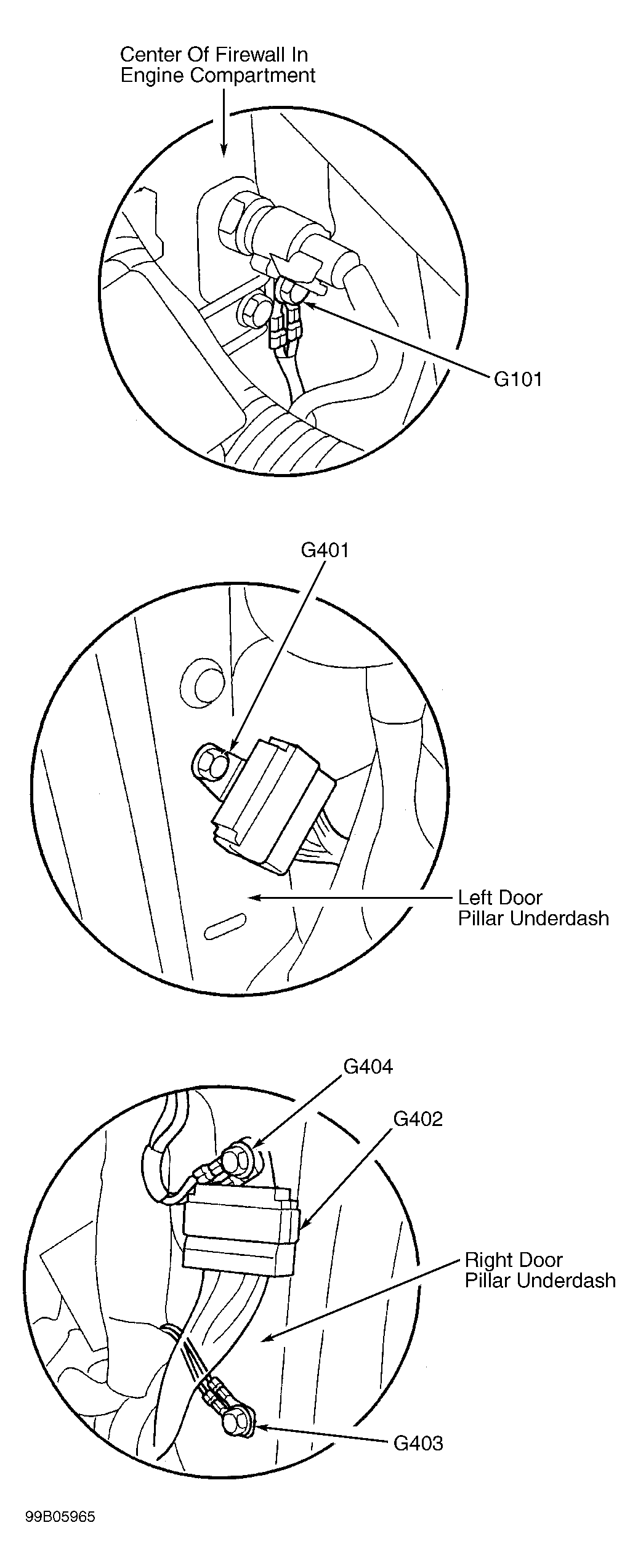

| ..... | G101 | Middle Of Engine Compartment At Firewall | ||
| ..... | G401 | Under Left Side Of Dash On Door Pillar | ||
| ..... | G402 & G404 | Under Right Side Of Dash On Door Pillar | ||
|
||||

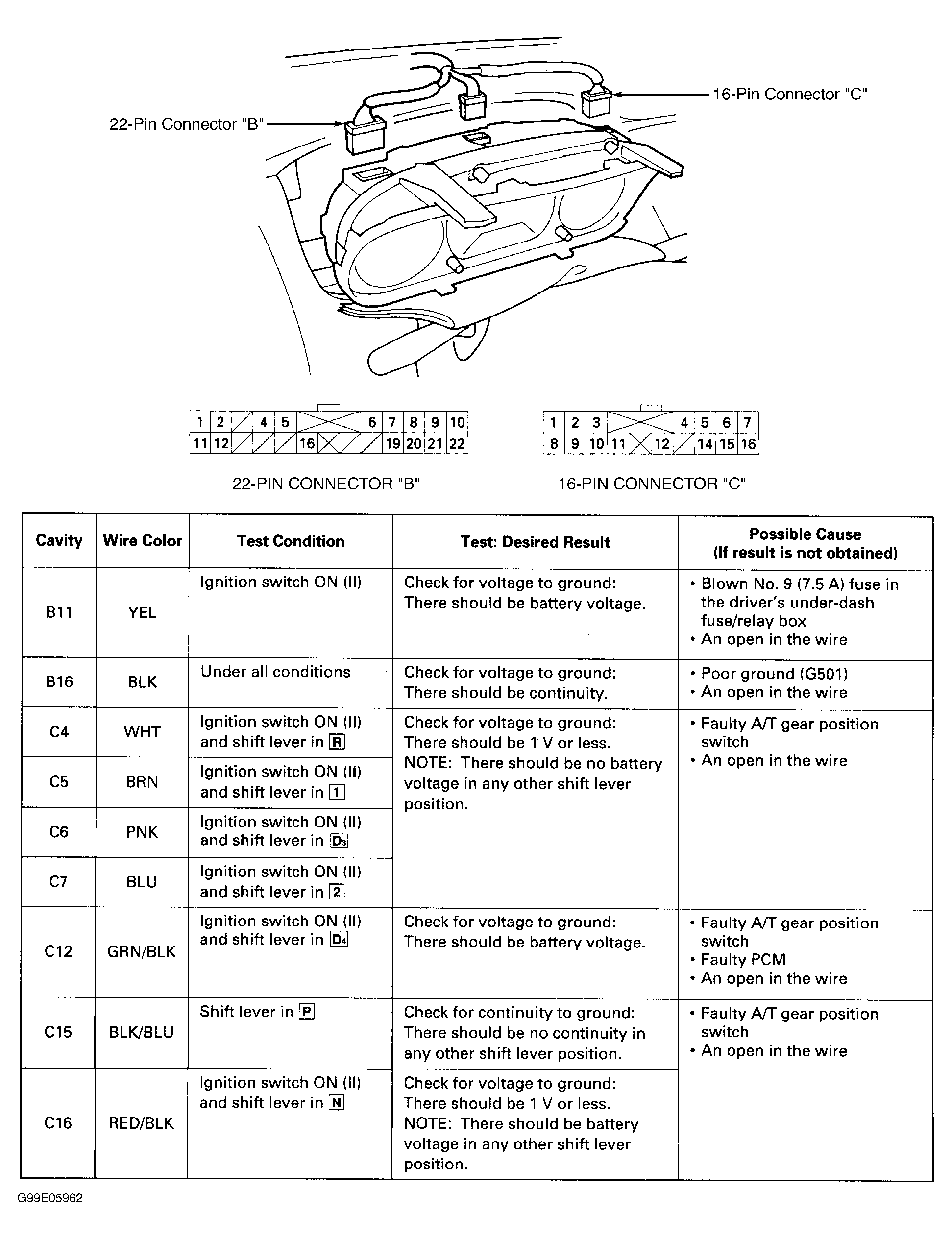

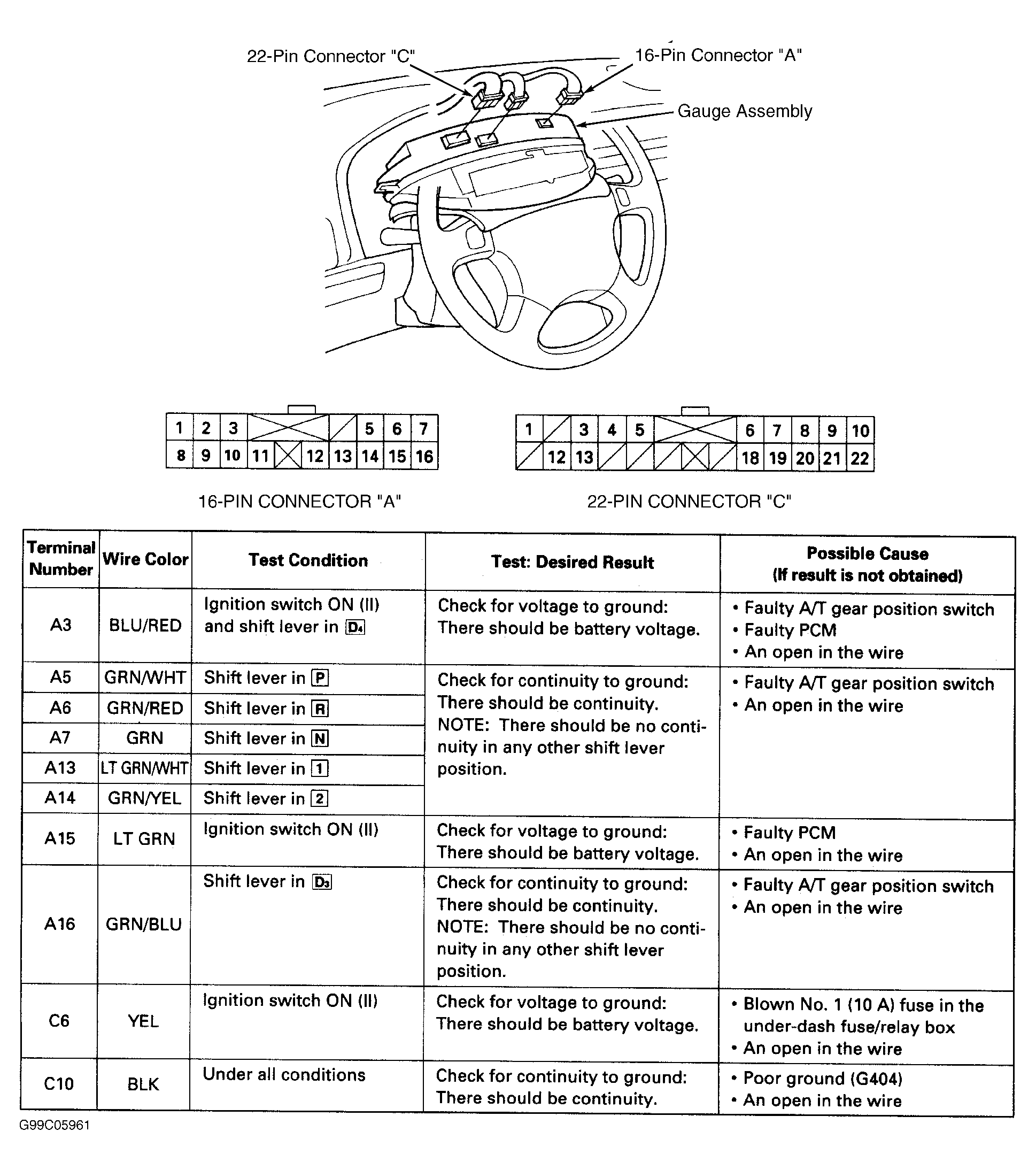

Fig 1: Instrument Panel Gauge Assembly Harness Connectors & A/T Gear Position Indicator Testing (2.3CL)

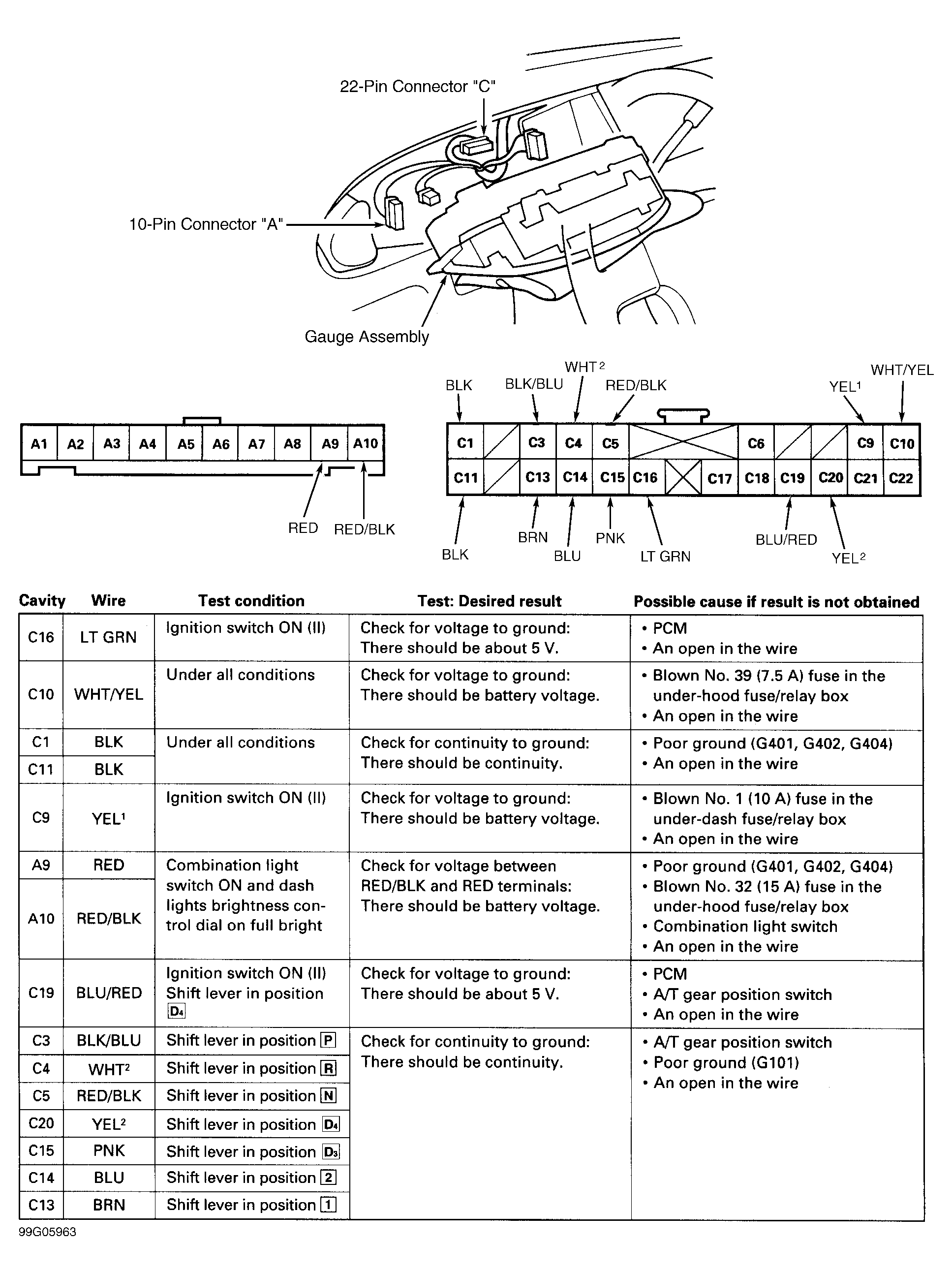

Fig 2: Instrument Panel Gauge Assembly Harness Connectors & A/T Gear Position Indicator Testing (Accord)
