Service Check Connector

WARNING: This page is about a different car, the 1998 Honda Odyssey, 1998 Honda Accord, and 1998 Acura 2.3CL. However, it is still accessible from the selected car via links, so may be relevant.

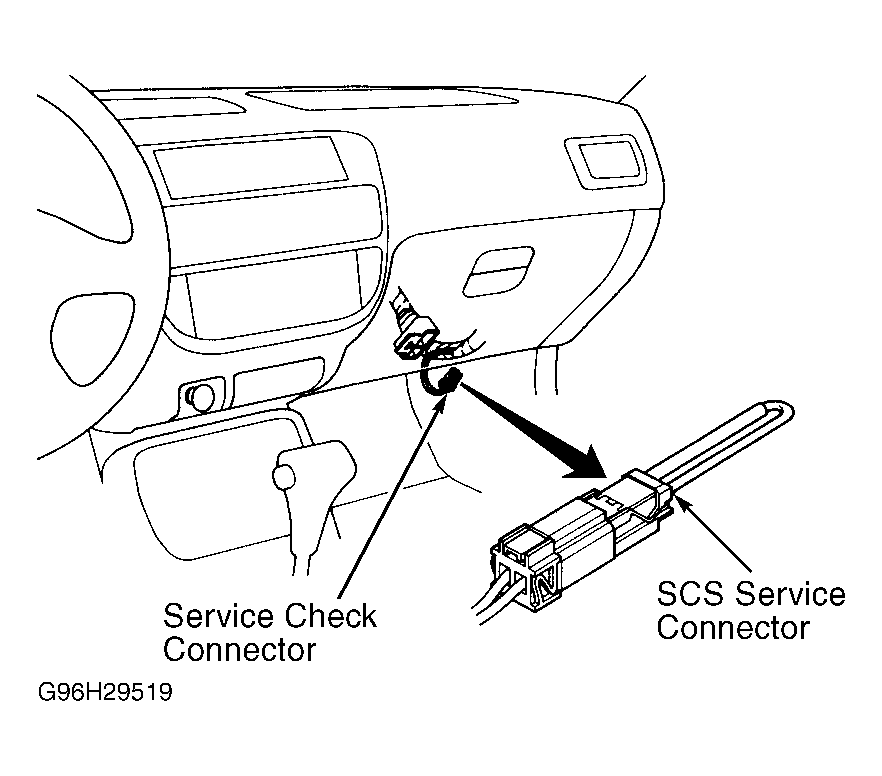

Service check connector is used when retrieving Flash Codes for transaxle electronic control system diagnosis. When a jumper wire is installed between electrical terminals of service check connector, an input signal is delivered to PCM to display Flash Codes on "D4" indicator light. Service check connector is a 2-pin Blue harness connector located at passenger's corner of instrument panel. See Figure .
