A/T Clutch Pressure Control Solenoid Valve "A"/"B" Assembly
WARNING: This page is about a different car, the 1998 Honda Odyssey, 1998 Honda Accord, and 1998 Acura 2.3CL. However, it is still accessible from the selected car via links, so may be relevant.

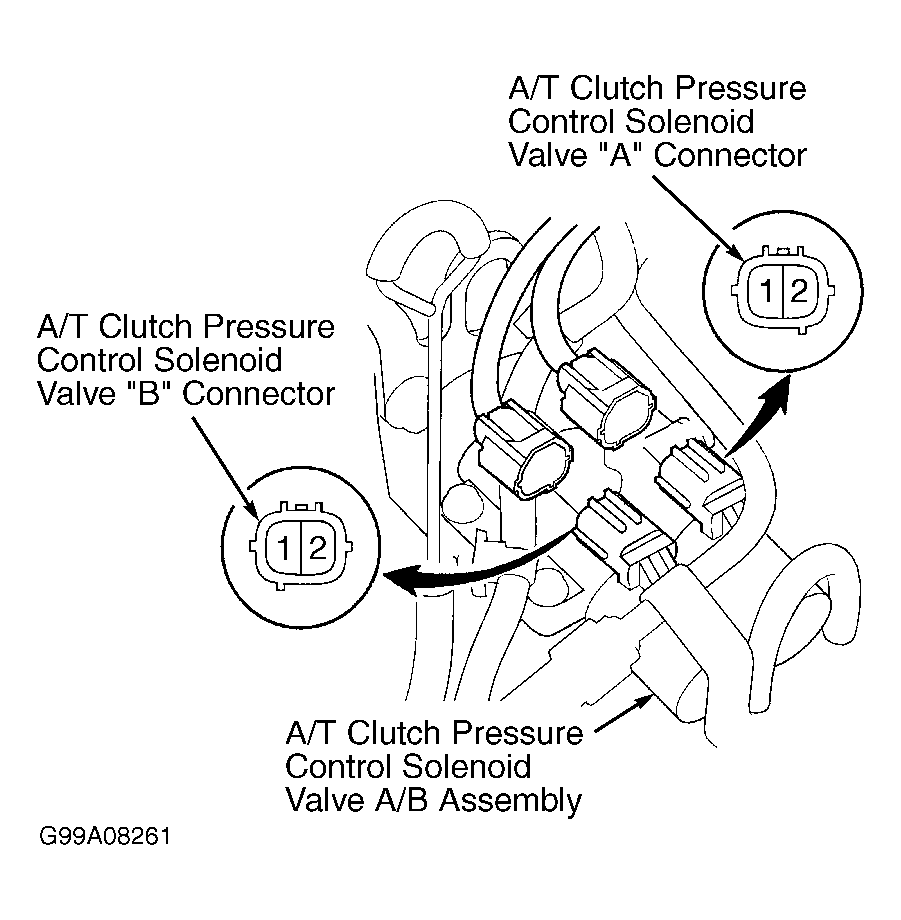

- A/T clutch pressure control solenoid valve "A"/"B" assembly is located on transaxle. See Figure . Disconnect harness connector at A/T clutch pressure control solenoid valves "A" and "B".
- Using a DVOM, measure resistance between solenoid terminals. Resistance should be about 5 ohms. Replace A/T clutch pressure control solenoid valve "A"/"B" assembly if resistance is not as specified.
- Check A/T clutch pressure control solenoid operation. Apply battery voltage to terminal No. 1 and ground terminal No. 2. See Fig 1 . A clicking sound should be heard for each solenoid, indicating solenoid operation. Replace A/T clutch pressure control solenoid valve "A"/"B" assembly if solenoid fails to operate.
