Fuel Gauge Sending Unit Test

Remove rear seat and fuel pump access panel. Turn ignition off. Disconnect fuel gauge sending unit 3-pin connector. Using Fuel Sender Wrench (07NAC-SR20100), remove sending unit. Measure resistance between sending unit terminal "B" and terminal "C" while moving float. See Fig 1 . Resistance must be as specified in FUEL GAUGE SENDING UNIT RESISTANCE table.

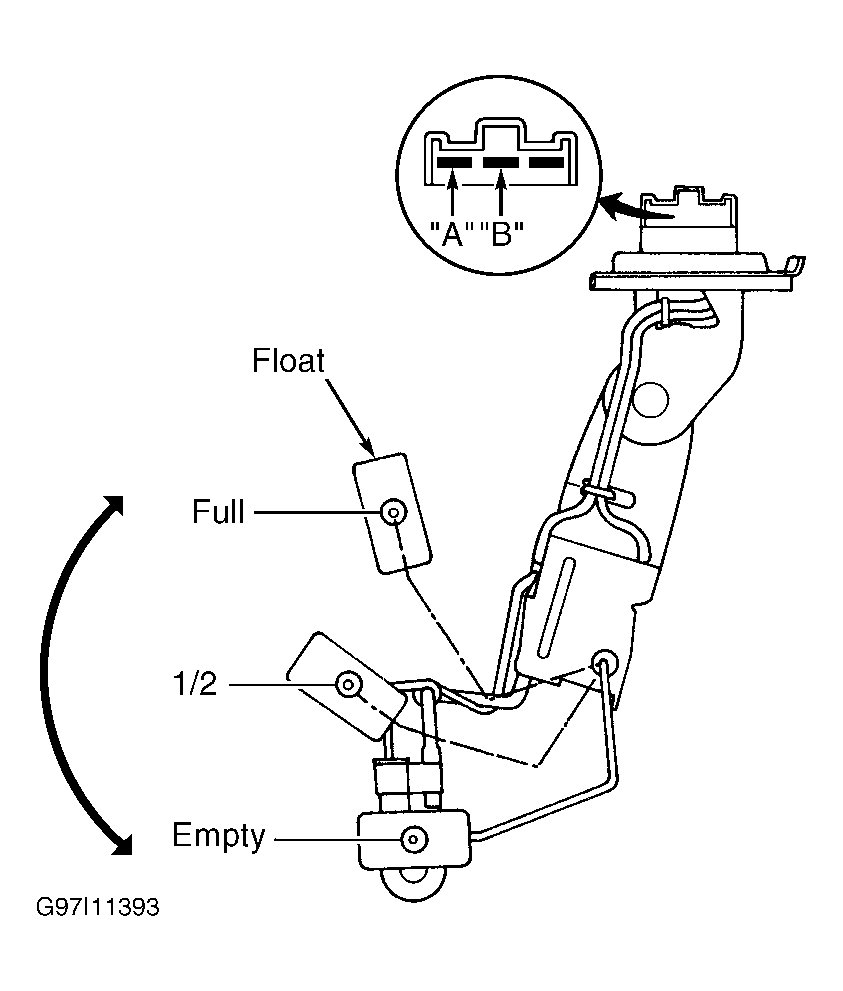

Fig 1: Testing Fuel Gauge Sending Unit

Courtesy of AMERICAN HONDA MOTOR CO., INC.
