Wiring Diagrams

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2005 Acura NSX, 2004 Acura NSX, 2003 Acura NSX-T, 2003 Acura NSX, and 2002 Acura NSX-T. However, it is still accessible from the selected car via links, so may be relevant.

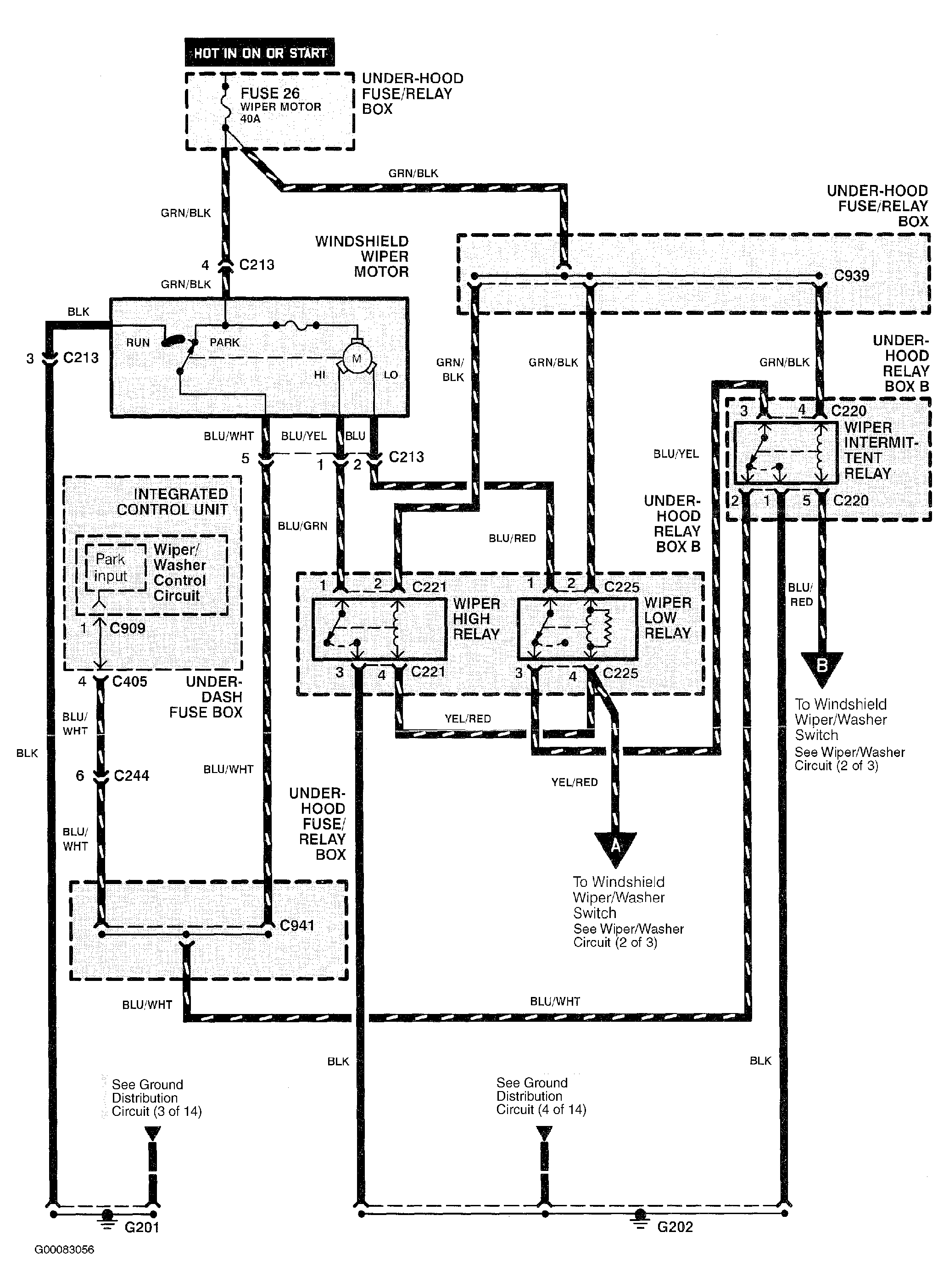

Fig 1: Wiper/Washer Circuit (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

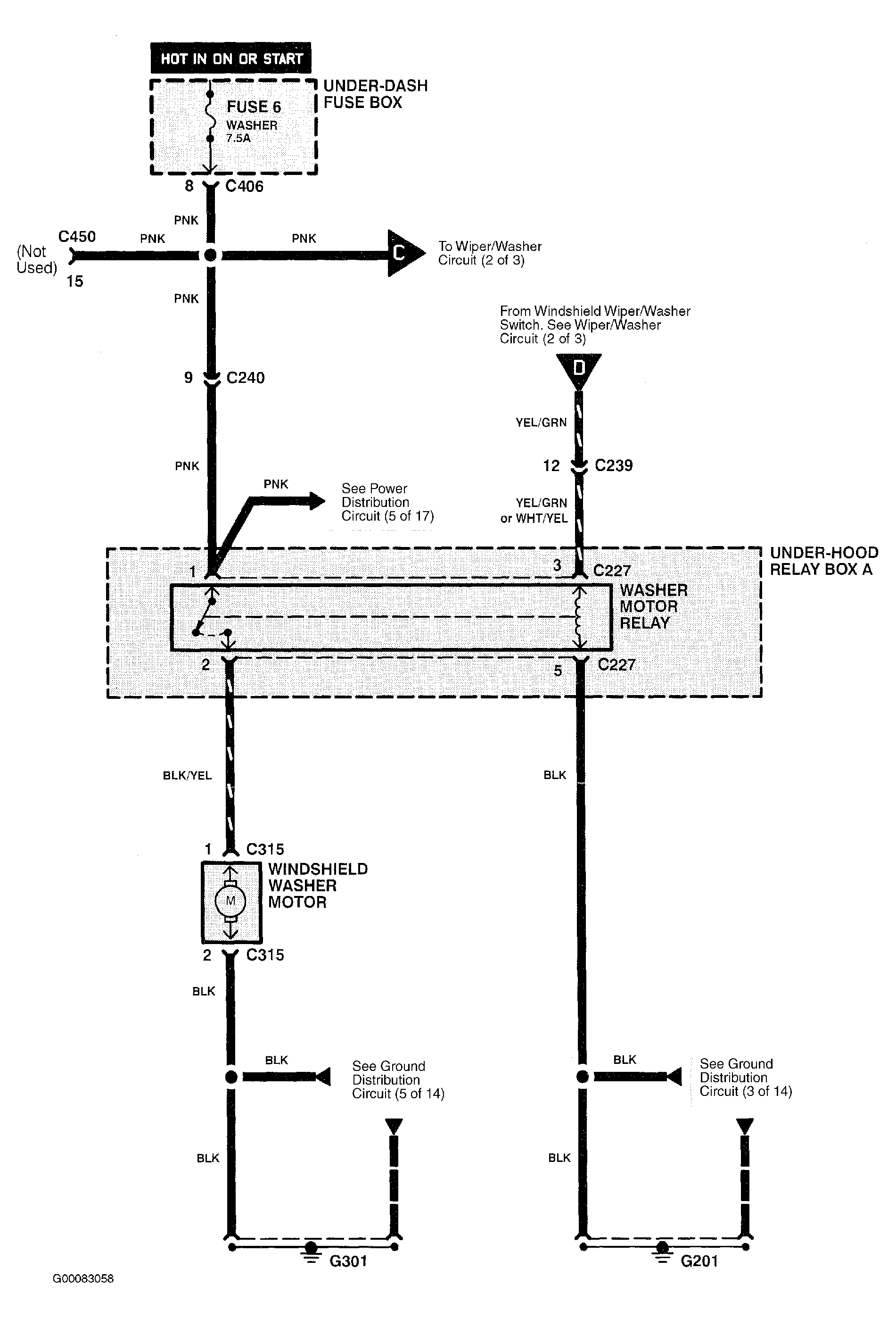

Fig 2: Wiper/Washer Circuit (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

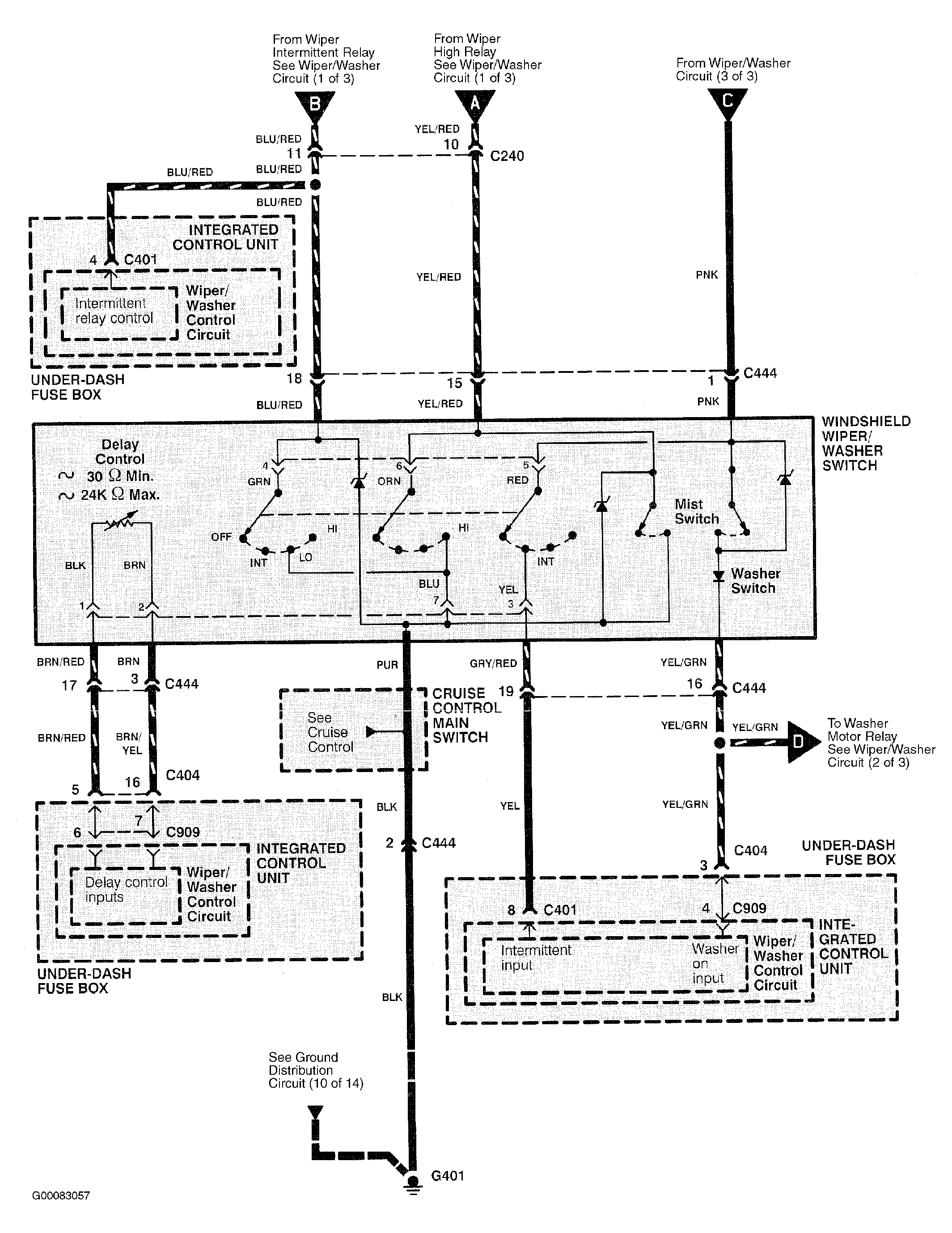

Fig 3: Wiper/Washer Circuit (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
