Windshield Washer Motor Test
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2005 Acura NSX, 2004 Acura NSX, 2003 Acura NSX-T, 2003 Acura NSX, and 2002 Acura NSX-T. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the 2P connector from the washer motor and remove the front bumper.

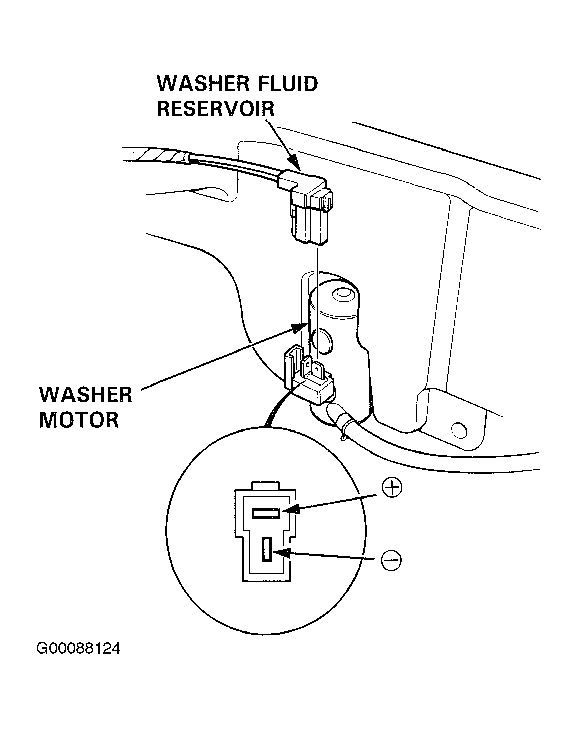

- Test the washer motor operation by connecting the battery positive to the (+) terminal and the negative to the (-) terminal. See Fig 1 .
- If the motor fails to run smoothly, replace it.
- If the motor runs smoothly but little or no washer fluid is pumped, check for a disconnected or blocked washer hose, or a clogged pump outlet in the motor.
