Low Relay Test

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2005 Acura NSX, 2004 Acura NSX, 2003 Acura NSX-T, 2003 Acura NSX, and 2002 Acura NSX-T. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper low relay from under-hood relay box B. SeeFigure .
  2. There should be continuity between the C and D terminals. SeeFig 1 .
  3. There should be no continuity between the A and B terminals when the power and ground are connected to the C and D terminals. There should be continuity when the power is disconnected.

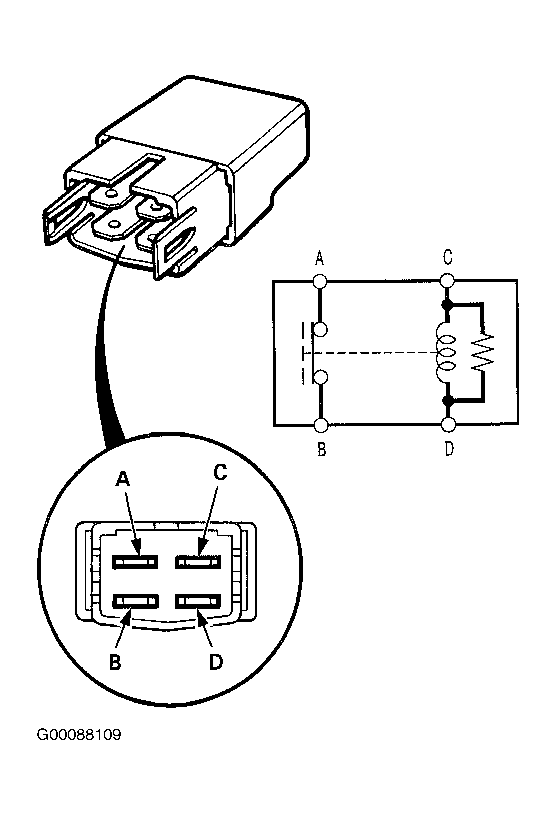

    Fig 1: Testing Low Relay
    G00088109Courtesy of AMERICAN HONDA MOTOR CO., INC.
