Intermittent Relay Test

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2005 Acura NSX, 2004 Acura NSX, 2003 Acura NSX-T, 2003 Acura NSX, and 2002 Acura NSX-T. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper intermittent relay from under-hood relay box B. See Figure .
  2. There should be continuity between the A and C terminals when the battery is connected to the E and F terminals. See Fig 1 . The should be continuity between the B and C terminals when the battery is disconnected.

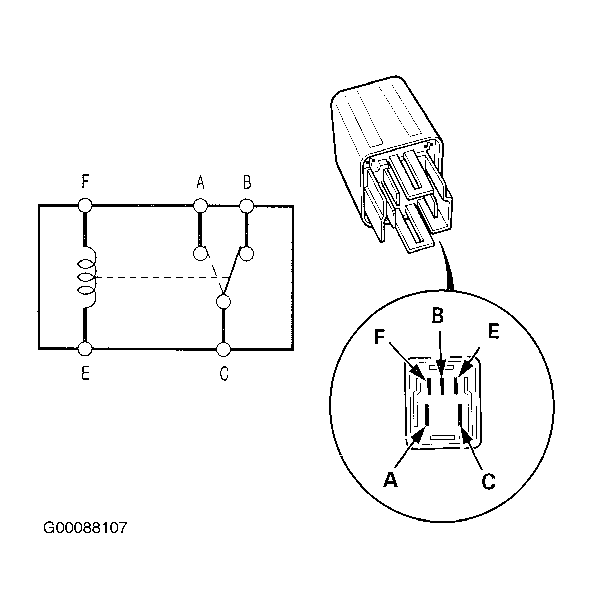

Fig 1: Intermittent Relay Terminal Positions
G00088107Courtesy of AMERICAN HONDA MOTOR CO., INC.
