Section 6 (Electrical Component Locations): Switches

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2001 Acura NSX-T, 2001 Acura NSX, 2000 Acura NSX-T, 2000 Acura NSX, and 1999 Acura NSX-T. However, it is still accessible from the selected car via links, so may be relevant.

SWITCHES

Component	Component Location

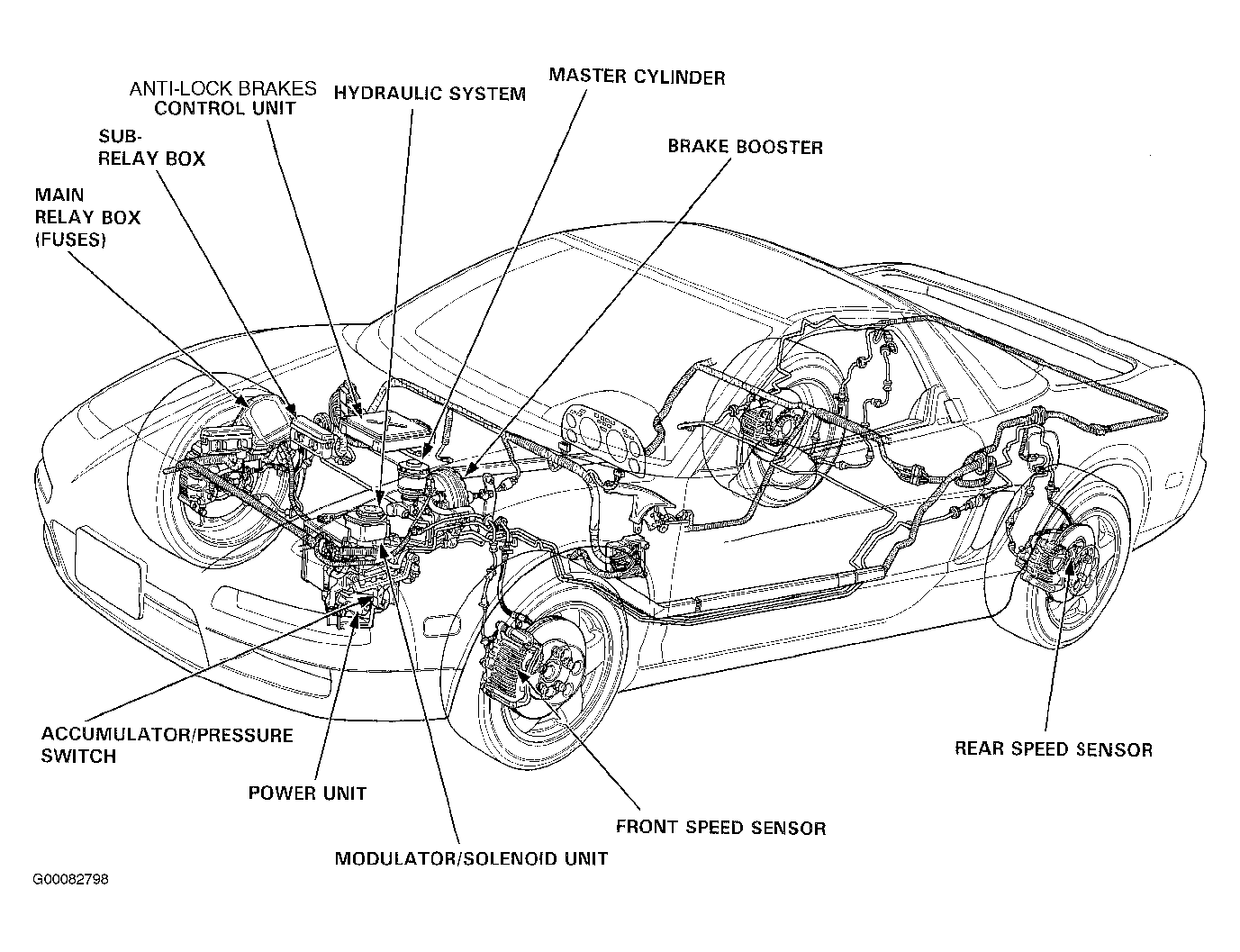

Accumulator Pressure Switch	Lower Left Rear Of Front Luggage Compartment. See Figure.

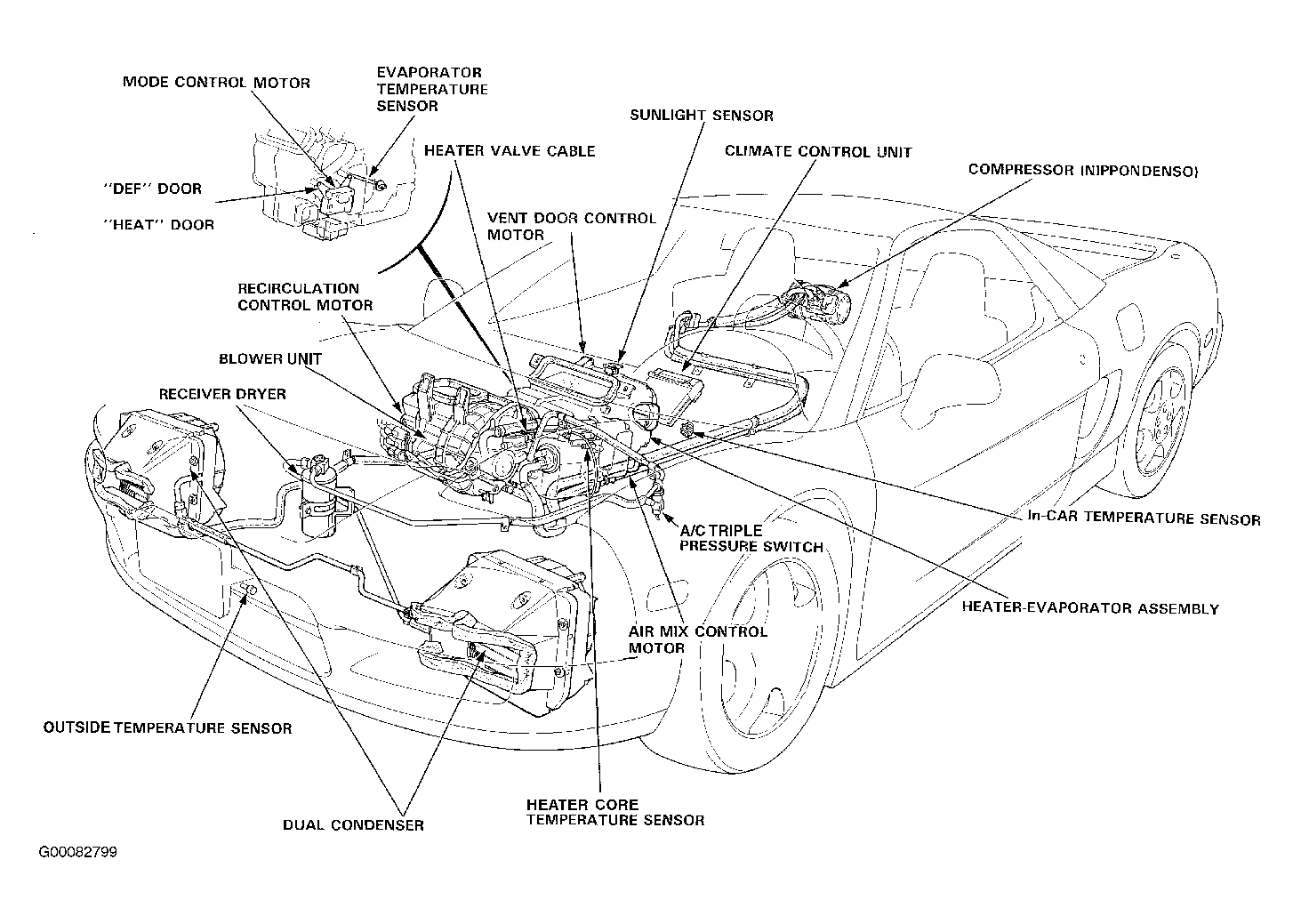

A/C Pressure Switches	Left Rear Of Front Luggage Compartment, On A/C Line. See Figure.

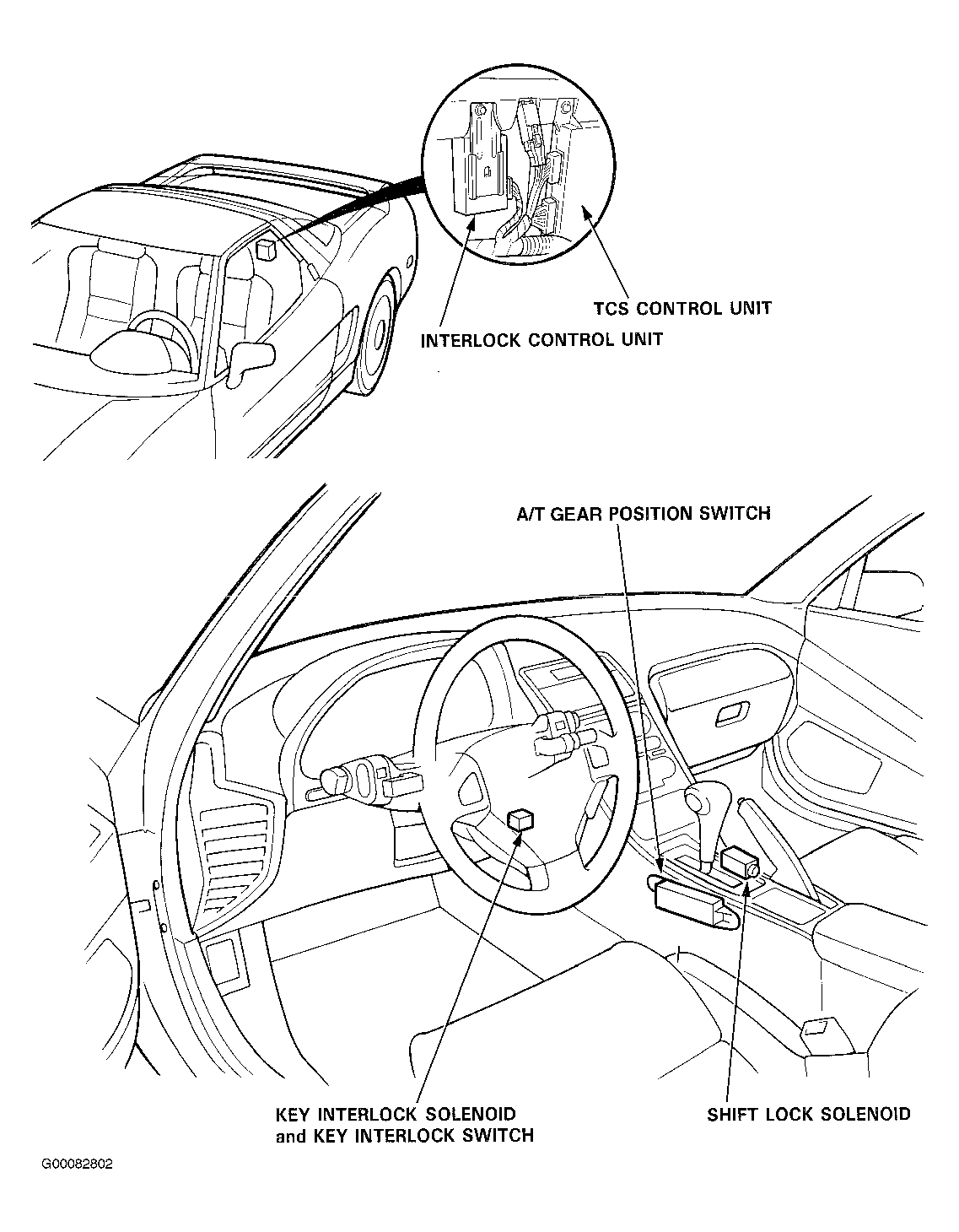

A/T Gear Position Switch	In Console At Base Of Gear Selector. See Figure.

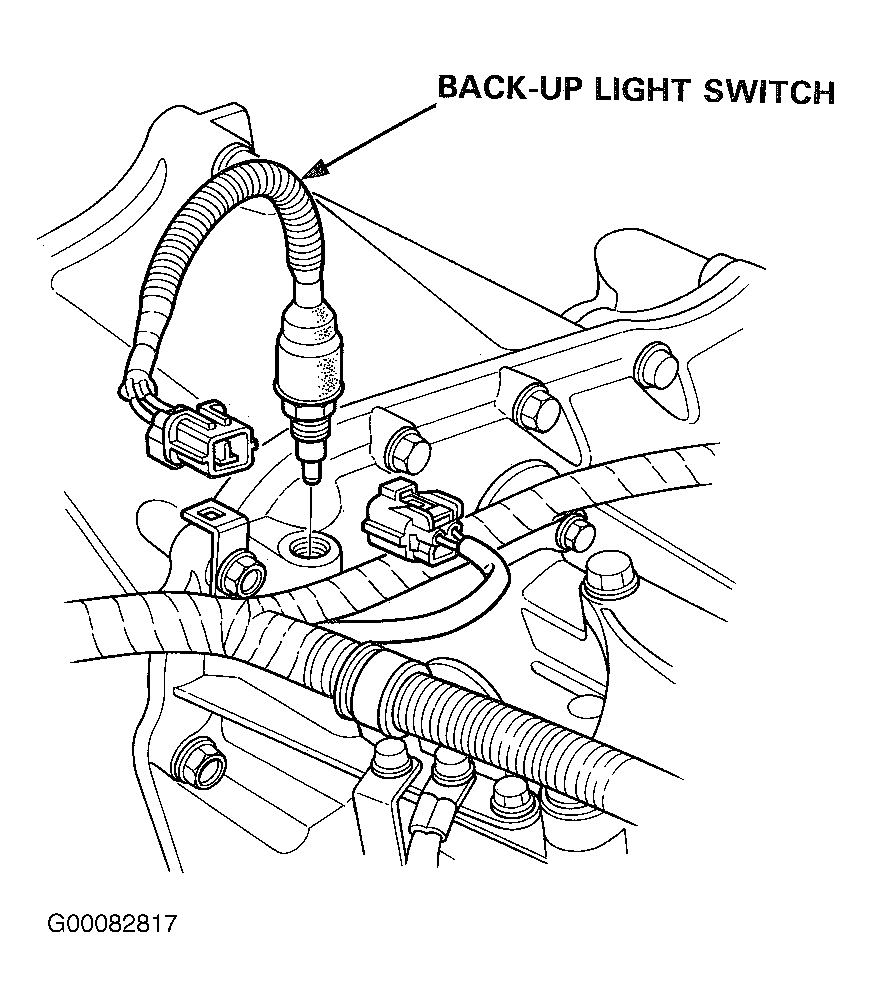

Back-Up Lights Switch	Left Side Of Engine Compartment On Top Of Transmission. See Figure.
Brake Fluid Level Switch	Left Rear Of Front Luggage Compartment On Brake Fluid Reservoir. See Figure.

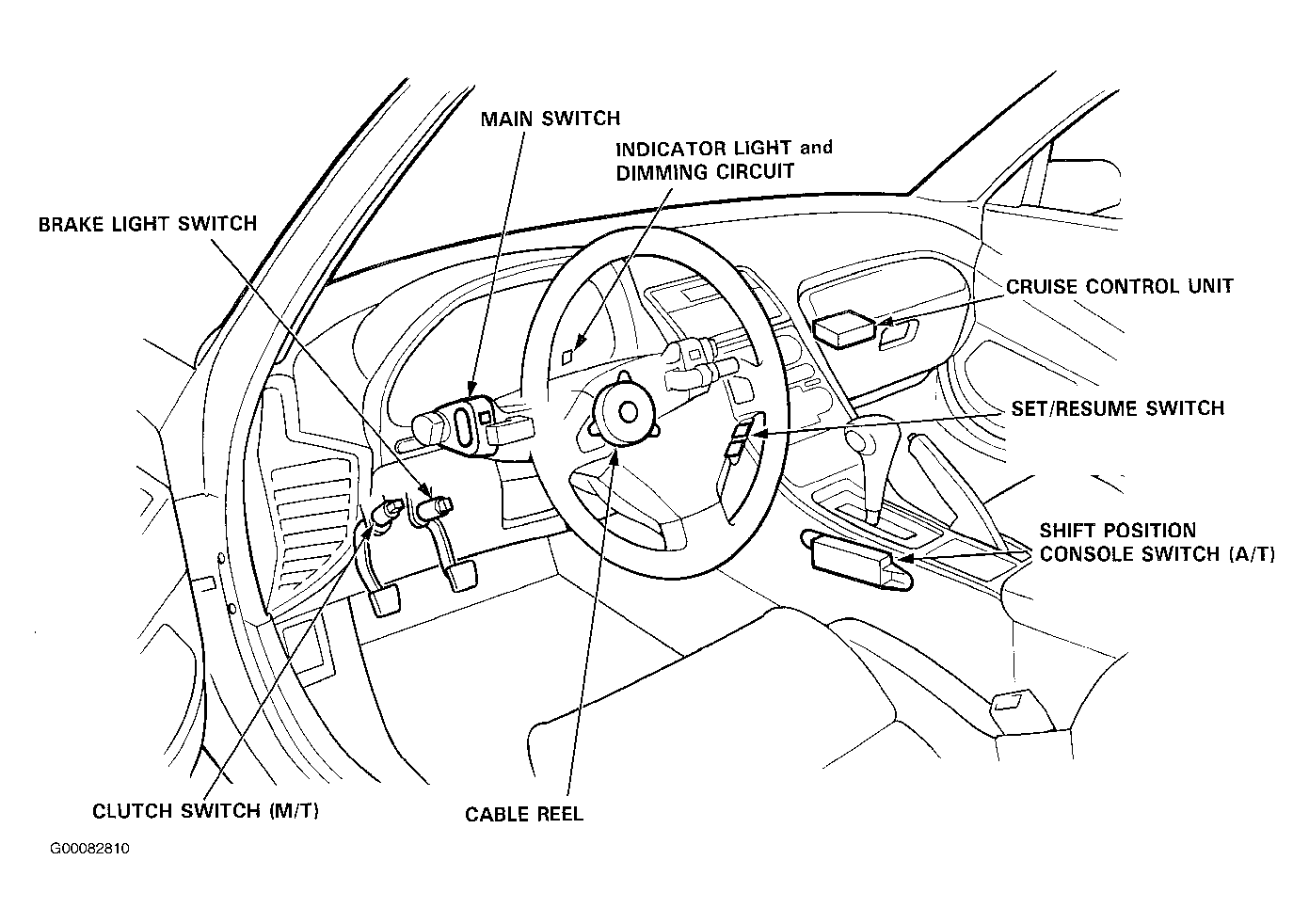

Brake Light Switch	Under Left Side Of Dashboard, On Brake Pedal Support. See Figure.
Clutch Switch	Under Left Side Of Dashboard, On Clutch Pedal Support. See Figure.
Driver's Door Switch	Rear Of Driver's Door

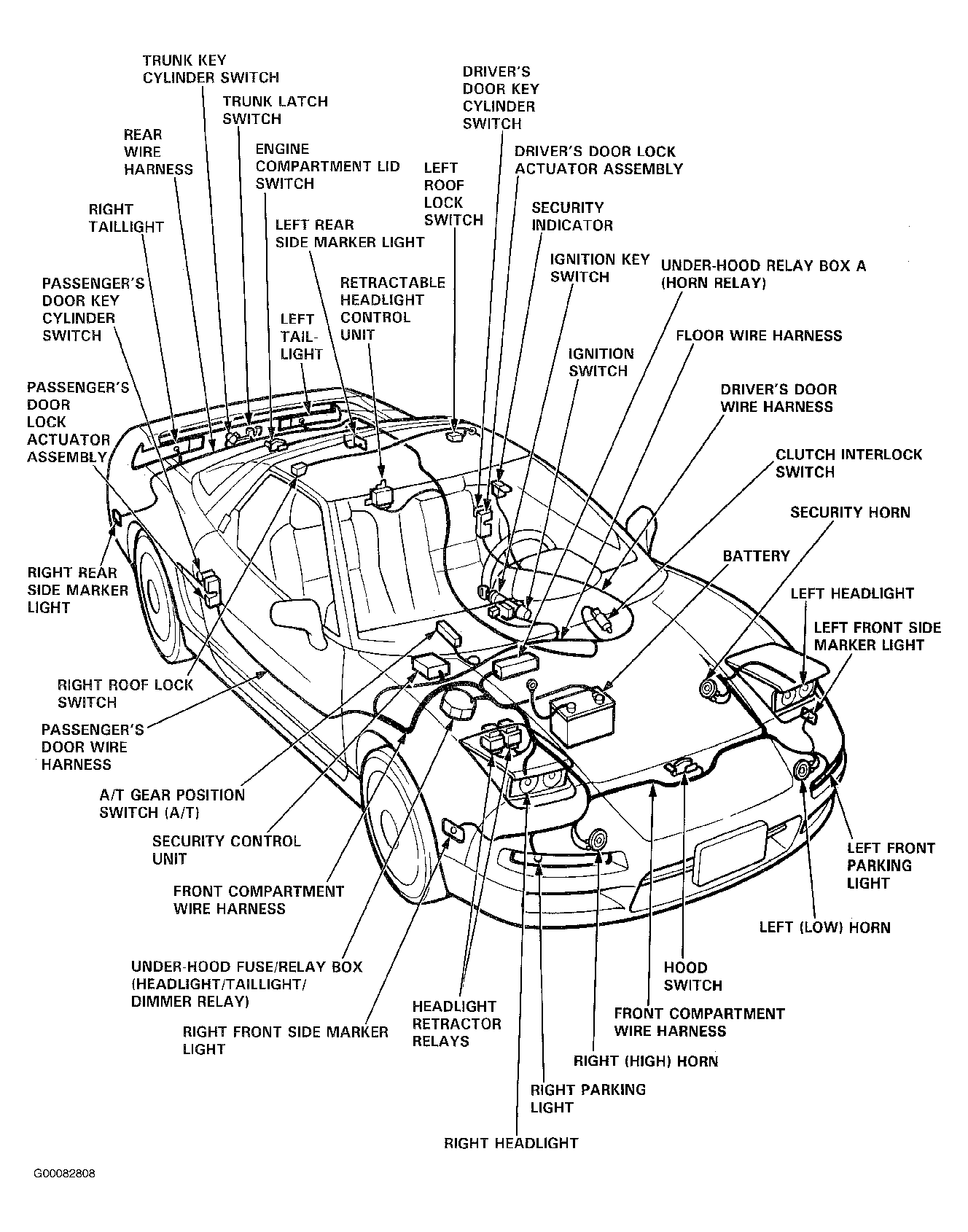

Engine Compartment Lid Switch	Left Rear Of Engine Compartment. See Figure.
Hood Switch	Center Of Front Luggage Compartment

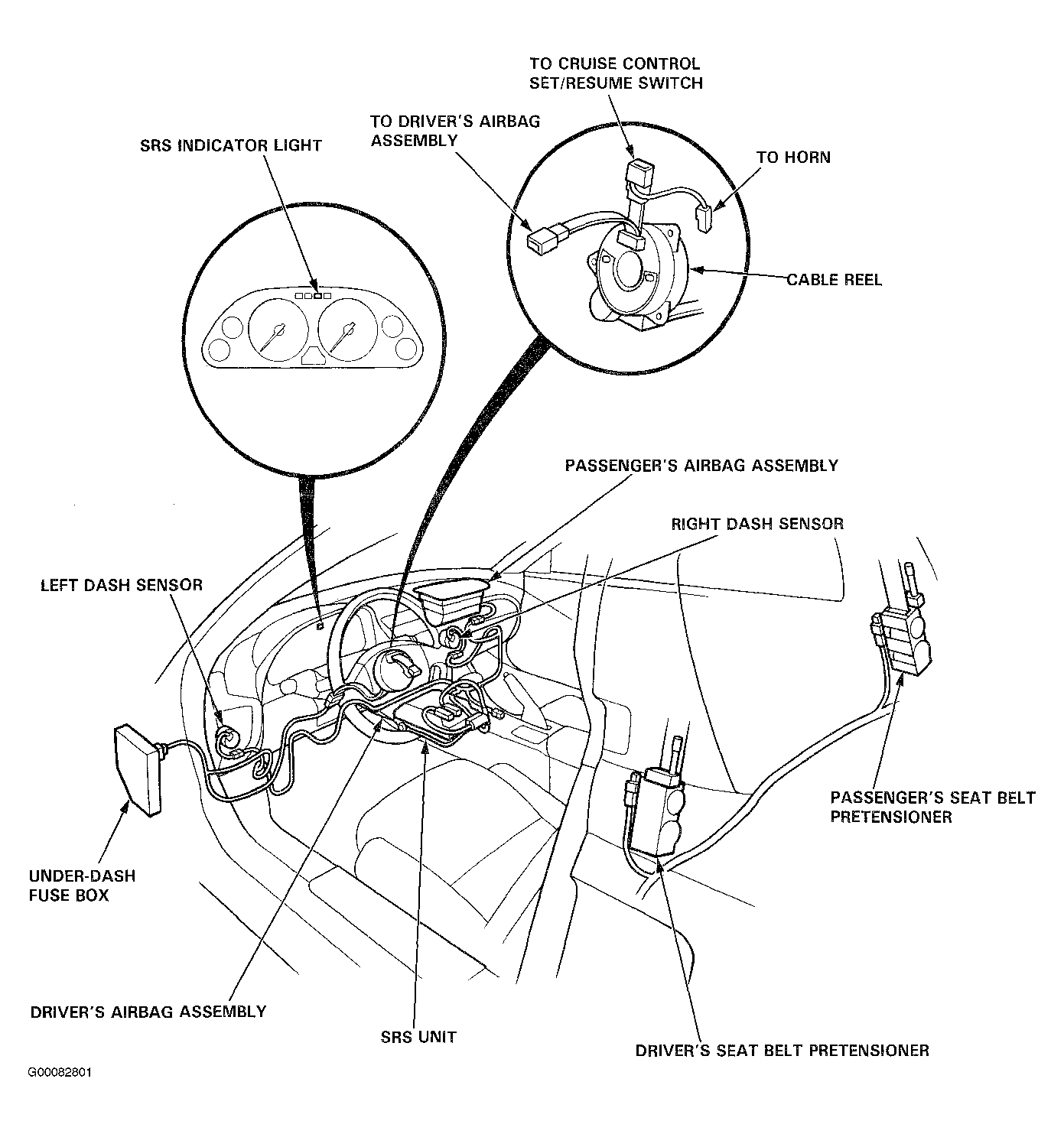

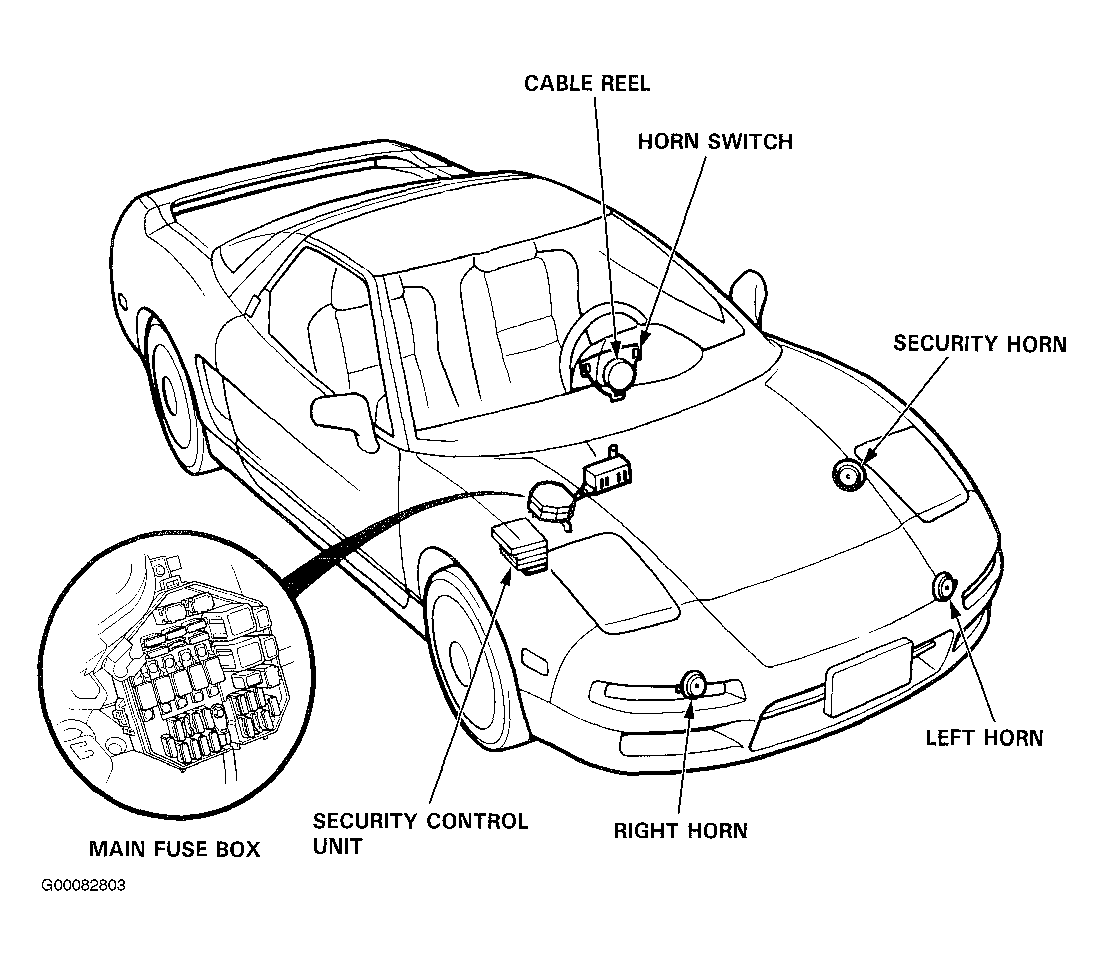

Horn Switch (Left)	On Steering Wheel Pad. See Figure.
Horn Switch (Right)	On Steering Wheel Pad. See Figure.
Ignition Switch	Under Right Side Of Steering Column. See Figure.
Key Interlock Switch	Right Side Of Steering Column. See Figure.

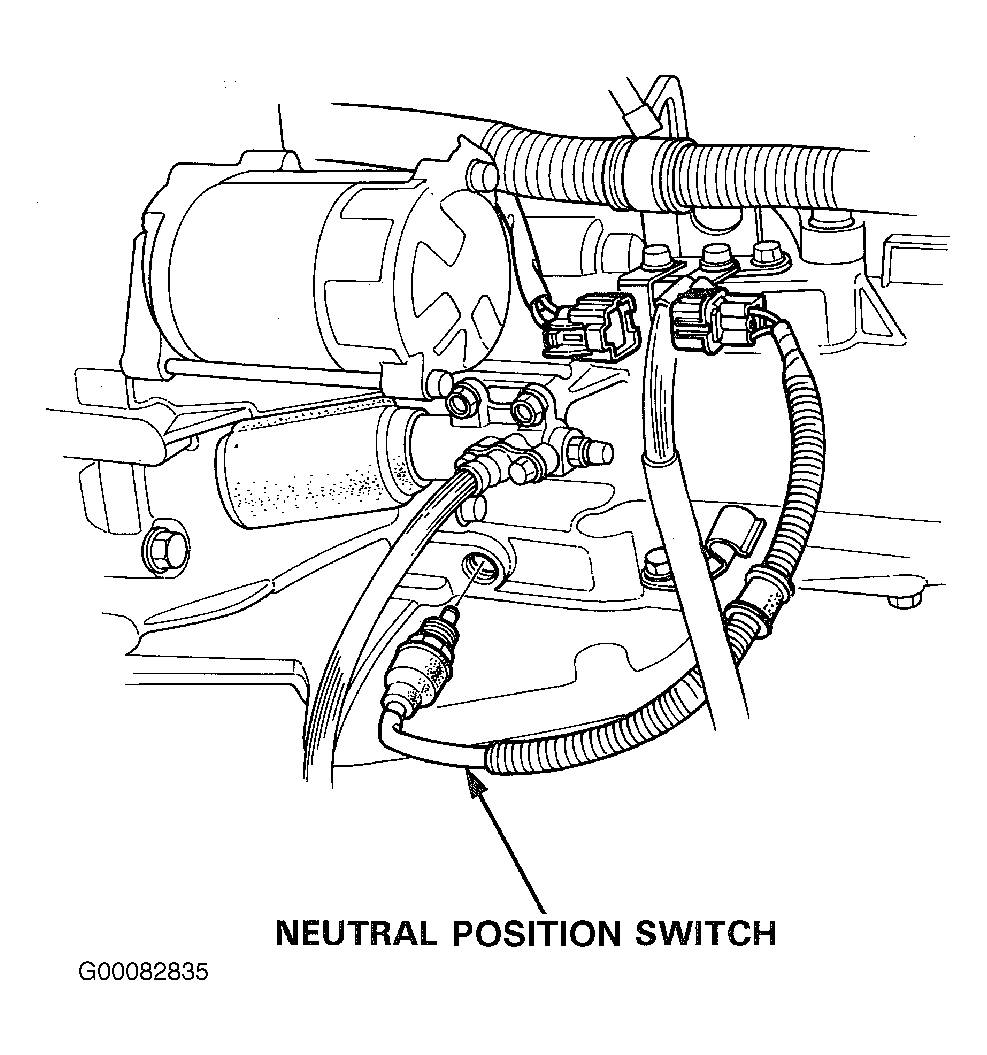

Neutral Position Switch	On Transmission, Below Starter. See Figure.

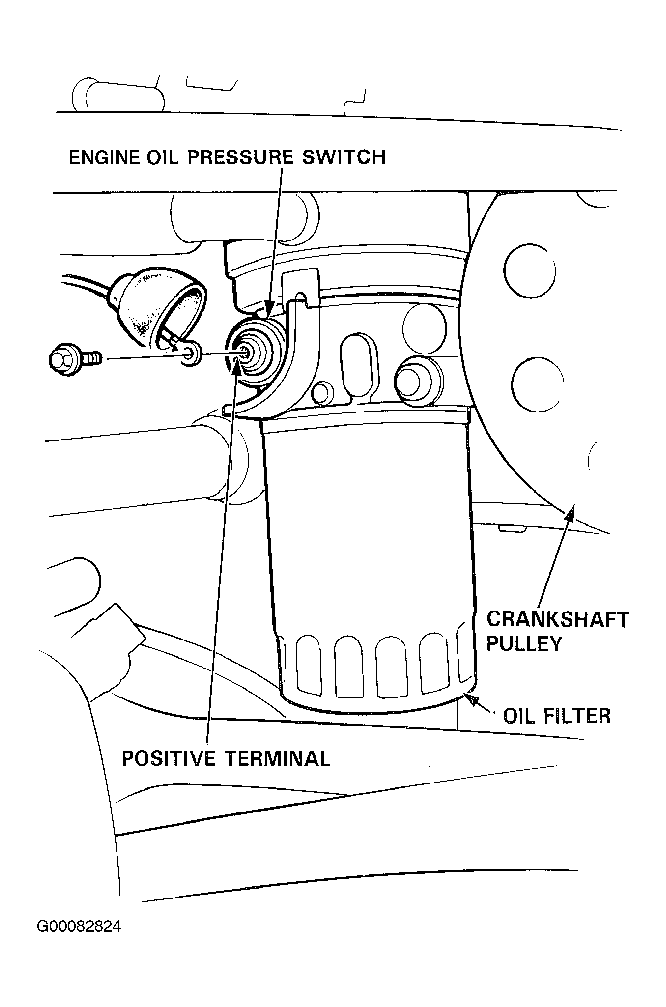

Oil Pressure Switch	Lower Right Rear Of Engine. See Figure.
Parking Brake Switch	Under Console, On Parking Brake Lever
Roof Lock Switches (Left)	On Left Outside Edge Of Removable Roof Panel. See Figure.
Roof Lock Switches (Right)	On Right Outside Edge Of Removable Roof Panel. See Figure.
Seat Belt Switch (Driver's)	In Driver's Seat Belt Buckle
Seat Belt Switch (Passenger's)	In Passenger's Seat Belt Buckle
Trunk Cylinder Switch	Center Rear Of Trunk Lid. See Figure.
