MISCELLANEOUS
| Component | Component Location |
|---|---|

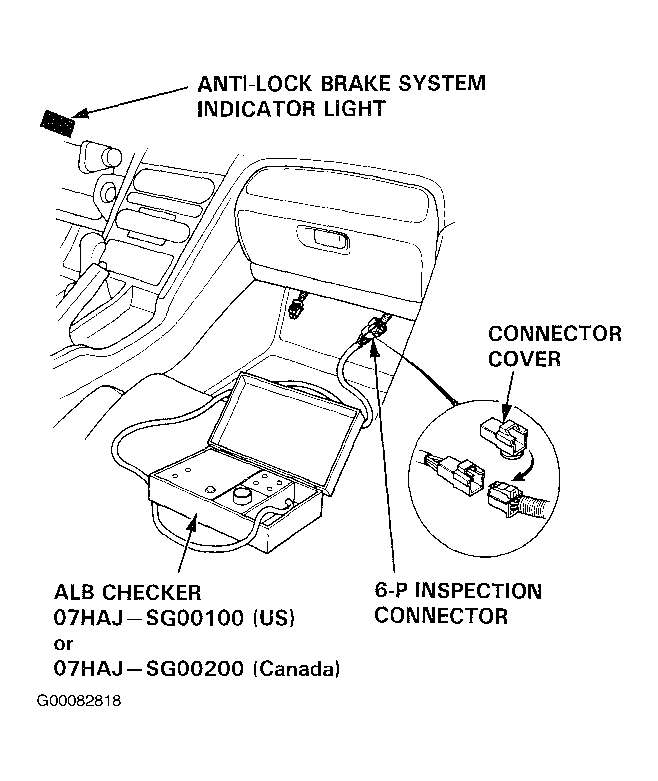

| ABS Inspection Connector | Under Right Side Of Dashboard. See Figure. |
| A/C Compressor Clutch | Lower Right Front Corner Of Engine. See Figure. |
| Battery | Rear Of Front Luggage Compartment Toward Middle Down Low. See Figure. |
| Cancel Unit | Top Of Steering Column. |
| Compact Disk Changer Unit | Right Side Of Trunk. |
| Emission Control Box | On Rear Of Console, Under Speaker. See Figure. |

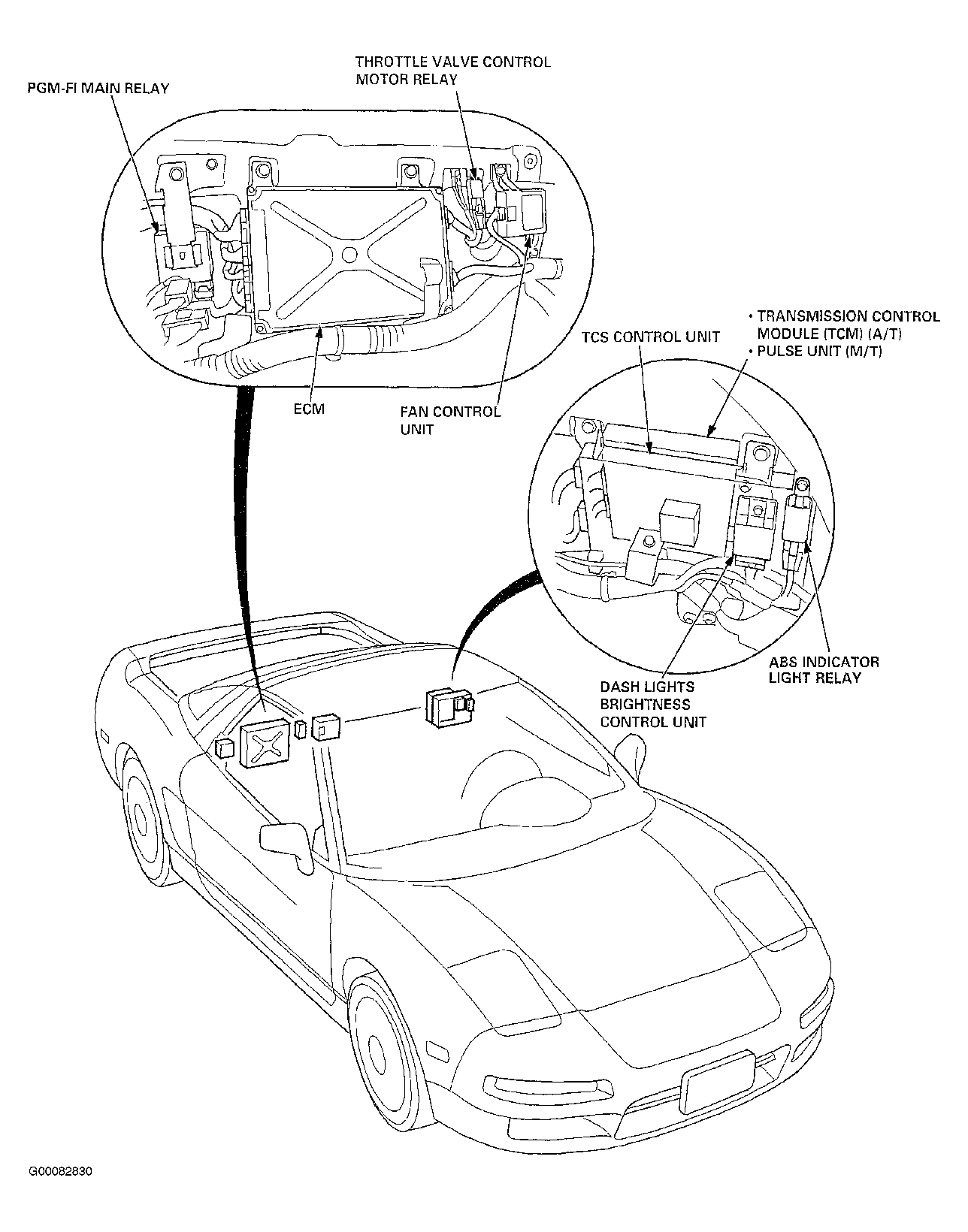

| Dashboard Brightness Control Unit | Behind Seat, Left Side Of Bulkhead. See Figure. |

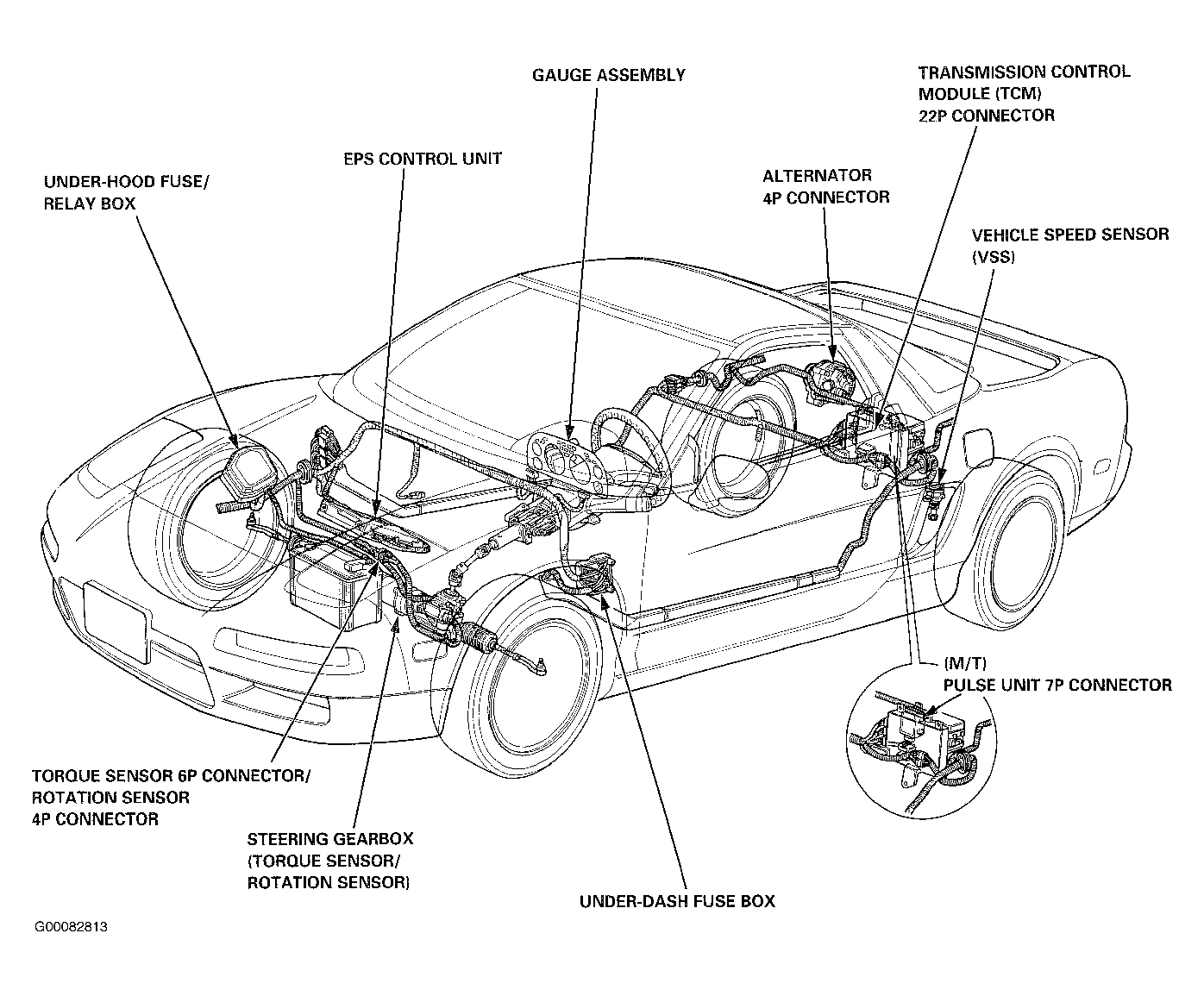

| Electronic Steering Gear Box | Lower Rear Of Front Luggage Compartment. See Figure. |
| Emission Control Box | Left Rear Of Engine Compartment. See Figure. |
| Fuel Injection Resistors | Right Side Of Engine Compartment. See Figure. |
| Fuel Pump (Tank Unit) | Inside Fuel Tank. |

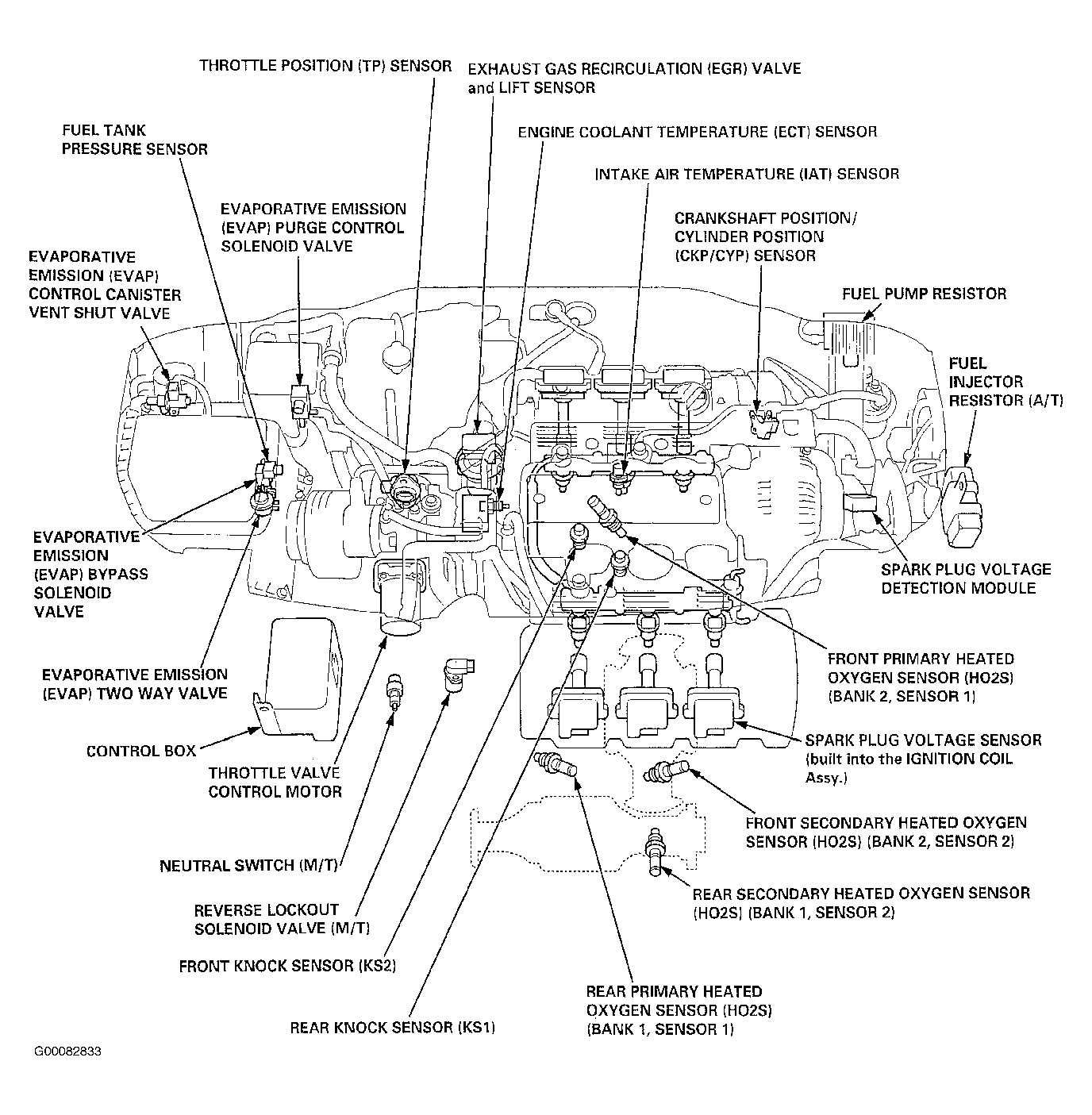

| Fuel Pump Resistor | Right Side Of Engine. See Figure. |
| Generator | Right Side Of Engine. |
| Horn (Left) | Behind Left Side Of Front Bumper. See Figure. |
| Horn (Right) | Behind Right Side Of Front Bumper. See Figure. |

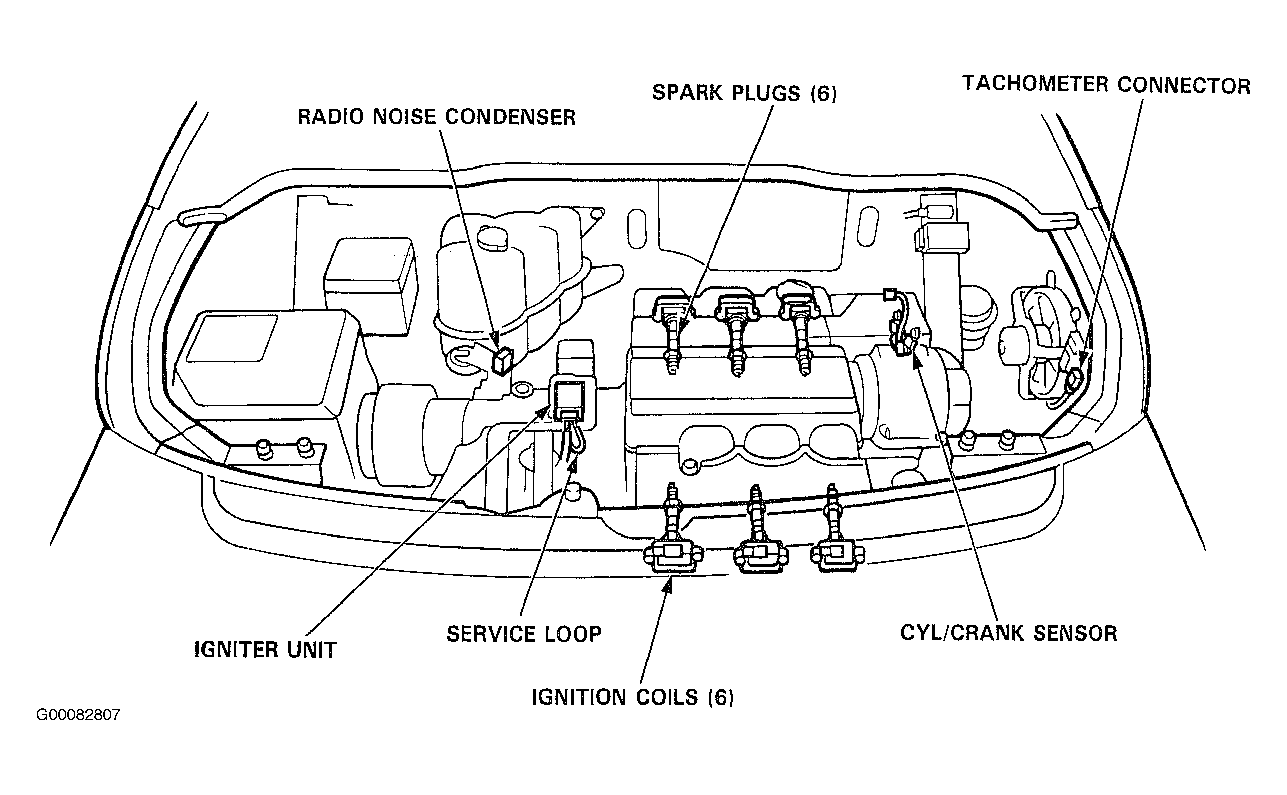

| Ignition Coils (1-3) | Rear Of Engine Below Ignition Coil Cover. See Figure. |
| Ignition Coils (4-6) | Front Of Engine Below Ignition Coil Cover. See Figure. |
| Ignition Timing Adjuster | In Emission Control Box. See Figure. |

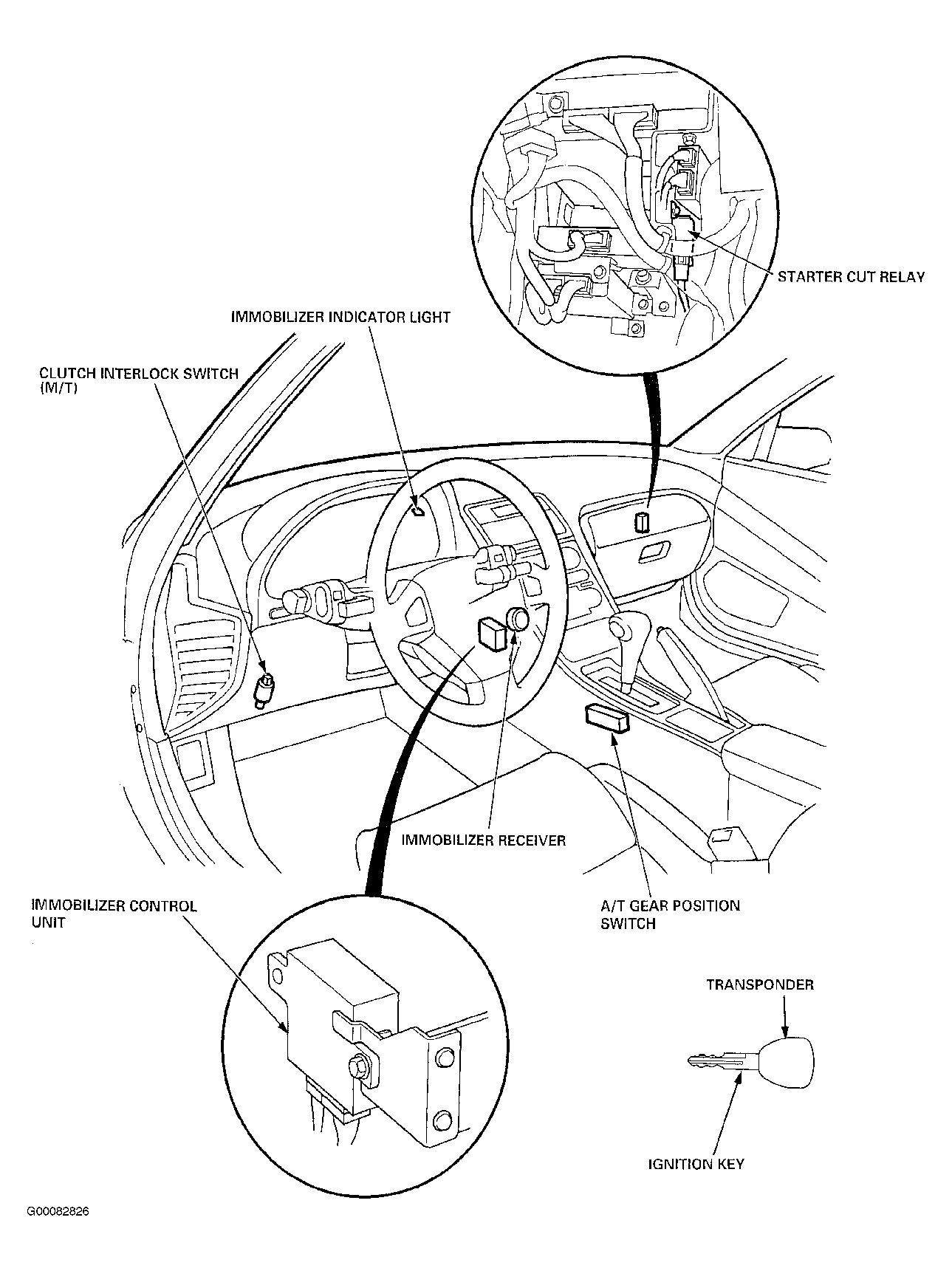

| Immobilizer Receiver | Outer Ring Of Ignition Lock Cylinder. See Figure. |
| Immobilizer Transponder | Built Into Ignition Key. See Figure. |

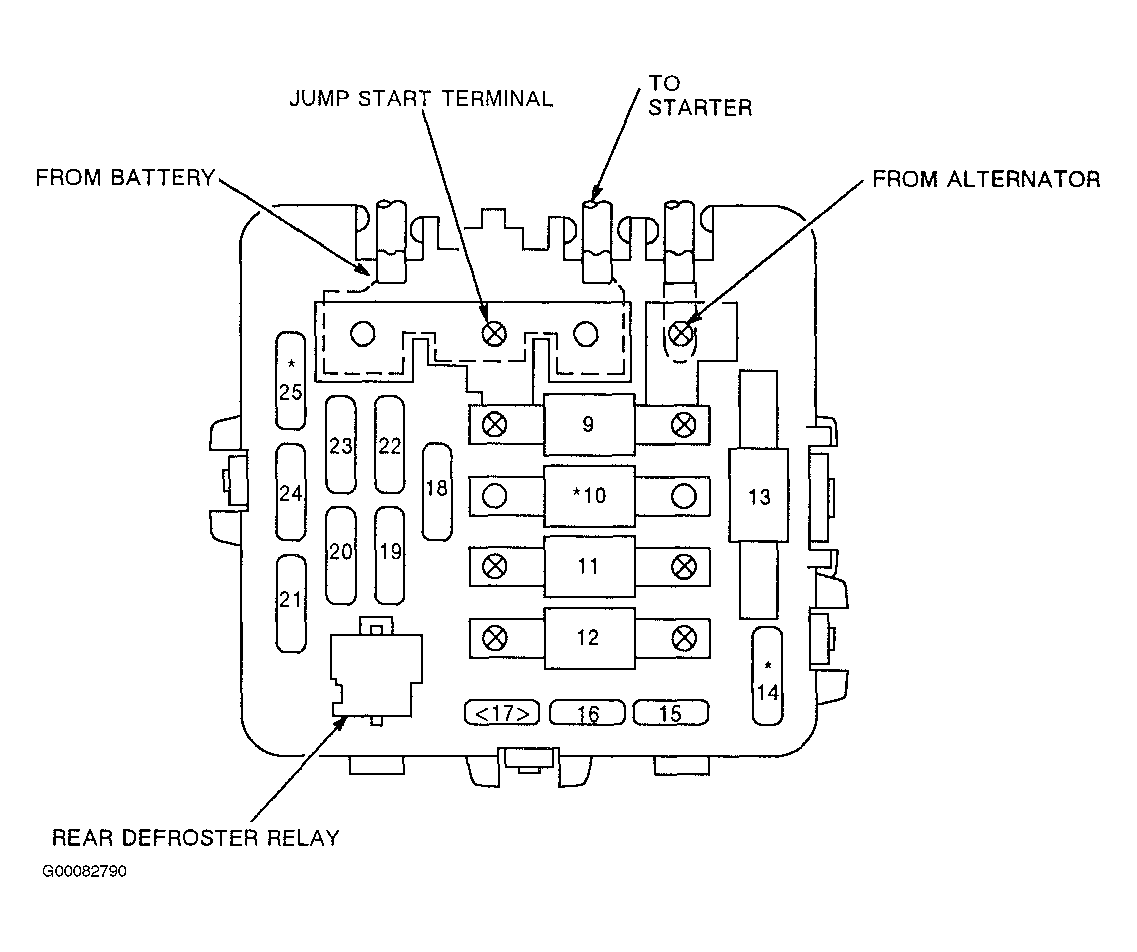

| Jump Start Terminal | In Engine Compartment Fuse/Relay Block. See Figure. |
| Pulse Unit (Manual Transmission) | Behind Seat, On Rear Bulkhead. See Figure. |
| Security Horn | Left Side Of Front Luggage Compartment. See Figure. |

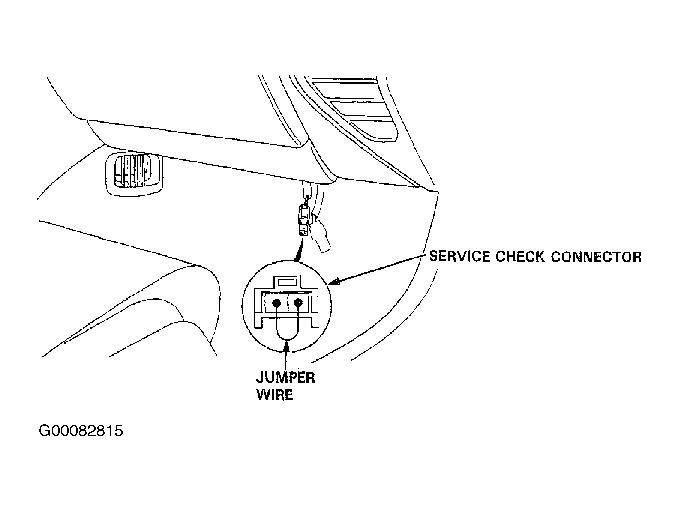

| Service Check Connector | On Passenger's Side Of Car, Under Dashboard. See Figure. |

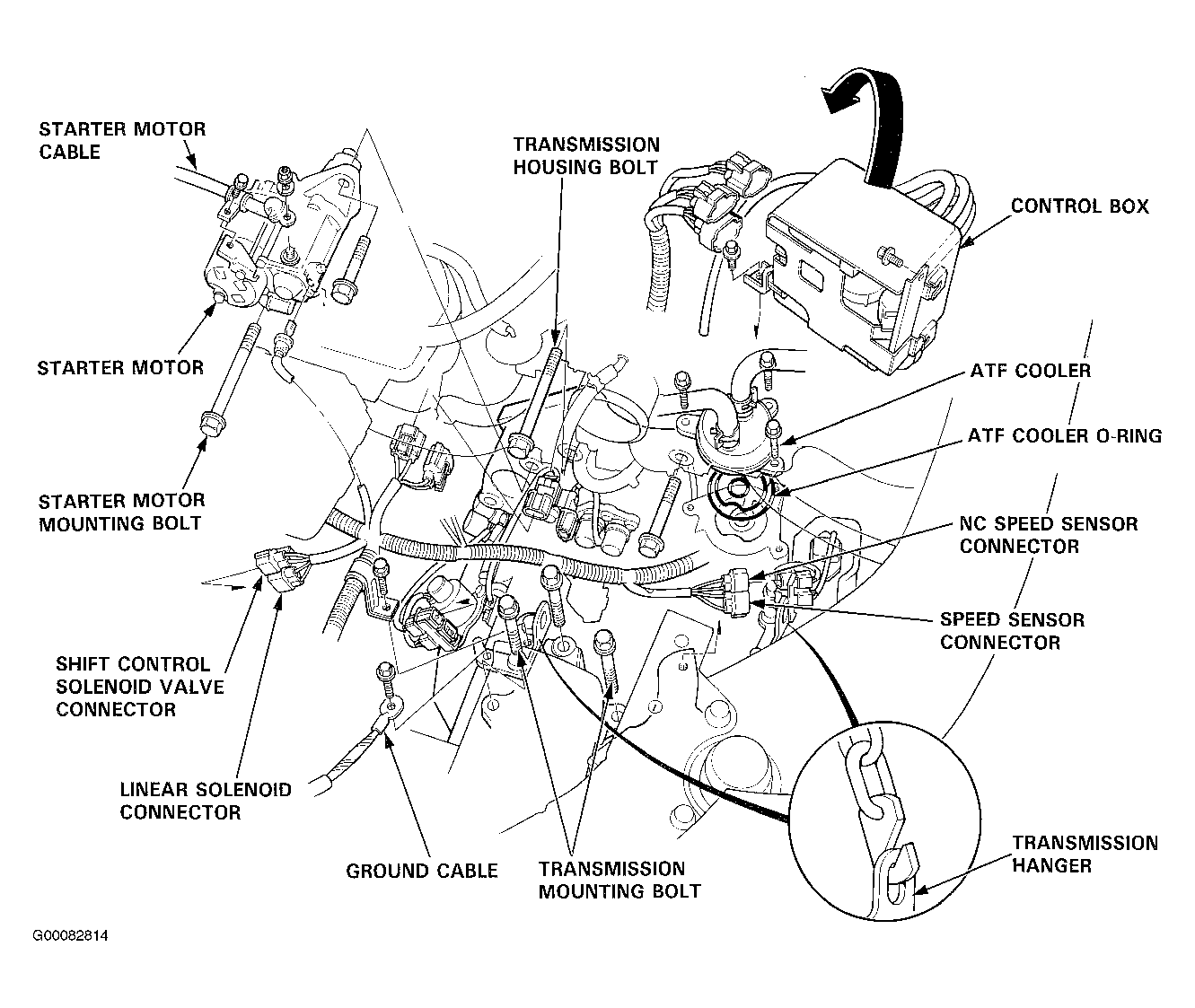

| Starter | Lower Left Front Of Engine. See Figure. |
| Transceiver (Cellular Phone) | Right Side Of Trunk, Next To CD Changer. |
| Window Defogger Coil (Rear) | Part Of Rear Window Glass. |
