Ground Locations

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2001 Acura NSX-T, 2001 Acura NSX, 2000 Acura NSX-T, 2000 Acura NSX, and 1999 Acura NSX-T. However, it is still accessible from the selected car via links, so may be relevant.
GROUND LOCATIONS

Ground Location

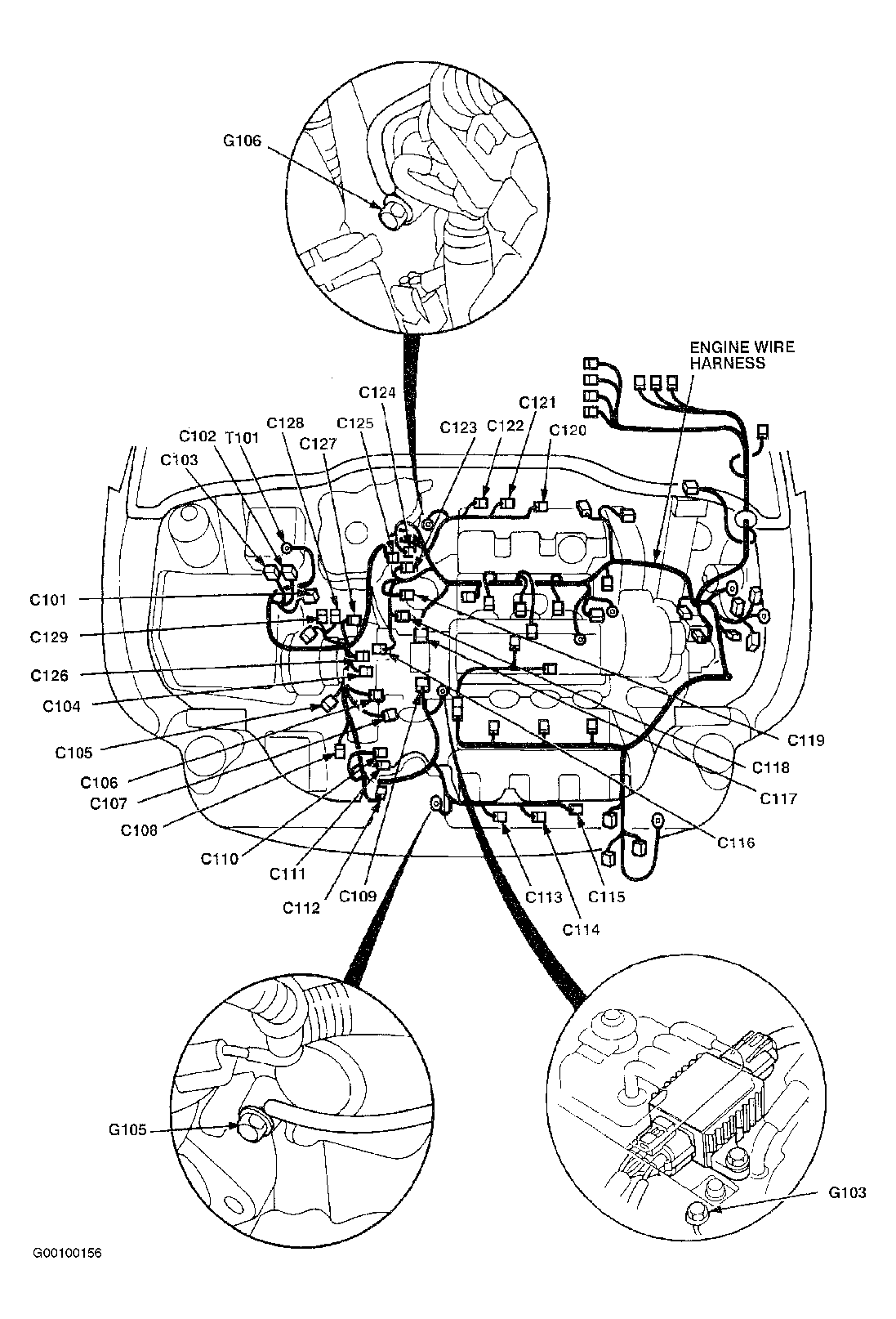

G103, G105 & G106 See Figure.

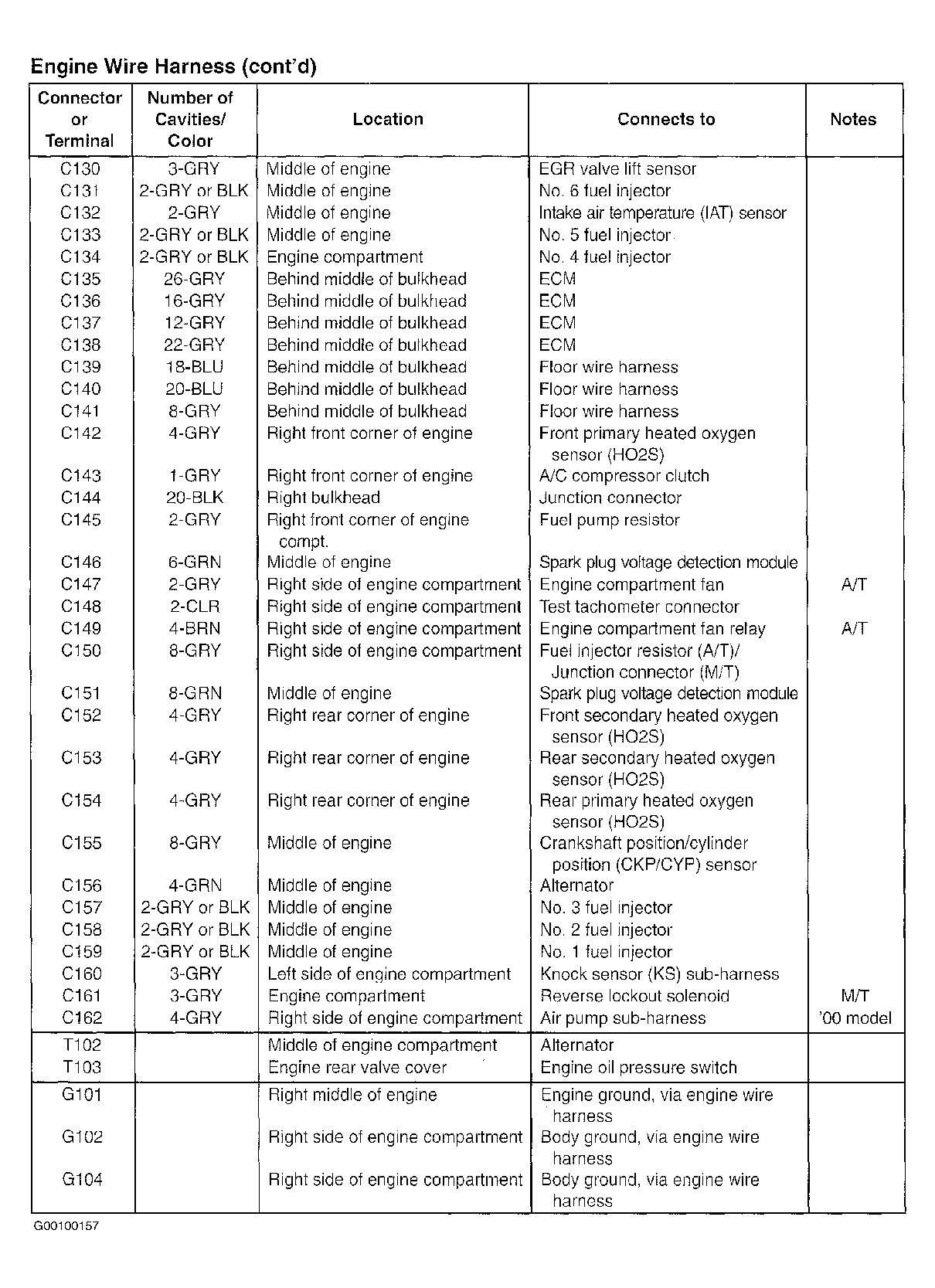

G101, G102 & G104 See Figure.

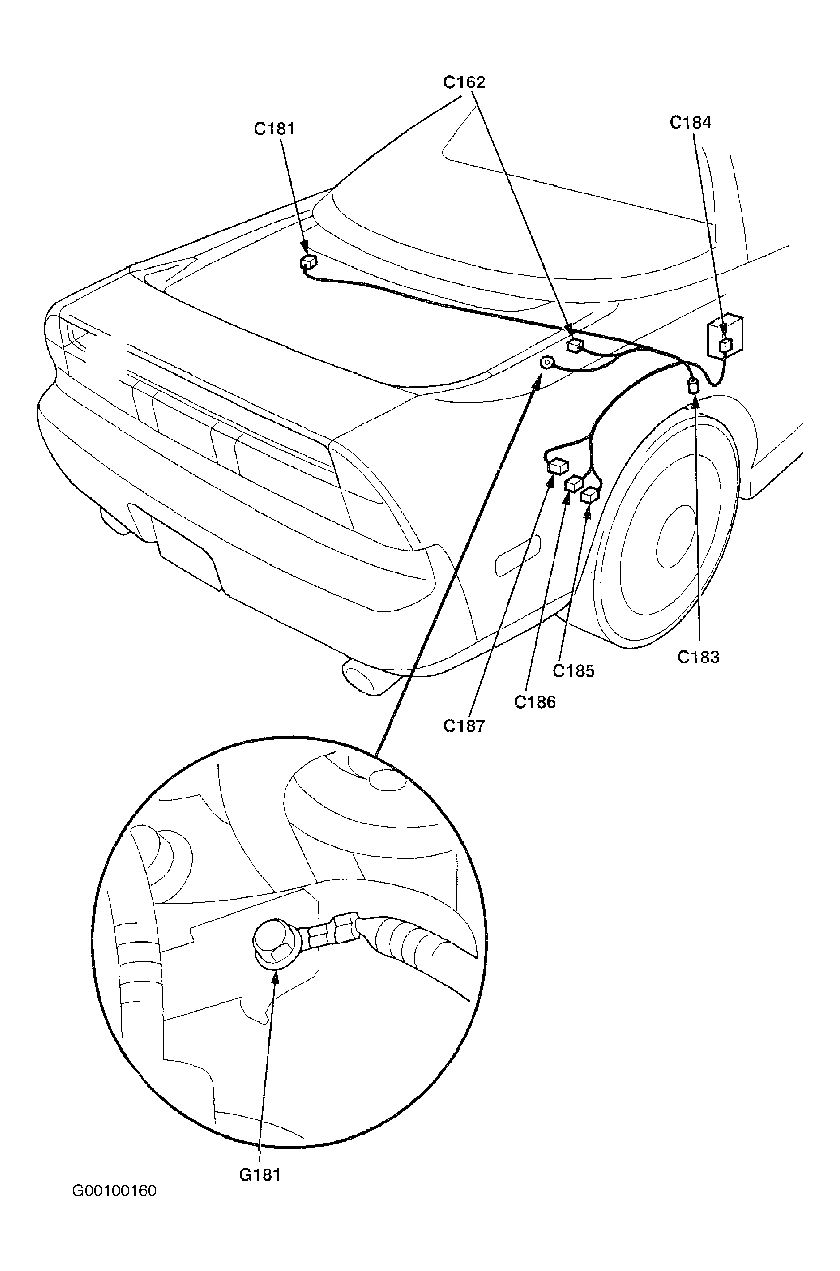

G181 See Figure.

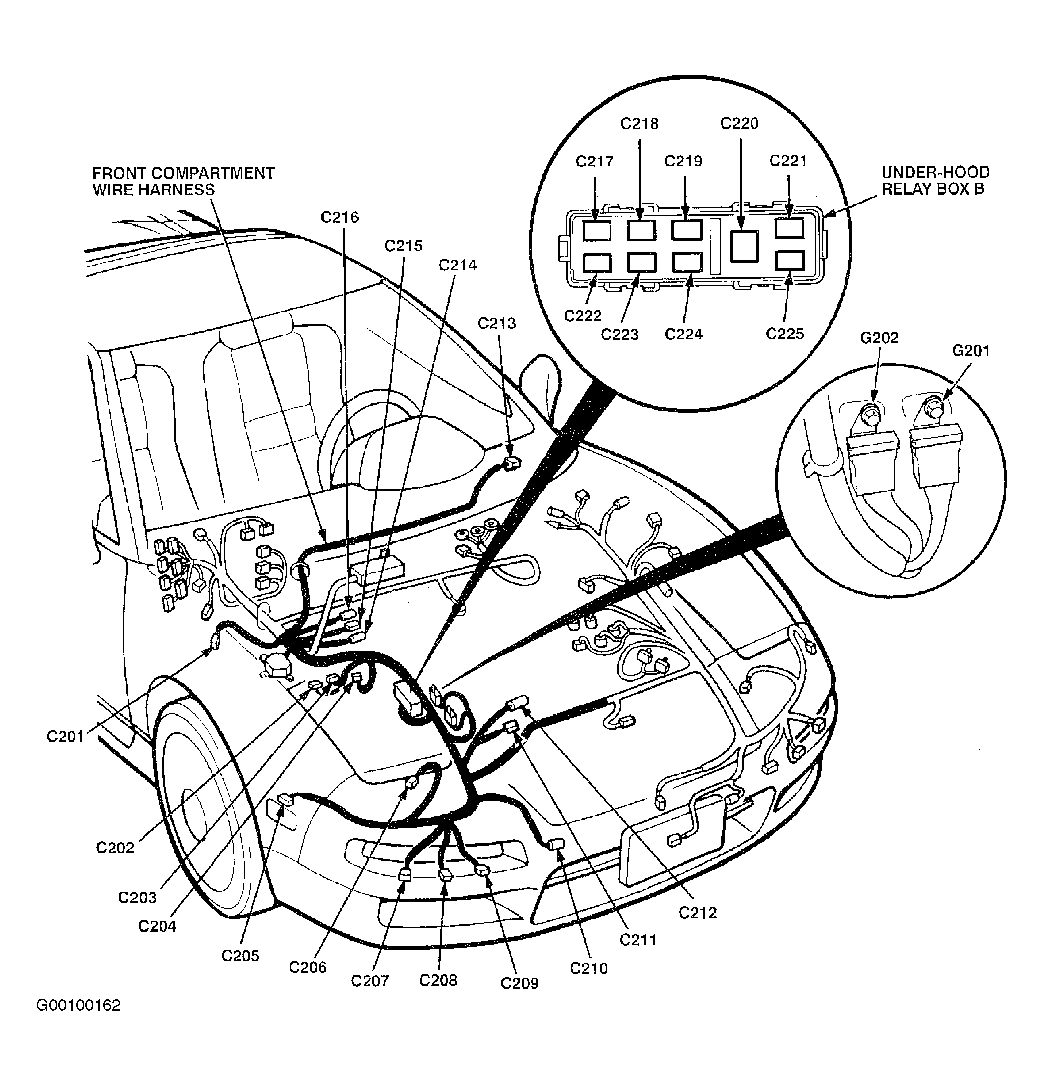

G201 & G202 See Figure.

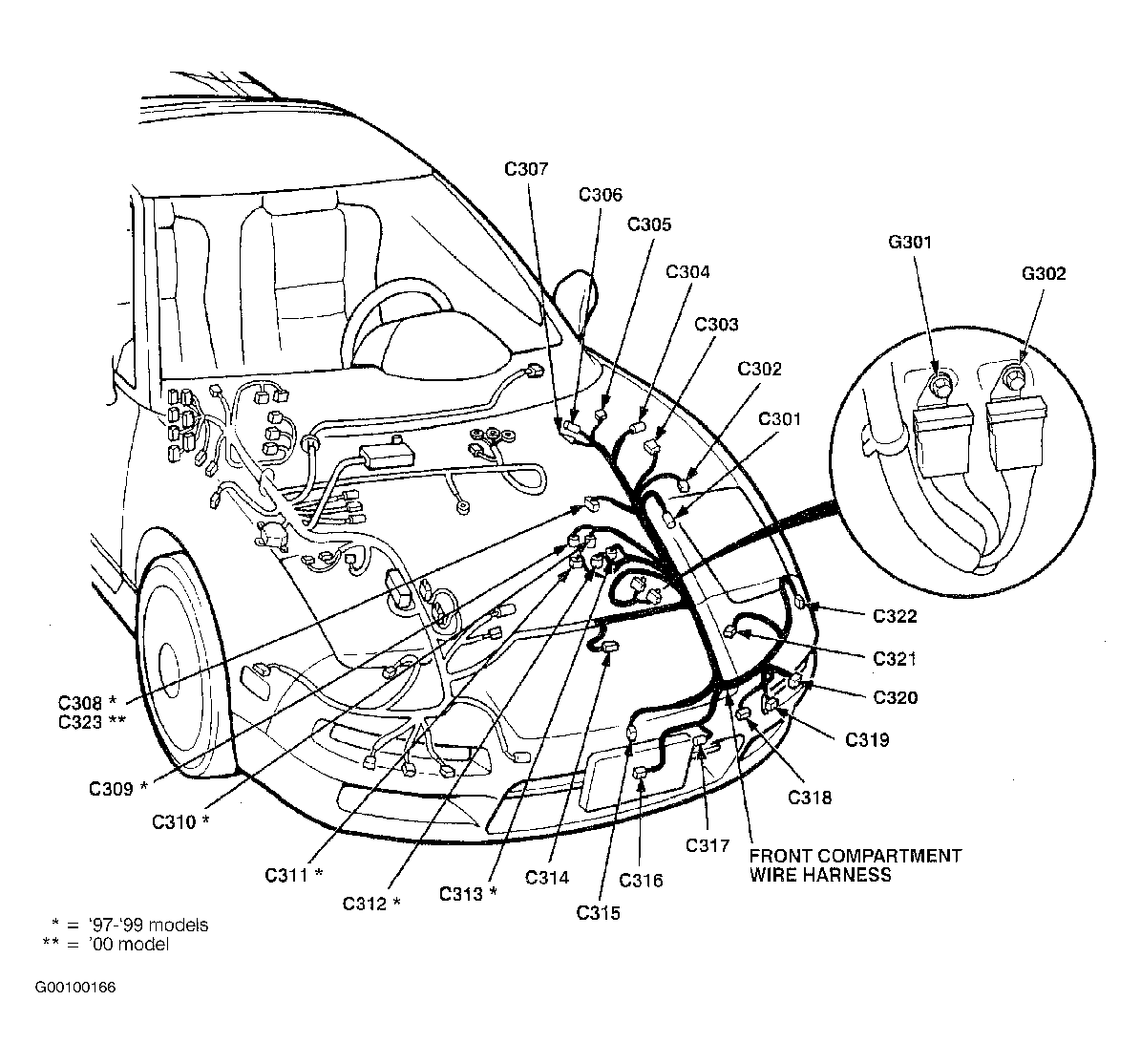

G301 & G302 See Figure.

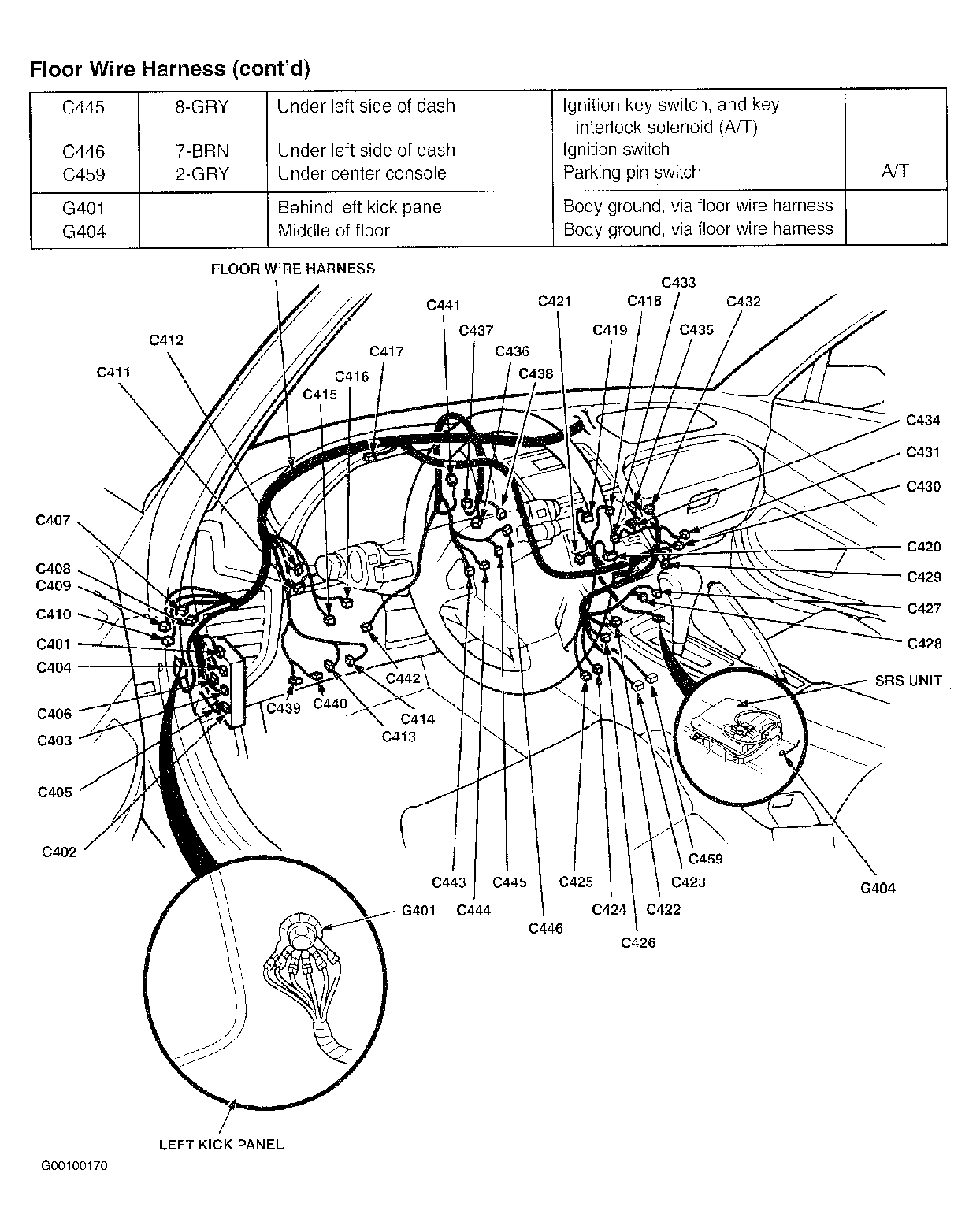

G401 & G404 See Figure.

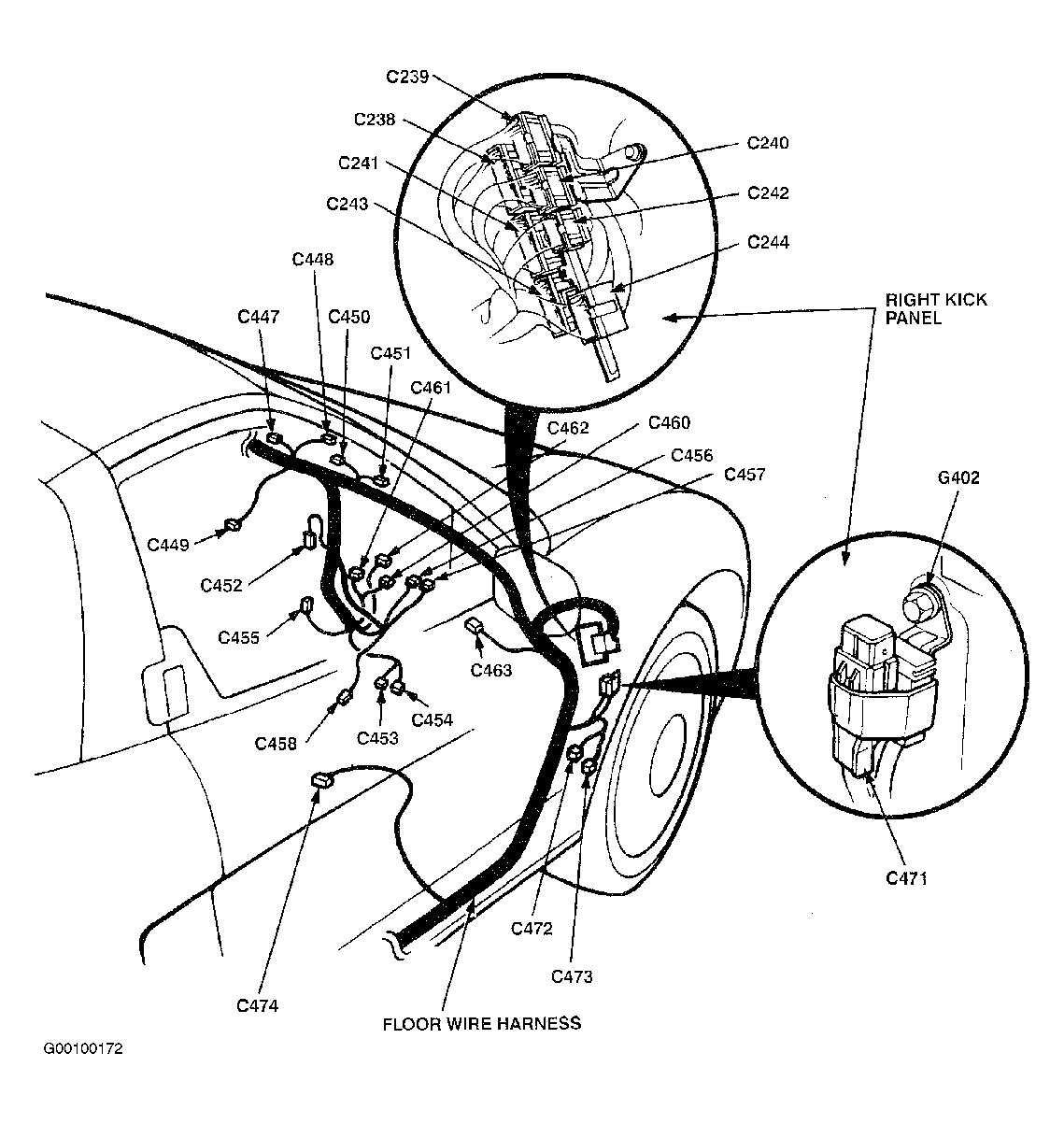

G402 See Figure.

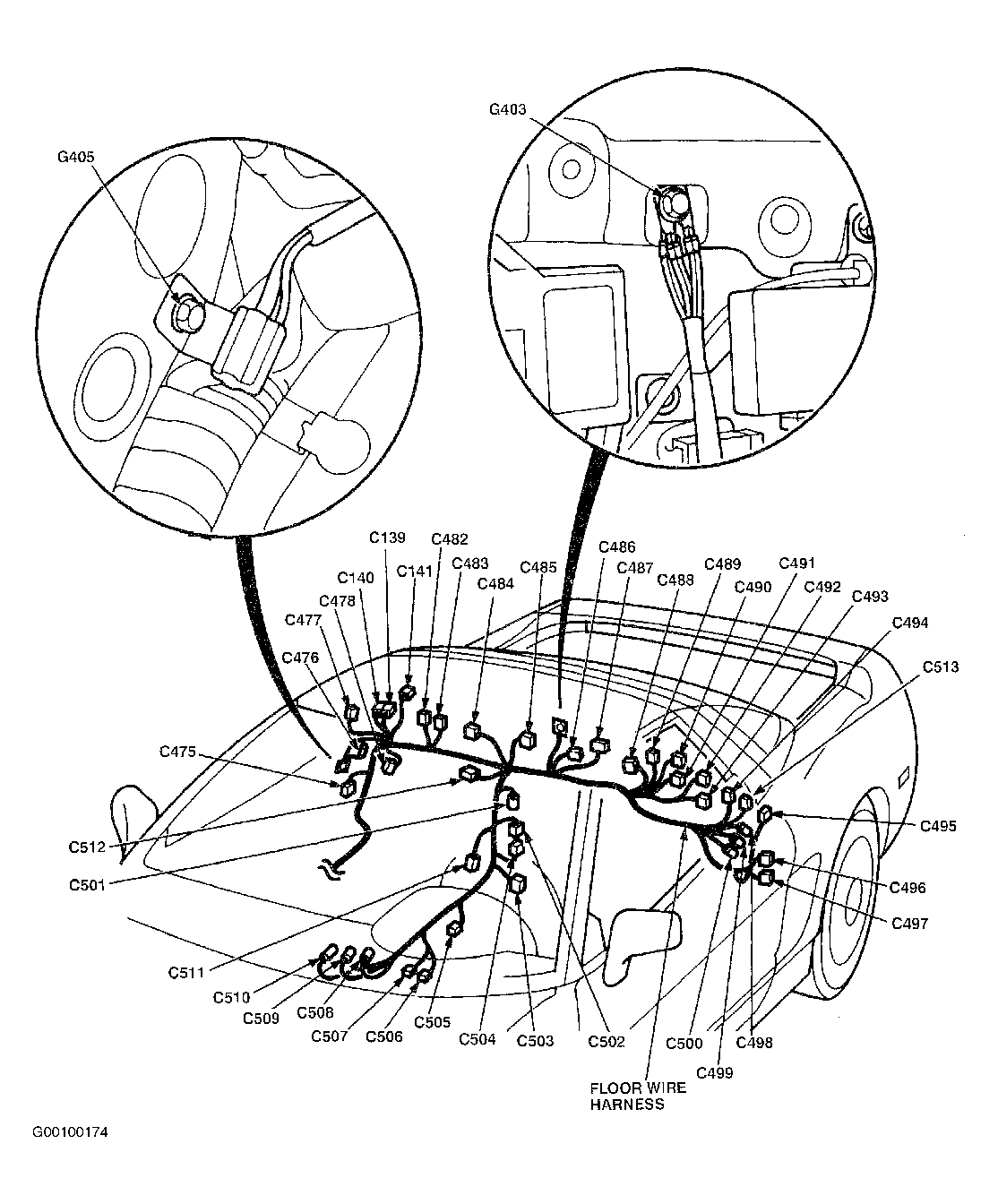

G403 & G405 See Figure.

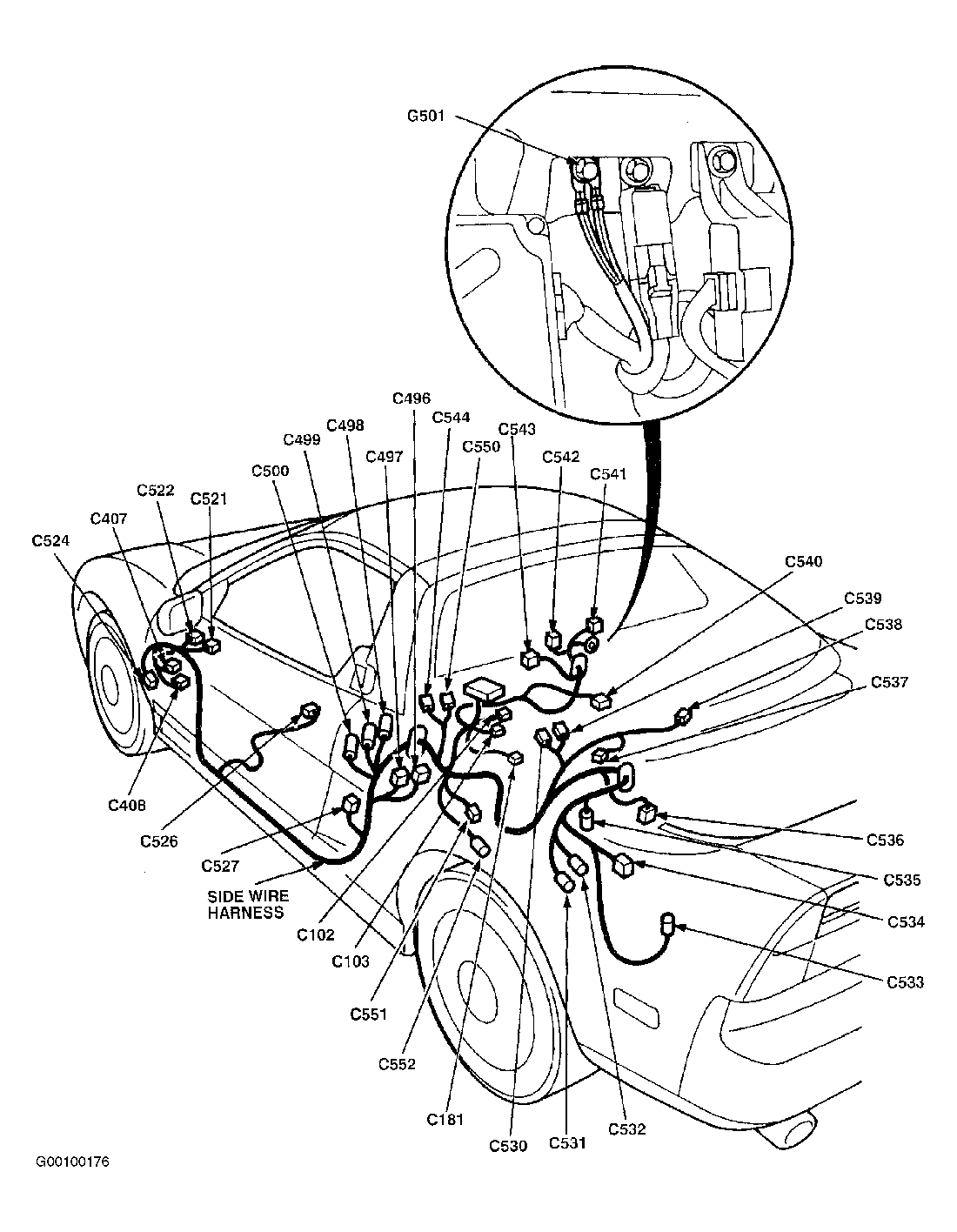

G501 See Figure.

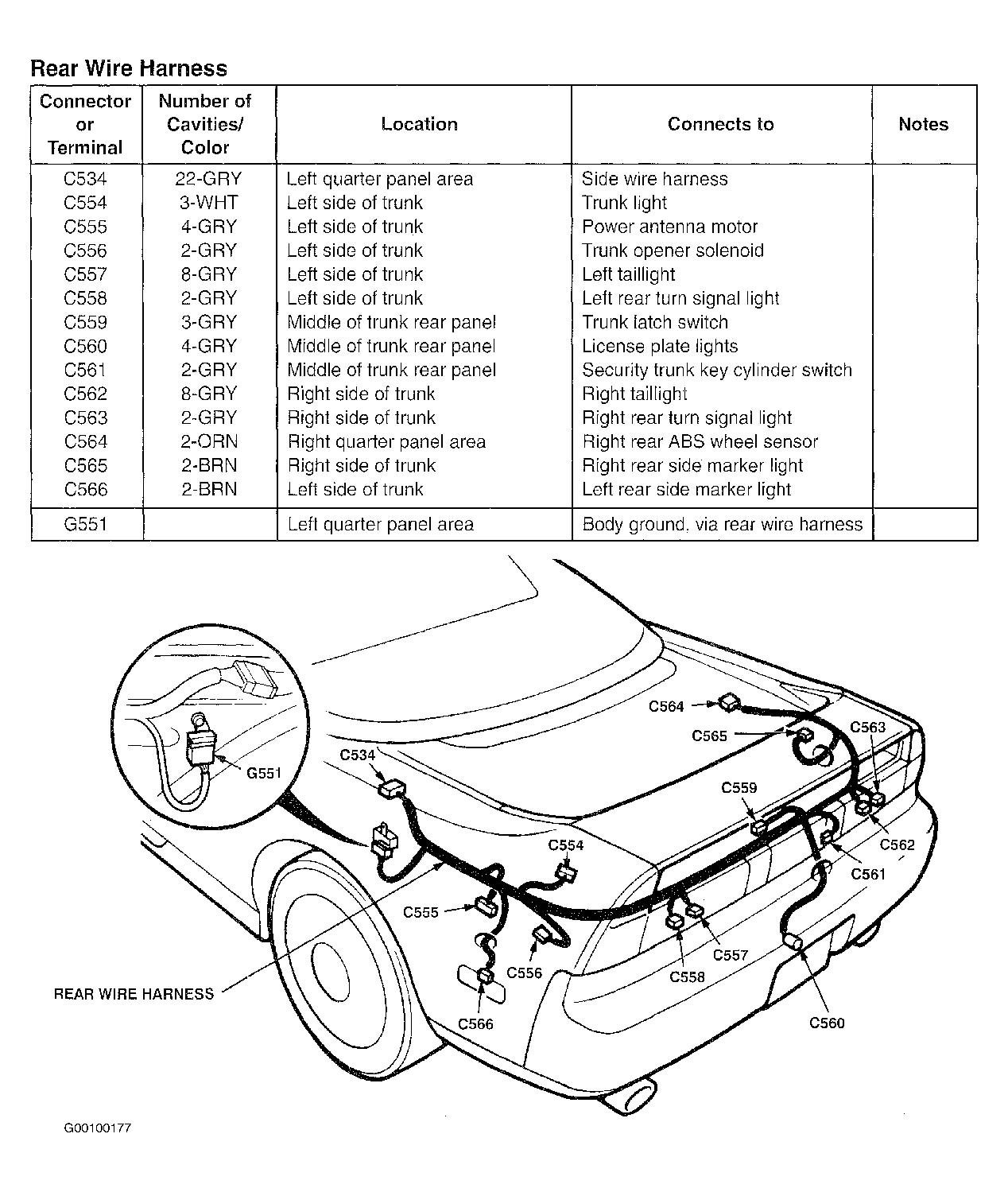

G551 See Figure.

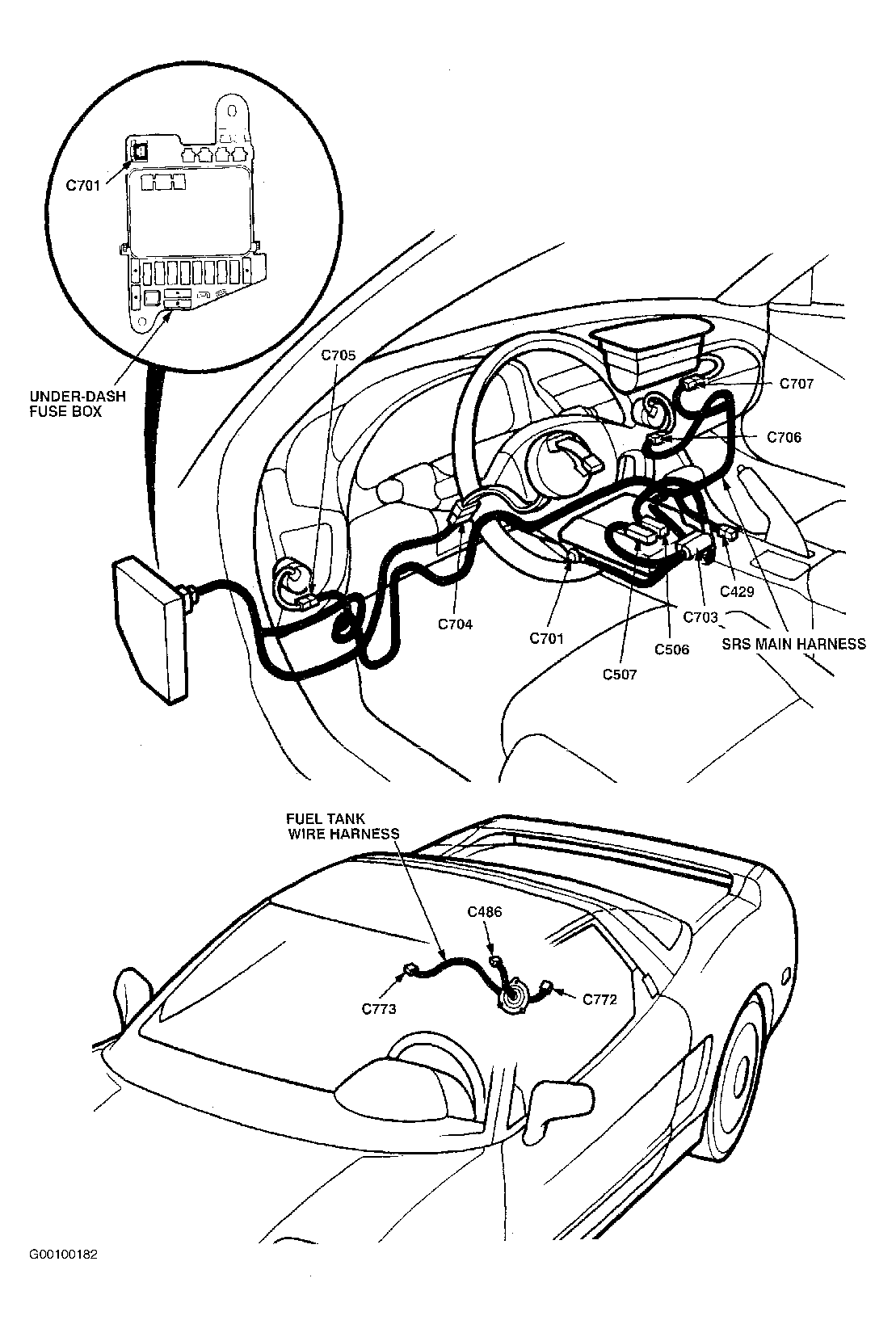

G701 See Figure.

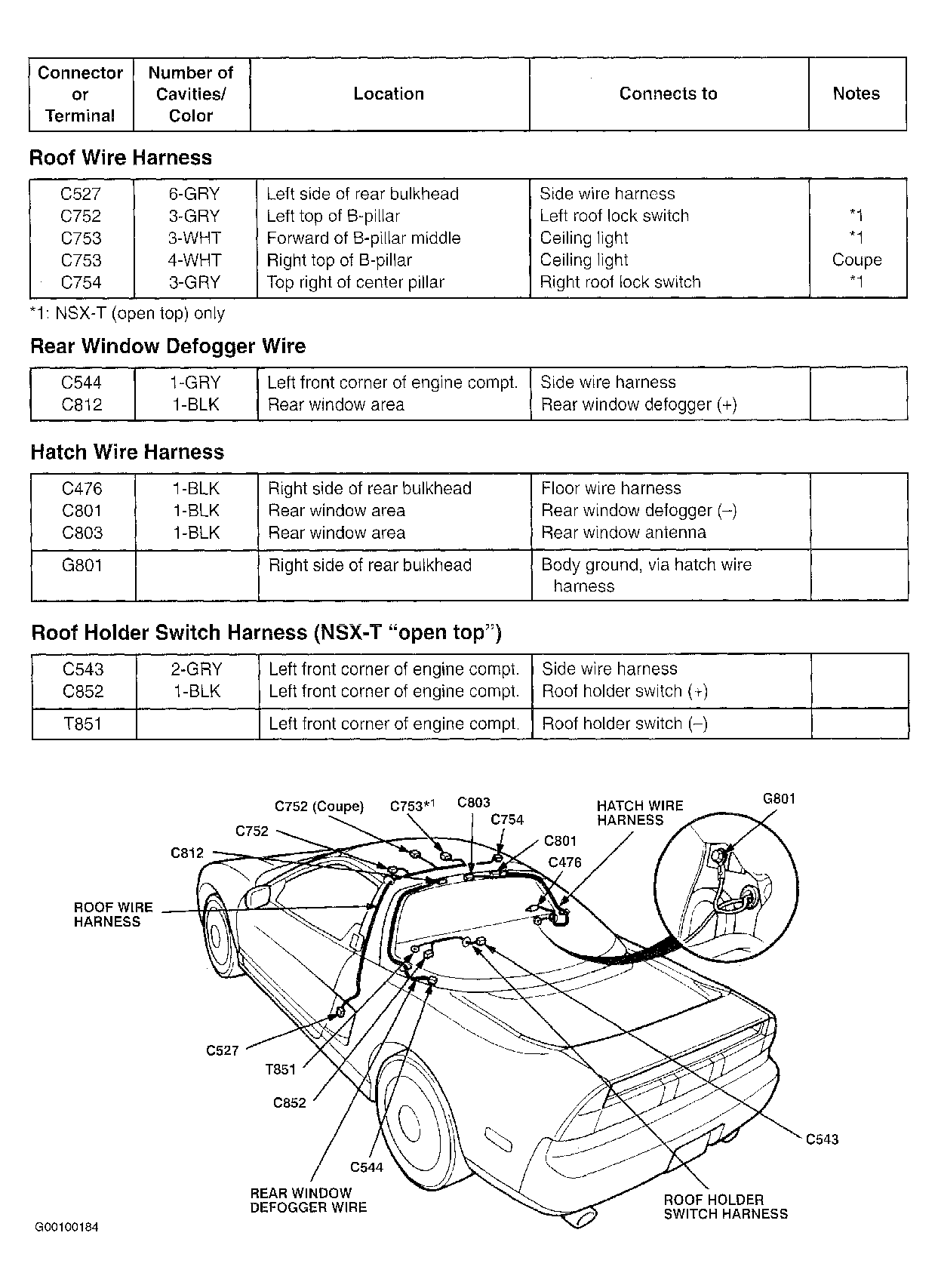

G801 See Figure.
