Component Location Graphics

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2001 Acura NSX-T, 2001 Acura NSX, 2000 Acura NSX-T, 2000 Acura NSX, and 1999 Acura NSX-T. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

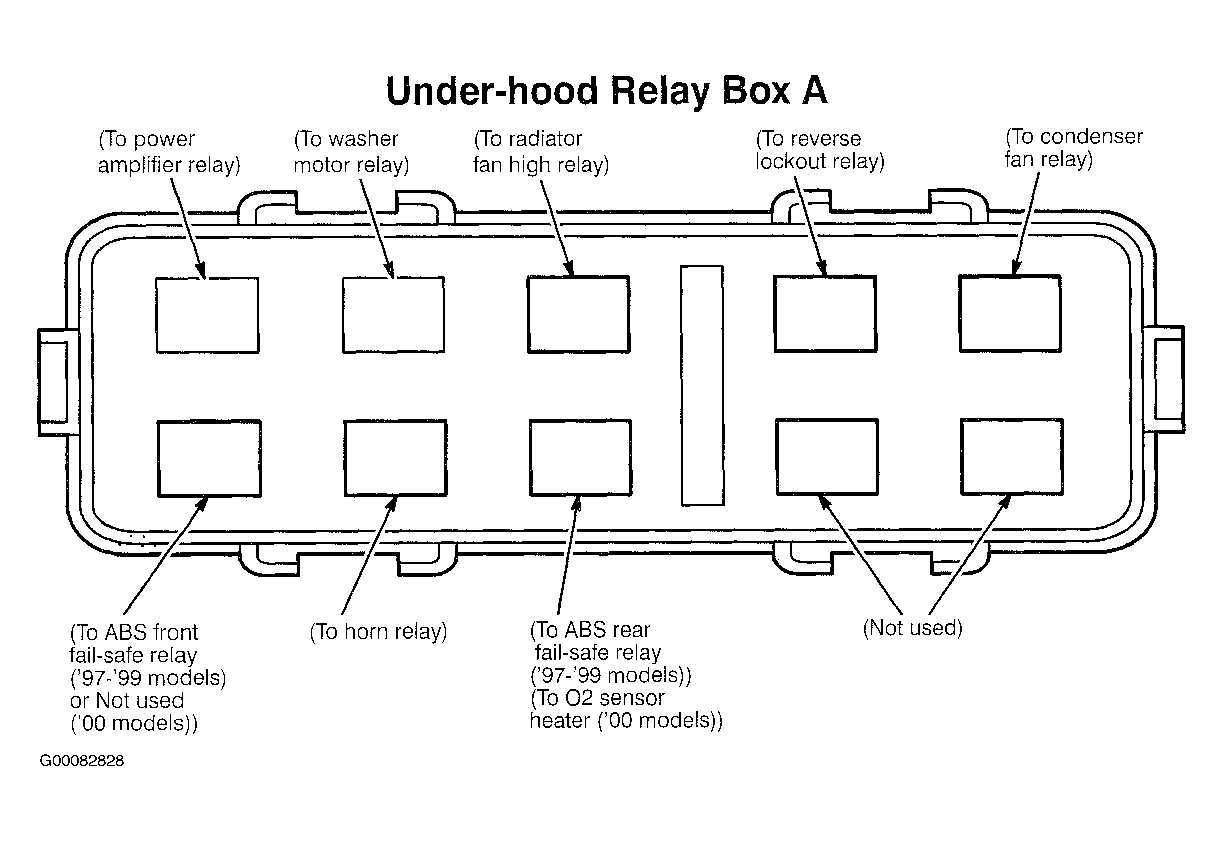

Fig 1: Component Locations (1 Of 42)

G00082828

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Component Locations (2 Of 42)

G00082830

Courtesy of AMERICAN HONDA MOTOR CO., INC.

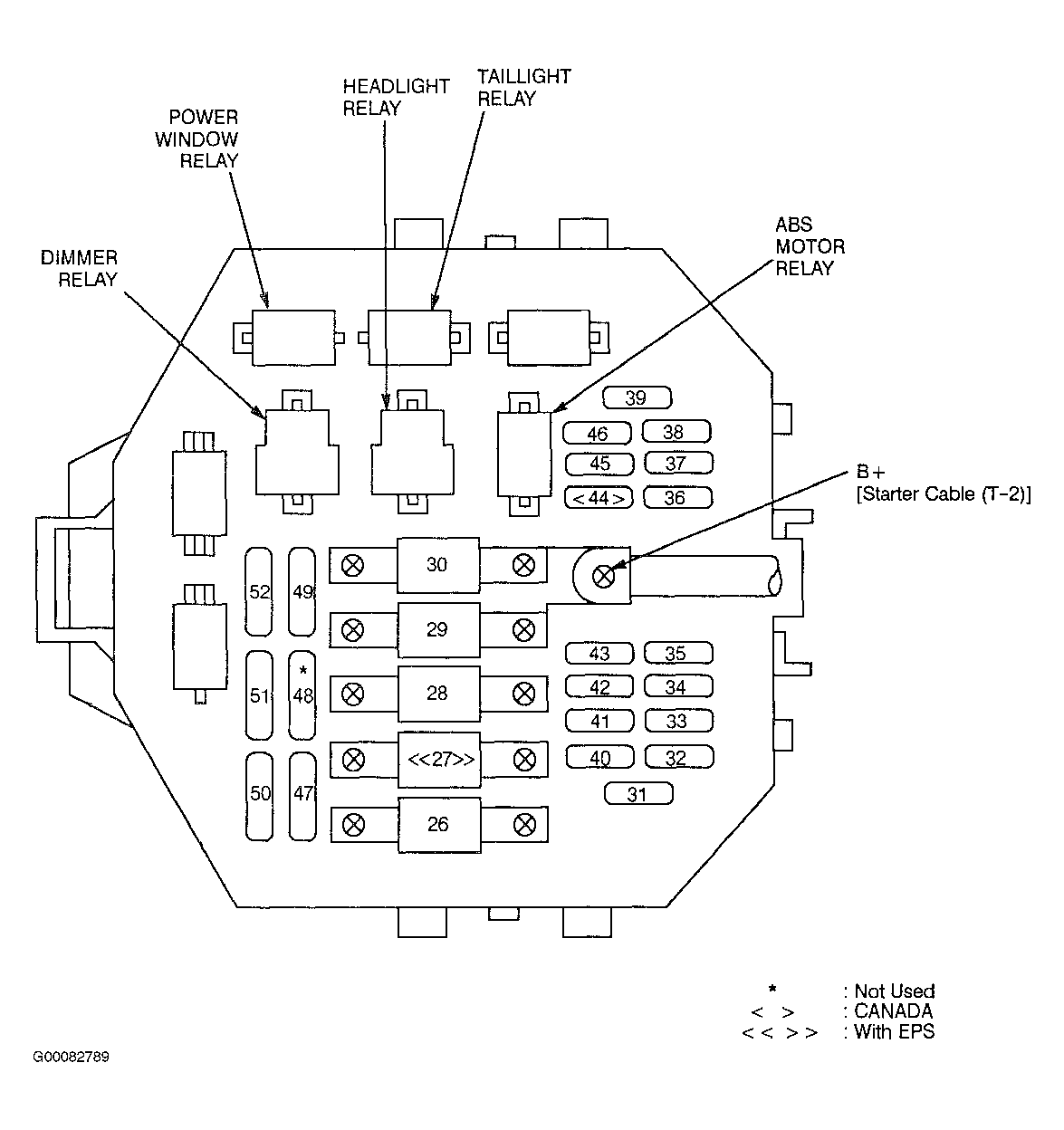

Fig 3: Component Locations (3 Of 42)

G00082789

Courtesy of AMERICAN HONDA MOTOR CO., INC.

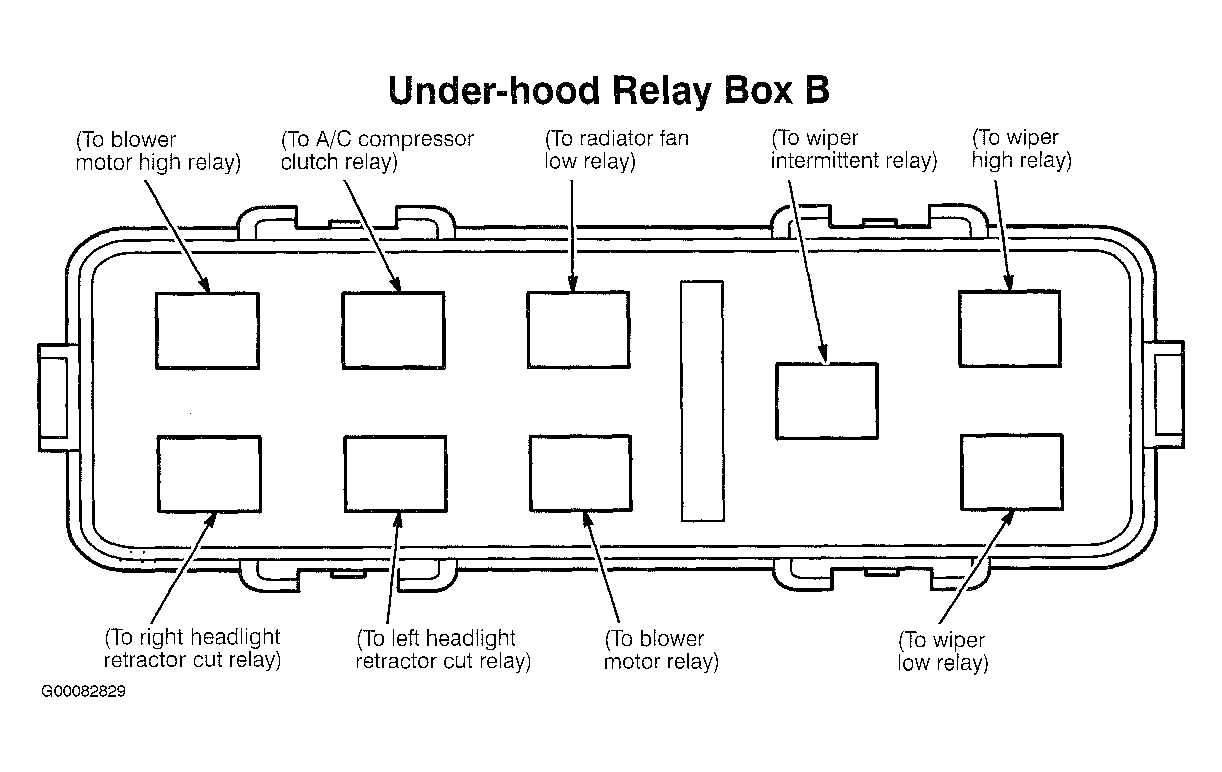

Fig 4: Component Locations (4 Of 42)

G00082829

Courtesy of AMERICAN HONDA MOTOR CO., INC.

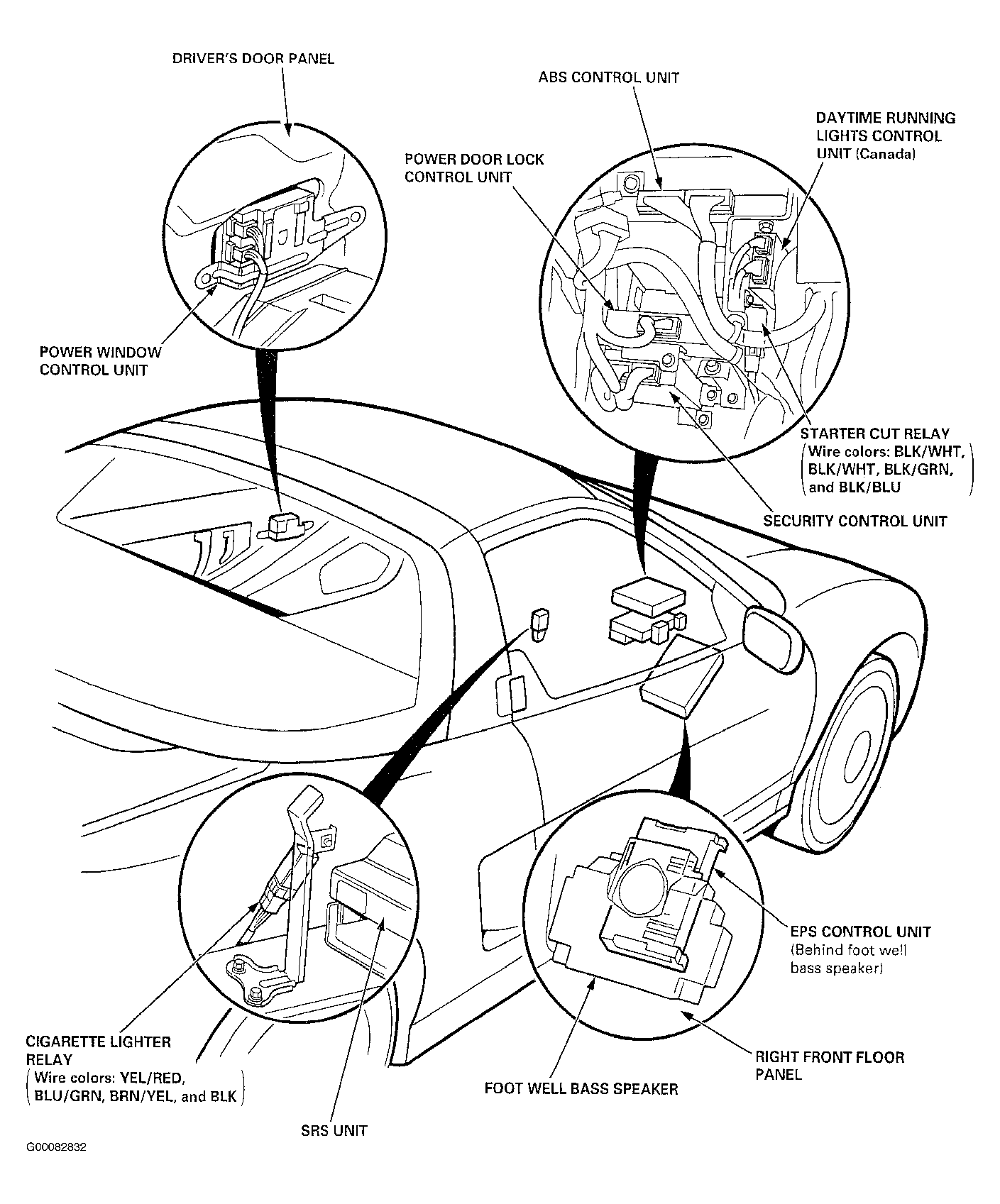

Fig 5: Component Locations (5 Of 42)

G00082832

Courtesy of AMERICAN HONDA MOTOR CO., INC.

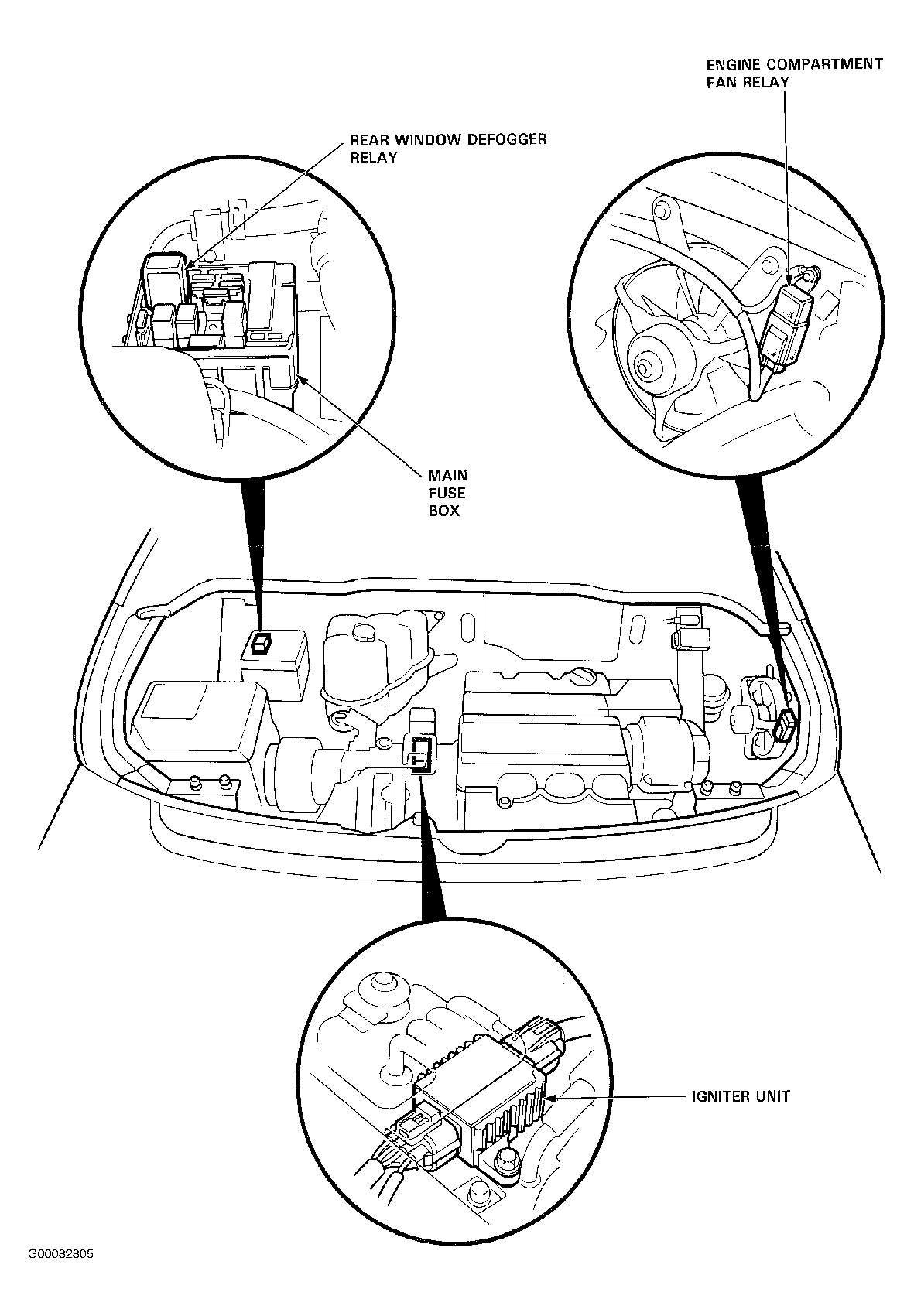

Fig 6: Component Locations (6 Of 42)

G00082805

Courtesy of AMERICAN HONDA MOTOR CO., INC.

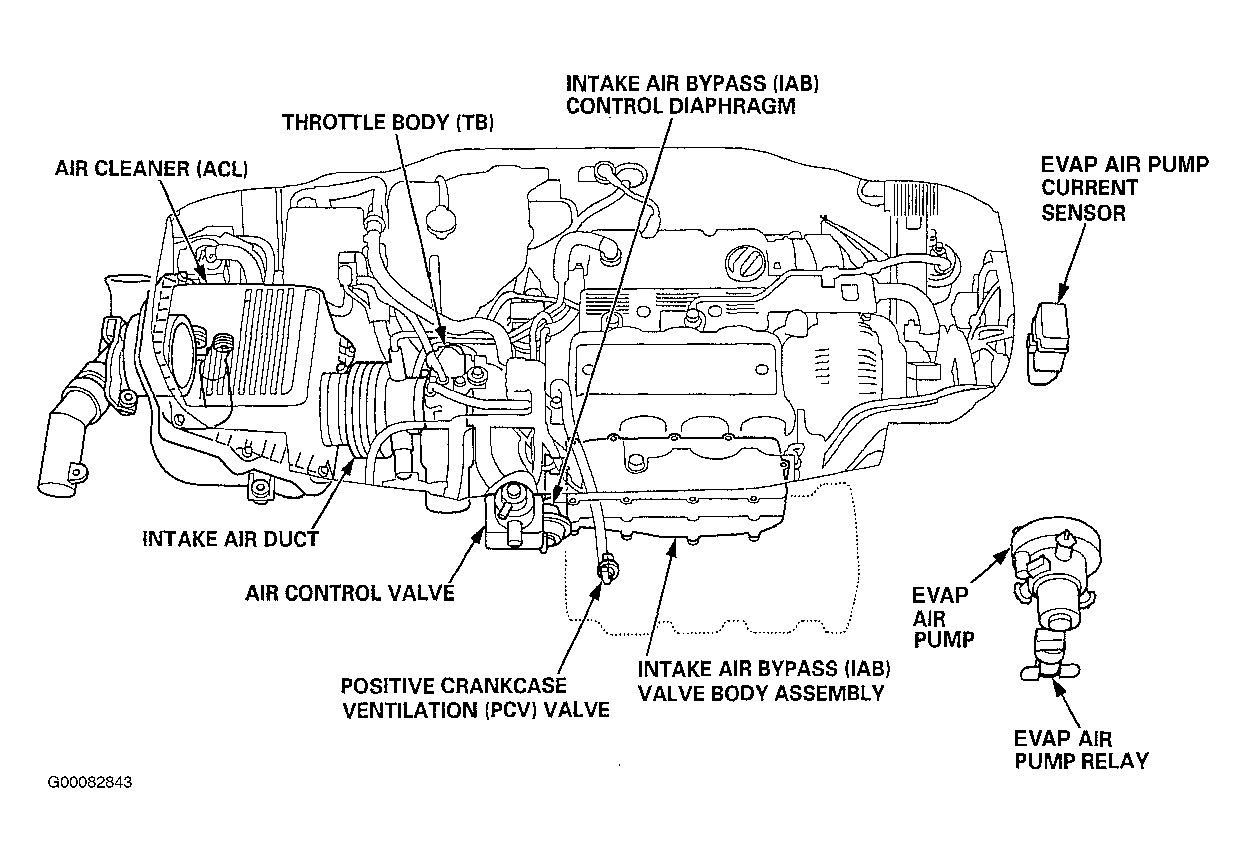

Fig 7: Component Locations (7 Of 42)

G00082843

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 8: Component Locations (8 Of 42)

G00082831

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 9: Component Locations (9 Of 42)

G00082838

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 10: Component Locations (10 Of 42)

G00082790

Courtesy of AMERICAN HONDA MOTOR CO., INC.

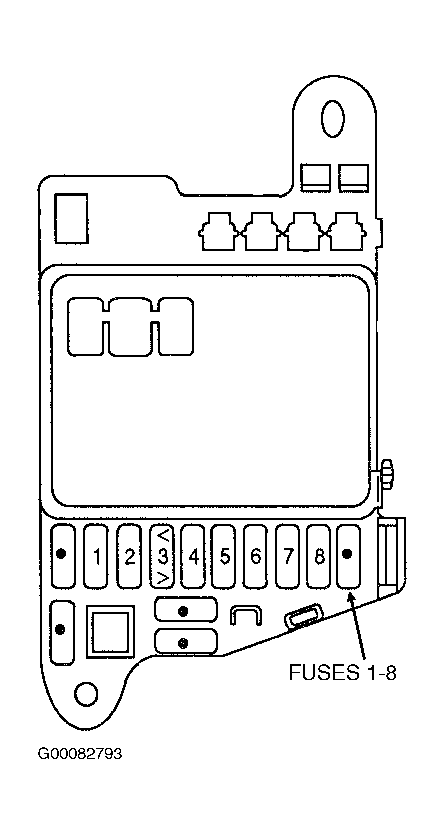

Fig 11: Component Locations (11 Of 42)

G00082793

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 12: Component Locations (12 Of 42)

G00082826

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 13: Component Locations (13 Of 42)

G00082802

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 14: Component Locations (14 Of 42)

G00082808

Courtesy of AMERICAN HONDA MOTOR CO., INC.

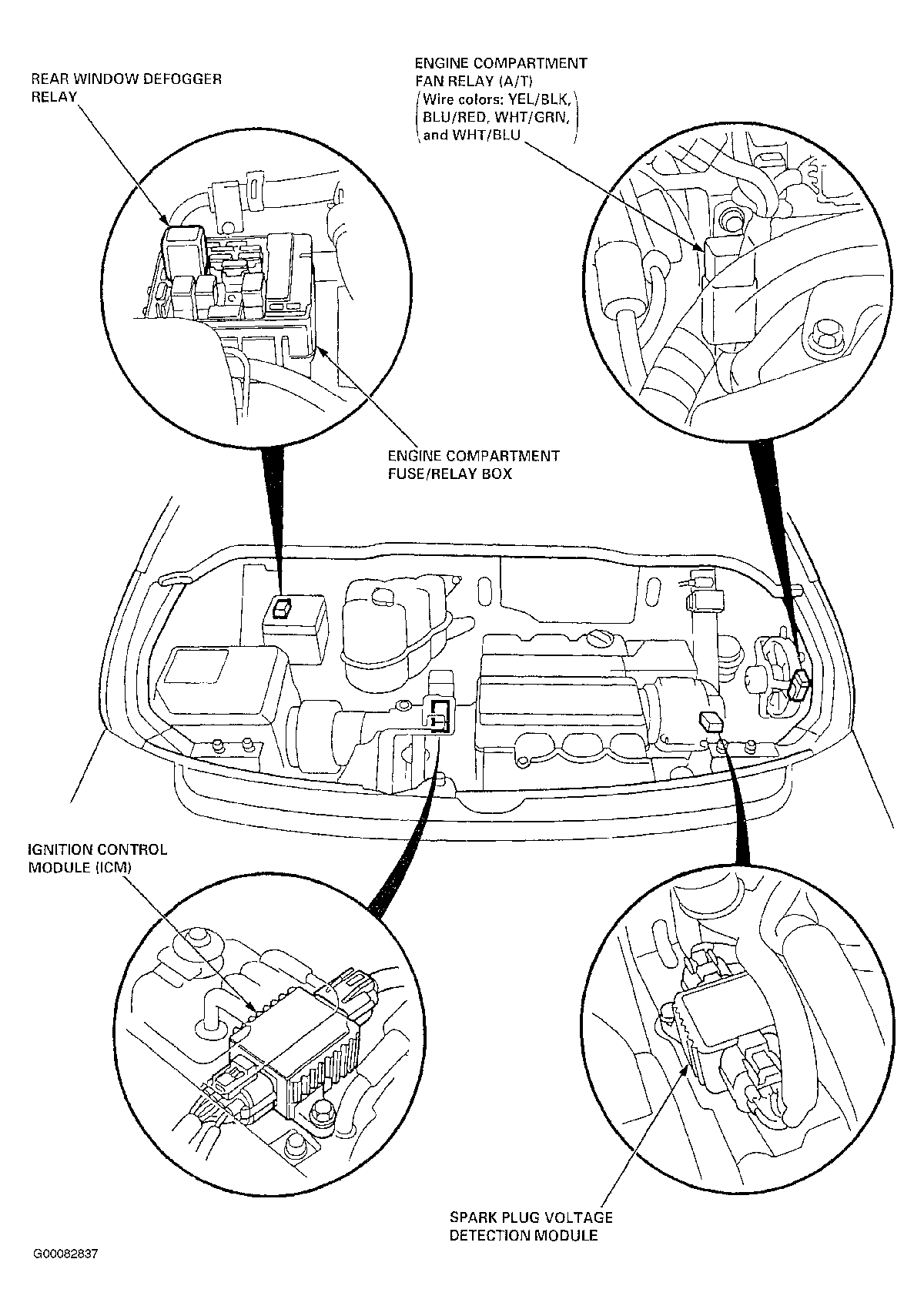

Fig 15: Component Locations (15 Of 42)

G00082837

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 16: Component Locations (16 Of 42)

G00082798

Courtesy of AMERICAN HONDA MOTOR CO., INC.

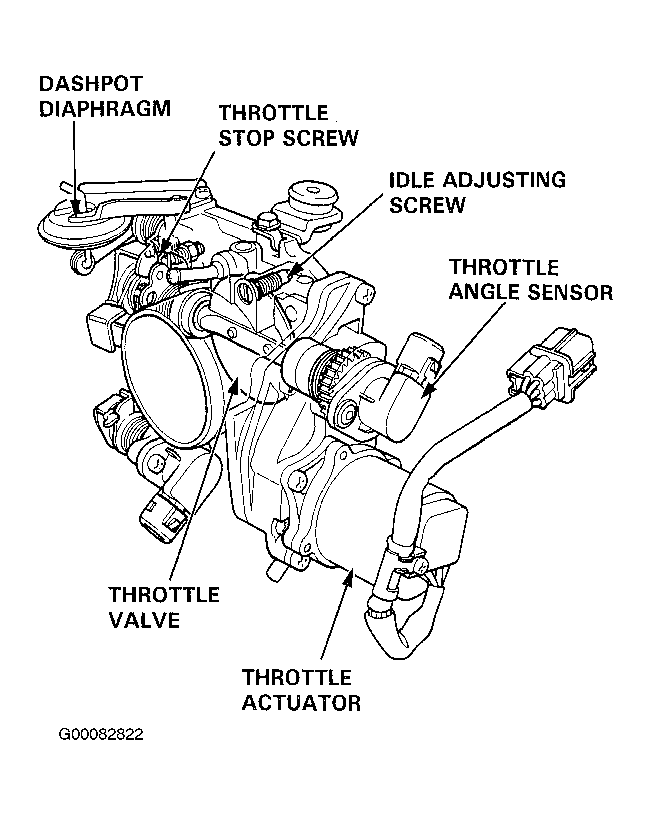

Fig 17: Component Locations (17 Of 42)

G00082822

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 18: Component Locations (18 Of 42)

G00082801

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 19: Component Locations (19 Of 42)

G00082799

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 20: Component Locations (20 Of 42)

G00082833

Courtesy of AMERICAN HONDA MOTOR CO., INC.

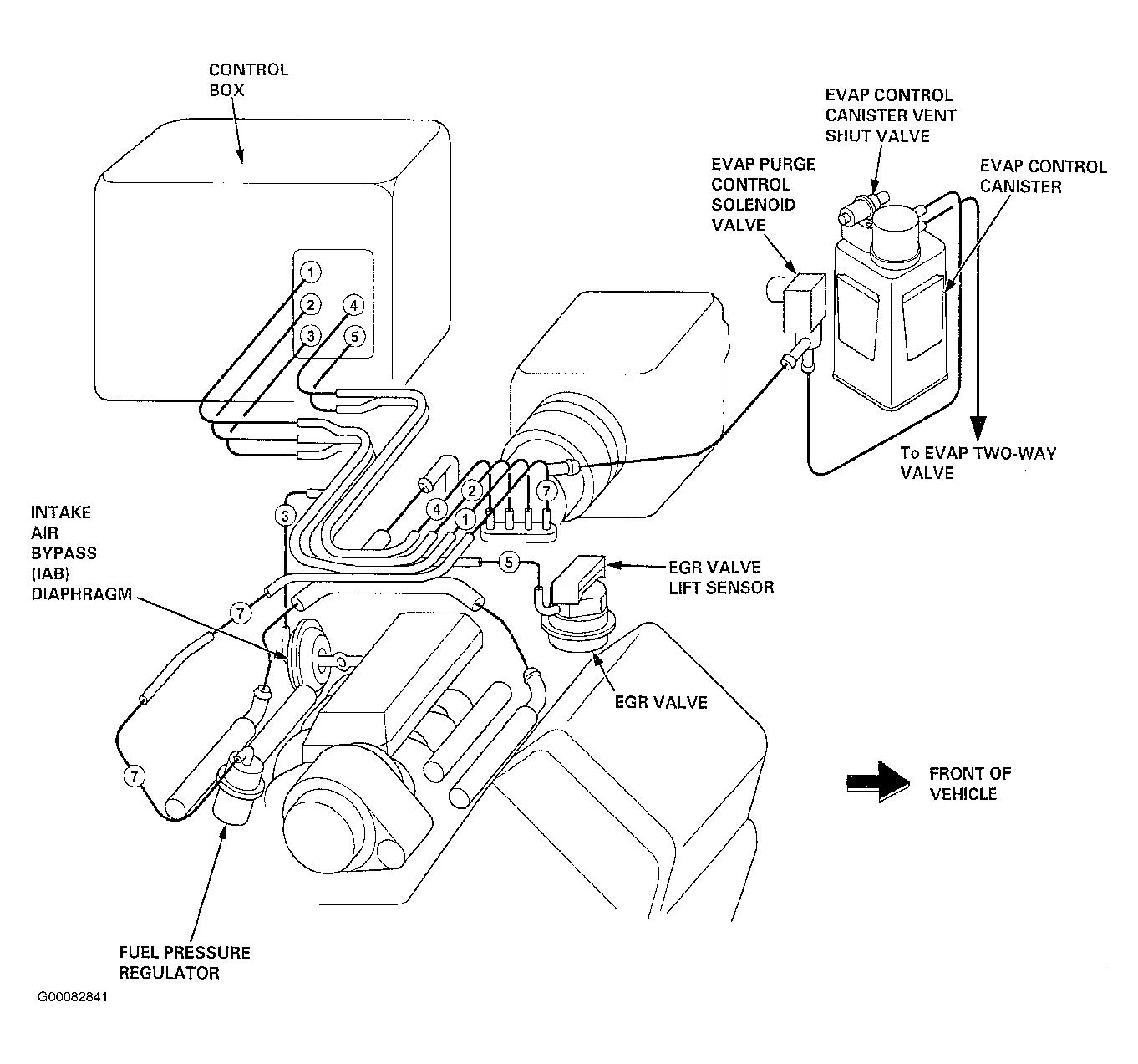

Fig 21: Component Locations (21 Of 42)

G00082841

Courtesy of AMERICAN HONDA MOTOR CO., INC.

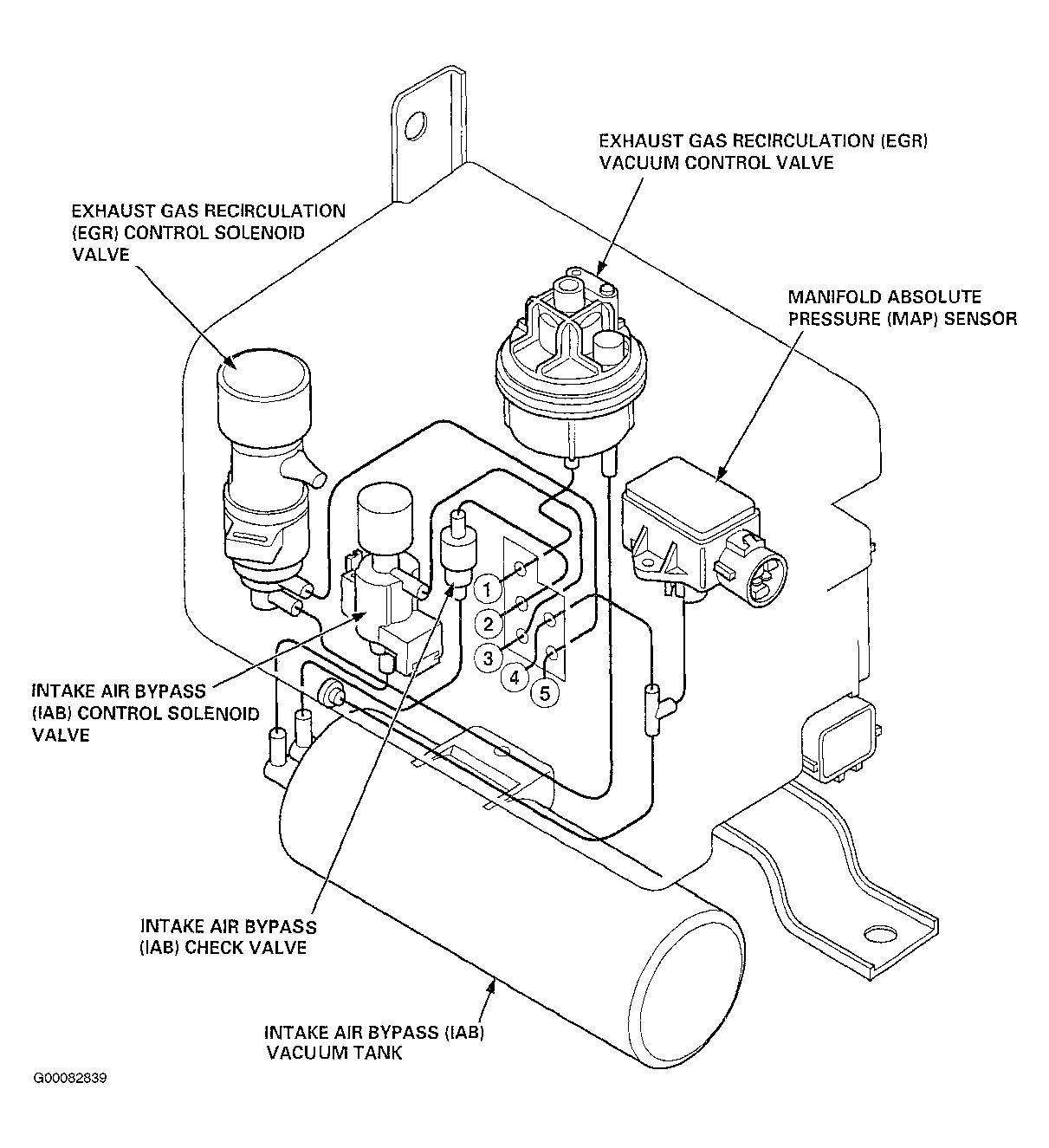

Fig 22: Component Locations (22 Of 42)

G00082839

Courtesy of AMERICAN HONDA MOTOR CO., INC.

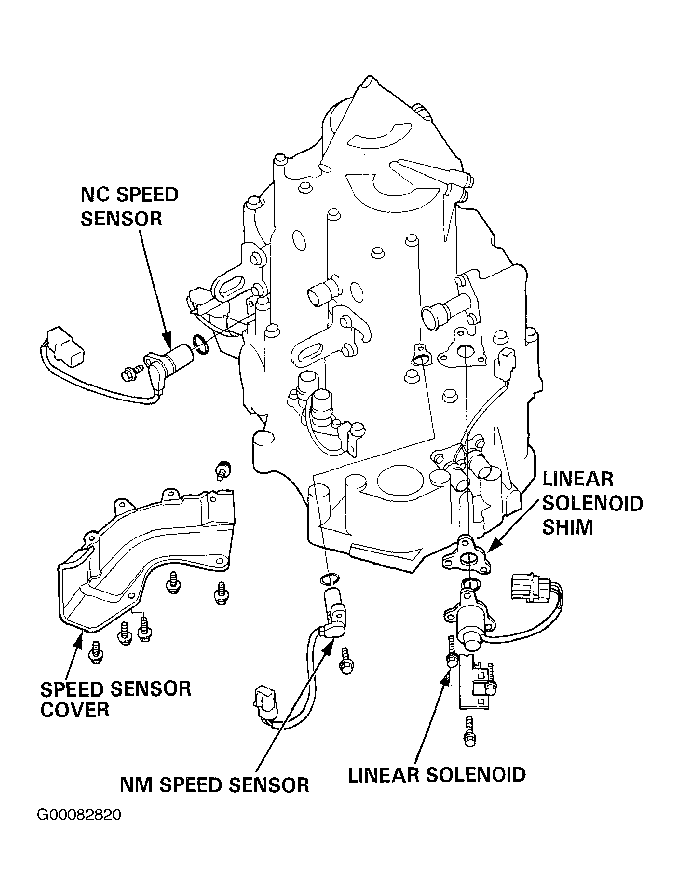

Fig 23: Component Locations (23 Of 42)

G00082820

Courtesy of AMERICAN HONDA MOTOR CO., INC.

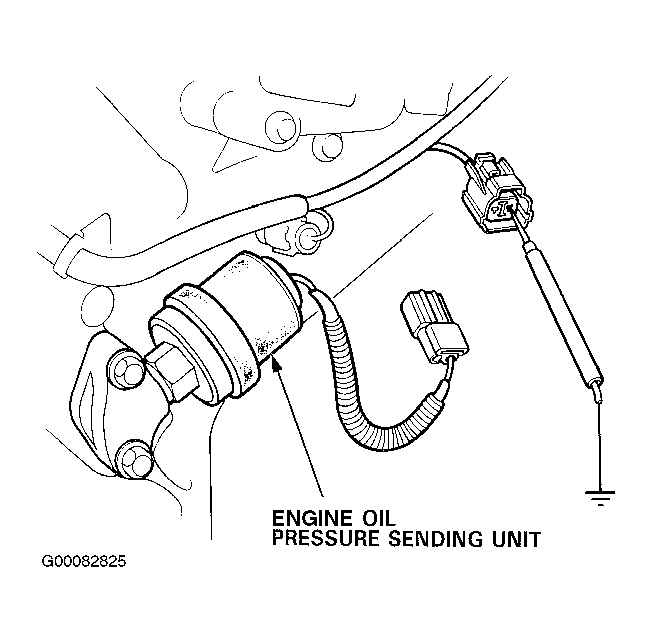

Fig 24: Component Locations (24 Of 42)

G00082825

Courtesy of AMERICAN HONDA MOTOR CO., INC.

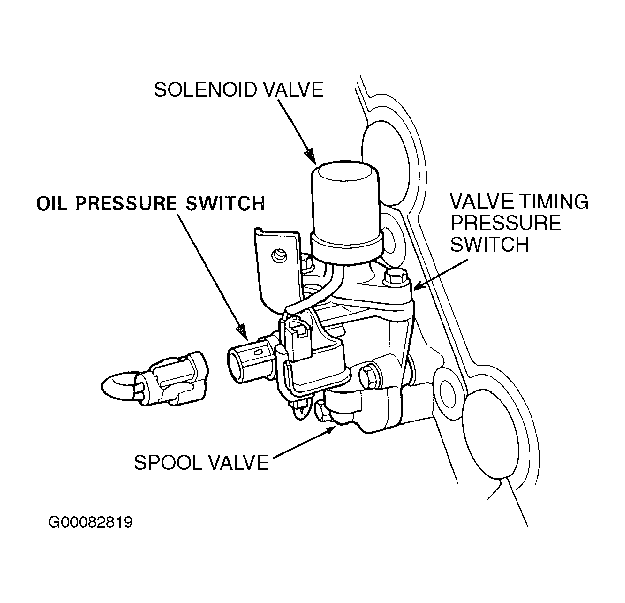

Fig 25: Component Locations (25 Of 42)

G00082819

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 26: Component Locations (26 Of 42)

G00082813

Courtesy of AMERICAN HONDA MOTOR CO., INC.

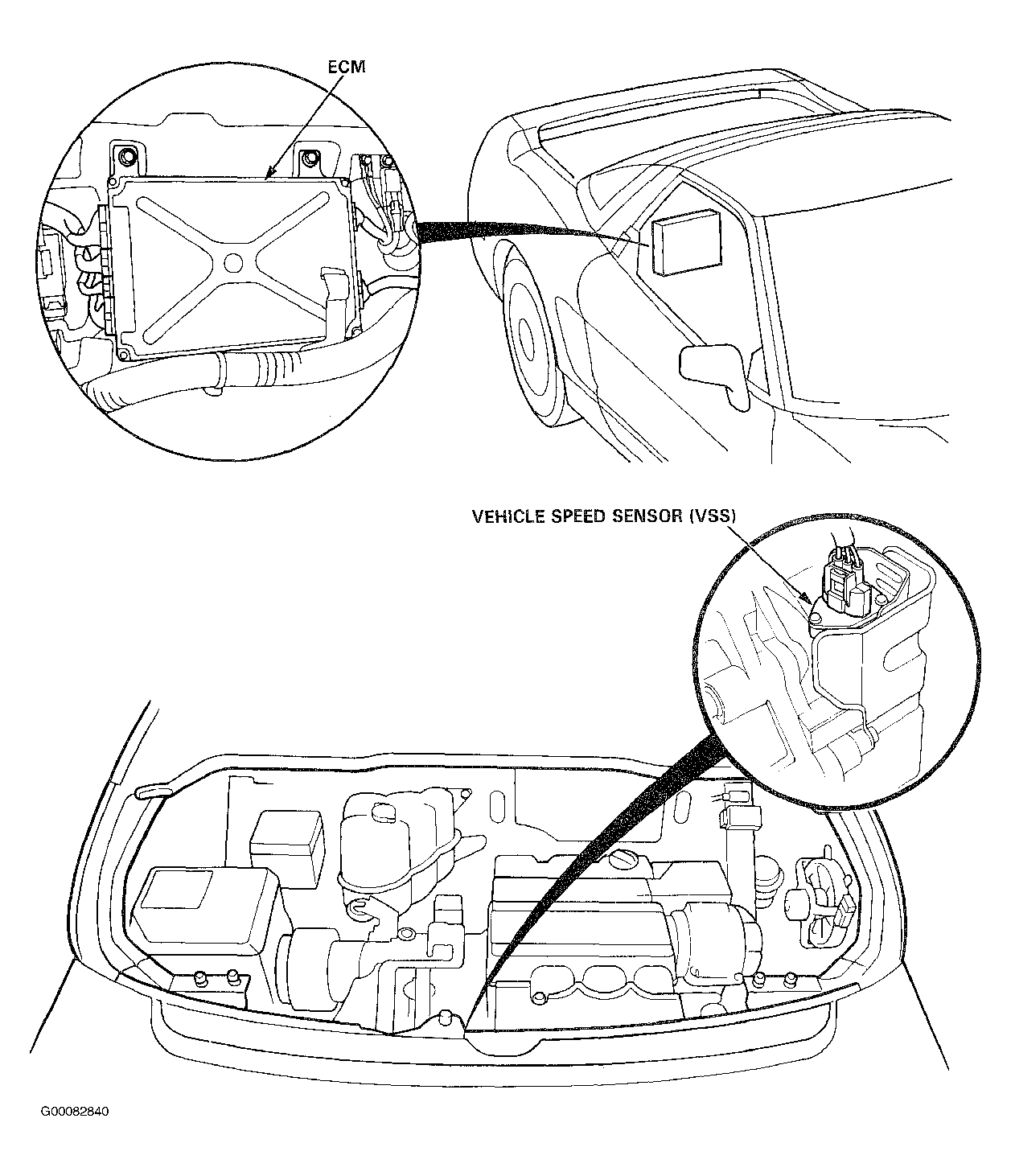

Fig 27: Component Locations (27 Of 42)

G00082840

Courtesy of AMERICAN HONDA MOTOR CO., INC.

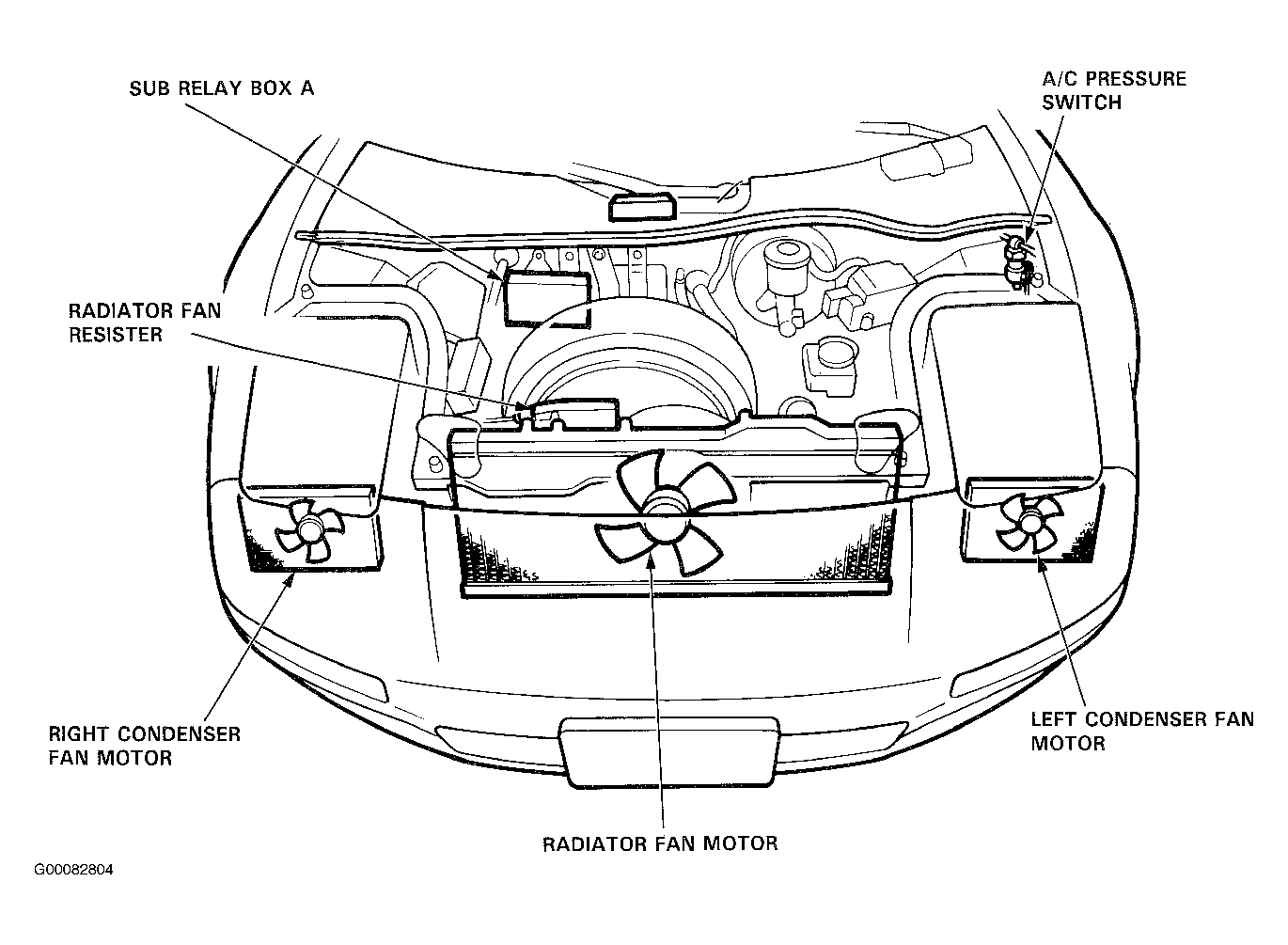

Fig 28: Component Locations (28 Of 42)

G00082804

Courtesy of AMERICAN HONDA MOTOR CO., INC.

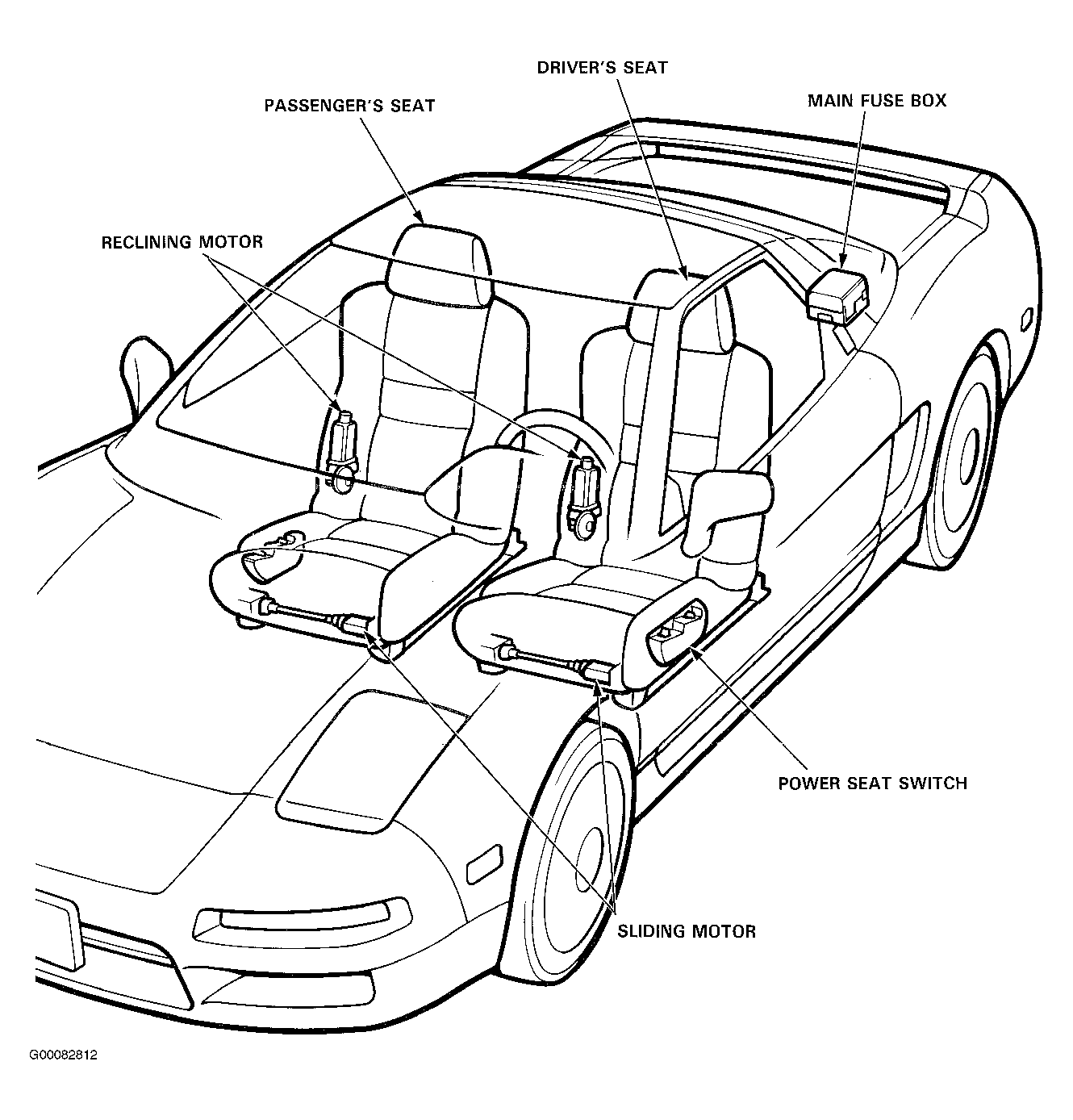

Fig 29: Component Locations (29 Of 42)

G00082812

Courtesy of AMERICAN HONDA MOTOR CO., INC.

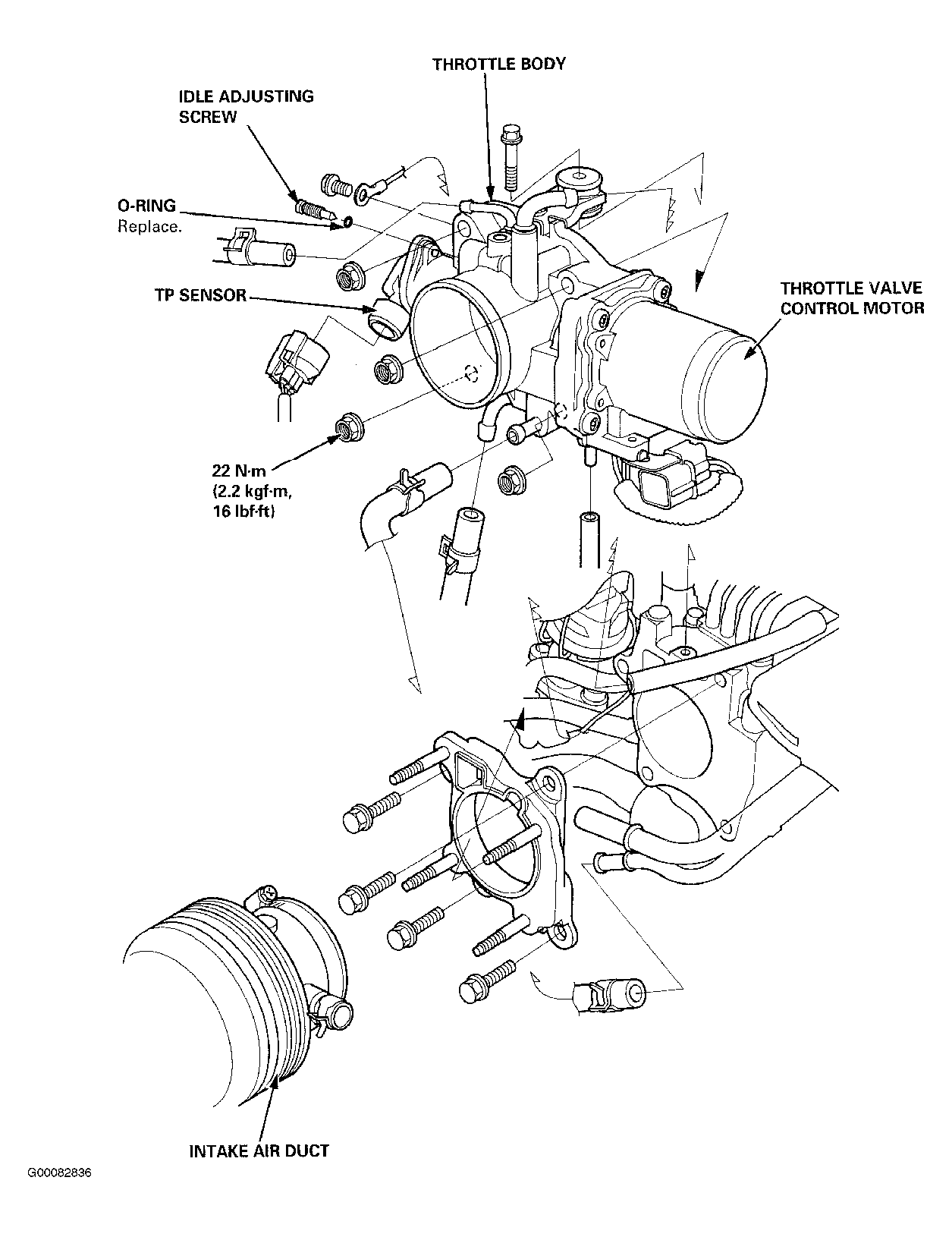

Fig 30: Component Locations (30 Of 42)

G00082836

Courtesy of AMERICAN HONDA MOTOR CO., INC.

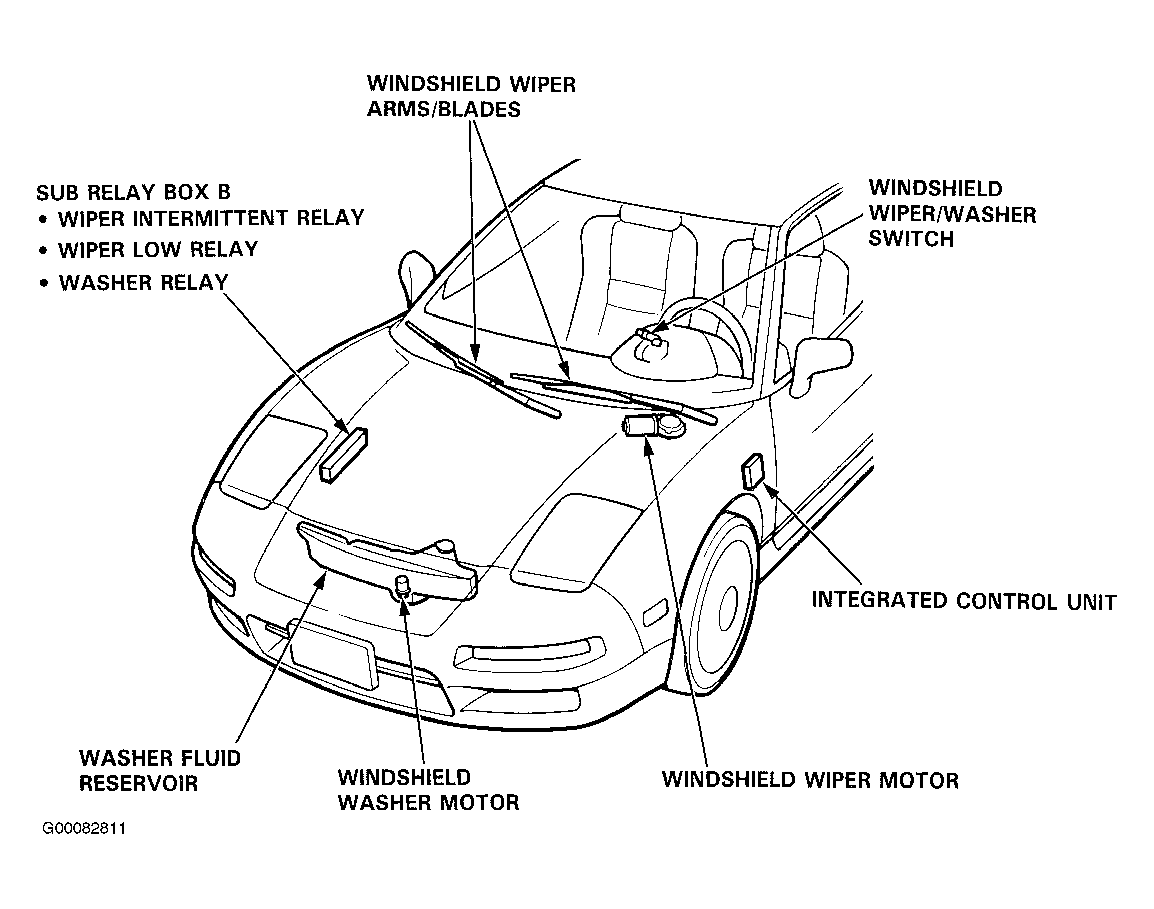

Fig 31: Component Locations (31 Of 42)

G00082811

Courtesy of AMERICAN HONDA MOTOR CO., INC.

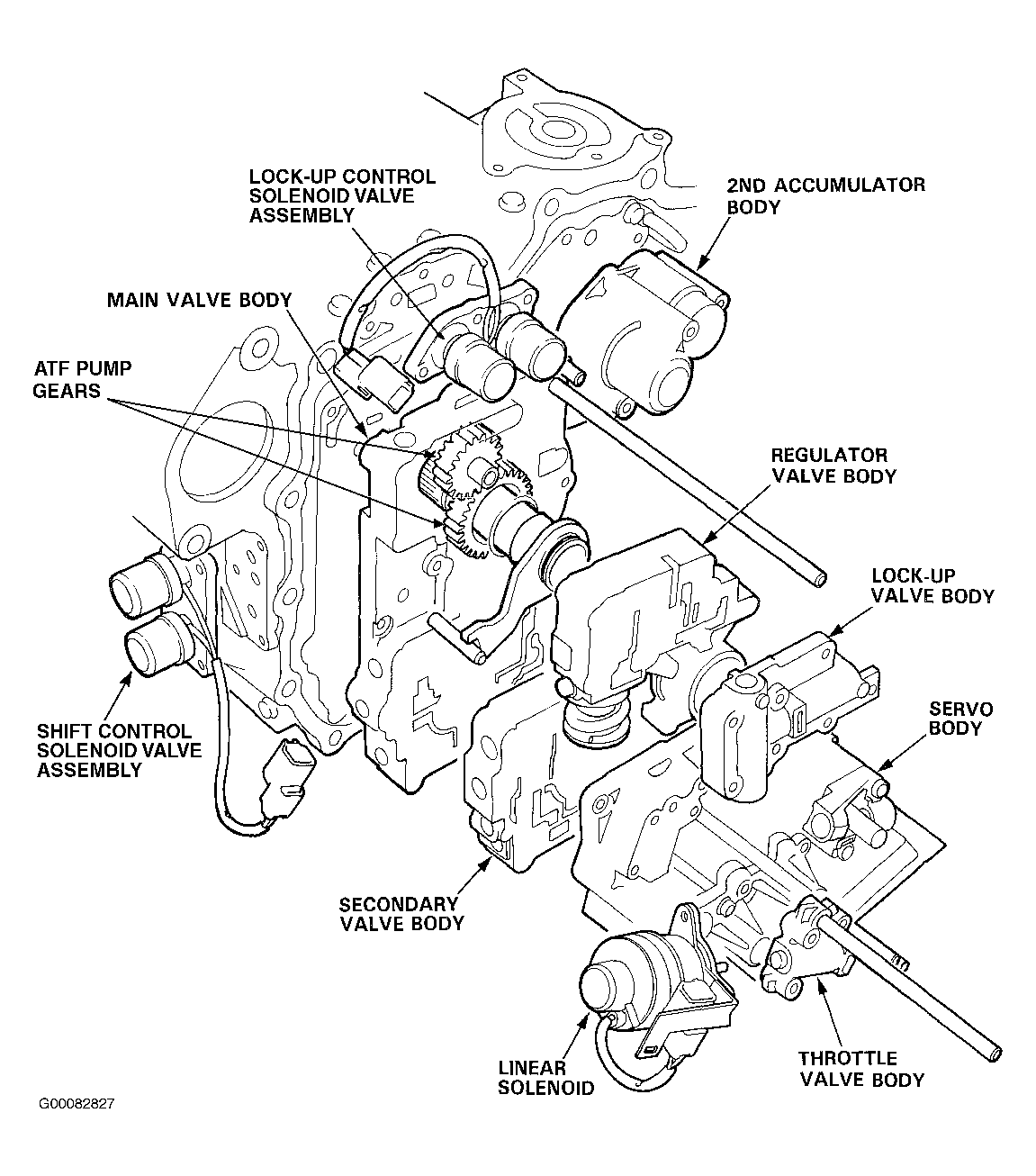

Fig 32: Component Locations (32 Of 42)

G00082827

Courtesy of AMERICAN HONDA MOTOR CO., INC.

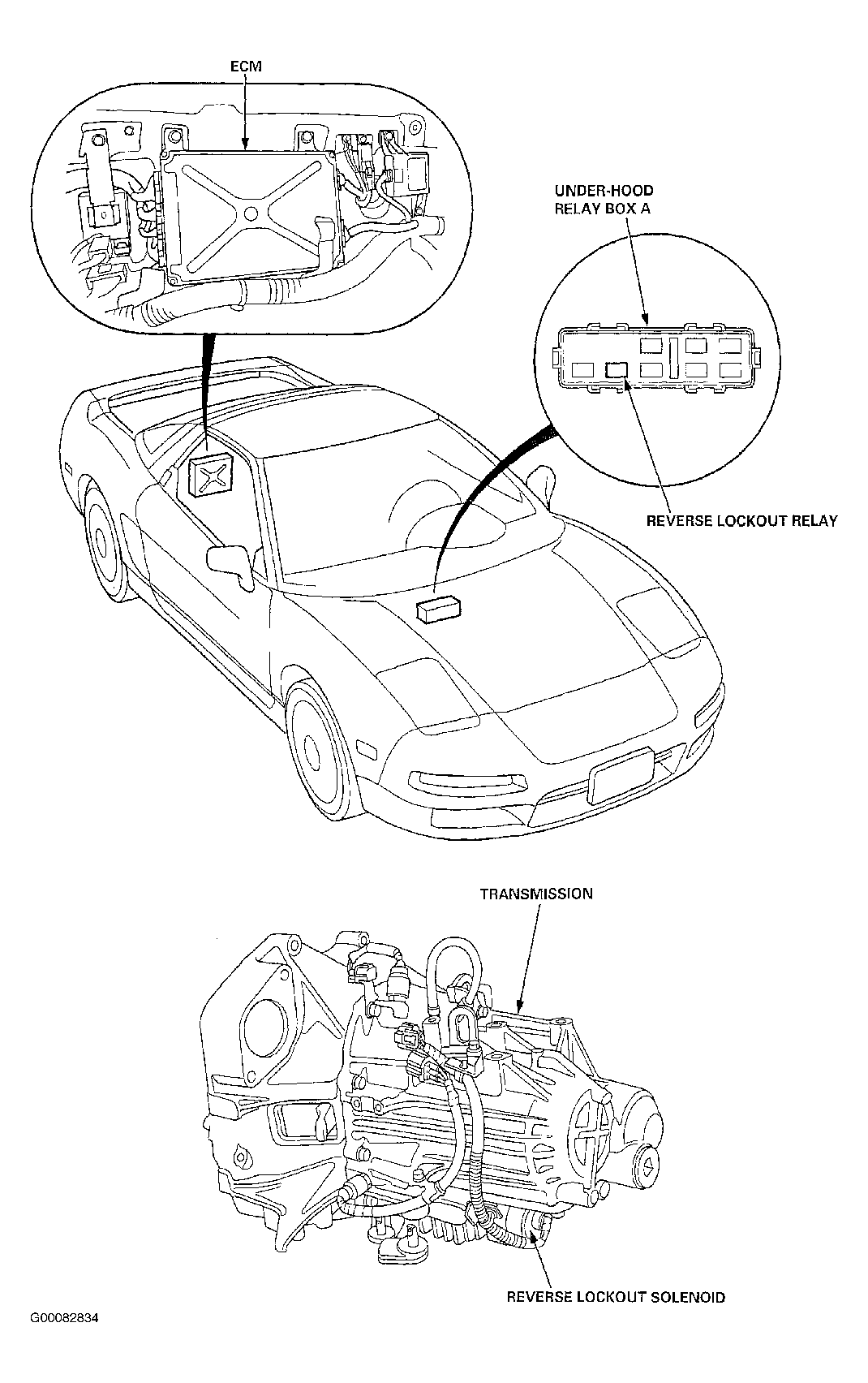

Fig 33: Component Locations (33 Of 42)

G00082834

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 34: Component Locations (34 Of 42)

G00082817

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 35: Component Locations (35 Of 42)

G00082810

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 36: Component Locations (36 Of 42)

G00082803

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 37: Component Locations (37 Of 42)

G00082835

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 38: Component Locations (38 Of 42)

G00082824

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 39: Component Locations (39 Of 42)

G00082818

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 40: Component Locations (40 Of 42)

G00082807

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 41: Component Locations (41 Of 42)

G00082815

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 42: Component Locations (42 Of 42)

G00082814

Courtesy of AMERICAN HONDA MOTOR CO., INC.

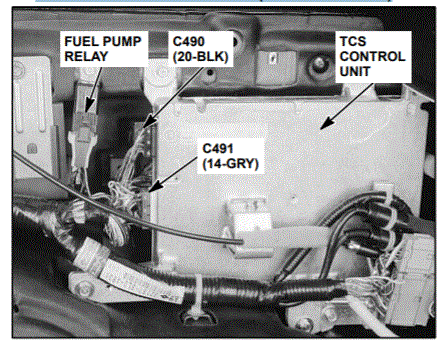

Fig 43: Component Locations (43 Of 43)

G00596356

Courtesy of AMERICAN HONDA MOTOR CO., INC.
