Wiper Delay System
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2005 Acura NSX, 2004 Acura NSX, 2003 Acura NSX-T, 2003 Acura NSX, and 2002 Acura NSX-T. However, it is still accessible from the selected car via links, so may be relevant.

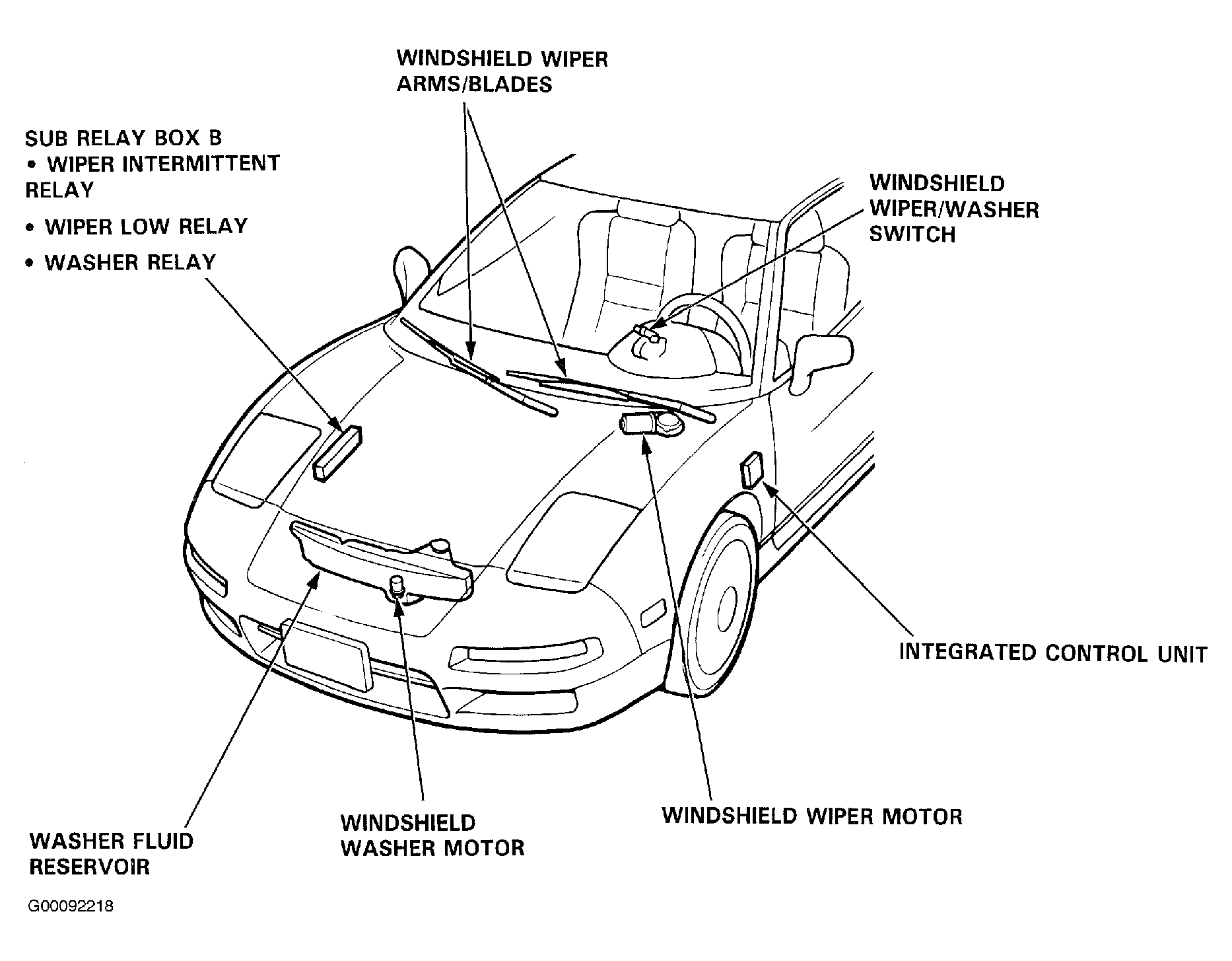

The system is equipped with an intermittent relay, a low relay and a high relay. The wiper operation of INT and LO position is controlled by the intermittent wiper circuit (incorporated in the integrated control unit). See Fig 1

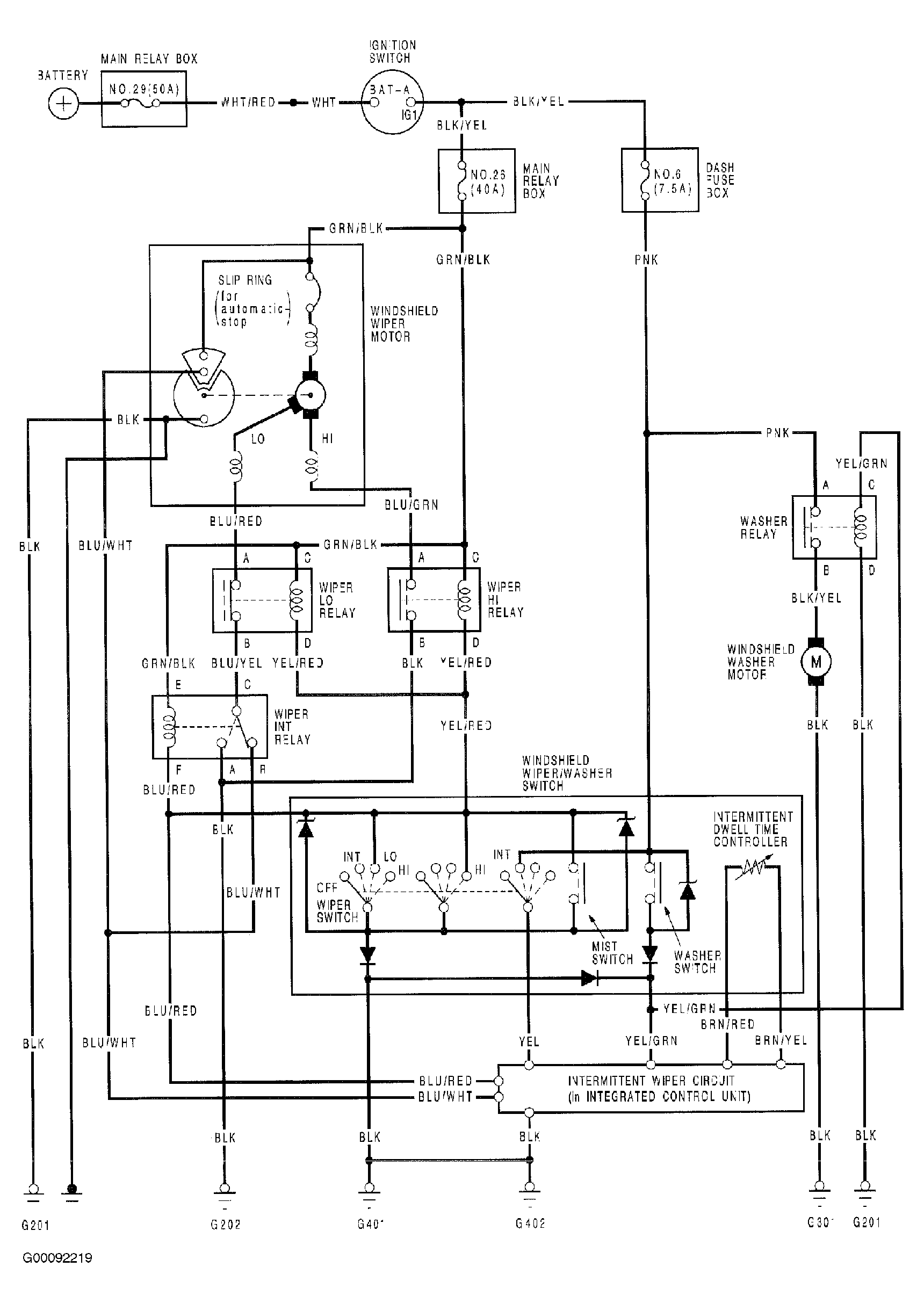

and Fig 2
.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
