Side Marker Light Flasher

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2005 Acura NSX, 2004 Acura NSX, 2003 Acura NSX-T, 2003 Acura NSX, and 2002 Acura NSX-T. However, it is still accessible from the selected car via links, so may be relevant.

See Fig 1 and Fig 4 .

Fig 1: Side Marker, Turn Signal & Hazard Flasher System Circuit Diagram 1998-99 (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

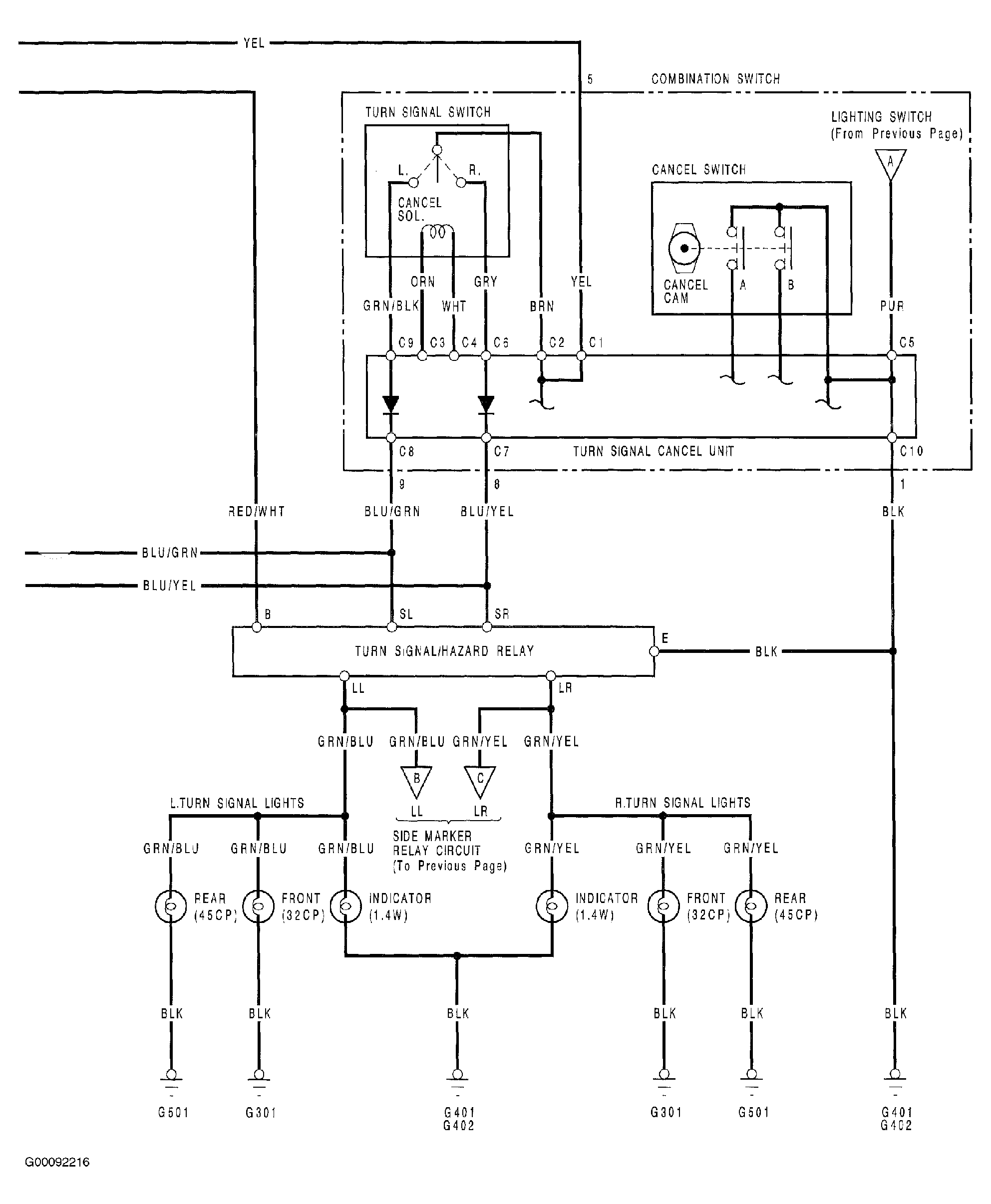

Fig 2: Side Marker, Turn Signal & Hazard Flasher System Circuit Diagram 1998-99 (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

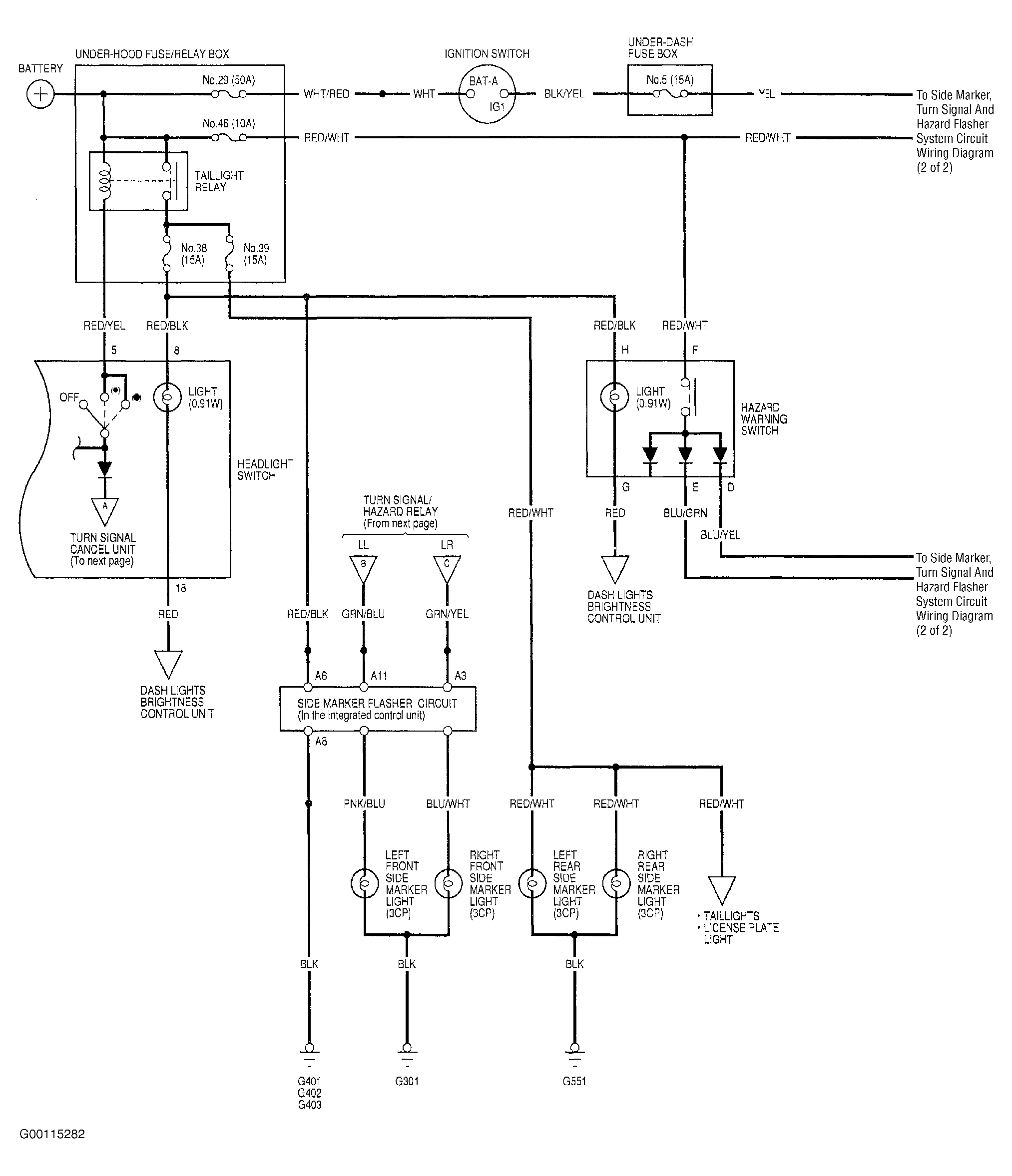

Fig 3: Side Marker, Turn Signal & Hazard Flasher System Circuit Diagram 2000-01 (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Side Marker, Turn Signal & Hazard Flasher System Circuit Diagram 2000-01 (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
