DTC P0139 Or P0159: Rear Or Front Secondary Ho2S (Slow Response)

If the scan tool indicates DTC P0139, a slow response problem in the rear secondary HO2 S (bank 1, sensor 2) circuit may exist. If the scan tool indicates DTC P0159, a slow response problem in the front secondary HO2 S (bank 2, sensor 2) circuit may exist. See Fig 1 .

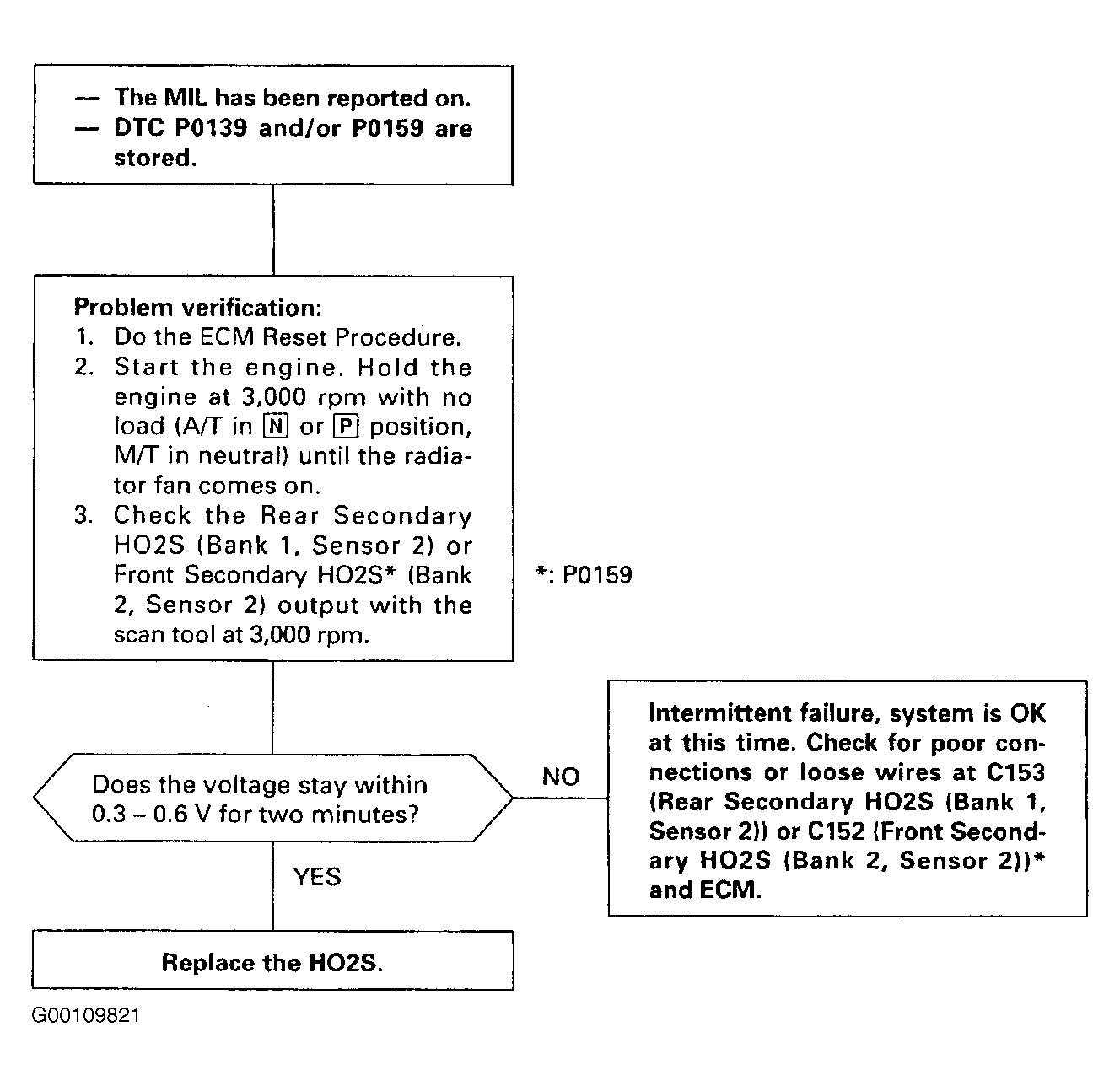

Fig 1: Secondary HO2 S (Slow Response) Diagnostic Flow Chart
G00109821Courtesy of AMERICAN HONDA MOTOR CO., INC.
