Wiring Diagrams

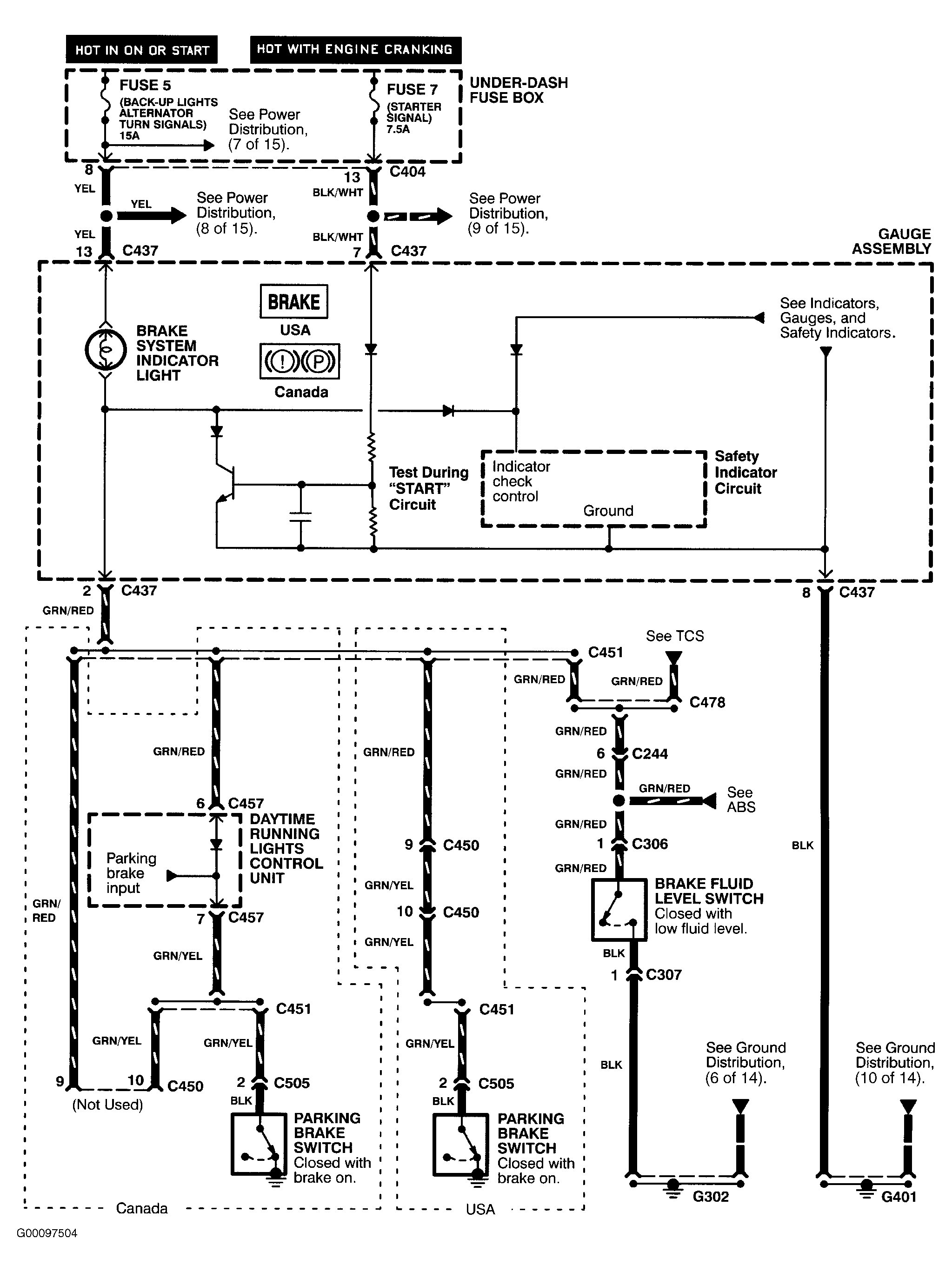

Fig 1: Brake System Indicator Light Wiring Diagram (1995-96)

G00097504

Courtesy of AMERICAN HONDA MOTOR CO., INC.

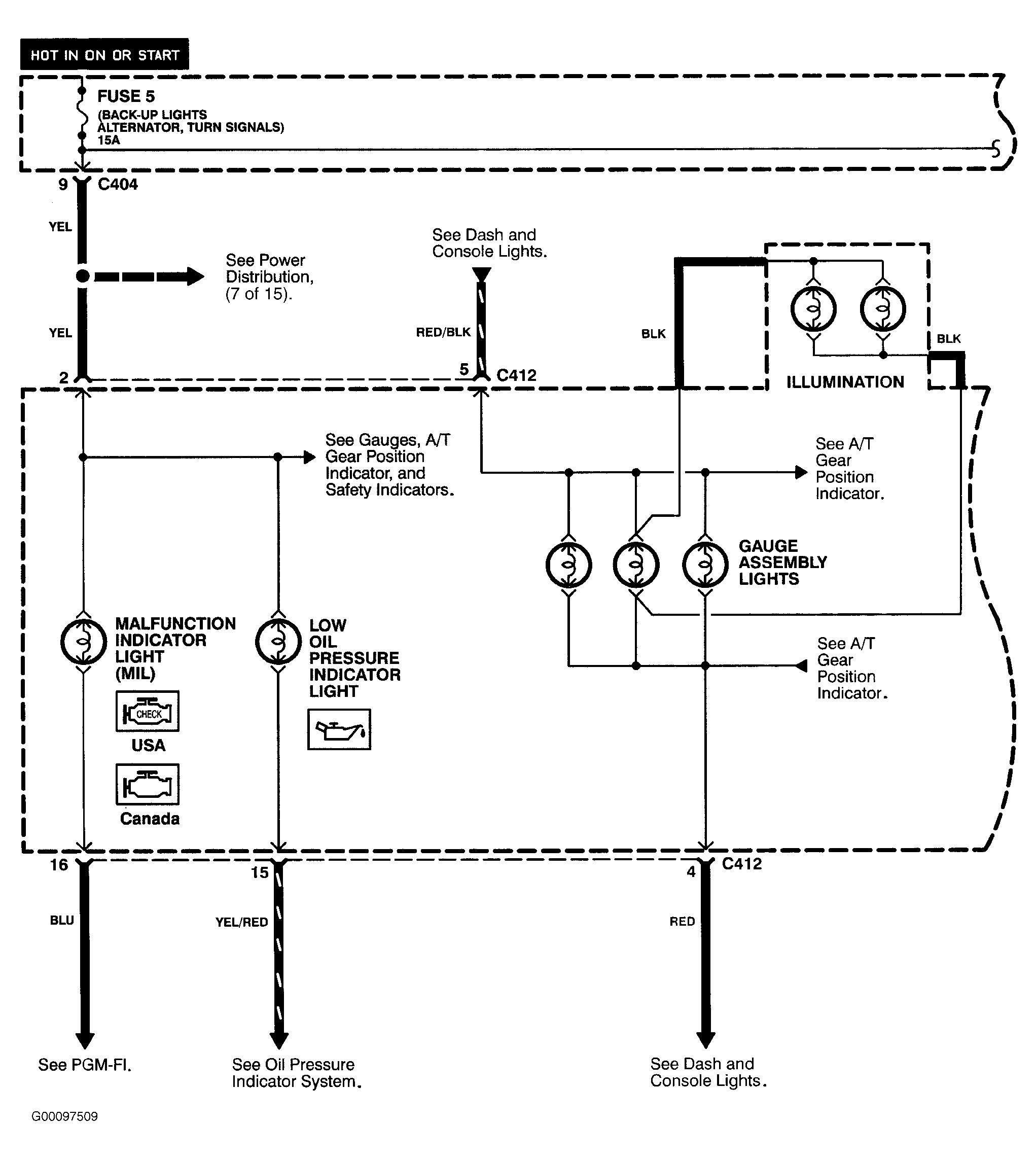

Fig 2: Indicators Wiring Diagram (1995-96 - 1 Of 4)

G00097509

Courtesy of AMERICAN HONDA MOTOR CO., INC.

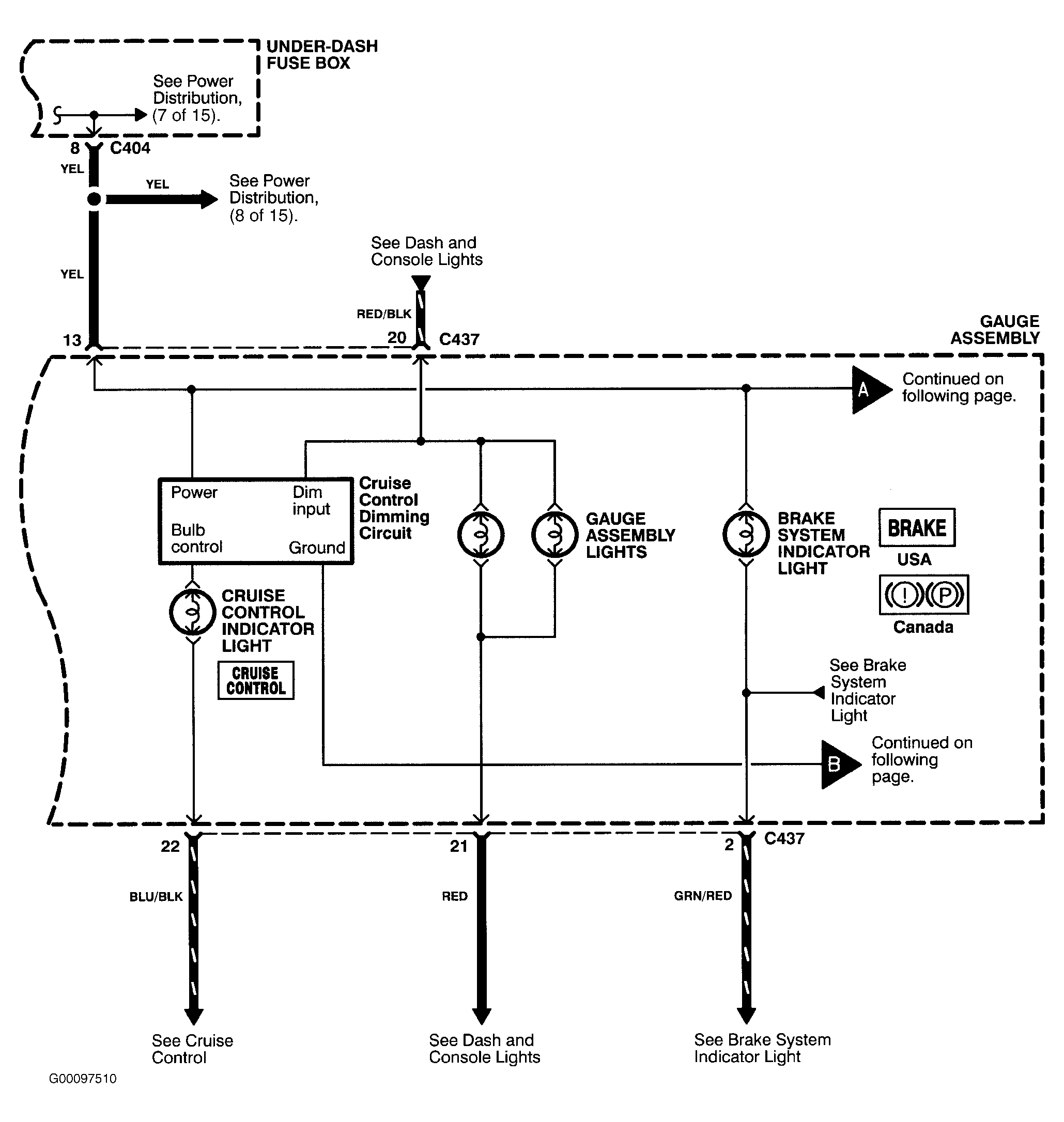

Fig 3: Indicators Wiring Diagram (1995-96 - 2 Of 4)

G00097510

Courtesy of AMERICAN HONDA MOTOR CO., INC.

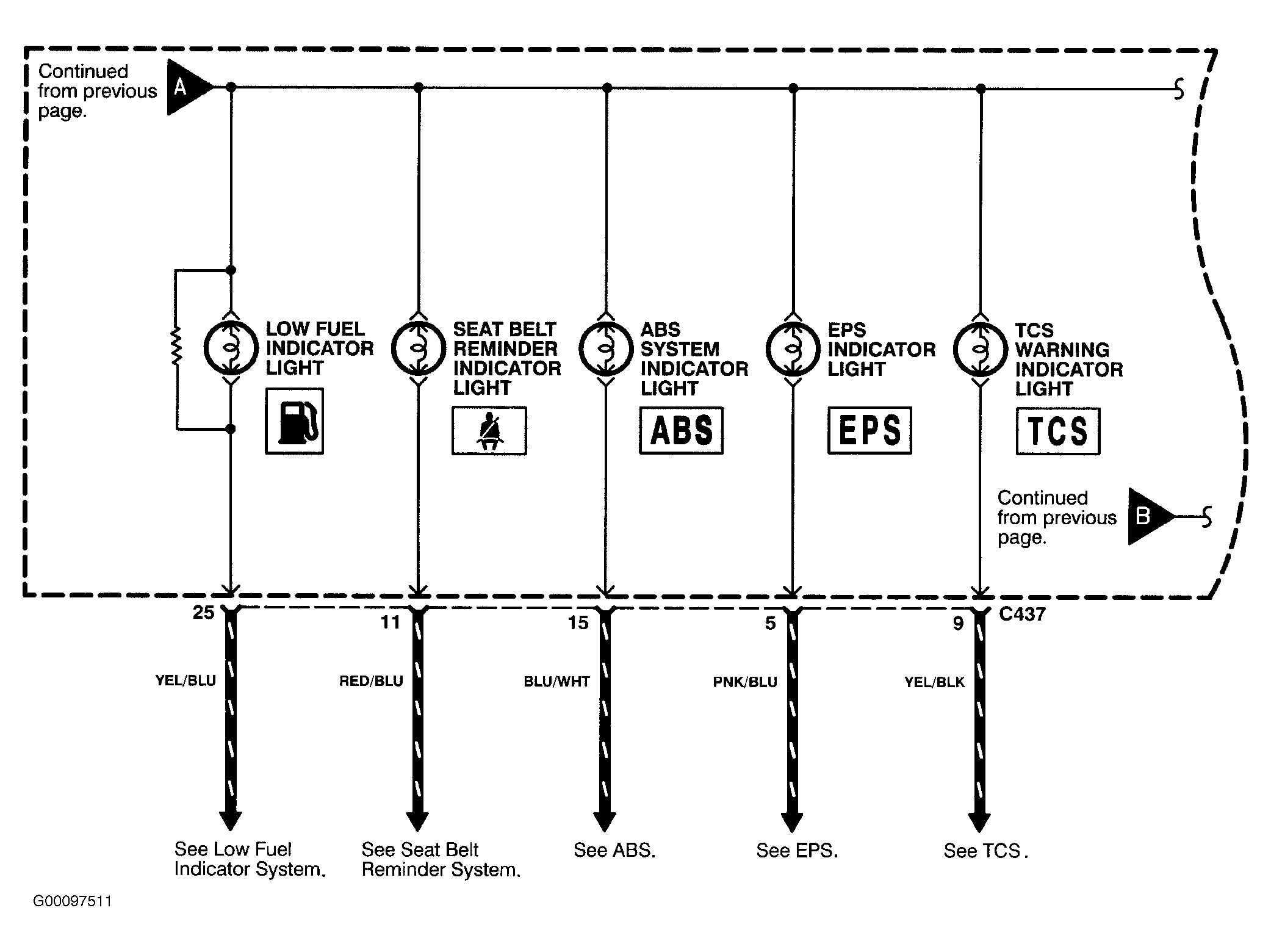

Fig 4: Indicators Wiring Diagram (1995-96 - 3 Of 4)

G00097511

Courtesy of AMERICAN HONDA MOTOR CO., INC.

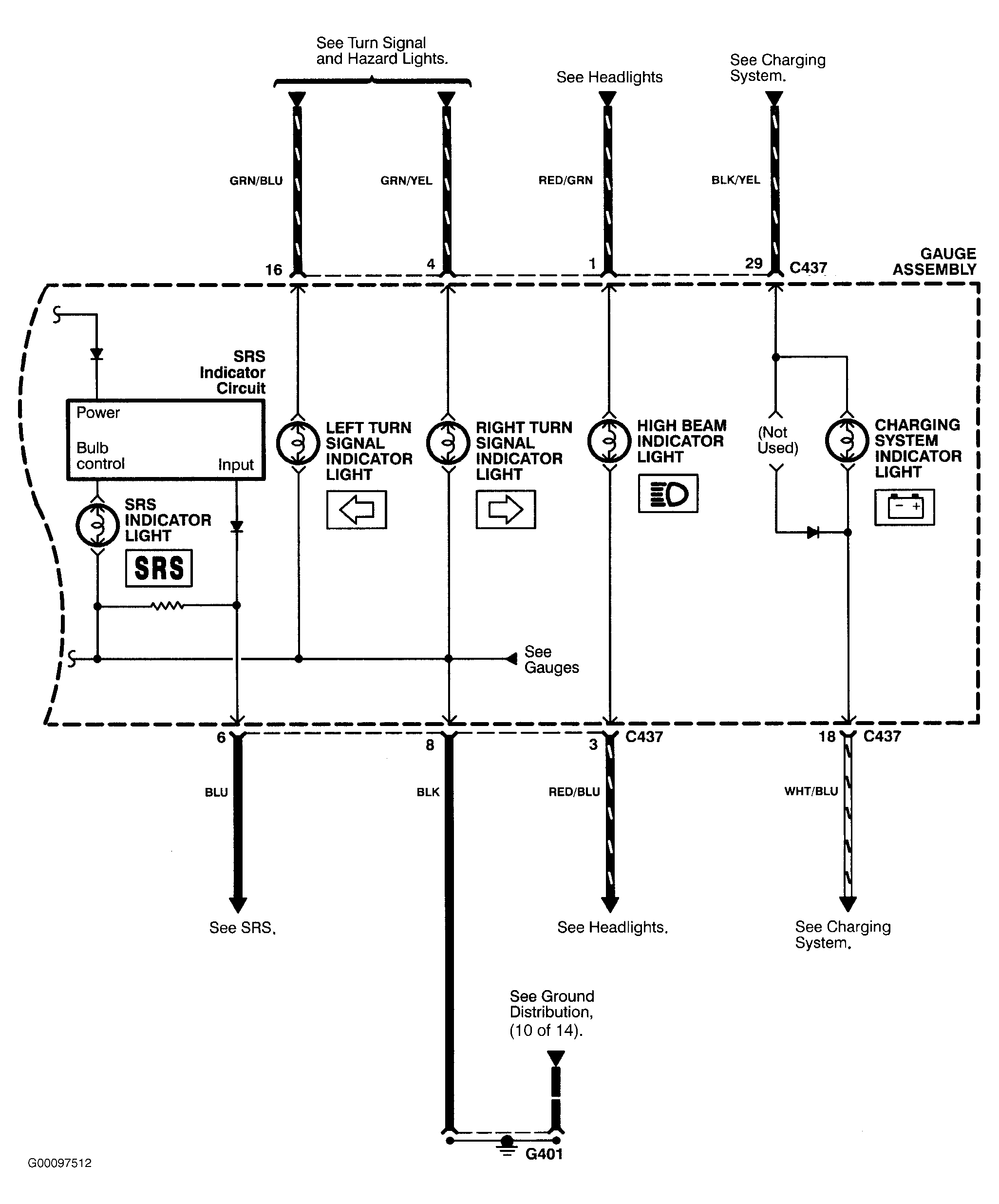

Fig 5: Indicators Wiring Diagram (1995-96 - 4 Of 4)

G00097512

Courtesy of AMERICAN HONDA MOTOR CO., INC.

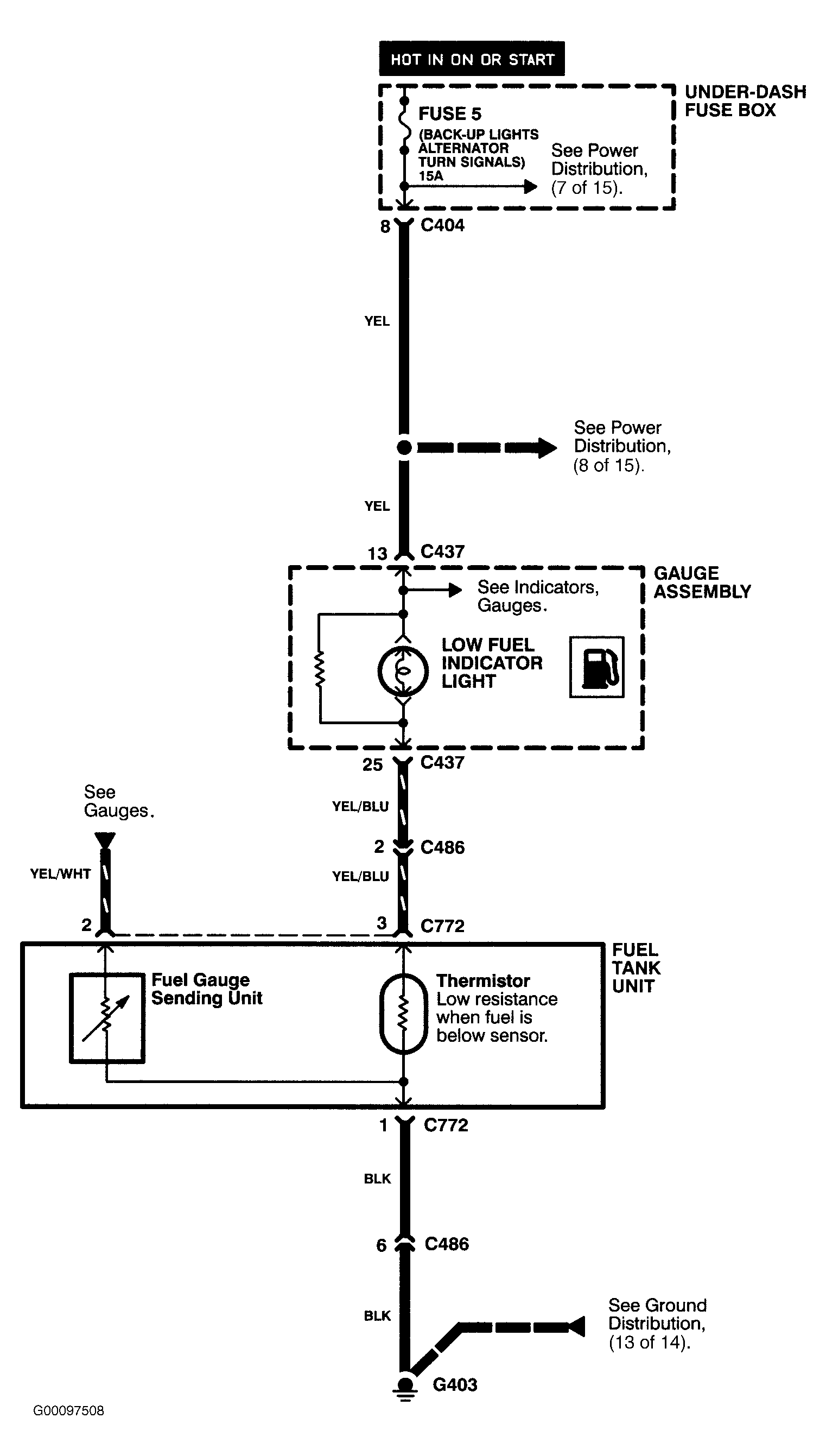

Fig 6: Low Fuel Indicator System Wiring Diagram (1995-96)

G00097508

Courtesy of AMERICAN HONDA MOTOR CO., INC.

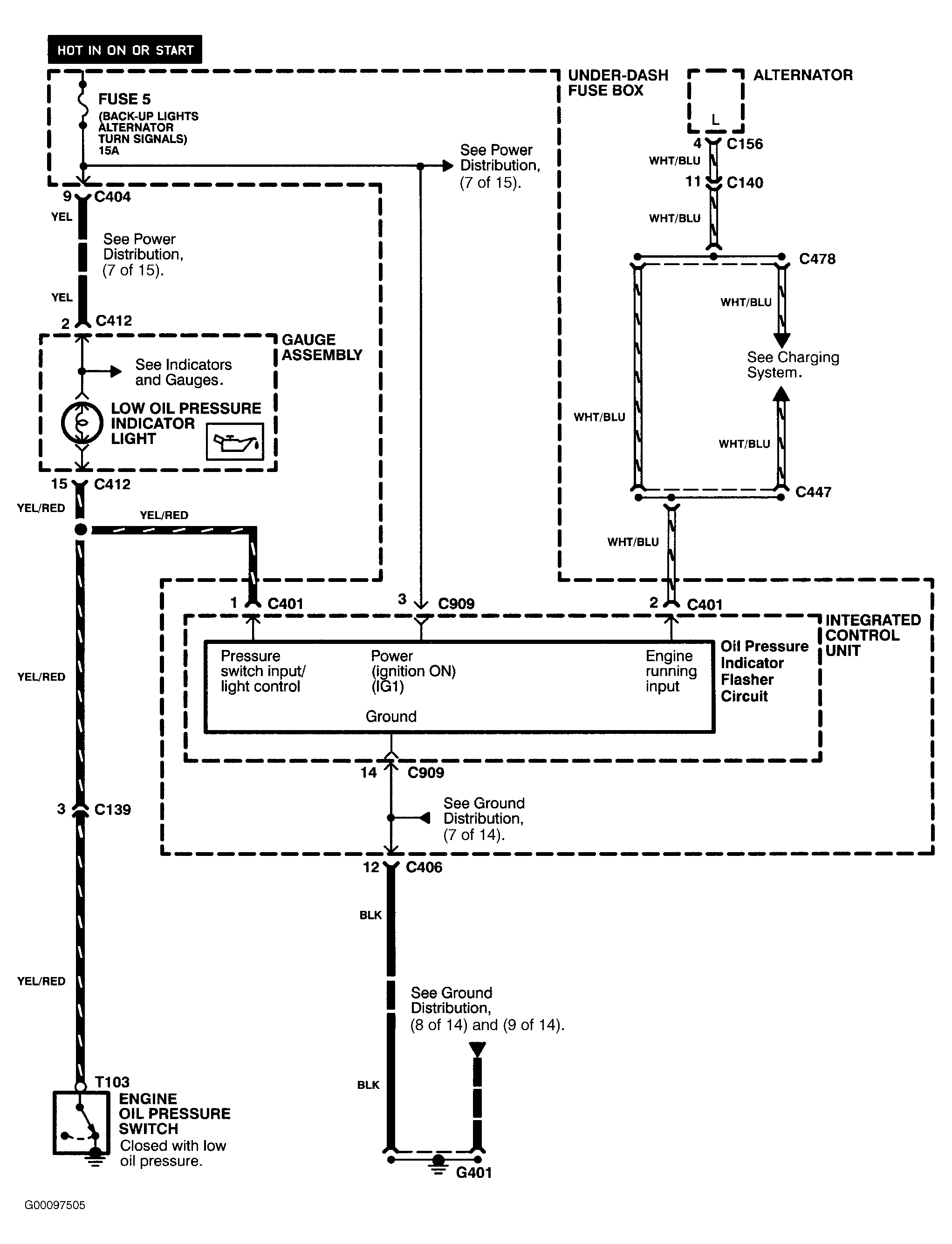

Fig 7: Oil Pressure Indicator System Wiring Diagram (1995-96)

G00097505

Courtesy of AMERICAN HONDA MOTOR CO., INC.

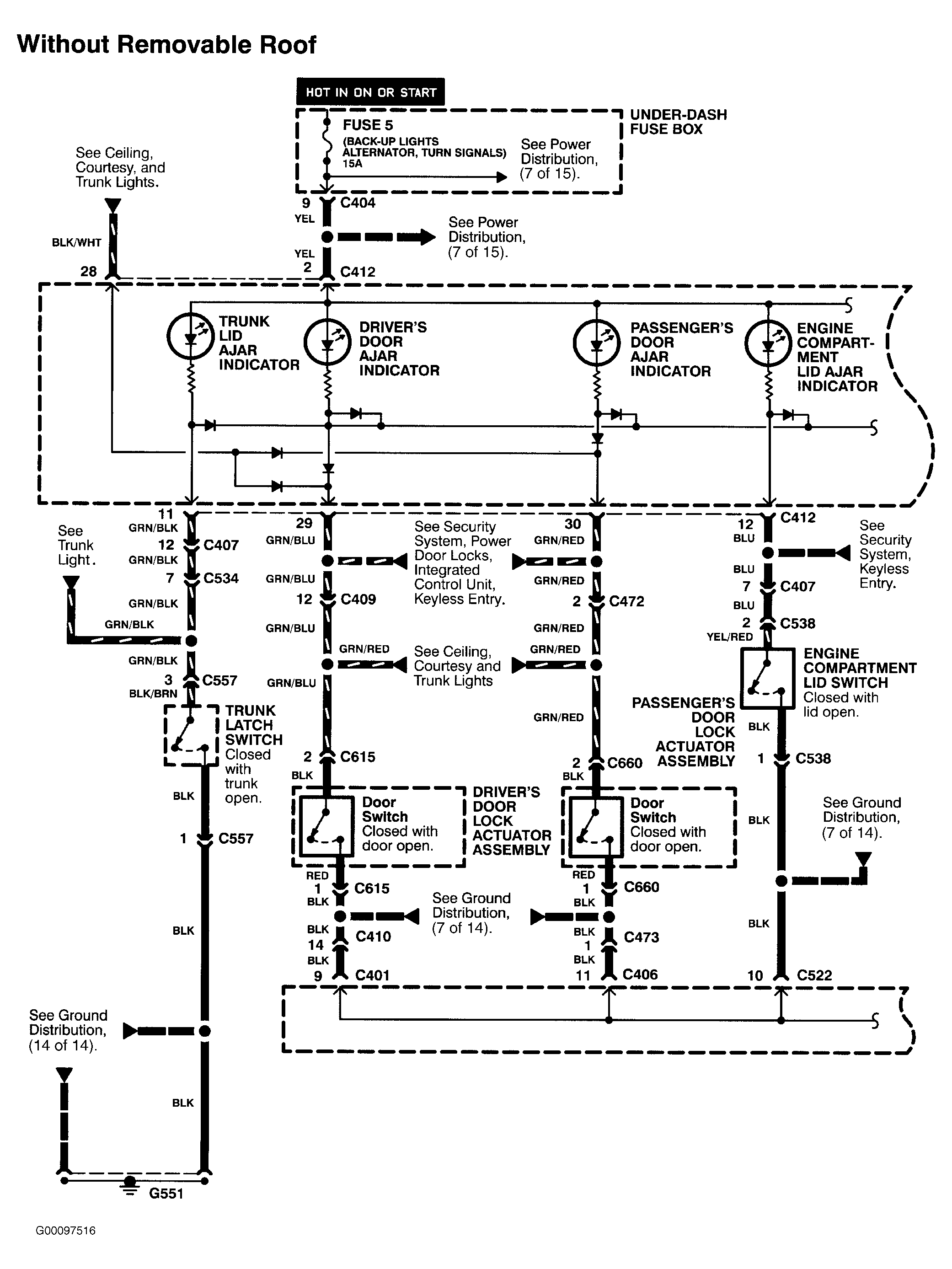

Fig 8: Safety Indicators Wiring Diagram (1995-96 - 1 Of 4)

G00097516

Courtesy of AMERICAN HONDA MOTOR CO., INC.

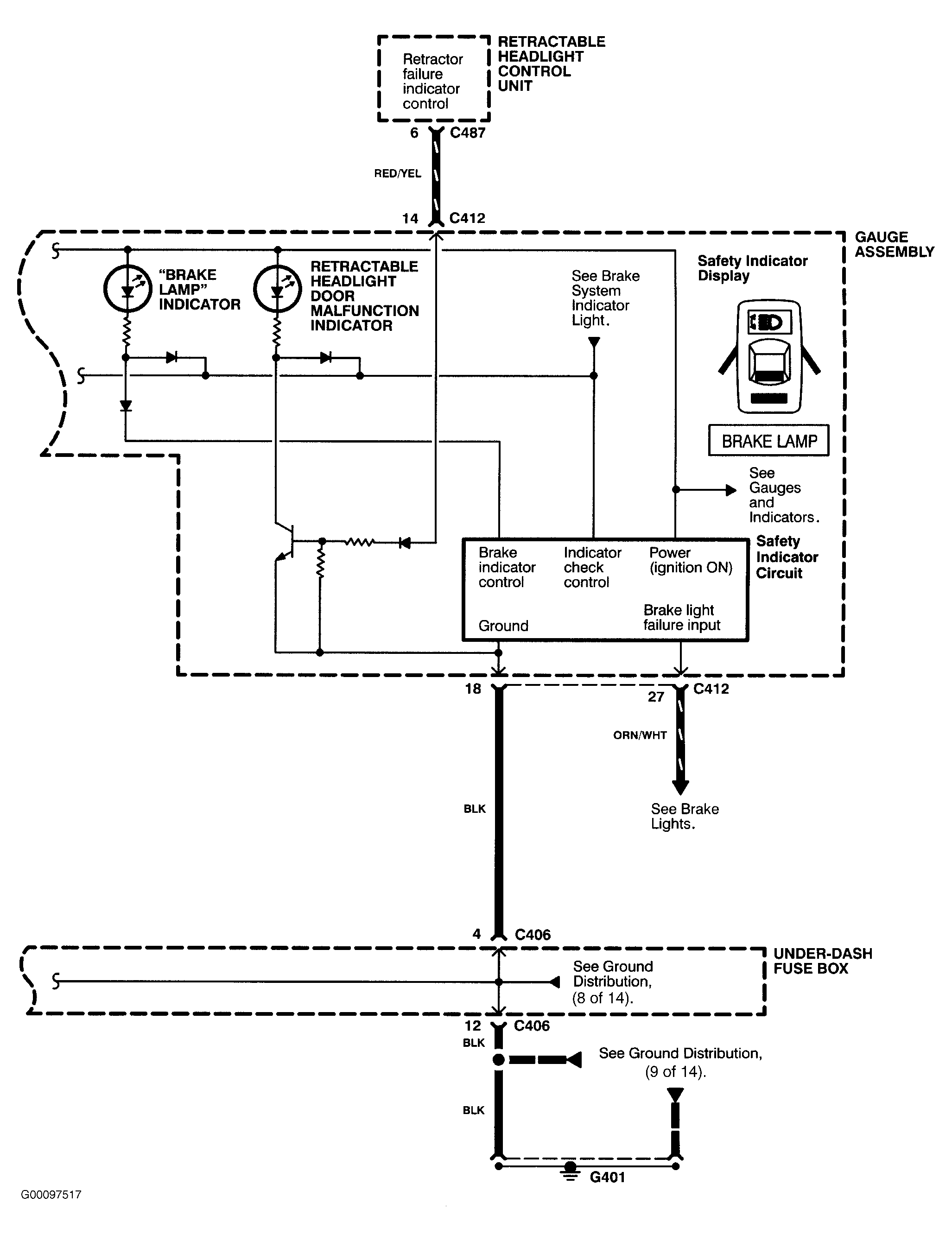

Fig 9: Safety Indicators Wiring Diagram (1995-96 - 2 Of 4)

G00097517

Courtesy of AMERICAN HONDA MOTOR CO., INC.

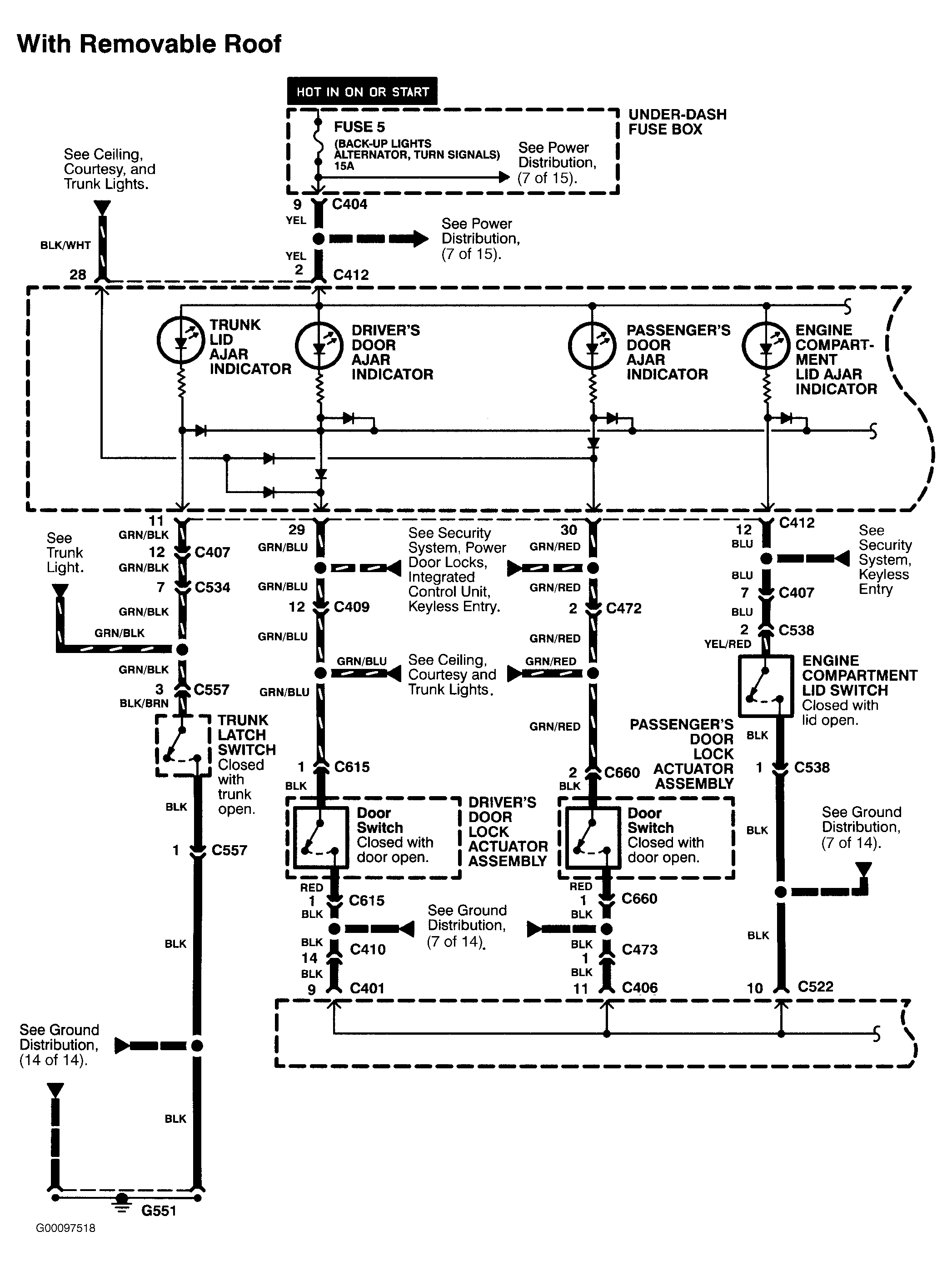

Fig 10: Safety Indicators Wiring Diagram (1995-96 - 3 Of 4)

G00097518

Courtesy of AMERICAN HONDA MOTOR CO., INC.

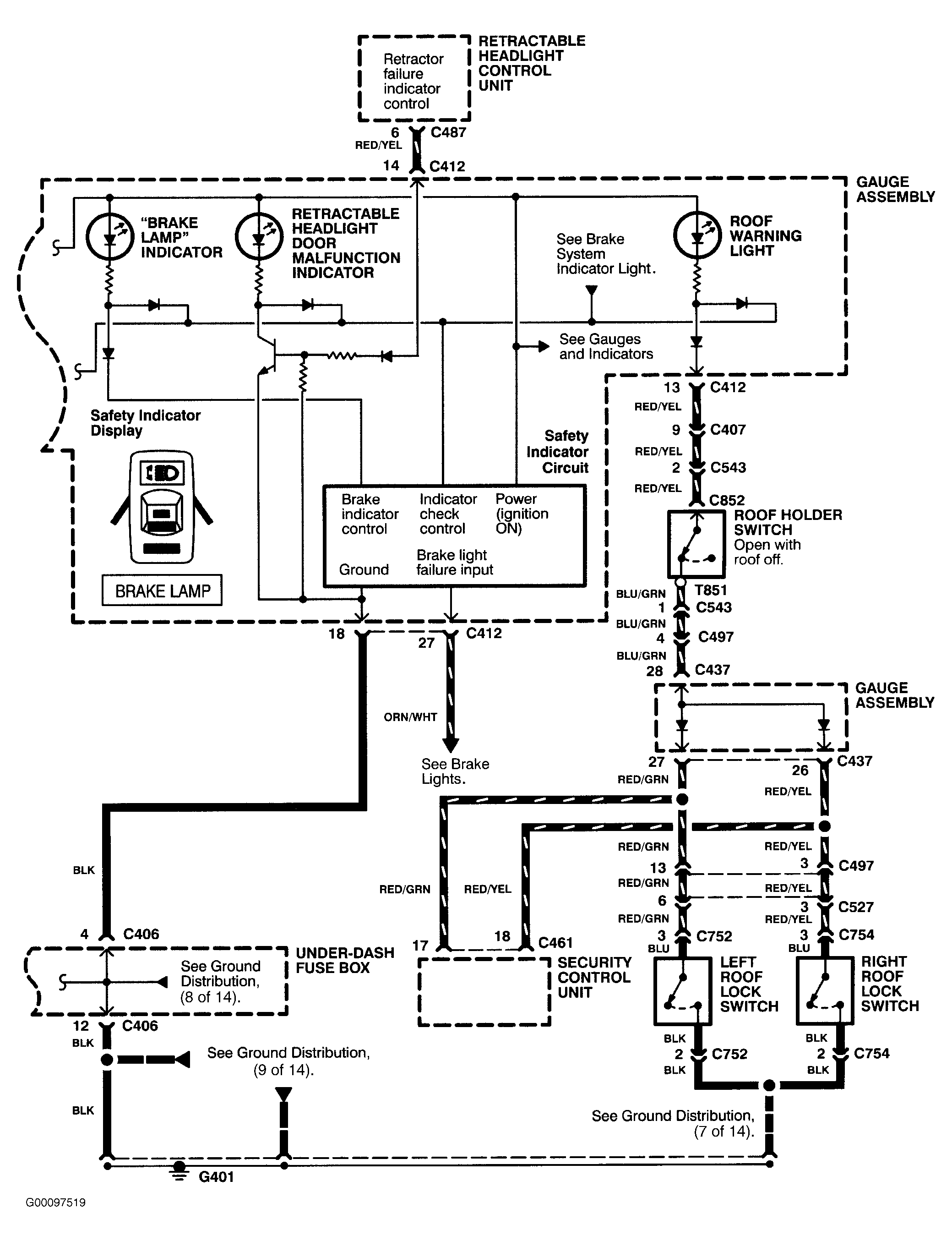

Fig 11: Safety Indicators Wiring Diagram (1995-96 - 4 Of 4)

G00097519

Courtesy of AMERICAN HONDA MOTOR CO., INC.

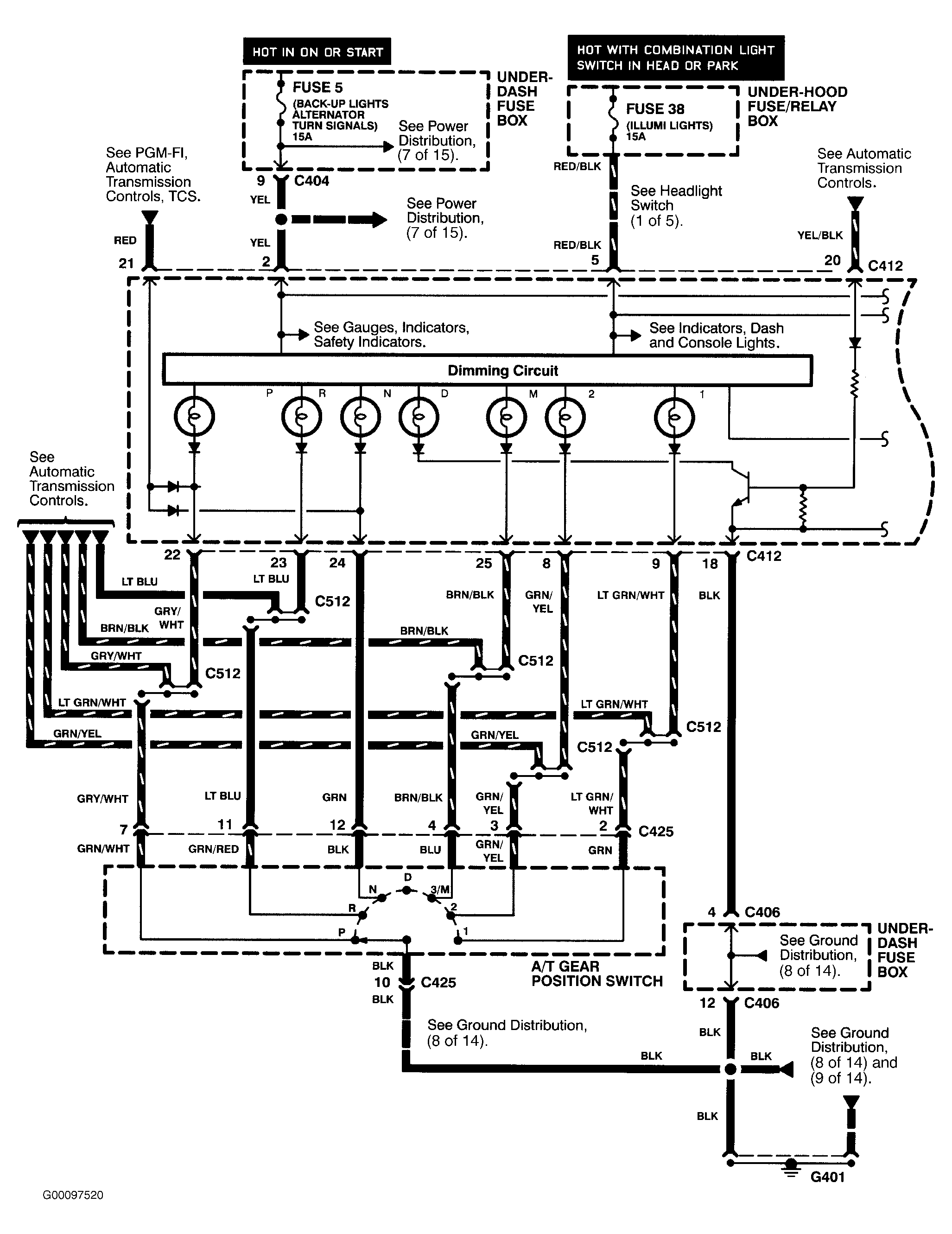

Fig 12: A/T Gear Position Indicator Wiring Diagram (1995-96 - 1 Of 2)

G00097520

Courtesy of AMERICAN HONDA MOTOR CO., INC.

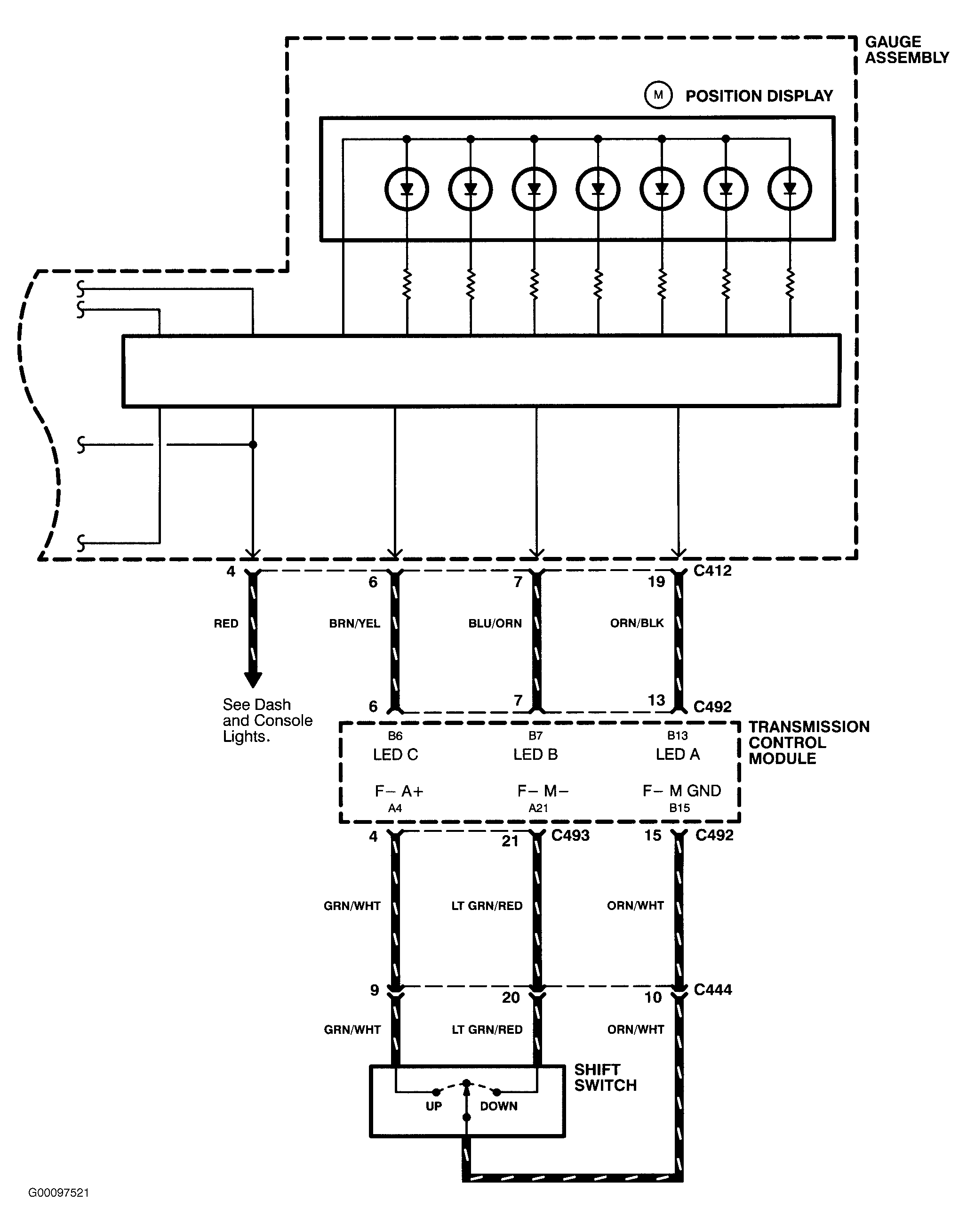

Fig 13: A/T Gear Position Indicator Wiring Diagram (1995-96 - 2 Of 2)

G00097521

Courtesy of AMERICAN HONDA MOTOR CO., INC.

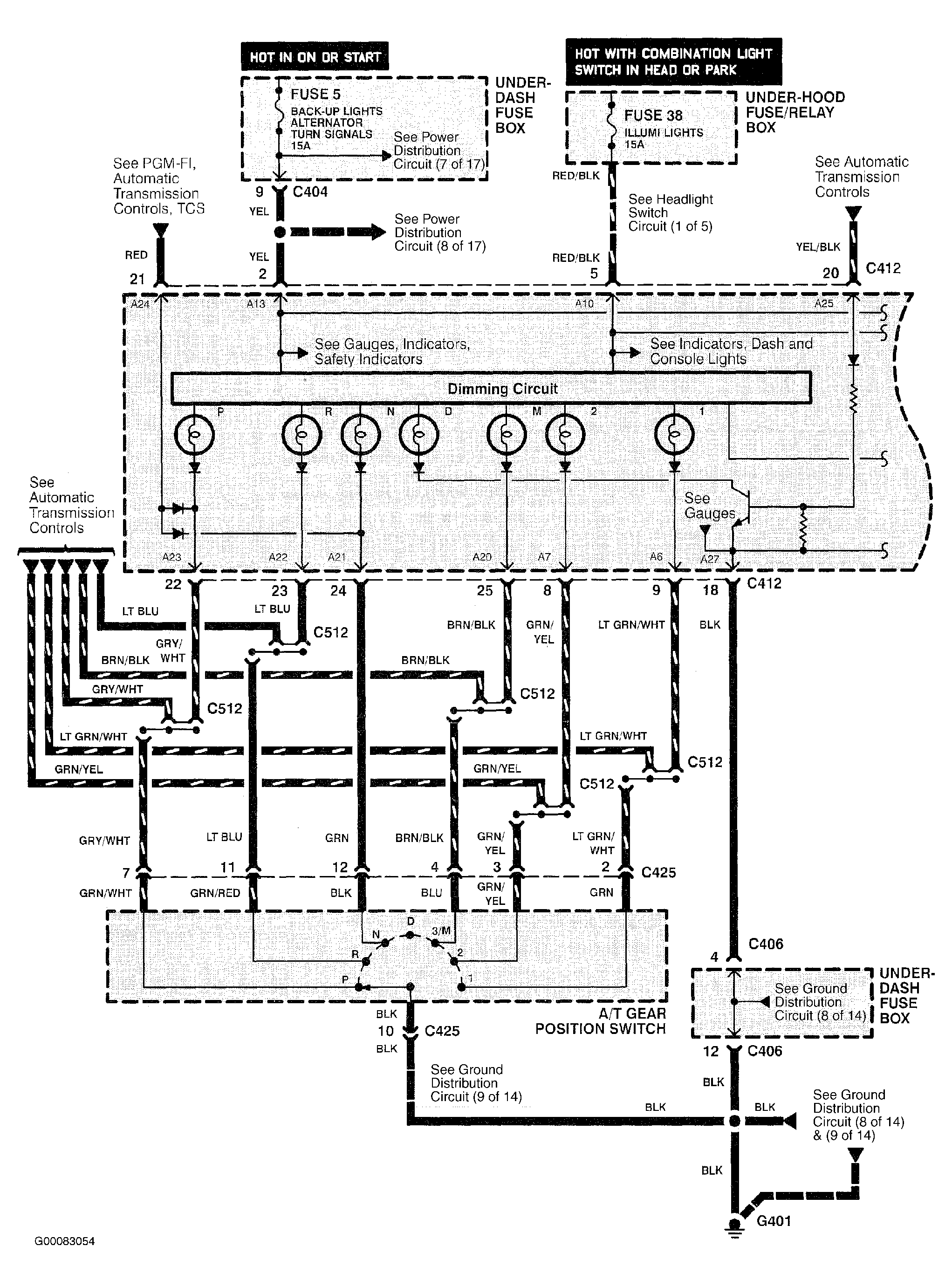

Fig 14: A/T Gear Position Indicator Wiring Diagram (1997-2001 - 1 Of 2)

G00083054

Courtesy of AMERICAN HONDA MOTOR CO., INC.

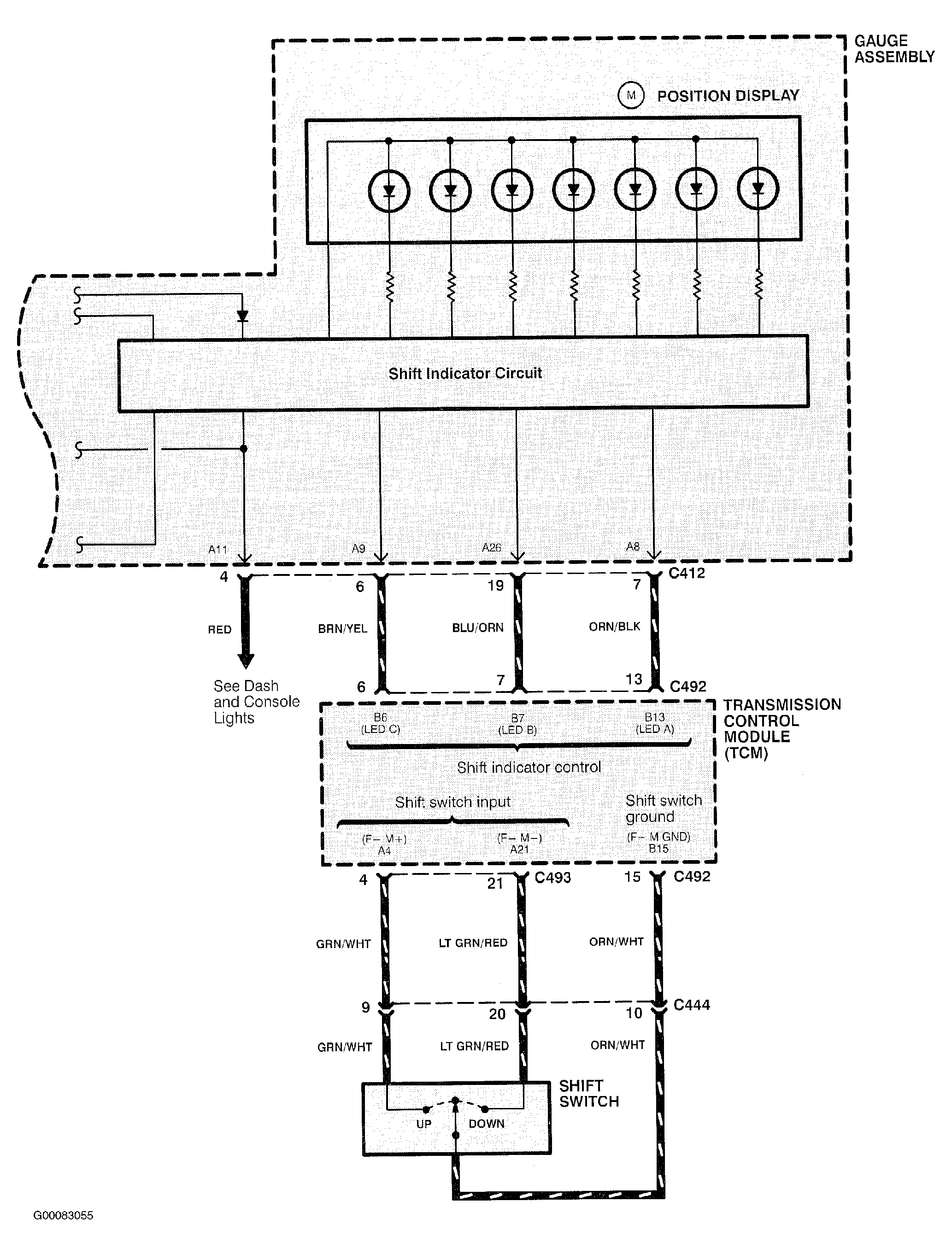

Fig 15: A/T Gear Position Indicator Wiring Diagram (1997-2001 - 2 Of 2)

G00083055

Courtesy of AMERICAN HONDA MOTOR CO., INC.

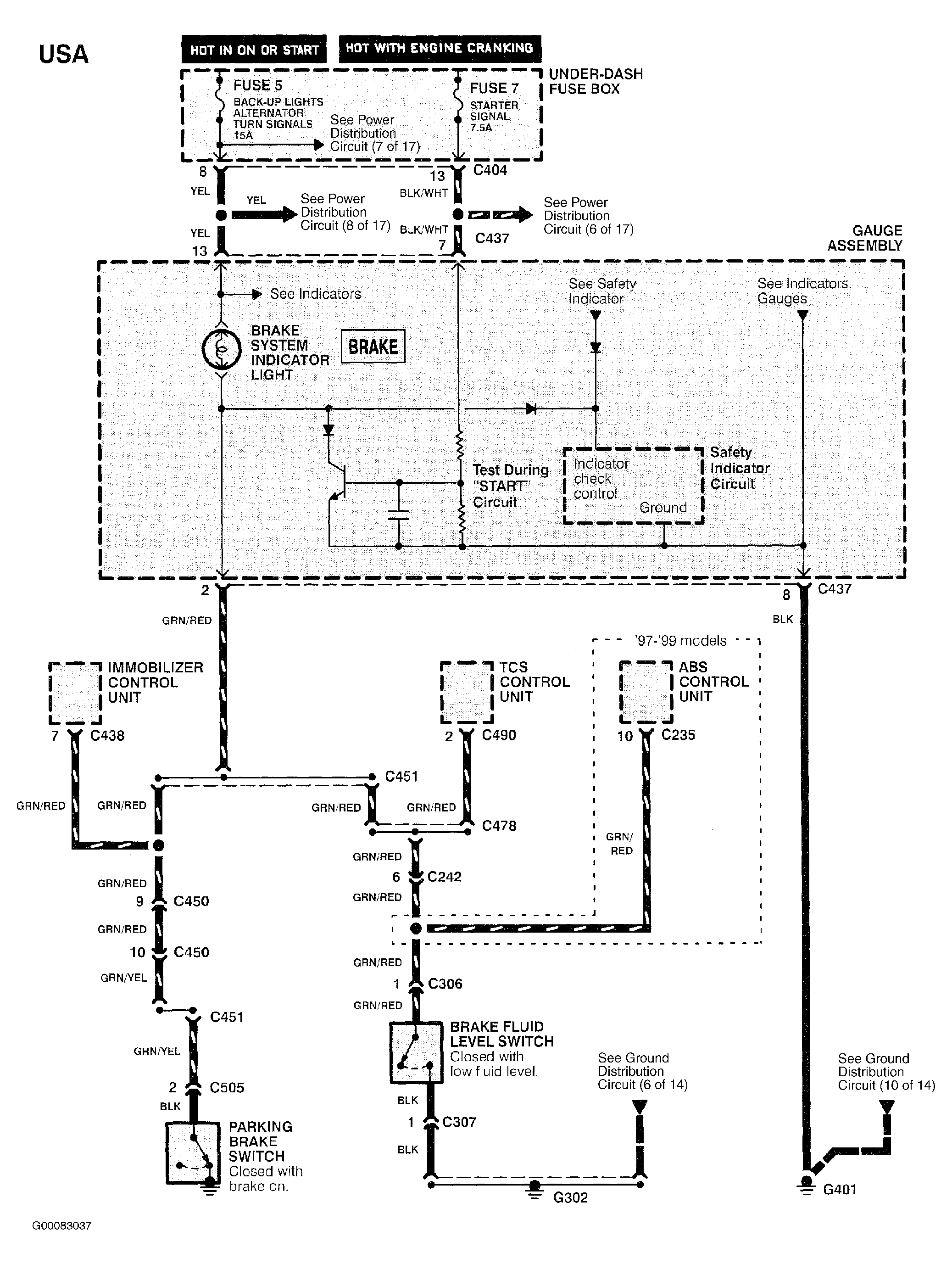

Fig 16: Brake System Indicator Light Wiring Diagram (1997-2001 - 1 Of 2)

G00083037

Courtesy of AMERICAN HONDA MOTOR CO., INC.

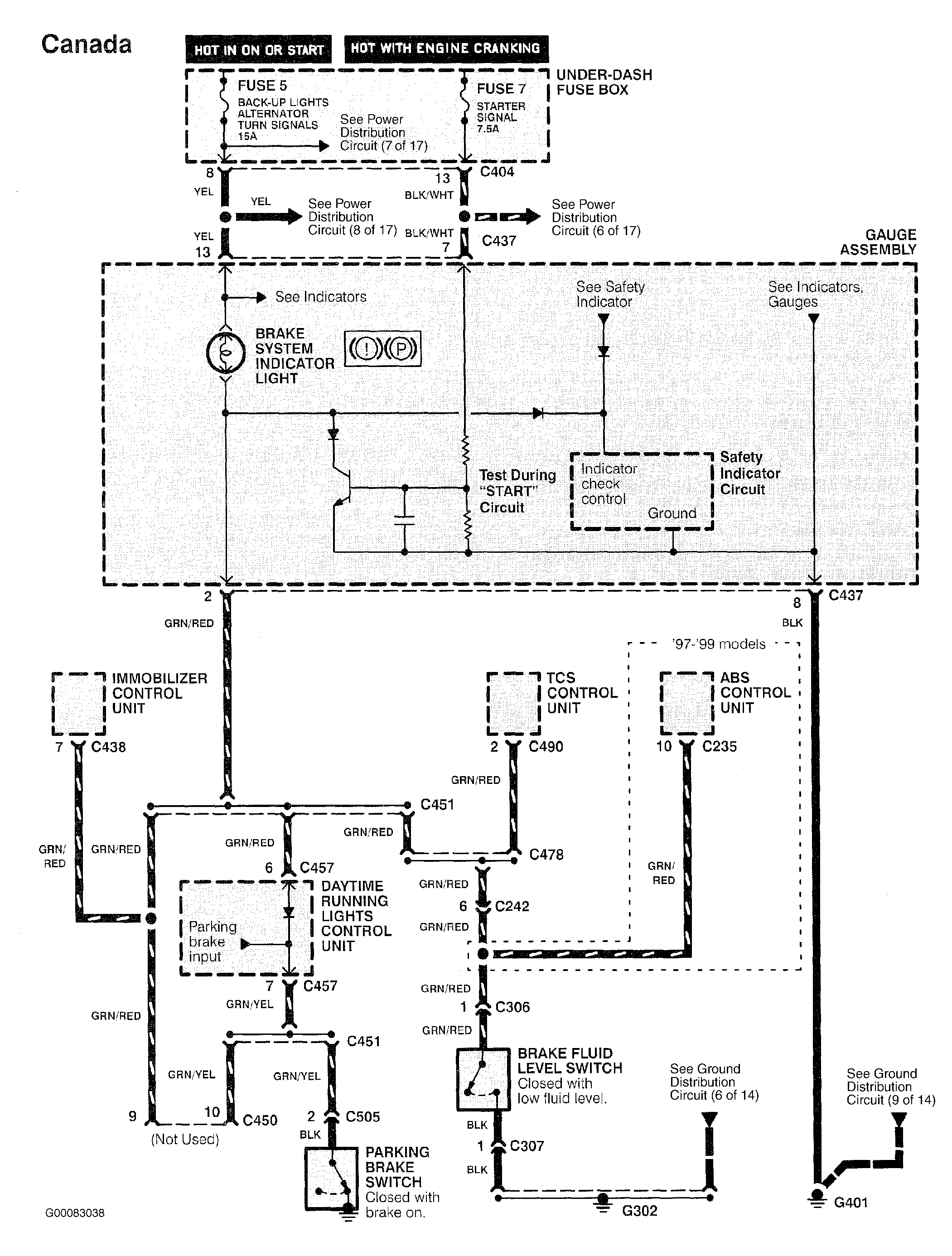

Fig 17: Brake System Indicator Light Wiring Diagram (1997-2001 - 2 Of 2)

G00083038

Courtesy of AMERICAN HONDA MOTOR CO., INC.

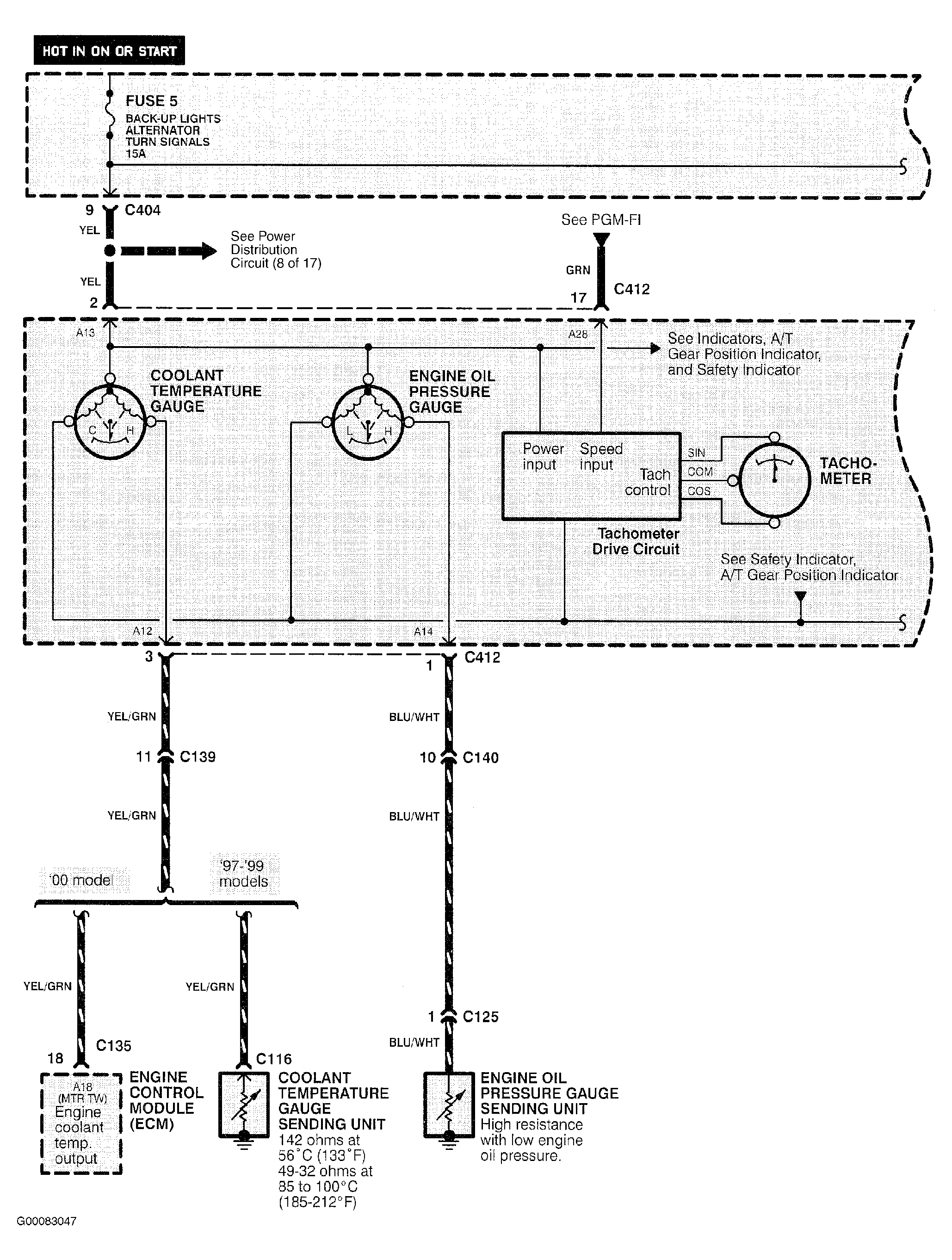

Fig 18: Gauges Wiring Diagram (1997-2001 - 1 Of 3)

G00083047

Courtesy of AMERICAN HONDA MOTOR CO., INC.

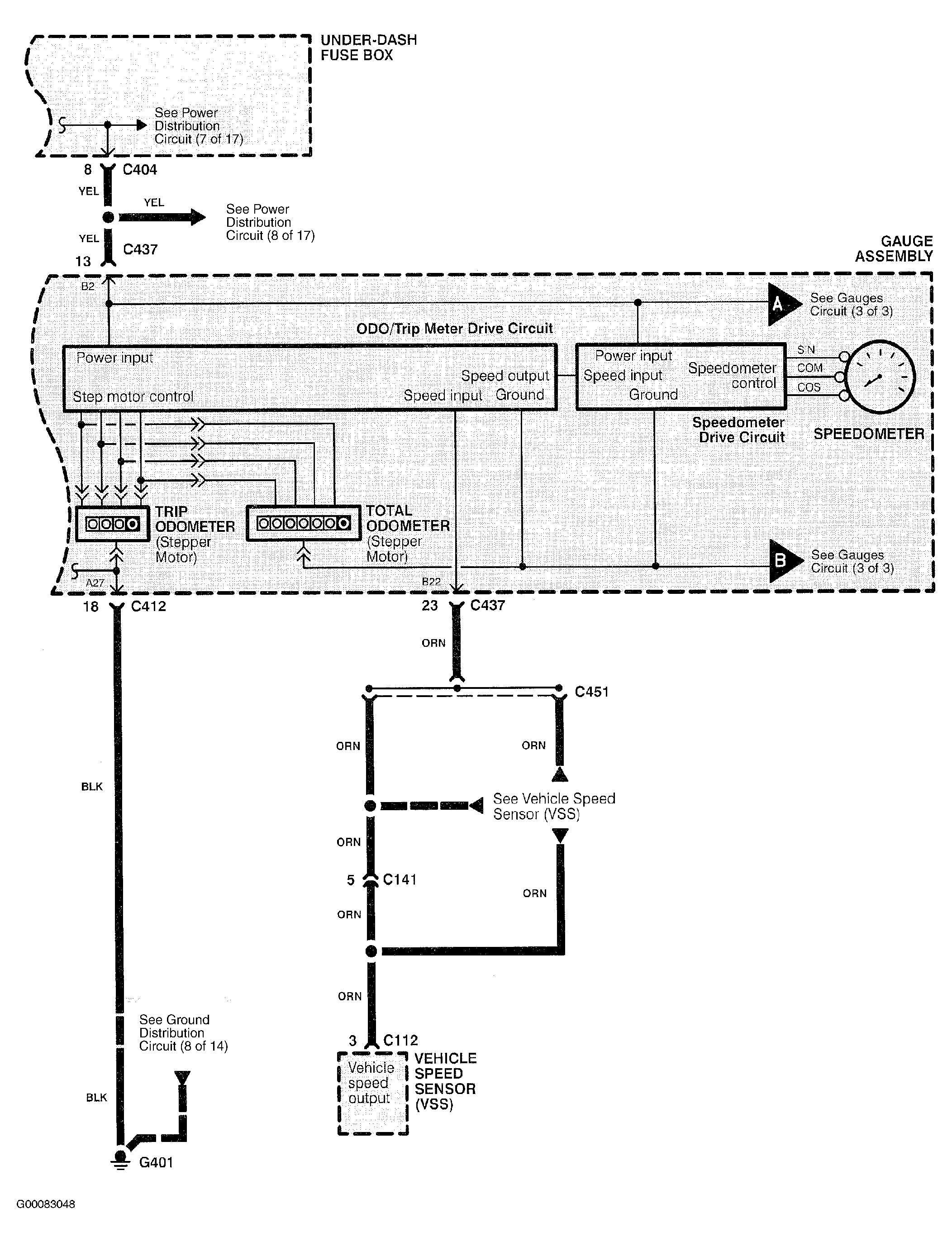

Fig 19: Gauges Wiring Diagram (1997-2001 - 2 Of 3)

G00083048

Courtesy of AMERICAN HONDA MOTOR CO., INC.

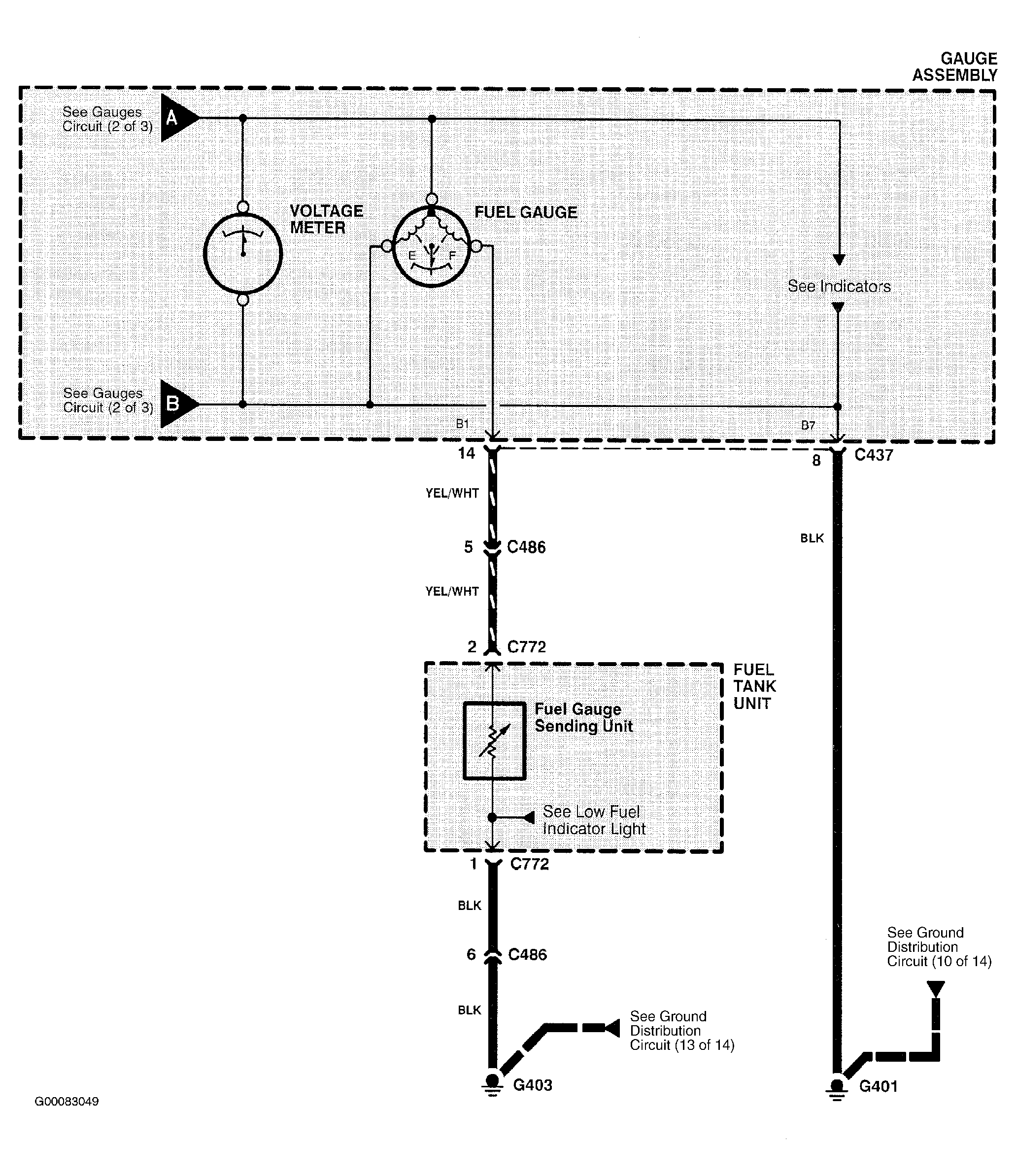

Fig 20: Gauges Wiring Diagram (1997-2001 - 3 Of 3)

G00083049

Courtesy of AMERICAN HONDA MOTOR CO., INC.

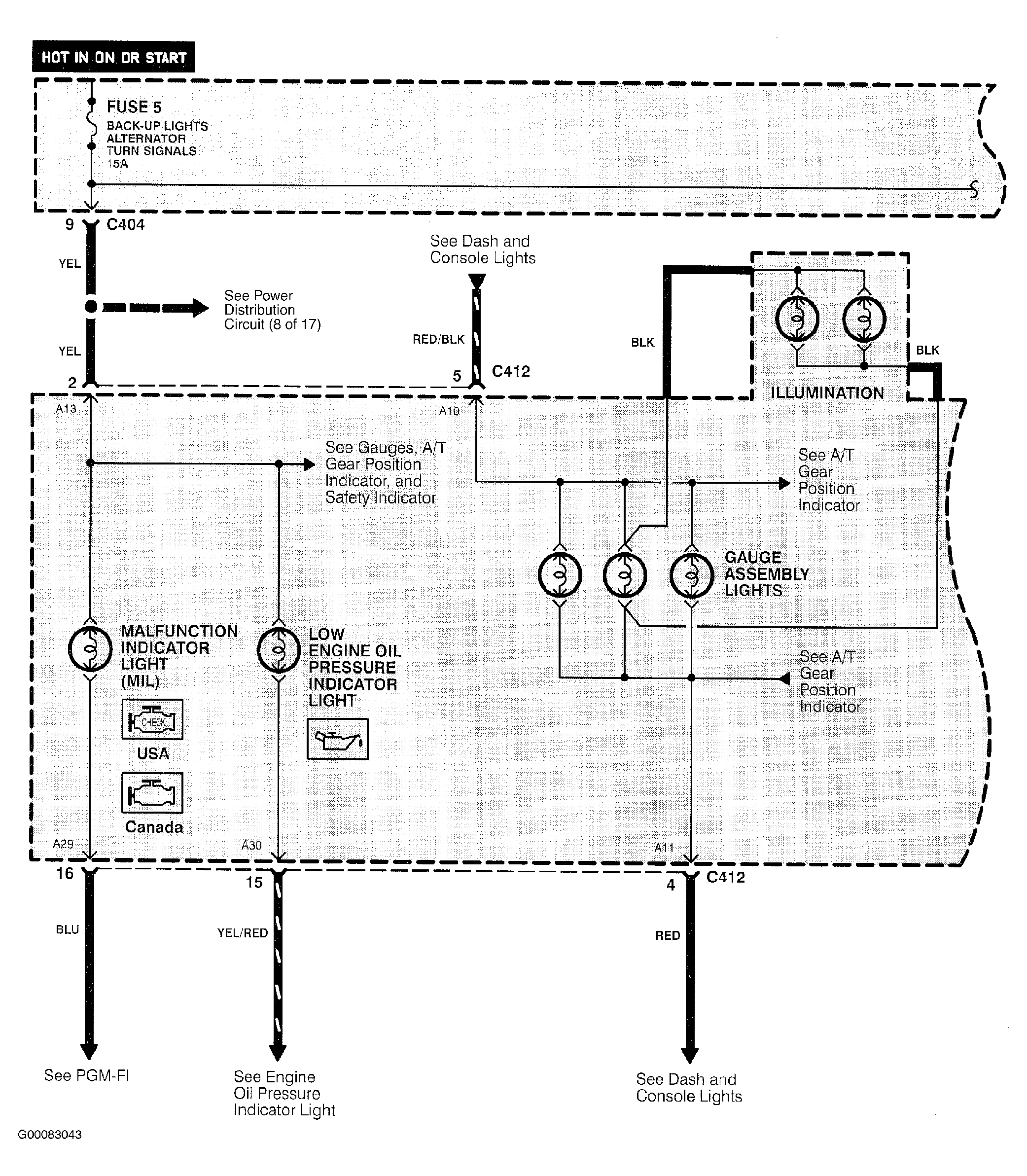

Fig 21: Indicators Wiring Diagram (1997-2001 - 1 Of 4)

G00083043

Courtesy of AMERICAN HONDA MOTOR CO., INC.

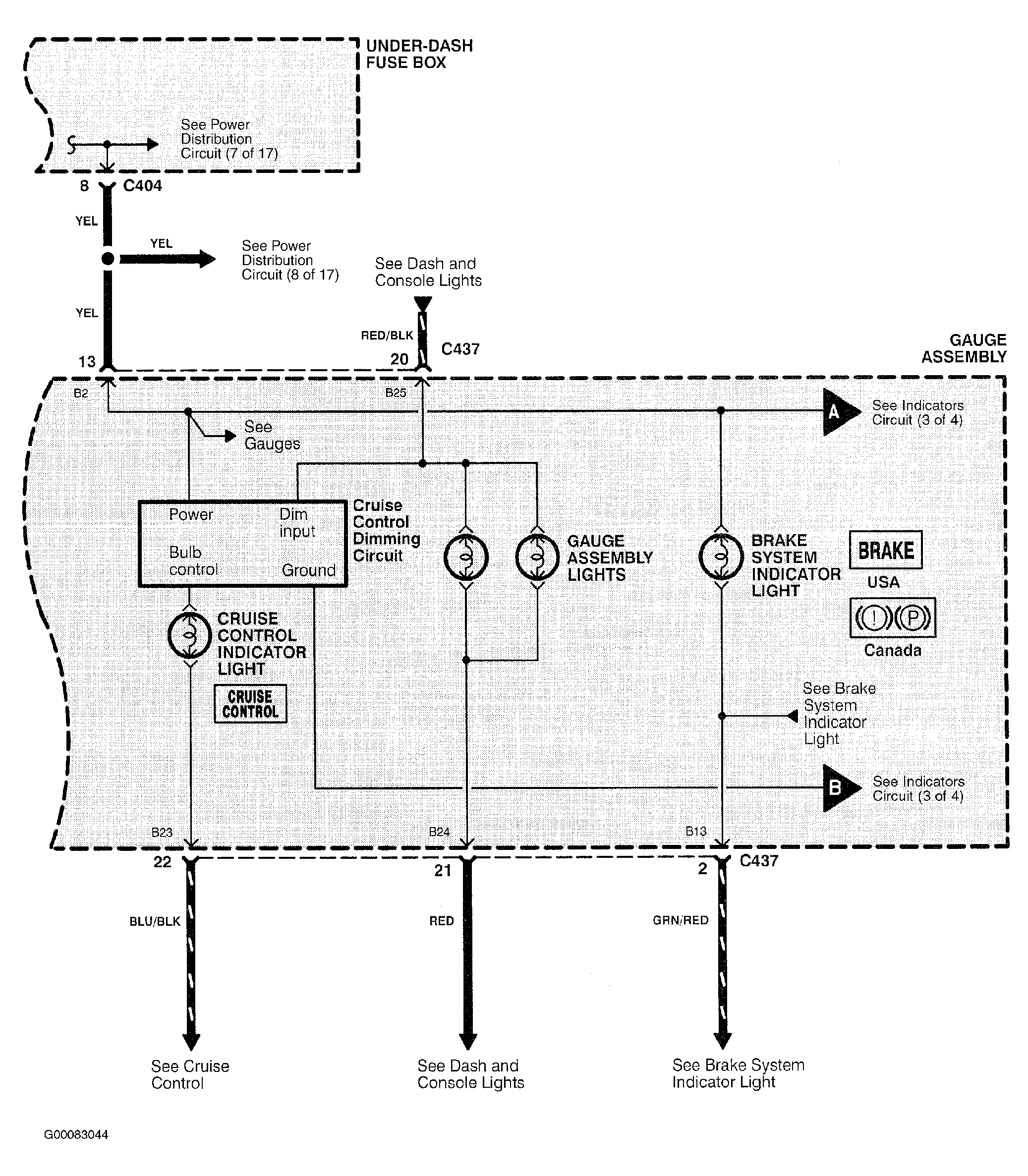

Fig 22: Indicators Wiring Diagram (1997-2001 - 2 Of 4)

G00083044

Courtesy of AMERICAN HONDA MOTOR CO., INC.

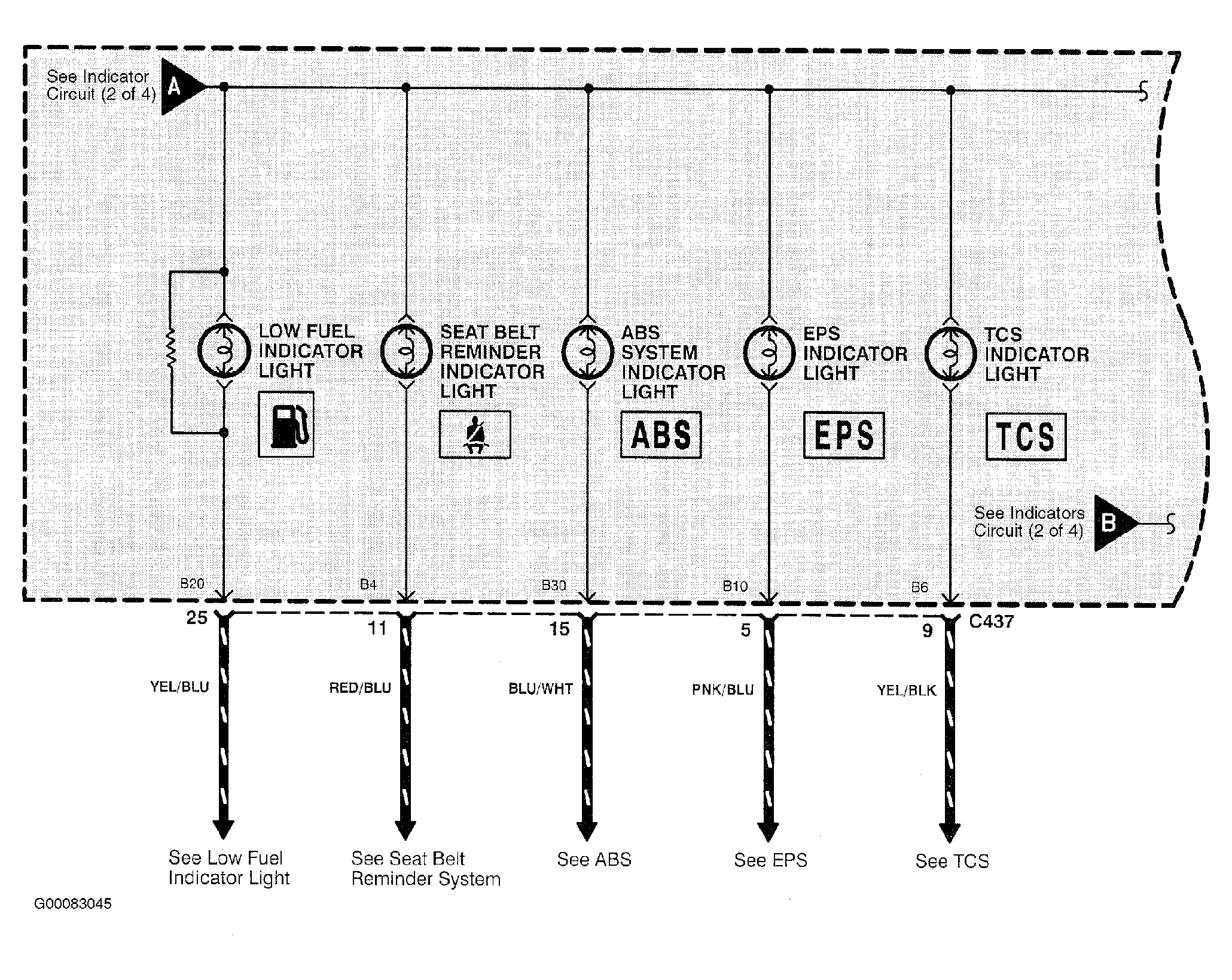

Fig 23: Indicators Wiring Diagram (1997-2001 - 3 Of 4)

G00083045

Courtesy of AMERICAN HONDA MOTOR CO., INC.

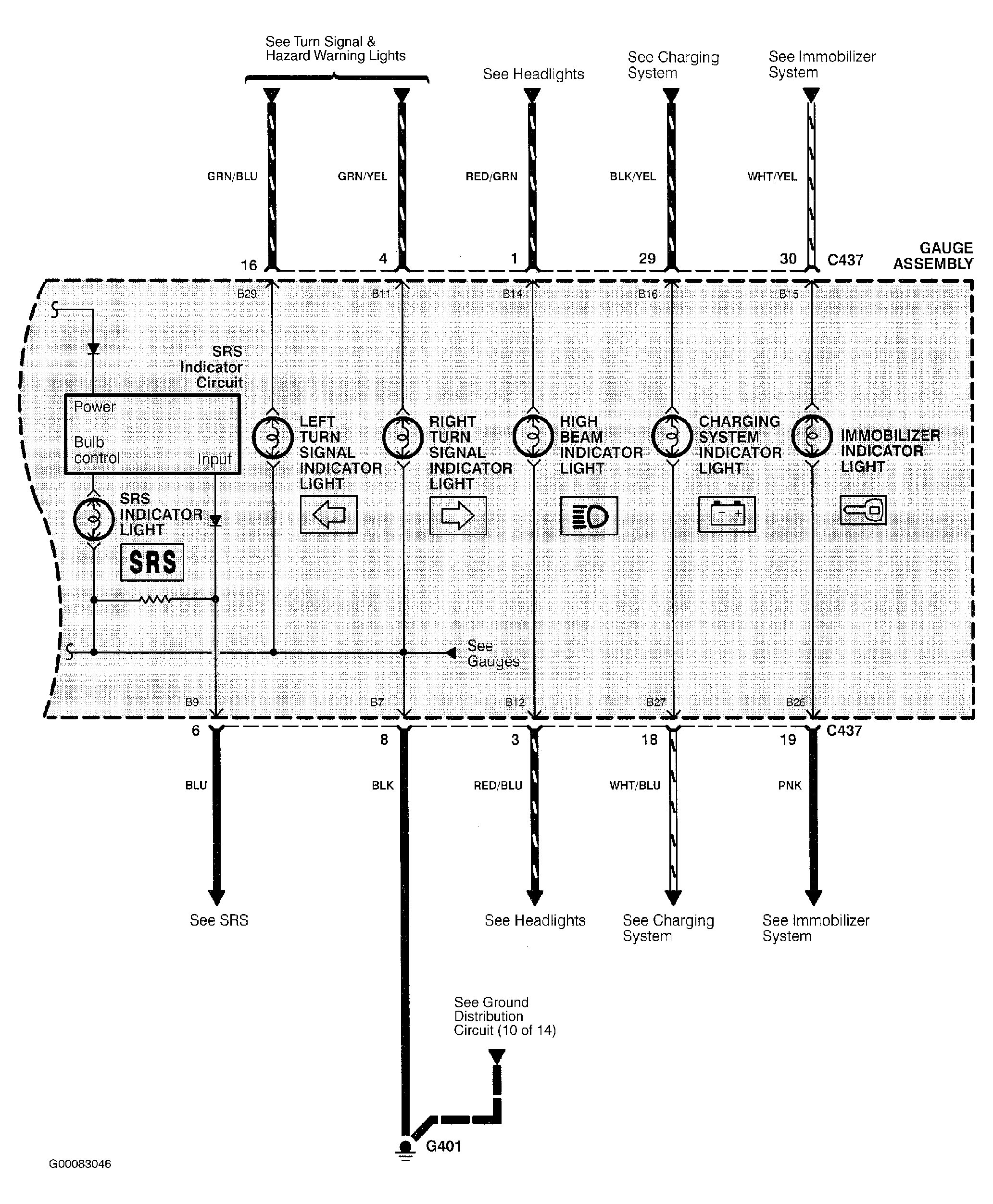

Fig 24: Indicators Wiring Diagram (1997-2001 - 4 Of 4)

G00083046

Courtesy of AMERICAN HONDA MOTOR CO., INC.

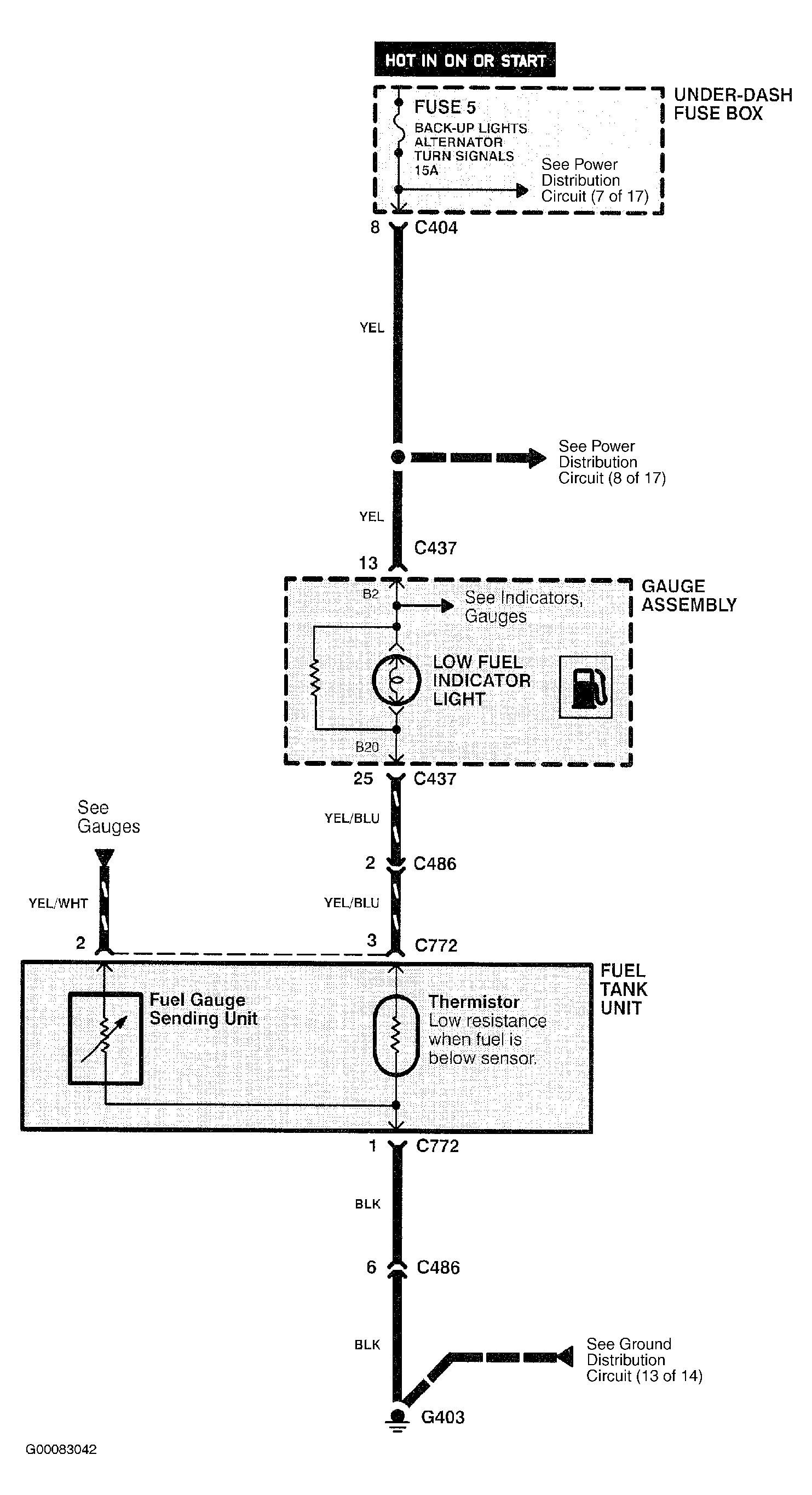

Fig 25: Low Fuel Indicator Light Wiring Diagram (1997-2001)

G00083042

Courtesy of AMERICAN HONDA MOTOR CO., INC.

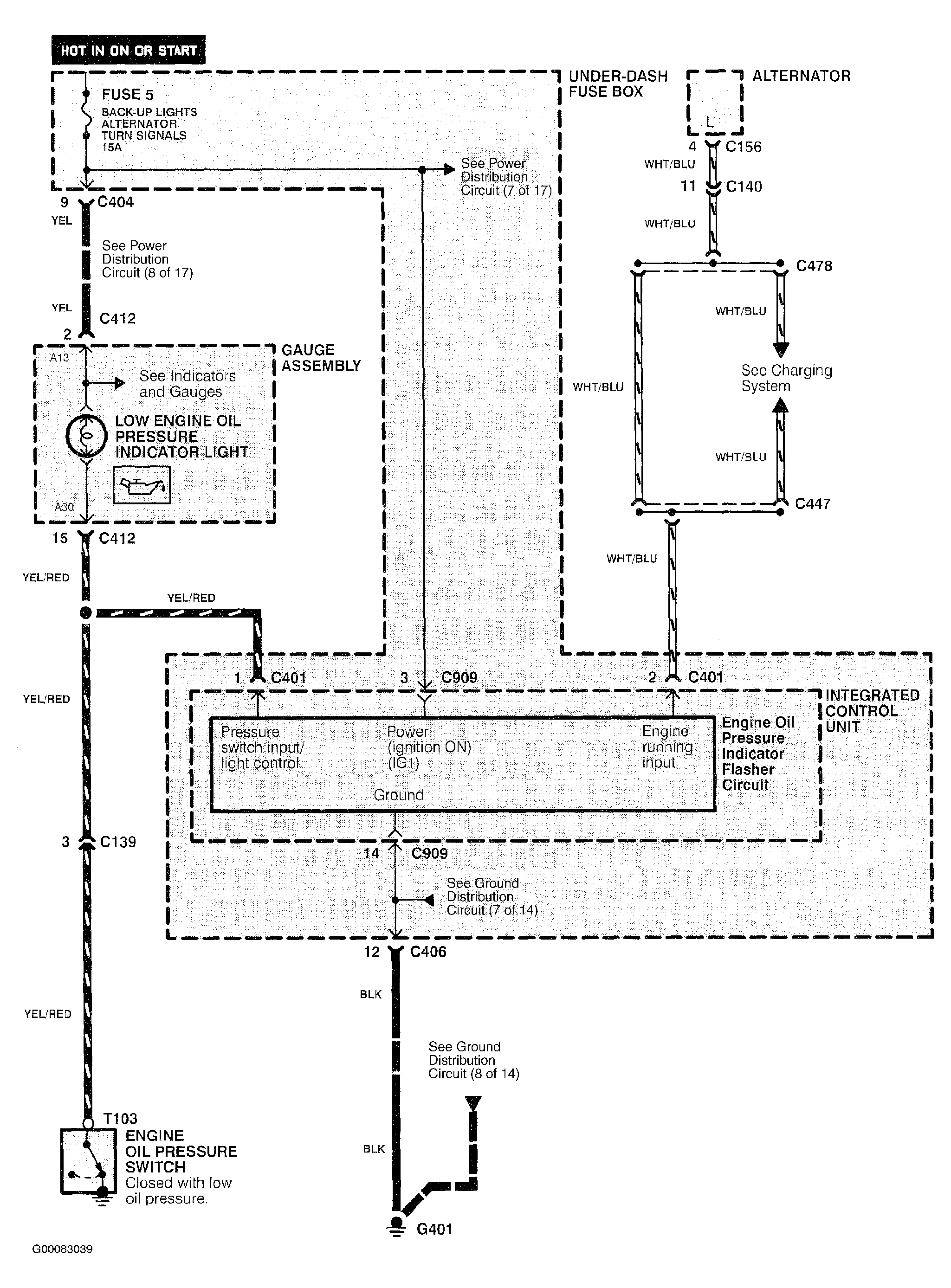

Fig 26: Engine Oil Pressure Indicator Light Wiring Diagram (1997-2001)

G00083039

Courtesy of AMERICAN HONDA MOTOR CO., INC.

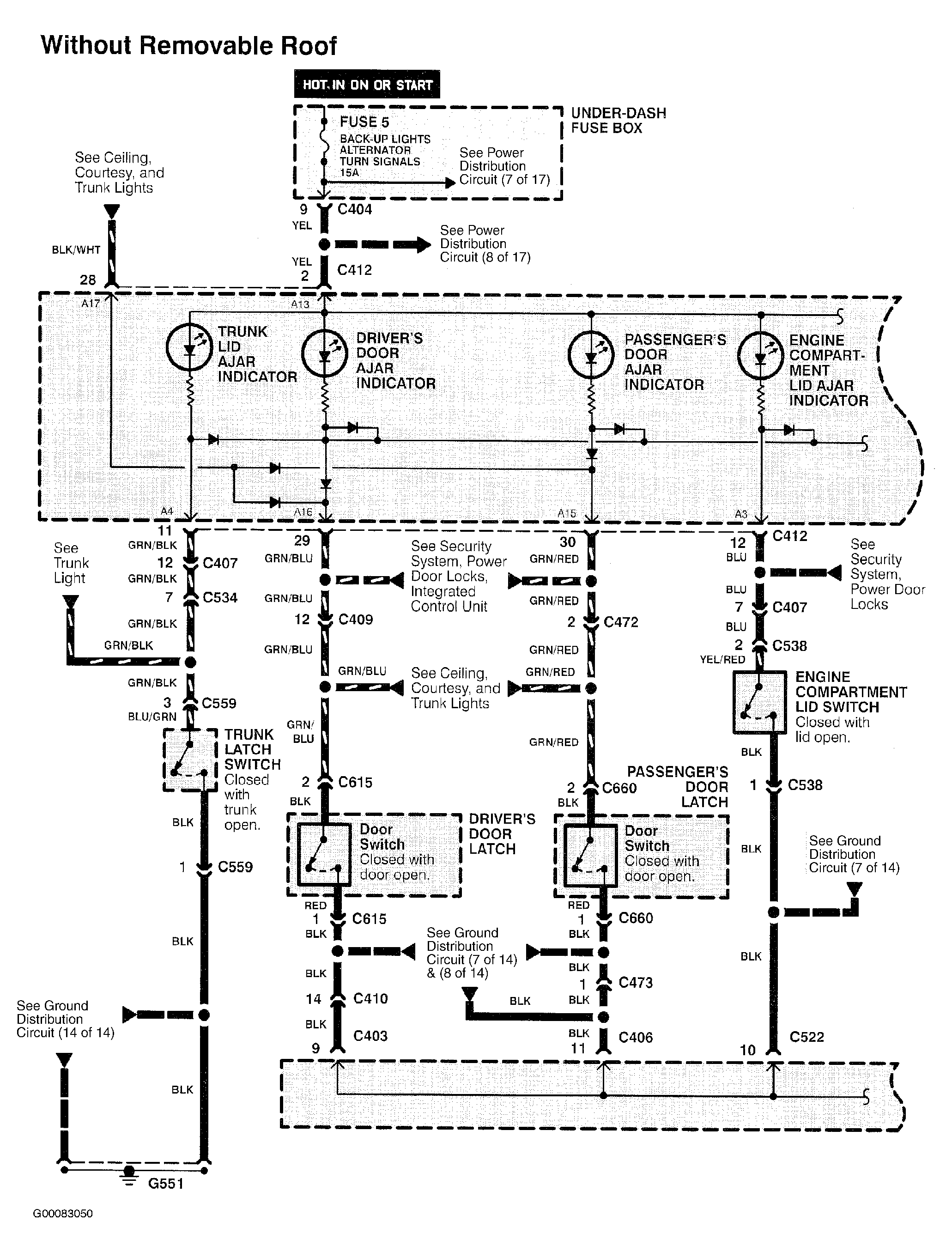

Fig 27: Safety Indicator Wiring Diagram (1997-2001 - 1 Of 4)

G00083050

Courtesy of AMERICAN HONDA MOTOR CO., INC.

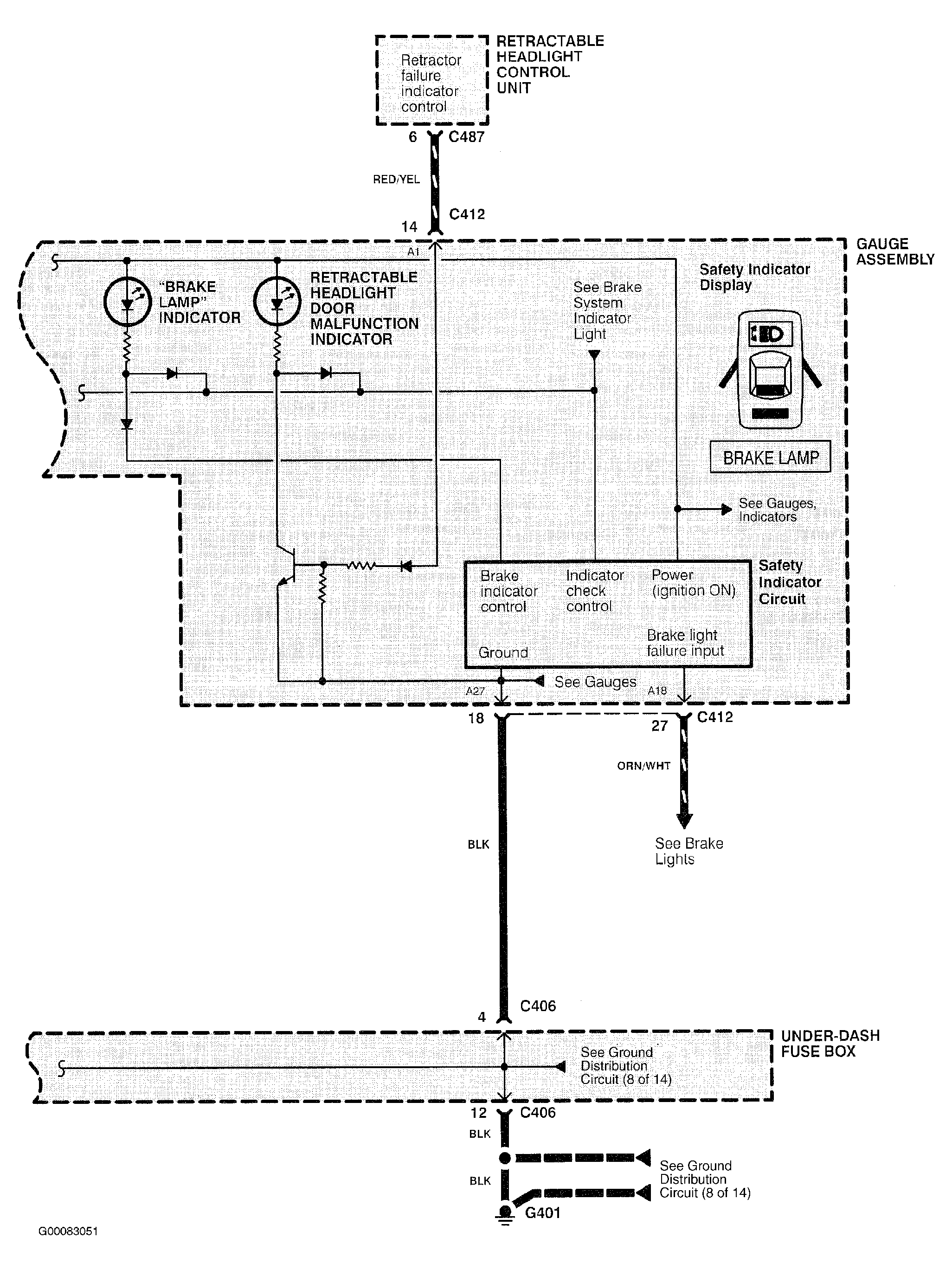

Fig 28: Safety Indicator Wiring Diagram (1997-2001 - 2 Of 4)

G00083051

Courtesy of AMERICAN HONDA MOTOR CO., INC.

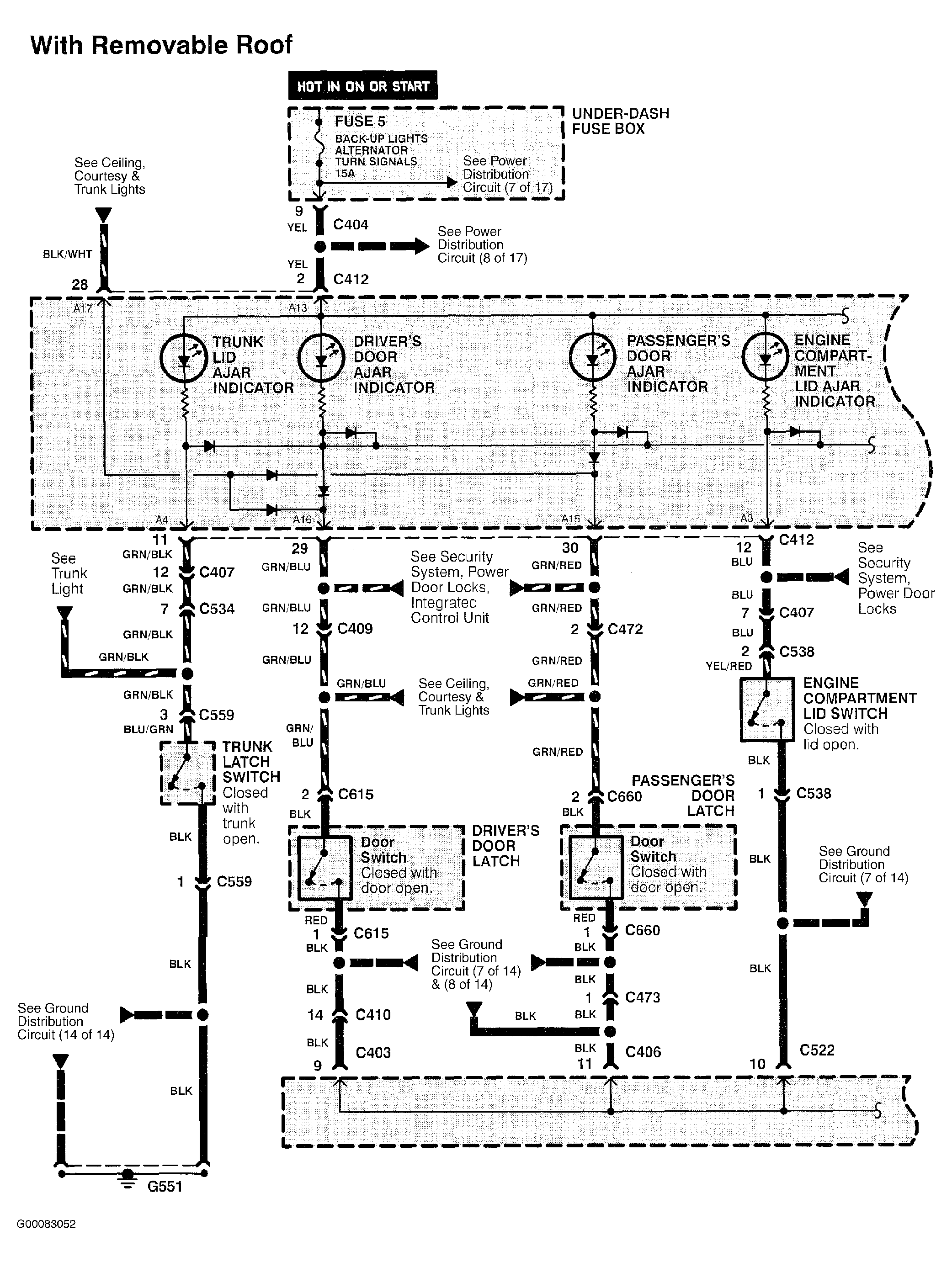

Fig 29: Safety Indicator Wiring Diagram (1997-2001 - 3 Of 4)

G00083052

Courtesy of AMERICAN HONDA MOTOR CO., INC.

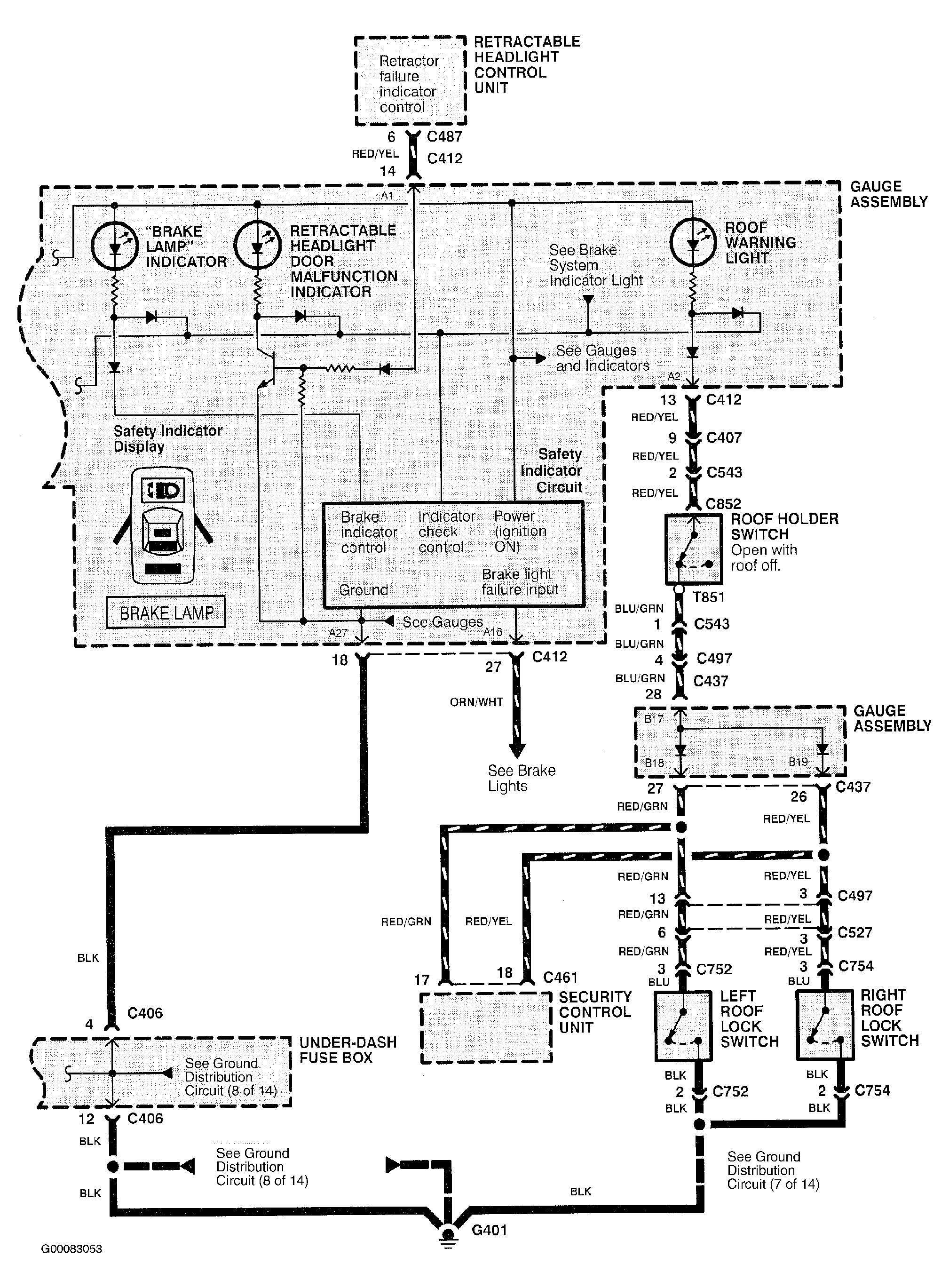

Fig 30: Safety Indicator Wiring Diagram (1997-2001 - 4 Of 4)

G00083053

Courtesy of AMERICAN HONDA MOTOR CO., INC.

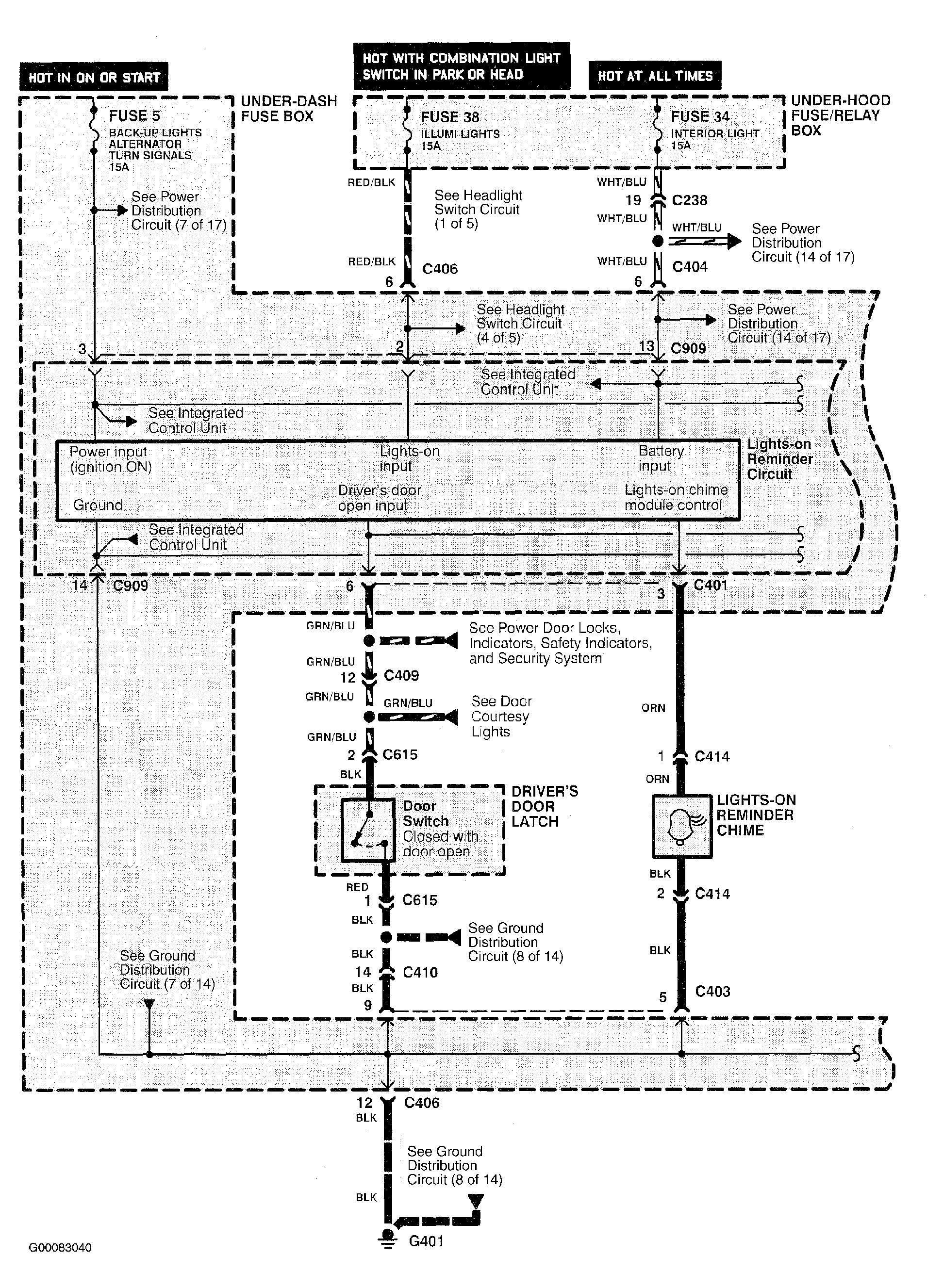

Fig 31: Seat Belt, Lights On, And Ignition Key Reminder Wiring Diagram (1997-2001)

G00083040

Courtesy of AMERICAN HONDA MOTOR CO., INC.

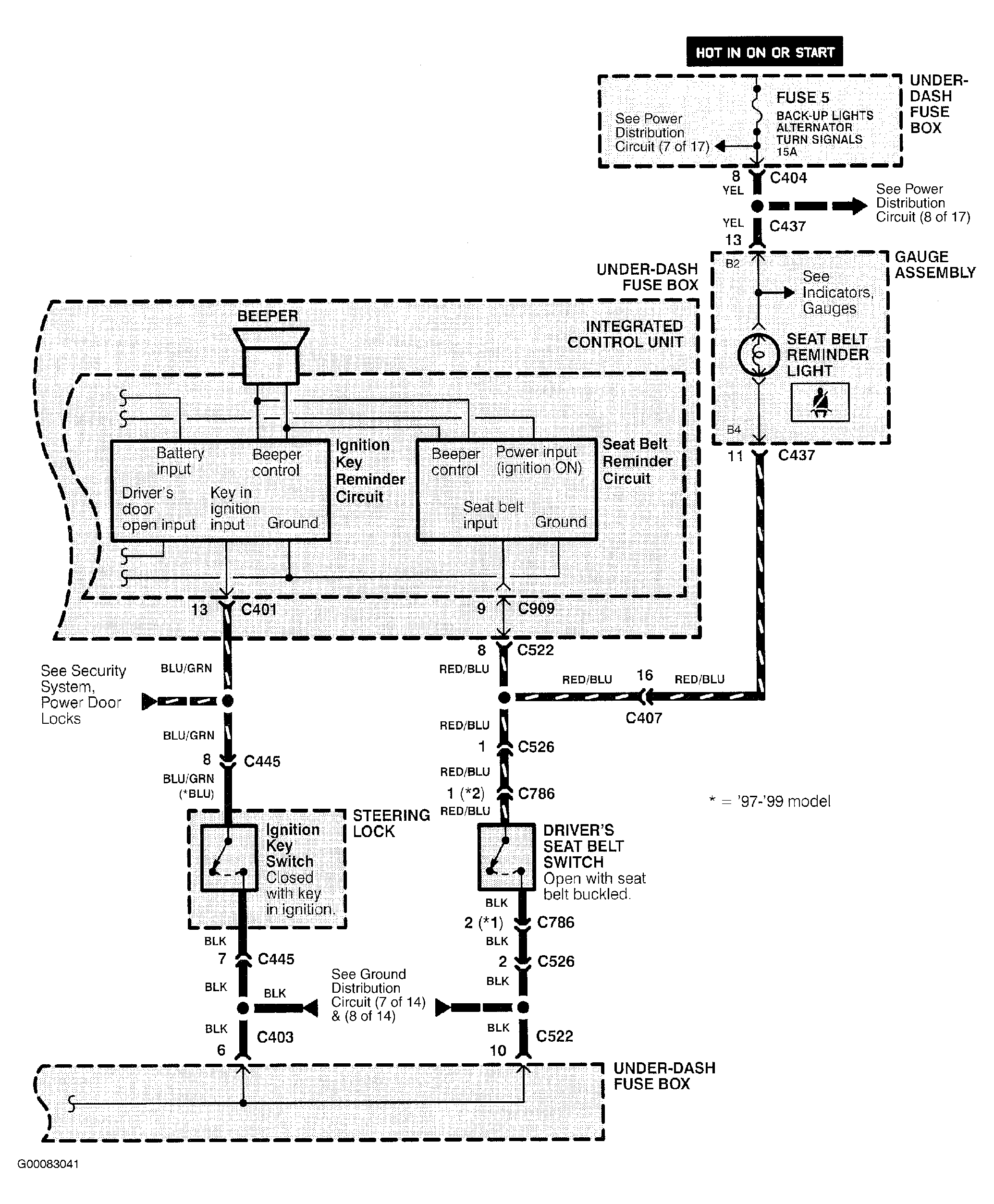

Fig 32: Seat Belt, Lights On, And Ignition Key Reminder Wiring Diagram (1997-2001)

G00083041

Courtesy of AMERICAN HONDA MOTOR CO., INC.
