Test Q: Seat Belt Switch

  1. Slide the driver's seat all the way forward, then disconnect the 2-P connector from the seat belt switch. See Fig 1.
  2. Check continuity between the A and B terminals with the driver's seat belt buckled and unbuckled.
    • There should be no continuity with the driver's seat belt buckled.
    • There should be continuity with the seat belt unbuckled.

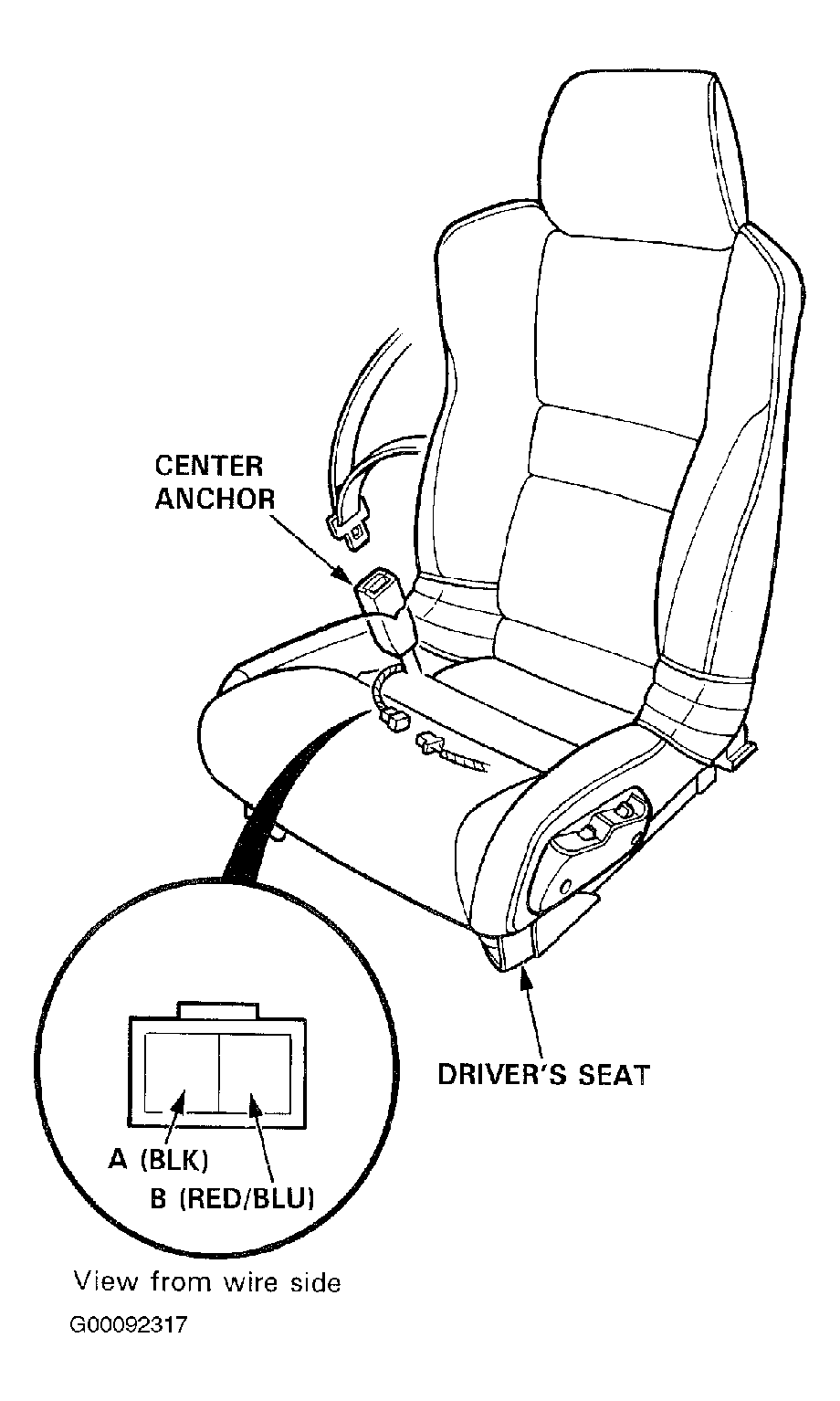

Fig 1: Testing Seat Belt Switch
G00092317Courtesy of AMERICAN HONDA MOTOR CO., INC.
