Test O: Roof Lock Switch

  1. Remove the headliner.
  2. Disconnect the 3-P connector from the roof lock switch. See Fig 1.
  3. There should be continuity between the A and B terminals with the switch released (roof unlatched or off). See Fig 2.
  4. There should be no continuity with the switch pushed (roof latched).

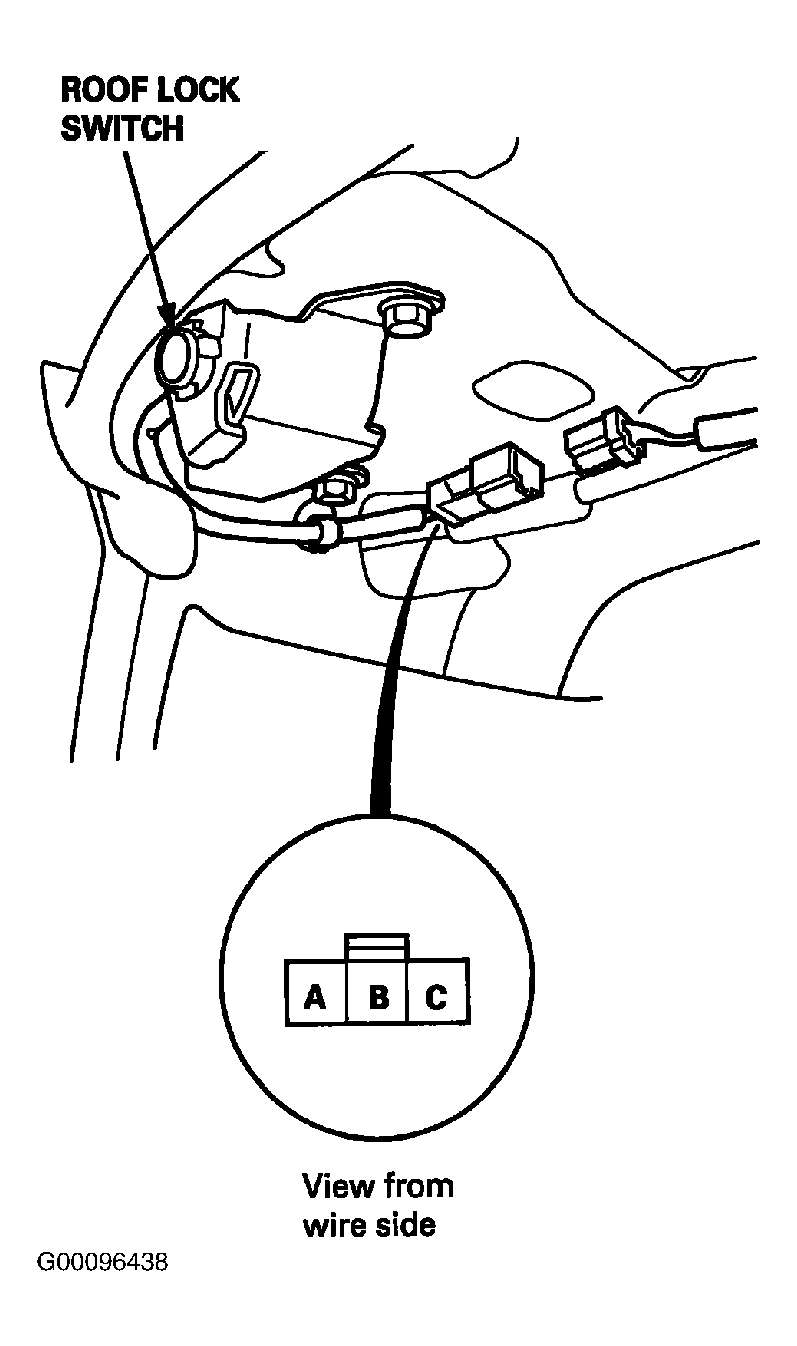

Fig 1: Testing Roof Lock Switch (1 Of 2)
G00096438Courtesy of AMERICAN HONDA MOTOR CO., INC.

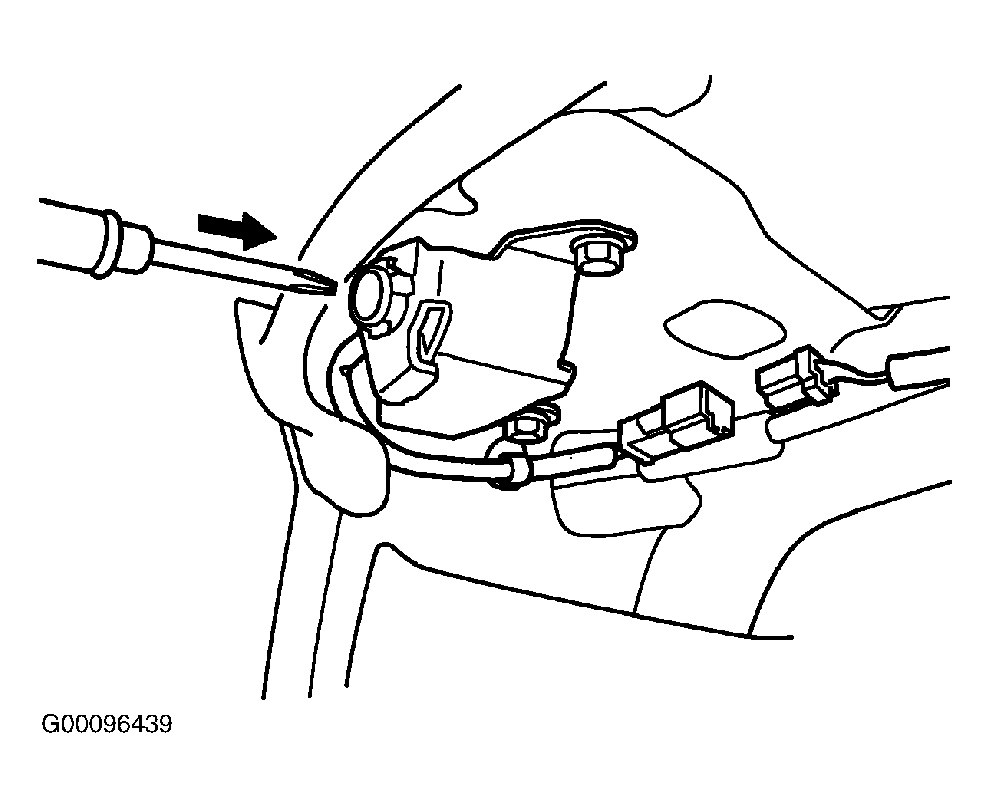

Fig 2: Testing Roof Lock Switch (2 Of 2)
G00096439Courtesy of AMERICAN HONDA MOTOR CO., INC.
