Test N: Roof Holder Switch

  1. Open the rear hatch and engine cover.
  2. Disconnect the 1-P connector from the roof holder switch.
  3. There should be continuity between the A and B terminals with the switch released (roof not stored). See Fig 1.
  4. There should be no continuity with the switch pushed (roof stored).

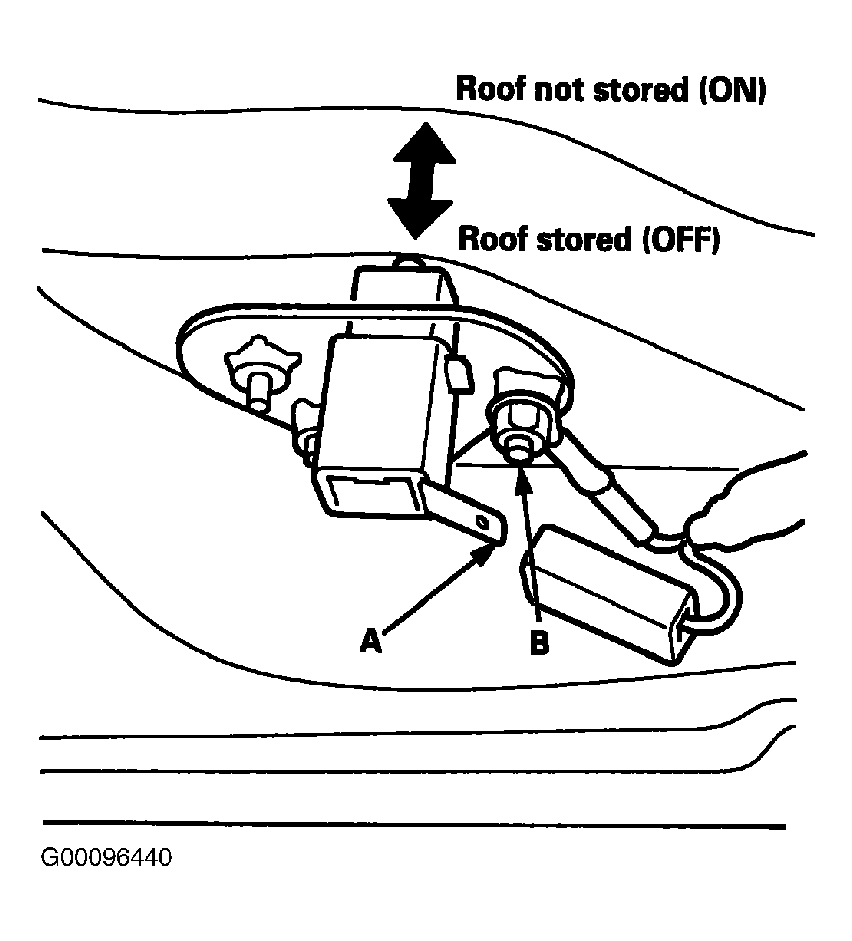

Fig 1: Testing Roof Holder Switch
G00096440Courtesy of AMERICAN HONDA MOTOR CO., INC.
