Removal & Installation

Removal and installation information is not available from manufacturer. Refer to illustration for exploded view of master cylinder and booster assembly. See Fig 1 .

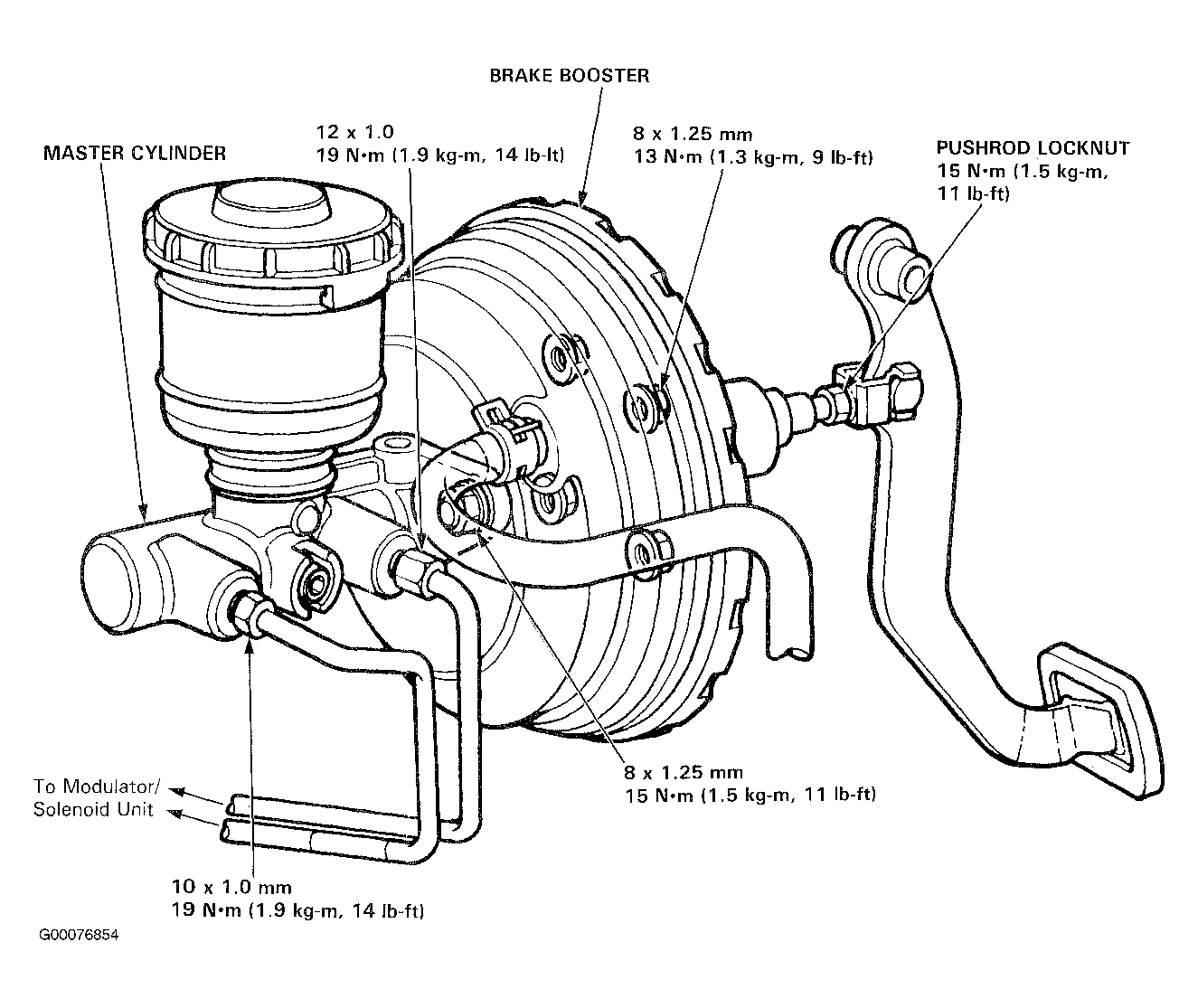

Fig 1: Identifying Master Cylinder & Booster Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.
